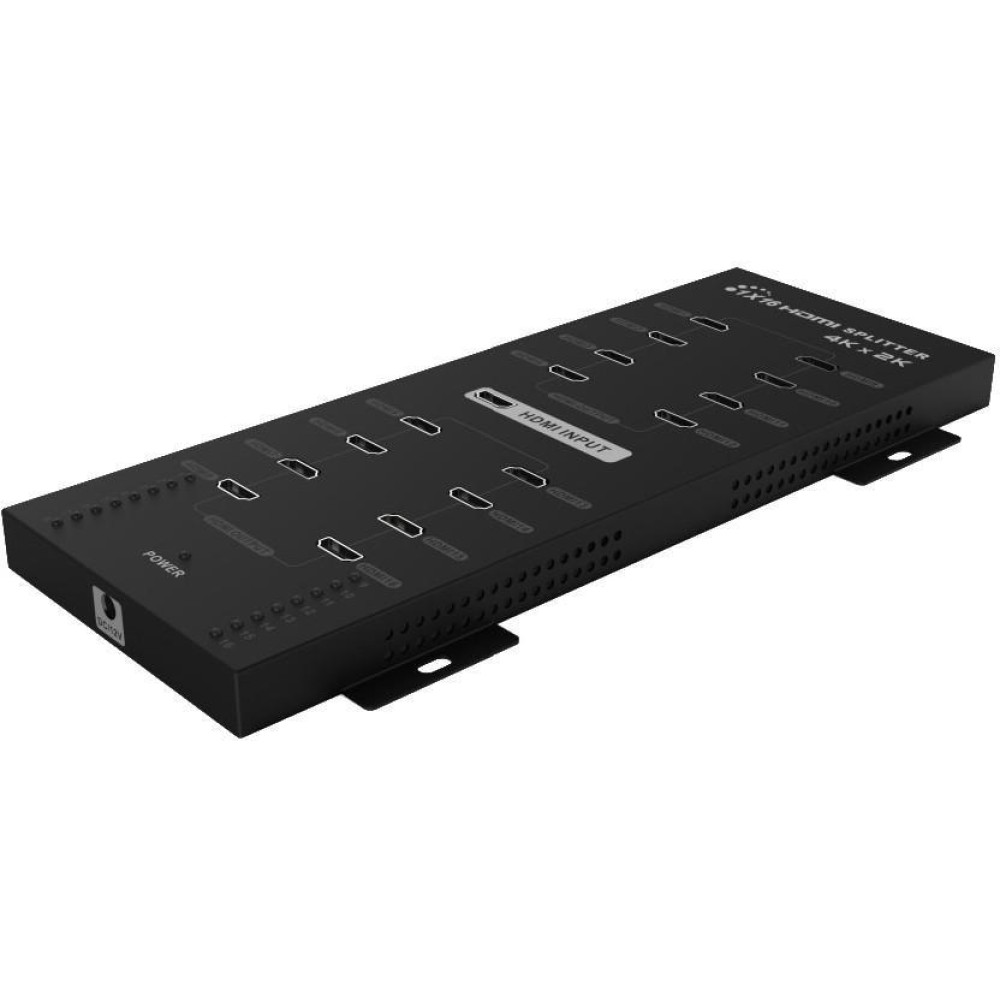

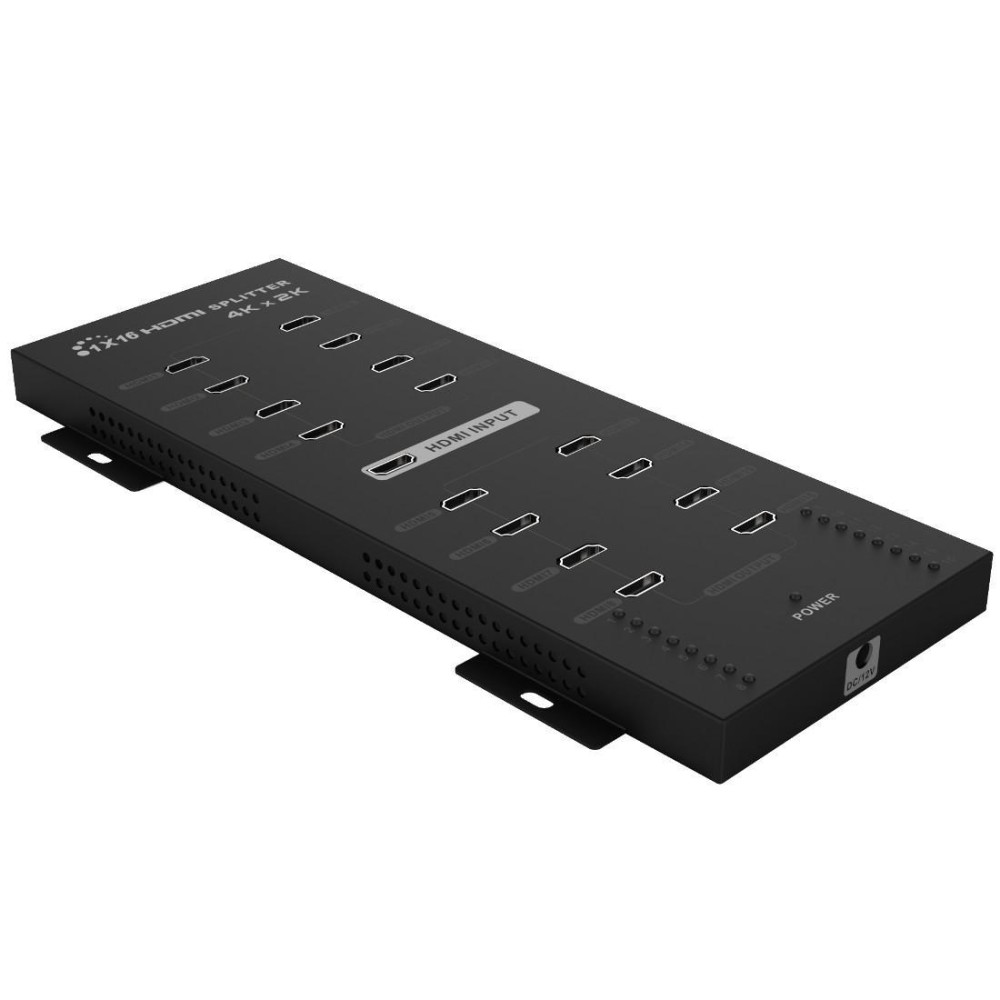

16-way HDMI splitter 4K * 2K 3D Wall Mounts

Cod: IDATA HDMI-4K16

Barcode: 8057685309906

Supplier Code: 309906

Weight: 1.314 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Switch and Splitter to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Switch and Splitter
right for you
Configure now
Certificazioni: EC
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore A: HDMI-A
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.3
Compatibile 3D: Yes
  • 1 input, 16 output HDMI 1.4
  • Supports Ultra 4Kx2K HD (3840 x 2160 @ 30Hz)
  • Full support 3D 1080P
  • Supports Full HD 1080p
  • Maximum bandwidth of 340 MHz (10.2 Gbps)
  • Technology Plug and Play - no need for settings
  • Data transfer maximum speed up to 10.2 Gbps (340MHz)
  • Fully compatible with HDMI v1.4, DVI v1.0 and HDCP v1.3
  • Supports standard audio LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Supports cables in / out 10/15 meters at 1080p / 8 bit
  • Can be cascaded
  • Wall mounting
  • Material: aluminum alloy
  • Black color
Description
The HDMI Splitter HDMI-IDATA 4K16 simultaneously distributes the image and the sound of an HDMI source (such as a Blu-ray, PS3 or similar devices) up to 16 screens (like TVs LED / Plasma and Projectors). The splitter is compatible with HDMI 1.4 and supports all common formats HDMI. It Supports 3D Full HD 1080p and the new high-resolution format 4Kx2K. It can also be placed at the end of a long line of HDMI cable to play the HDMI signal.
It offers HD video distribution solutions are ideal for supermarkets, shopping centers, showrooms, as well as for home entertainment systems.

Features
  • 1 input, 16 output HDMI 1.4
  • Supports Ultra 4Kx2K HD (3840 x 2160 @ 30Hz)
  • Full support 3D 1080P
  • Supports Full HD 1080p
  • Maximum bandwidth of 340 MHz (10.2 Gbps)
  • Technology Plug and Play - no need for settings
  • Data transfer maximum speed up to 10.2 Gbps (340MHz)
  • Fully compatible with HDMI v1.4, DVI v1.0 and HDCP v1.3
  • Supports standard audio LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
  • Supports cables in / out 10/15 meters at 1080p / 8 bit
  • Can be cascaded
  • Wall mounting
  • Material: aluminum alloy
  • Black color
Environmental Characteristics
  • Operating temperature: -10 / 55 ° C
  • Storage Temperature: -20 / 70 ° C
  • Relative humidity: 0/95% non-condensing
Dimensions
  • Width 111 mm
  • Depth 17 mm
  • Height 296 mm
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x HDMI Splitter 16-way
  • 1x Power 12V / 3A
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8057685309906
Certifications EC, FCC , RoHS Color Black
Codice Fornitore 309906
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x Alimentazione 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 16
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 1.4 HDCP 1.3
3D compatible Yes Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Requested (included) Consumo energetico 12V/3A
dimensions
Width 111 mm Height 296 mm
Depth 17 mm Weight 1.3140
The package includes • 1x Splitter HDMI a 16 vie • 1x Alimentatore 12V/3A • 1x Manuale d'istruzioni
