Techly Professional
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-1
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-1
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-0
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-1
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-2
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-3
+9
19" Ghost rack cabinet with White grilled door - TECHLY PROFESSIONAL - I-CASE EJ-2512WHV-1
Techly Professional
"Ghost" Armadio Rack 19" super sottile e super discreto Watch the video

19" Ghost rack cabinet with White grilled door

Cod: I-CASE EJ-2512WHV

Barcode: 8051128107272

Supplier Code: 107272

Weight: 31.448 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE EJ-2512WHV
Barcode
8051128107272
Supplier Code
107272
Weight
31.448 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Floor cabinet with one-piece structure made of sturdy steel
  • Removable grilled front panel with two key locks with different keys
  • Lateral sides with ventilation slits
  • Interior divided into three sections, one section equipped with horizontal 9U, another with 7U horizontal and 3U vertical positioned on sliding uprights (the use of vertical 3Us could reduce the possibility of using horizontal ones) and an intermediate section from 1U vertical indicated for the installation of a 19 "socket
  • Complete with adjustable front uprights and 6 leveling feet included
  • Base with provision for cable entry through pre-cut profiles
  • Optional accessories available such as: 150 mm deep perforated shelf and 3U bracket for vertical device installation on rack upright
  • Color RAL 9016 (white)
  • Dimensions: 530 x 1210 x 250 mm (HxWxD)
Description
  • Underfloor cabinet with an "invisible" design which, thanks to its appearance similar to a fan coil, is ideal for networking applications in special environments such as hospitals, museums, art galleries, picture galleries, libraries ... and in all those areas where it is necessary to hide his presence
  • Super thin cabinet (only 25cm), suitable for rooms with limited space; the positioning on the floor makes it the ideal solution for situations where it is not possible to evaluate wall installations

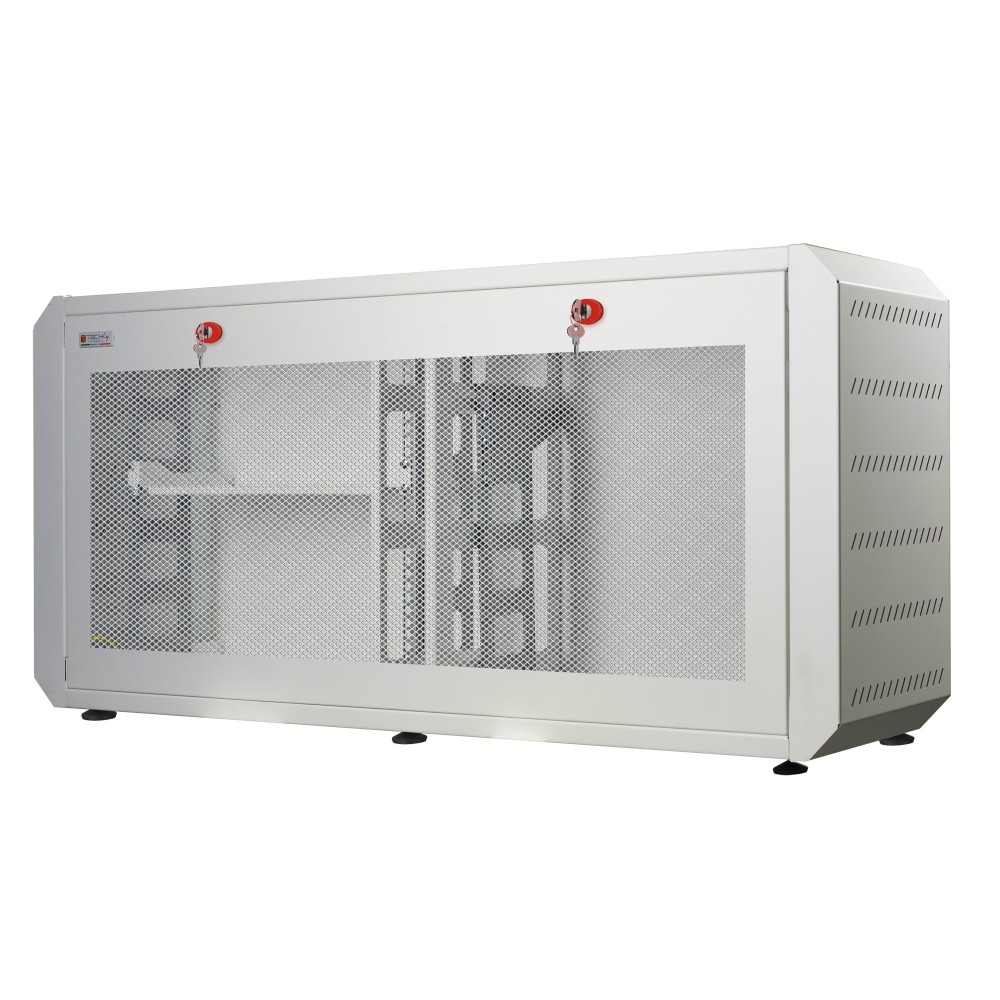

  • Front panel in metal available both in the blind version and in the easily removable perforated version; equipped with two key locks with different keys to protect the devices from unwanted access and ensure the security of sensitive data

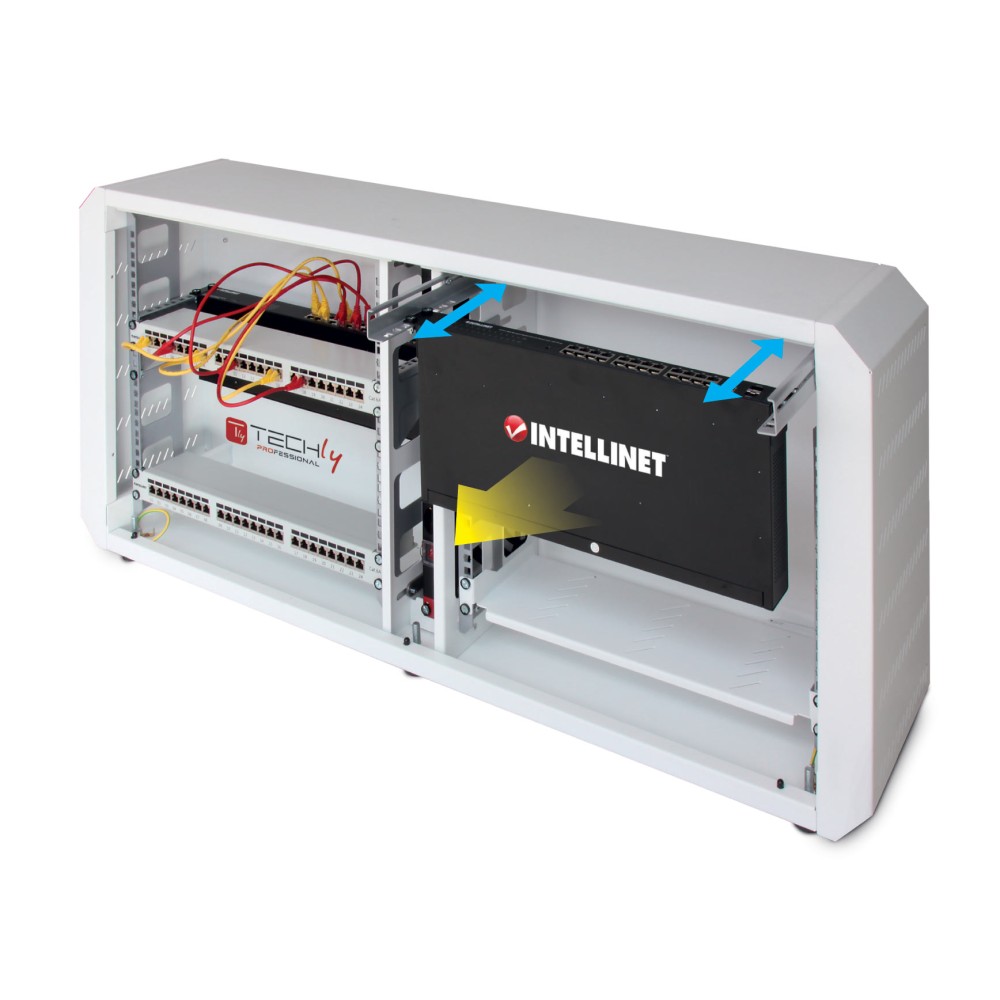

  • Interior divided into three sections, one section equipped with horizontal 9U, another with 7U horizontal and 3U vertical positioned on sliding uprights and an intermediate section of 1U vertical
Features
  • Floor cabinet with one-piece structure made of sturdy steel
  • Removable grilled front panel with two key locks with different keys
  • Lateral sides with ventilation slits
  • Interior divided into three sections, one section equipped with horizontal 9U, another with 7U horizontal and 3U vertical positioned on sliding uprights (the use of vertical 3Us could reduce the possibility of using horizontal ones) and an intermediate section from 1U vertical indicated for the installation of a 19 ”multi-socket (not included)
  • Complete with adjustable front uprights and 6 leveling feet included
  • Base with provision for cable entry via pre-cut profiles (210x50mm)
  • Optional accessories available such as: 150 mm deep perforated shelf and 3U bracket for vertical device installation on rack upright
  • Color RAL 9016 (white)
  • Dimensions: 530 x 1210 x 250 mm (HxWxD)
Certification
  • CE certification according to EN 62208 standard
  • Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
  • Compliance with the UNI EN ISO 9001: 2015 standard
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128107272
Typology Floor Rack inches 19"
Assembly Assembled Units 20
Color White Ingress Protection IP -
Ability to static load - Certifications CE , ISO 9001, EN 60529 , EN 62208, EN12150
Years of Warranty 15 Codice Fornitore 107272
dimensions
Rack width 1210 mm Rack depth 250 mm
Height 530 mm Weight 31.4480
side panels
Appearance Blind Removable No
Closure type -
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Grilled Removable Yes
Door material Sheet Reversible No
Closure type Lock Locking points 2
Maximum aperture -
roof
Prepared for ventilation Yes Prepared for Cable Input No
uprights
Front 2 adjustable Rear No
included accessories
Leveling feet Yes Base No
Wheel No Uprights 10''/19'' Anteriors
Brushes hold powder No Grounding kit No
