19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-1
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-1
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-0
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-1
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-2
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-3
+4
19" Rack cabinet 10U single section depth 500mm White - TECHLY PROFESSIONAL - I-CASE EW-2010WH5-1
Techly Professional
L’armadio Techly Professional che protegge la tua rete da accessi indesiderati Watch the video

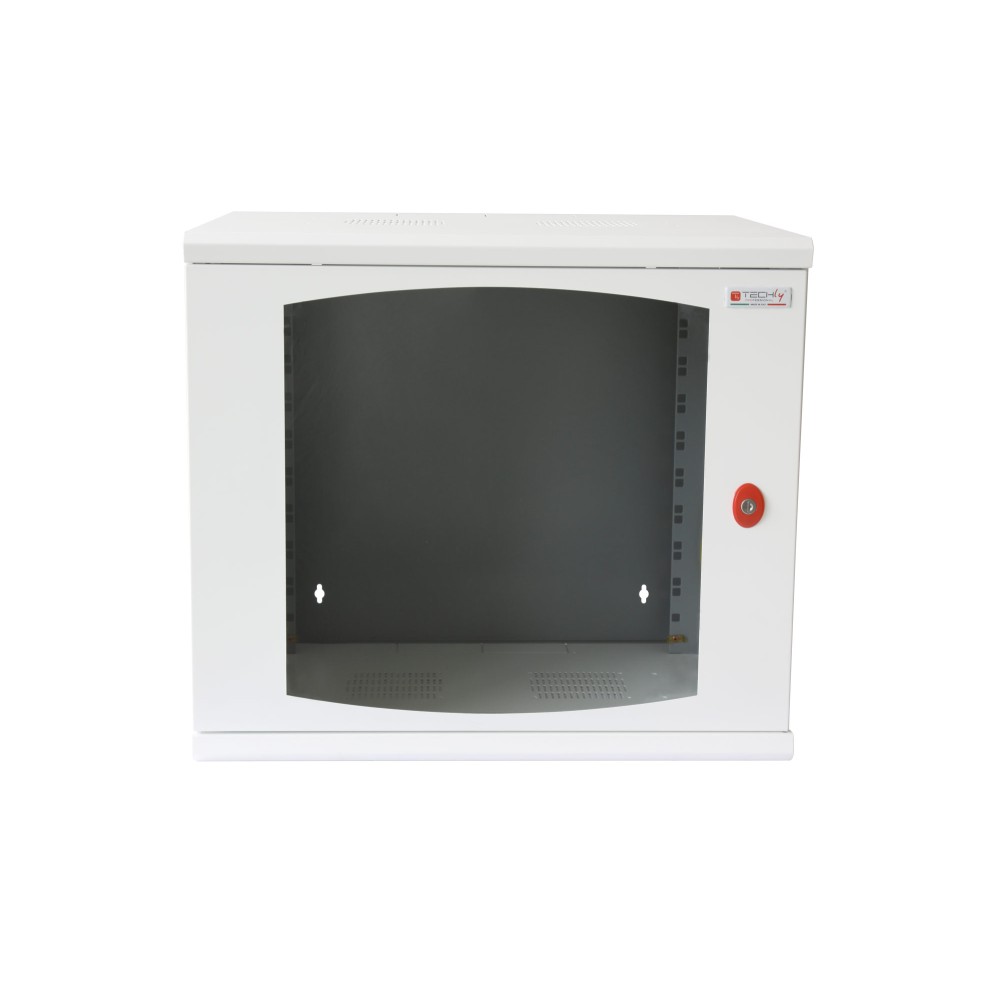

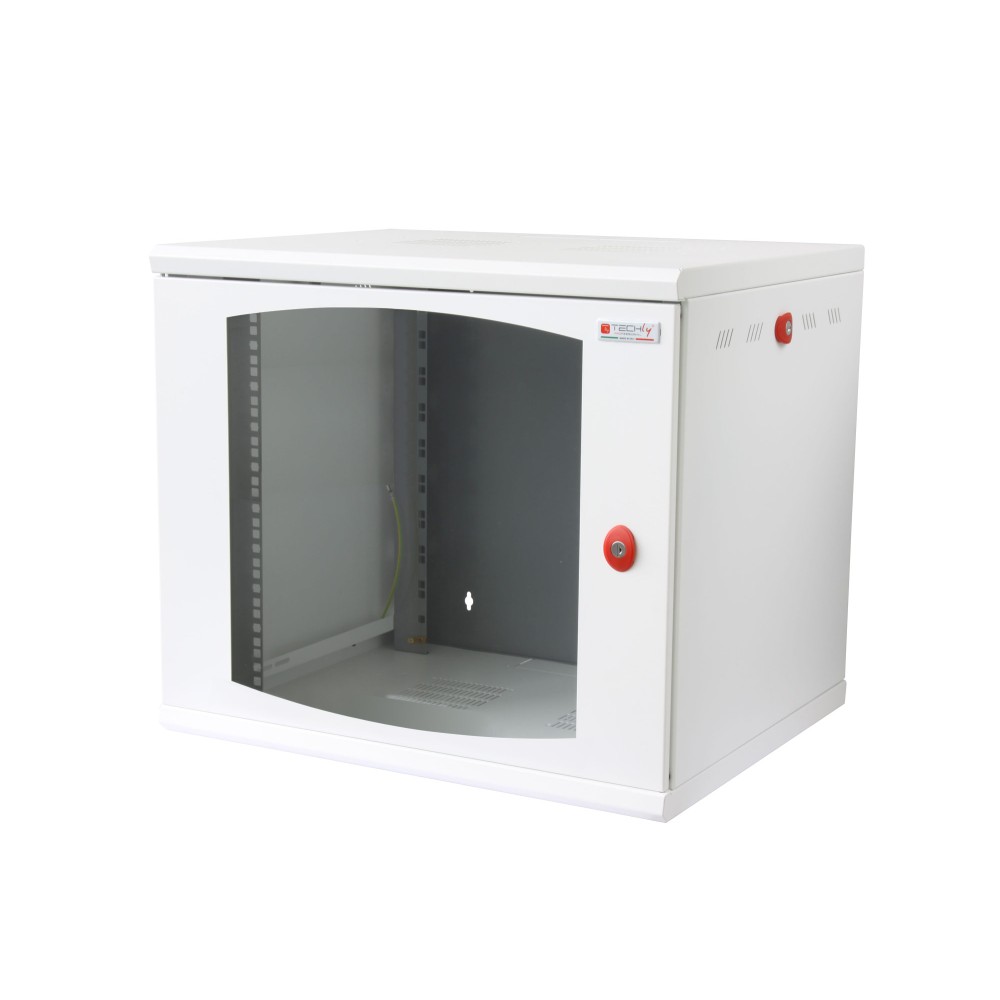

19" Rack cabinet 10U single section depth 500mm White

Cod: I-CASE EW-2010WH5

Barcode: 8051128105001

Supplier Code: 105001

Weight: 15.750 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE EW-2010WH5
Barcode
8051128105001
Supplier Code
105001
Weight
15.750 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 50 kg
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall unit with a single section of 10 units with sturdy painted steel structure
  • Door in tempered safety glass, easily removable and reversible, opening angle greater than 210°, key lock
  • Fixed blind back panel with holes for quick wall installation
  • Removable blind side panels provided with key lock and ventilation slots
  • Two pairs of 19" uprights, of which the front ones can be adjusted in depth
  • Holes for wheels or feet (not included in the package)
  • Color: RAL 9016 (white)
  • Dimensions: 523x600x500 mm (AxLxP)
* The image is indicative and has only the purpose of highlighting the cabinet structure; for color and size refer to the product sheet
Description
  • Wall unit with a single section of 10 units with sturdy painted steel structure
  • Tempered safety glass door compliant with EN ISO 12150-1 standards, easily removable and reversible, opening angle greater than 210°, locking with key
  • Fixed blind back panel with holes for quick wall installation
  • Removable blind side panels provided with key lock and ventilation slots
  • Provision for cable entry on the base and on the roof using pre-cut profiles (210 x 50 mm)
  • Arrangement for the installation of 2 120 mm fans
  • Pair of 19" front uprights in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 360 mm)
  • Pair of fixed 19" rear uprights
  • Grounding kits and cables included in the supply
  • Holes for wheels or feet (not inlcued in the pacakge)
  • Static flow: 50 kg
  • Degree of protection: IP20 according to EN 60529 standard
  • Color: RAL 9016 (white)
  • Dimensions: 523x600x500 mm (AxLxP)
Certification
  • CE certification according to EN 62208
  • Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
  • Compliance with the UNI EN ISO 9001:2015 standard
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128105001
Typology Wall mount Rack inches 19"
Assembly Assembled Units 10
Color White Ingress Protection IP 20
Ability to static load 50 kg Certifications CE , ISO 9001, EN 60529 , EN 61439 , EN 62208, EN12150 , IEC 297 , IEC 297-1 , IEC 297-2 , IEC 297-3
Years of Warranty 15 Codice Fornitore 105001
dimensions
Rack width 600 mm Rack depth 500 mm
Height 523 mm Profondità utile 360 mm
Weight 15.7500
side panels
Appearance Blind Removable Yes
Closure type Key
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Tempered glass Removable Yes
Door material Glass Reversible Yes
Closure type Lock Locking points 1
Maximum aperture 210°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 adjustable Rear 2 fixed
included accessories
Leveling feet Optional Base No
Wheel Optional Uprights 10''/19'' Front and rear
Brushes hold powder No Grounding kit Yes
