19" Wall Network Rack 6U Depth 450 Black Assembled
Techly Professional presents this series of Super Eco rack cabinets, the best solution for structured cabling in small data networks and home installations. Those cabinets, thanks to their features are SUPER VERSATILE cabinets:
- Robustness: Solid structure with 1.0 mm cold rolled steel structure ensures static load up to 50 kg.
- Effectiveness: a reliable quality product but with at a very competitive price.
- Versatility: base and top are designed for installation of ventilation unit and are provided with pre-cut profiles for cable entry. Including 19" front and rear rails with scale; with removable side panels.
- Safety: Front door and side panels with key lock.
- Single section wall cabinet 6 units, assembled
- Robust welded structure in cold rolled steel

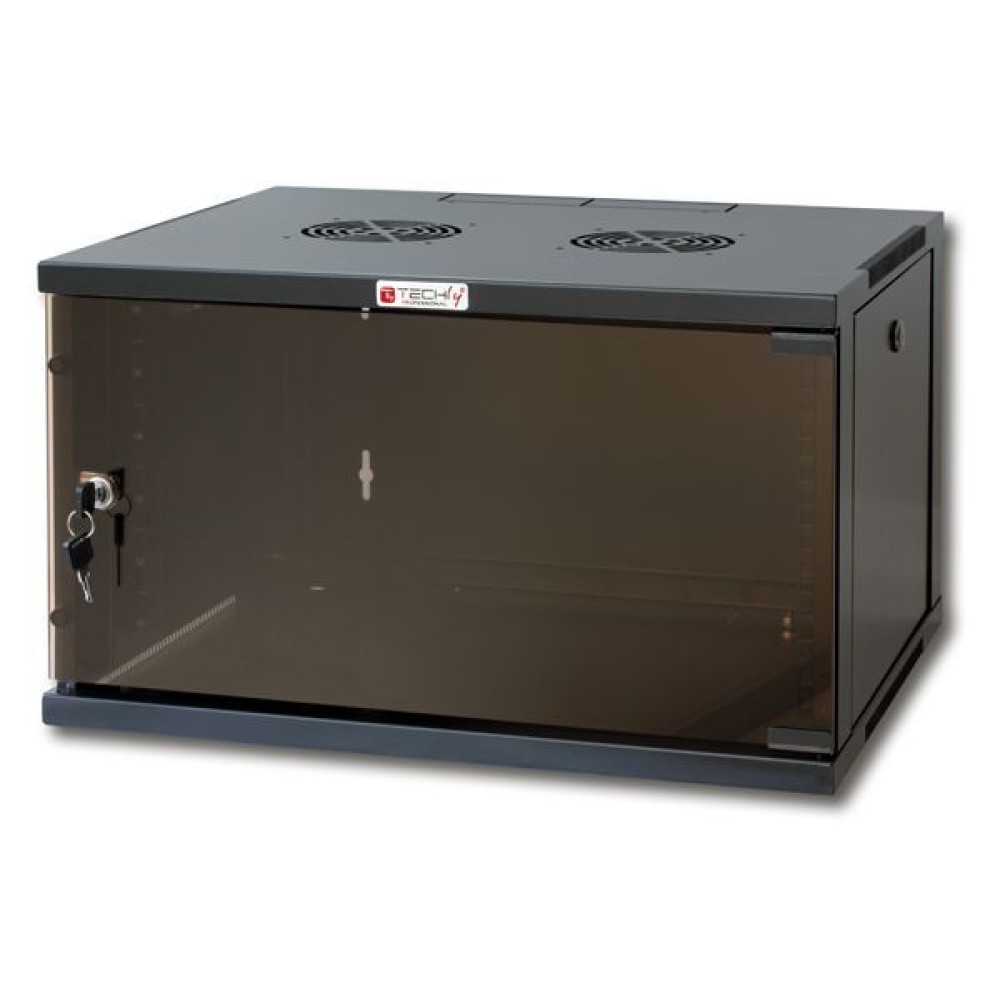

- 5 mm glass door, easily removable and reversible, opening angle greater than 180°, key lock
- Removable blind side panels with key lock
- Cable entry facilities both on the top and on the bottom with pre-cut profiles (225 x 45 mm)
- Two ventilation fans with 120 mm dimension may be installed on the top cover of the cabinet
- Pair of 19" rails (1.5 mm) with scale mounted on the front and on the back, adjustable in depth (maximum useful depth 305 mm, minimum 235 mm)
- 4 holes are provided on the bottom for leveling feet installation
- Static load: 50 kg
- Protection category: IP20
- Color RAL 9004 (black)
- Dimensions: 310x540x450 mm (HxLxD)
- Included in the furniture 10 cage nuts, 10 Torx screws and 1 Torx wrench
|Typology||Wall mount||Rack inches||19"|
|Color||Black||Ingress Protection IP||20|
|Ability to static load||50 kg||Certifications||ISO 9001|
|Years of Warranty||15||Codice Fornitore||101560|
|Rack width||540 mm||Rack depth||450 mm|
|Height||310 mm||Profondità utile||305 mm|
|Closing handle points||-||Maximum aperture||-|
|Closure type||1/4 lock||Locking points||1|
|Prepared for ventilation||Yes||Prepared for Cable Input||Yes|
|Front||2 adjustable||Rear||2 adjustable|
|Wheel||No||Uprights 10''/19''||Front and rear|
|Brushes hold powder||No||Grounding kit||No|
|The package includes||Kit di montaggio composto da 10 dadi in gabbia, 10 viti Torx e una chiave Torx|
