1x2 HDMI Extender Splitter over CAT6/6a/7 60m

Cod: IDATA EX-HL21TY2

Barcode: 8051128104868

Supplier Code: 104868

Weight: 1.412 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA EX-HL21TY2
Barcode
8051128104868
Supplier Code
104868
Weight
1.412 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Certificazioni: CE
Tipo connettore B: RJ45 8P8C
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
  • 1x2 HDMI Extender Splitter over CAT6/6a/7 40m
  • Distributes 1 HDMI source to 2 HD displays over network cable simultaneously
  • Supports one HDMI Loop-out
  • Compatible with CAT6/6a/7 network cables
  • Extends HDMI signal up to 50m/164ft over CAT6 cable
  • The highest resolution supported is up to 1080p@60Hz
  • Supports 20~60Hz IR pass back
  • Supports EDID
  • Supports power from transmitter to receiver unit over CAT6 cable
  • Plug and play
  • Wall-mounted function, easy installation
Description

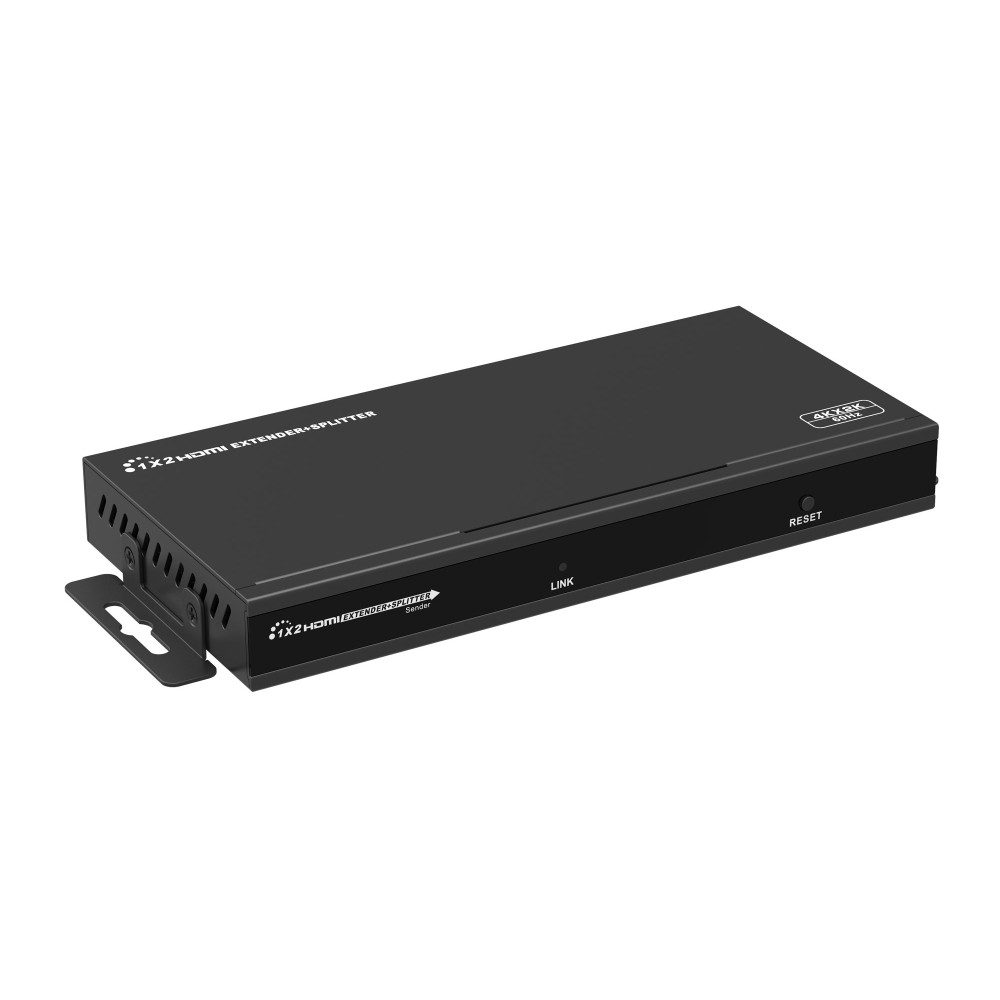

This HDMI extender splitter includes one transmitter and two receivers, extends 1 HDMI source to 2 HDMI displays over single CAT6/6a/7 cable up to 60m. The highest resolution supported is 4Kx2K@60Hz ultra HD, and it supports IR pass back, EDID pass through and only one power adapter for the transmitter is needed, the receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, video conference and show center, etc.

Features
  • Distributes 1 HDMI source to 2 HD displays over network cable simultaneously
  • Supports one HDMI Loop-out
  • Compatible with CAT6/6a/7 network cables
  • Extends HDMI signal up to 60m over CAT6 cable
  • The highest resolution supported is up to 4Kx2K@60Hz ultra HD
  • Supports 20~60Hz IR pass back
  • Supports EDID
  • Supports power from transmitter to receiver unit over CAT6 cable
  • Plug and play
  • Wall-mounted function, easy installation
Technical specifications
  • HDMI2.0, compatible with HDCP2.2
  • Support resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2140@30/60Hz
  • Supports distance up to 30 m with 4Kx2K@60Hz resolution, up to 50 m with 4Kx2K@30Hz resolution, up to 60 m with 1080p@60Hz resolution
  • IR Signal: supports 20-60KHz IR devices
  • EDID: support EDID setting function
  • Working temperature: 0°C – 60°C
  • Power Supply: DC12V/2A
  • Power consumption: Transmitter < 12W / Receiver < 6W
  • Dimensions: Transmitter 161.6 x 85.31 x 31.0 mm / Receiver 101.1 x 81.6 x 20.6 mm
  • Color: black
Package contents
  • Transmitter unit x 1pc
  • Receiver unit x 2pcs
  • DC12V/2A x 1pc
  • IR Blaster extension cable x 1pc
  • IR receiver extension cable x 2pc
  • User manual x 1pc
Data sheet
general
Brand Techly Np Barcode 8051128104868
Certifications CE Color Black
Codice Fornitore 104868
input

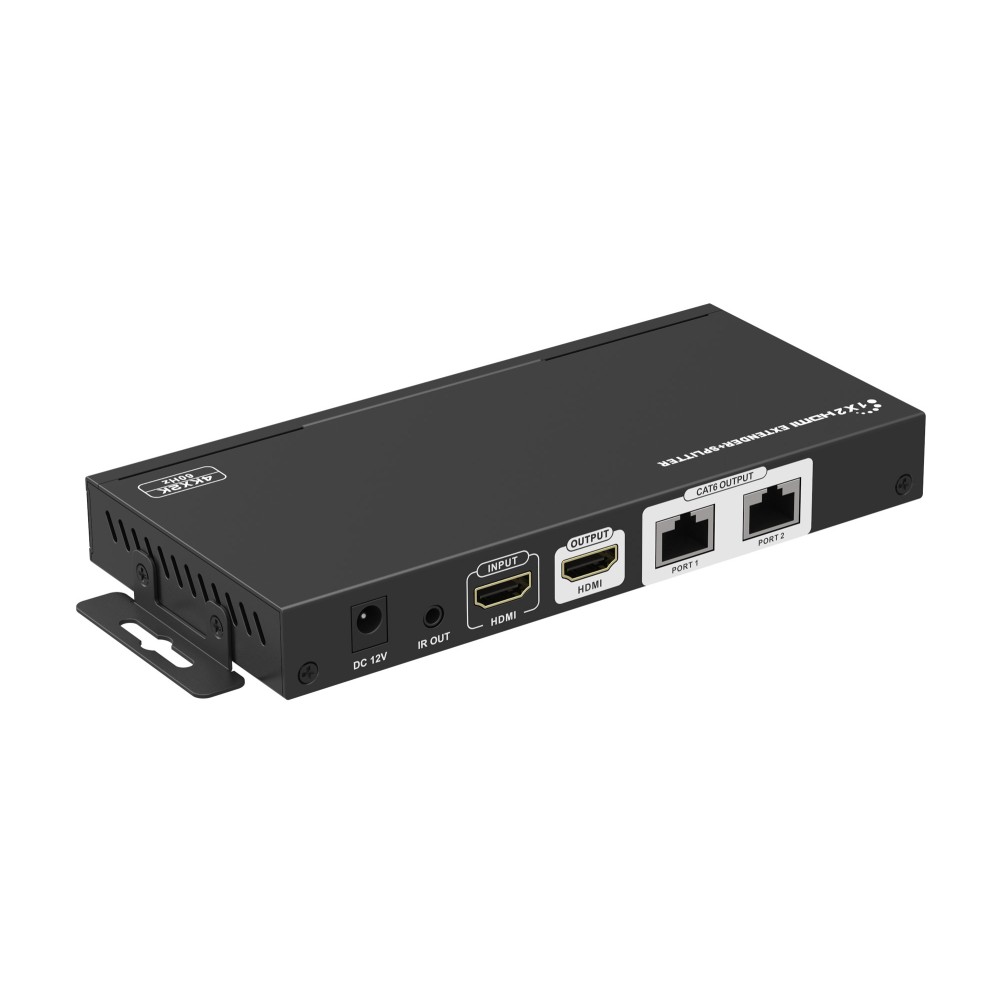

Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input • 1 x DC12V • 1 x IR
output
Connector B Type RJ45 8P8C format B connector female
Number B Connector 2 Altri Connettori Output • 1 x IR • 1 x HDMI
technical specifications
Typology Amplifier, Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible - Supported audio standards -
Transmission Distance 60 m
power supply
Power supply Requested (included) Consumo energetico • Trasmettitore < 12W • Ricevitore < 6W
dimensions
Width • Trasmettitore 161.6 mm • Ricevitore 101.1 mm Height • Trasmettitore 31.0 mm • Ricevitore 20.6 mm
Depth • Trasmettitore 85.31 mm • Ricevitore 81.6 mm Weight 1.4120
The package includes • Trasmettitore x 1pz • Ricevitore x 2pz • Alimentatore DC12V/2A x 1pz • Cavo di estensione IR Blaster x 1pz • Cavo di estensione ricevitore IR x 2pz • Manuale d’istruzione x 1pz
