HDBitT HDMI 2x2 Video Wall Controller

Cod: IDATA HDMI-MX22

Barcode: 8054529028047

Supplier Code: 028047

Weight: 1.733 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA HDMI-MX22
Barcode
8054529028047
Supplier Code
028047
Weight
1.733 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Certificazioni: CE
Tipo connettore B: HDMI
HDCP: 1.2
  • Split and scale a single Hi-Def HDMI source to 4 HDMI displays to creat a large video wall
  • Input and output resolutions up to 1080p Full HD
  • Allows HDMI signal to be transmitted over a single CAT6 cable
  • Transmission distance up to 394ft/120m
  • Compatible with various type of displays (LCD monitors, Projector,DLP,HD Plasma Display etc.)
  • Apply HDbitT technology; Compatible with HDbitT HDMI/DVI/SDI/VGA transmitter
  • HDMI and HDCP compliant; Plug-and-play ready
Description
This video wall controller is a perfect solution for real-time display one 1080P HDMI source to 4 monitors, which are installed in a 2x2 configurationto create a large video wall. The transmission distance between source anddisplay up to 394ft/120m. It is ideal for entertainment and digital signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other similar venues.

Features
  • Split and scale a single Hi-Def HDMI source to 4 HDMI displays to creat a large video wall
  • Input and output resolutions up to 1080p Full HD
  • Allows HDMI signal to be transmitted over a single CAT6 cable
  • Transmission distance up to 394ft/120m
  • Compatible with various type of displays (LCD monitors, Projector,DLP,HD Plasma Display etc.)
  • Apply HDbitT technology; Compatible with HDbitT HDMI/DVI/SDI/VGA transmitter
  • HDMI and HDCP compliant; Plug-and-play ready
Specification
  • HDMI signal: HDMI 1.3
  • HDCP: full compatible with HDCP 1.2

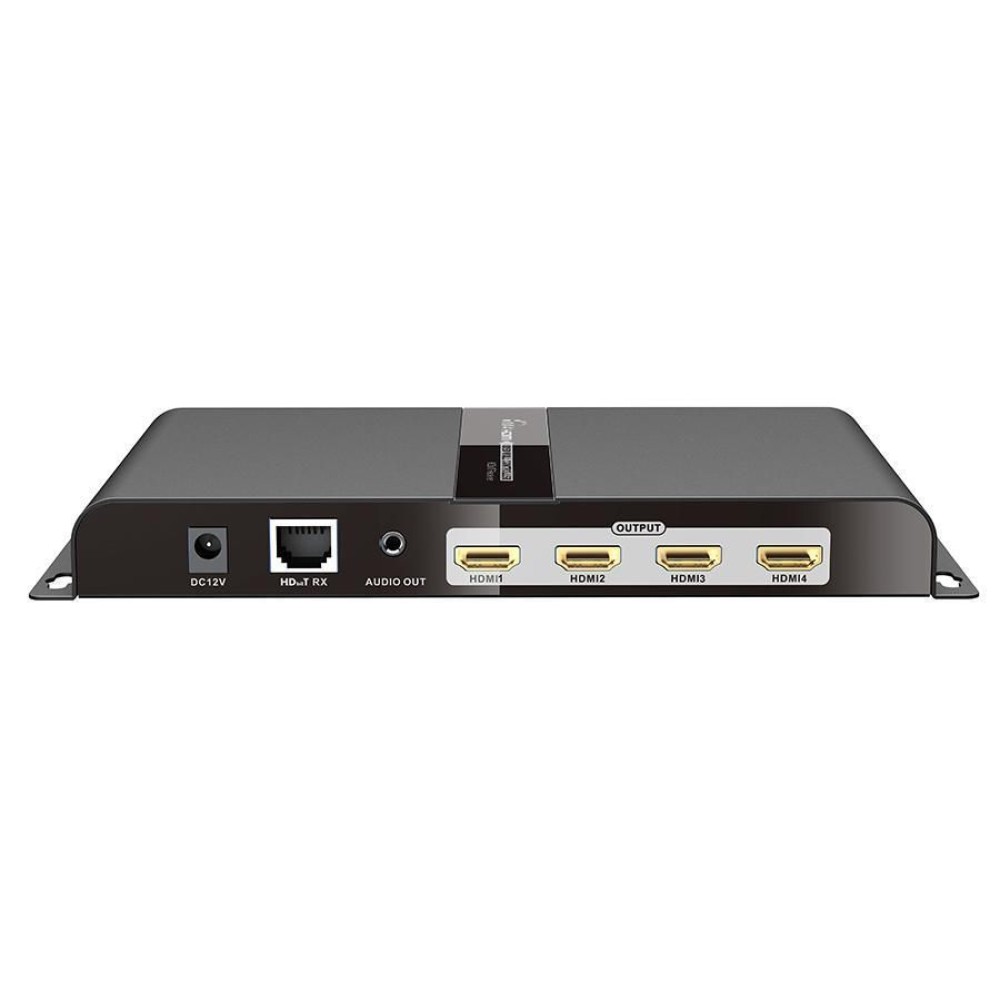

  • Input port: RJ45
  • Output port: HDMI type A(Female)
  • HDMI Resolution: 480i@60Hz, 480p@60Hz,576i@50Hz,576p@50Hz,720P@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Transmission distance: Up to 120 meters transmission distance for 1080p@60Hz Full HD over single CAT6
  • Transmission rate: 18Mbps
  • Video bandwidth: 225Mpixels/s
  • Power supply: 12V /2A
  • Power consumption: < 18W
  • Product dimension: 228 x 125.4 x 25 mm
  • Weight: 0.65Kg
  • Color: Black
Pacakge contents
  • 2x2 Video Wall Controller transmitter
  • 2x2 Video Wall Controller receiver
  • IR control for transmitter
  • Audio cable for receiver
  • 12V/2A Power supply transmitter
  • 12V/2A Power supply receiver
  • User's manual
Data sheet
general
Brand TECHLY Barcode 8054529028047
Certifications CE Color -
Codice Fornitore 028047
input
Connector A Type RJ45 8P8C format A connector female
Number A Connector 1 Altri Connettori Input Jack alimentazione x1
output
Connector B Type HDMI format B connector female
Number B Connector 4 Altri Connettori Output Connettore Audio x1
technical specifications
Typology Splitter Max Video Resolution Full HD 1920 x 1080
max bandwidth (MHz) 250 MHz Deep Color -
HDMI 1.3 HDCP 1.2
3D compatible - Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico <18W
dimensions
Width 228 mm Height 25 mm
Depth 125.4 mm Weight 1.7330
The package includes • 2x2 Video Wall Controller • Alimentatore 12V/2A • Manuale d'istruzione
