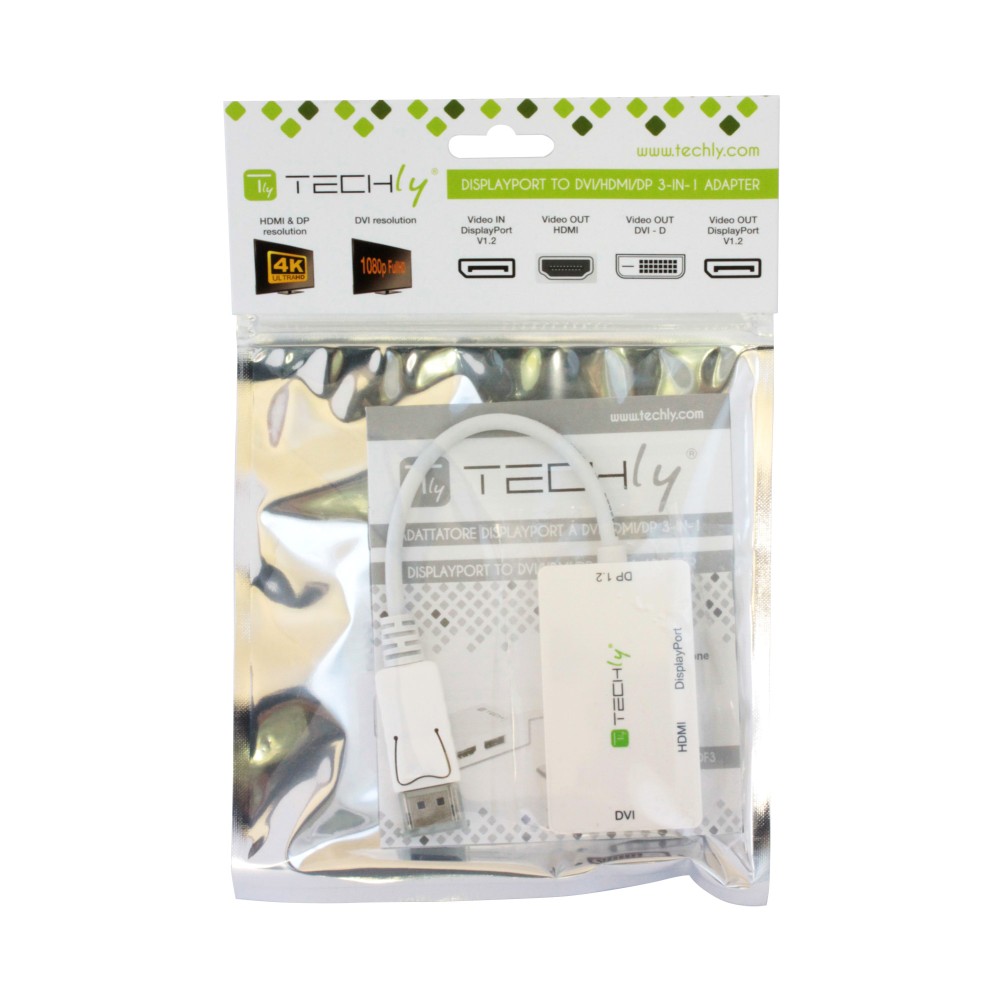

3-in-1 Adapter from DisplayPort to DVI, HDMI and DisplayPort
Code: IADAP DP-COMBOF3    Barcode: 8051128102055

   Supplier Code: 102055

Available

3-in-1 Adapter from DisplayPort to DVI, HDMI and DisplayPort

Certificazioni: RoHS
Certificazioni:
Anni di Garanzia: 3
Tipo connettore A: DisplayPort 20-pin
Tipo connettore B: HDMI
Choose a different Option:

• 3-in-1 Adapter from DisplayPort Male to DVI, HDMI and DisplayPort Female
• Supports dual mode DisplayPort 1.2 input
• Supports DVI resolution up to 1080P@60HZ
• Supports HDMI resolution up to 4kx2k@30HZ
• Supports DP resolution up to 4kx2k@60HZ
• Support 3D format and compliant with lower versions
• Powered from DisplayPort source
• Color: white

Description

Details

IADAP DP-COMBOF3 is a DisplayPort 1.2 to DVI, HDMI and DisplayPort Adapter, designed for transmitting signals from a DisplayPort display ( Macbook Pro,Macbook Air,etc) to three HD displays with DVI, HDMI and DP port. This adapter saves your trouble of plugging in and out the output. With this product, you can watch videos or slideshows together on the big screen. When two or three outputs are connected, only one output can receive the input signal, the priority sequence is DVI>HDMI>DP.

Features
• 3-in-1 Adapter from DisplayPort Male to DVI, HDMI and DisplayPort Female
• Supports dual mode DisplayPort 1.2 input
• Supports DVI resolution up to 1080P@60HZ
• Supports HDMI resolution up to 4kx2k@30HZ
• Supports DP resolution up to 4kx2k@60HZ
• Support 3D format and compliant with lower versions
• Powered from DisplayPort source
• Color: white

Connections
• Input: DisplayPort Male x1
• Output: HDMI Female x1
• Output: DVI Female x1
• Output: DP Female x1

Environmental characteristics
• Operating Temperature: 0°C to +45°C
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Temperature: -10°C to +70°C
• Storage Humidity: 5% to 90 % RH (no condensation)

Power requirement
• Powered from Mini DisplayPort source
• Power Consumption:
- DVI output: <200mA
- HDMI output: <400mA
- DP output: <400mA
- No output: <20mA

Package Contents
• 3-in-1 Adapter from DisplayPortto DVI, HDMI and DisplayPort
• User manual
data sheet
generale
Brand
Techly
Barcode
8051128102055
Weight
0.0850
Certifications
CE , RoHS
Years of Warranty
3
Codice Fornitore
102055
specifiche tecniche
Typology
Converter, DisplayPort
Color
White
Connector A Type
DisplayPort 20-pin
format A connector
male
Connector B Type
HDMI
format B connector
female
Headphone connectors
No
MHL support
No
Other Features
• Ingresso: DisplayPort Maschio x1 • Uscita: HDMI Femmina x1 • Uscita: DVI Femmina x1 • Uscita: DP Femmina x1
