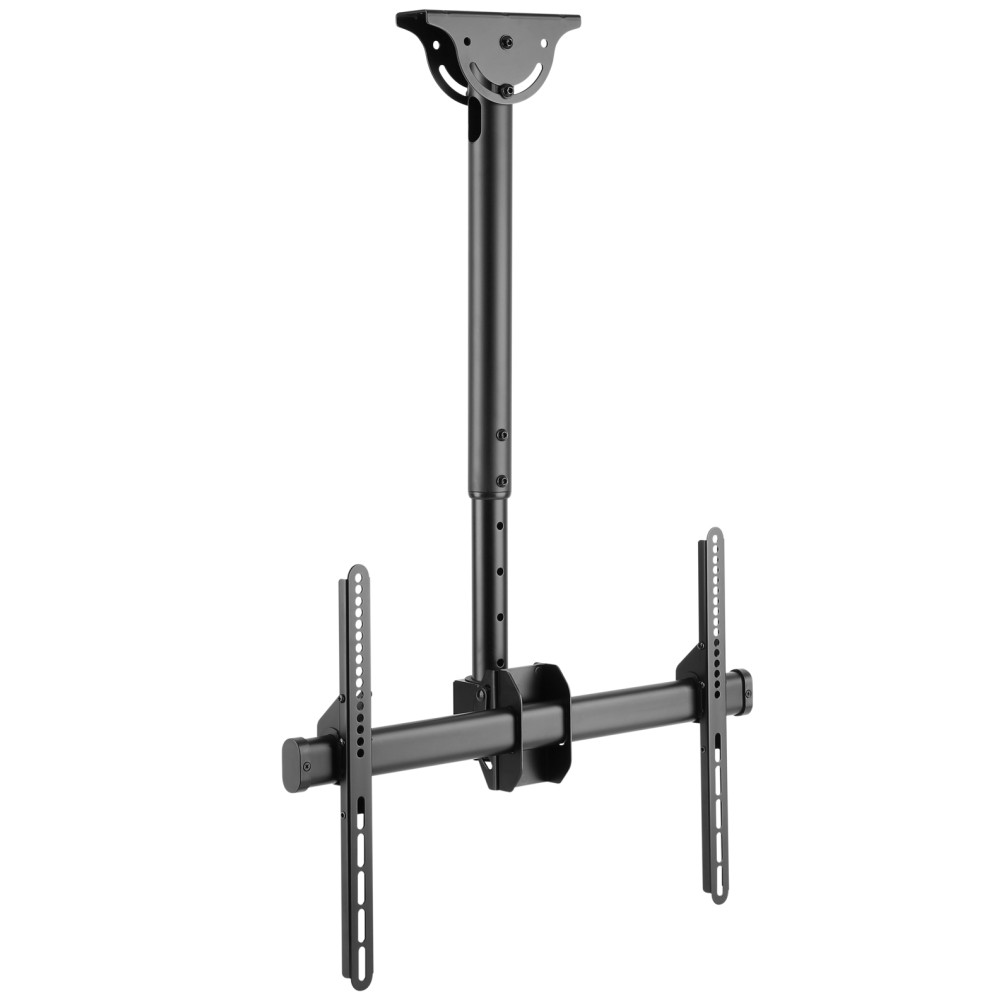

37-70" Telescopic Ceiling Long Support LED TV LCD
Code: ICA-CPLB 946L    Barcode: 8057685309357

   Supplier Code: 309357

Available

37-70" Telescopic Ceiling Long Support LED TV LCD

Anni di Garanzia: 10
Dimensioni TV: 37 - 70
Portata Kg: 50
Inclinazione Verticale: 0 a -25°
Inclinazione orizzontale: 180°
Choose a different Option:

• ICA CPLB-946L is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility
• Tilting plate for ceiling applications and sloping floor
• It allows screens to be tilted down or rotated without tools
• Includes VESA plate for any LCD TV 37 "- 70" or monitors up to 50 kg
• Adjustable height for perfect TV placement
• A flume cable management keeps cables concealed and organized
• Maximum length of the arm: 1778 mm

Features
• Arm suitable for LED LCD TV 37-70 "
• Supports max VESA 600 x 400 mm
• VESA Standard: 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400
• Maximum weight supported: 50 kg

Specifications
• inclination from 0 ° to -25 °
• Horizontal orientation: -180 ° ~ + 180 °
• With cable management
• With separate panel
• Dimensions: 680 x 435 x 1778 mm
• Material: Steel
• Color: Black

Package Contents
• Ceiling mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions

Description

Details

• ICA CPLB-946L is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility
• Tilting plate for ceiling applications and sloping floor
• It allows screens to be tilted down or rotated without tools
• Includes VESA plate for any LCD TV 37 "- 70" or monitors up to 50 kg
• Adjustable height for perfect TV placement
• A flume cable management keeps cables concealed and organized
• Maximum length of the arm: 1778 mm

Features
• Arm suitable for LED LCD TV 37-70 "
• Supports max VESA 600 x 400 mm
• VESA Standard: 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400
• Maximum weight supported: 50 kg

Specifications
• inclination from 0 ° to -25 °
• Horizontal orientation: -180 ° ~ + 180 °
• With cable management
• With separate panel
• Dimensions: 680 x 435 x 1778 mm
• Material: Steel
• Color: Black

Package Contents
• Ceiling mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
data sheet
generale
Brand
Techly
Barcode
8057685309357
Weight
8.9210
The package includes
• Supporto a soffitto per TV LED LCD • Accessori di fissaggio (viti, tasselli...) e istruzioni per l'installazione
Years of Warranty
10
Codice Fornitore
309357
compatibilità
Typology
Ceiling
TV Size
37 - 70"
VESA (mm)
200x200 , 200x300 , 300x300 , 400x200 , 400x300, 400x400 , 600x200 , 600x400
Capacity Kg
50
caratteristiche
Minimum wall distance
1060 mm
Maximum wall distance
1560 mm
Tilt
0 a -25°
Swivel
180°
Junctions number
Single arm
Rotation
No
Color
Black
Levelling bubble
No
Curved TV support
No
Security system
No
