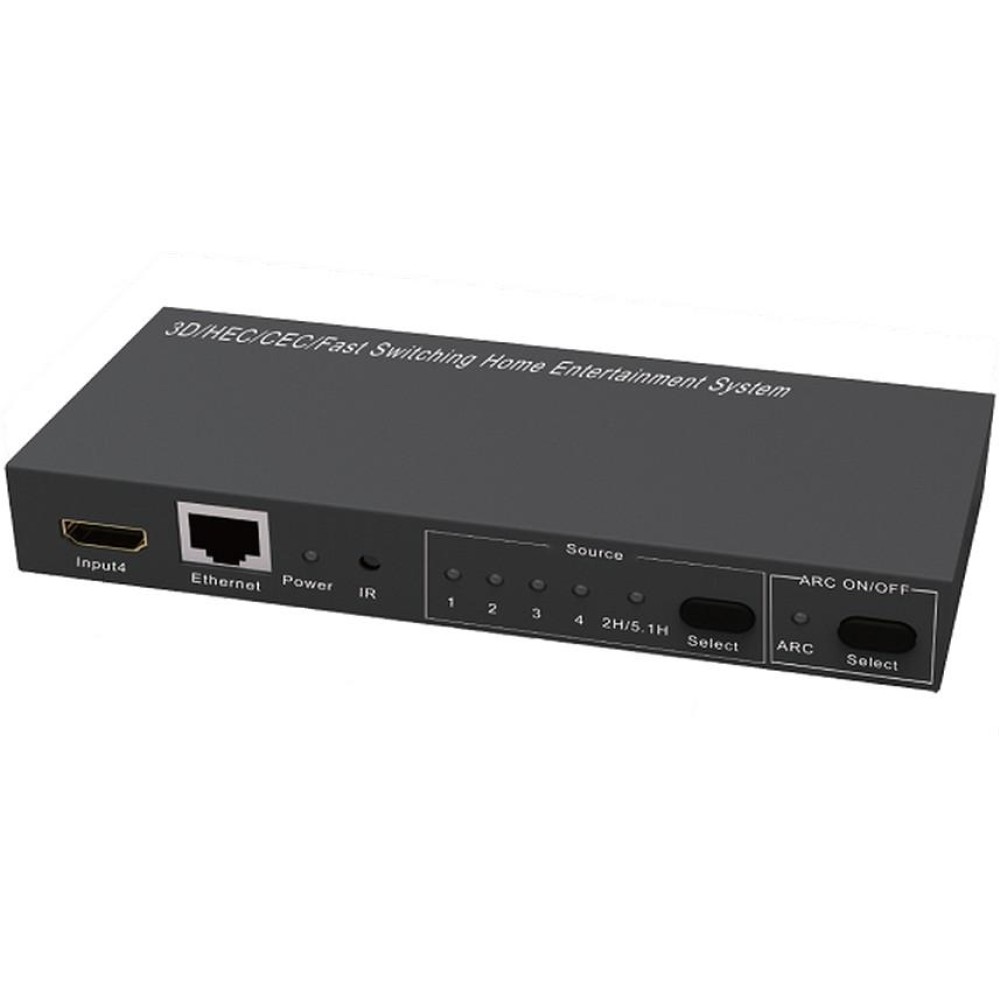

4 Input 1 Output HDMI Switch with Remote Control

Cod: IDATA HDMI-U4000U

Barcode: 8057685305465

Supplier Code: 305465

Weight: 0.731 Kg

Min. sale unit: 1 Pcs

Package pcs: 16 Pcs

Cod
IDATA HDMI-U4000U
Barcode
8057685305465
Supplier Code
305465
Weight
0.731 Kg
Min. sale unit
1 Pcs
Package pcs
16 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: UL
Tipo connettore A: HDMI
Tipo connettore B: HDMI
HDCP: 1.3
Compatibile 3D: Yes
  • Home Entertainment System IDATA HDMI-U4000U with Fast Switching for switching to 4 devices such as BlueRay player, DVD player and various game console to a TV with HDMI input.
  • It is a system in fast exchange for home entertainment, with maximum video resolution beyond 1080p with HEAC, 3D, CEC.
  • With built-in HDCP for Instant Port Switching (IPS), this switch allows you to connect 4 different HDMI devices to a LCD or plasma screen very quickly, without having to redo HDCP authentication.
  • The selection is made using the remote control and an LED indicates which input is selected.
  • Provides 3D features in addition to splitting HEC and ARC (HDTV to Ethernet and HDTV Coaxial, Toslink or Stereo Audio signal) through the integrated HDMI Ethernet and Audio Return Channel (ARC).
  • It supports a bandwidth of 225MHz / 2.25Gbps per channel (6.75Gbps all channel) deep color and 12bit per channel (36bit all channel).
  • Supports all 3D formats, including 1080p@23.98 / 24Hz, 720p@59.94 / 60Hz / 50Hz bandwidth up to 225MHz.
  • Supports uncompressed audio such as LPCM.
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
  • Compatible with most commonly used operating systems such as Windows 98SE / ME / 2000 / XP / 2003 Server / Vista / 7, Mac OS9 / OSX, DOS and Sun Microsystems.
Connections
  • 1 Input DDC Signal: 5 V
  • 4 HDMI Inputs female
  • 1 HDMI female
Operating Frequency
  • Frequency Range: 50 / 60Hz
  • Video amplifier bandwidth: 2.25Gbps / 225MHz
Resolutions (HDTV)
  • Interlaced (50-60Hz): 480i, 576i, 1080i
  • Progressive (50-60Hz): 480p, 576p, 720p, 1080p
Environmental Characteristics
  • Operating temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 80% RH (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Power Requirements
  • For standard products do not require an external power supply
  • Power consumption (max): 5W
Dimensions
  • Width 157 mm
  • Depth 70mm
  • Height 23 mm
Certifications
  • EC
  • FCC
  • UL
Package Contents
  • 4 in 1 out HDMI Switch
  • Remote control
  • Owner's Manual
Description
  • Home Entertainment System IDATA HDMI-U4000U with Fast Switching for switching to 4 devices such as BlueRay player, DVD player and various game console to a TV with HDMI input.
  • It is a system in fast exchange for home entertainment, with maximum video resolution beyond 1080p with HEAC, 3D, CEC.
  • With built-in HDCP for Instant Port Switching (IPS), this switch allows you to connect 4 different HDMI devices to a LCD or plasma screen very quickly, without having to redo HDCP authentication.
  • The selection is made using the remote control and an LED indicates which input is selected.
  • Provides 3D features in addition to splitting HEC and ARC (HDTV to Ethernet and HDTV Coaxial, Toslink or Stereo Audio signal) through the integrated HDMI Ethernet and Audio Return Channel (ARC).
  • It supports a bandwidth of 225MHz / 2.25Gbps per channel (6.75Gbps all channel) deep color and 12bit per channel (36bit all channel).
  • Supports all 3D formats, including 1080p@23.98 / 24Hz, 720p@59.94 / 60Hz / 50Hz bandwidth up to 225MHz.
  • Supports uncompressed audio such as LPCM.
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD).
  • Compatible with most commonly used operating systems such as Windows 98SE / ME / 2000 / XP / 2003 Server / Vista / 7, Mac OS9 / OSX, DOS and Sun Microsystems.
Connections
  • 1 Input DDC Signal: 5 V
  • 4 HDMI Inputs female
  • 1 HDMI female
Operating Frequency
  • Frequency Range: 50 / 60Hz
  • Video amplifier bandwidth: 2.25Gbps / 225MHz
Resolutions (HDTV)
  • Interlaced (50-60Hz): 480i, 576i, 1080i
  • Progressive (50-60Hz): 480p, 576p, 720p, 1080p
Environmental Characteristics
  • Operating temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 80% RH (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Power Requirements
  • For standard products do not require an external power supply
  • Power consumption (max): 5W
Dimensions
  • Width 157 mm
  • Depth 70mm
  • Height 23 mm
Certifications
  • EC
  • FCC
  • UL
Package Contents
  • 4 in 1 out HDMI Switch
  • Remote control
  • Owner's Manual
Data sheet
general
Brand Techly Np Barcode 8057685305465
Certifications CE , FCC , UL Color Black
Codice Fornitore 305465
input
Connector A Type HDMI format A connector female
Number A Connector 4 Altri Connettori Input 1 connettore 5V
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution 1080p
max bandwidth (MHz) 225 MHz Deep Color 12 bit
HDMI 1.3 HDCP 1.3
3D compatible Yes Supported audio standards Compressed, not compressed
power supply
Power supply Not required Consumo energetico 5W
dimensions
Width 157 mm Height 23 mm
Depth 70 mm Weight 0.7310
The package includes • Switch HDMI 4 in 1 out • Telecomando • Manuale d'uso
