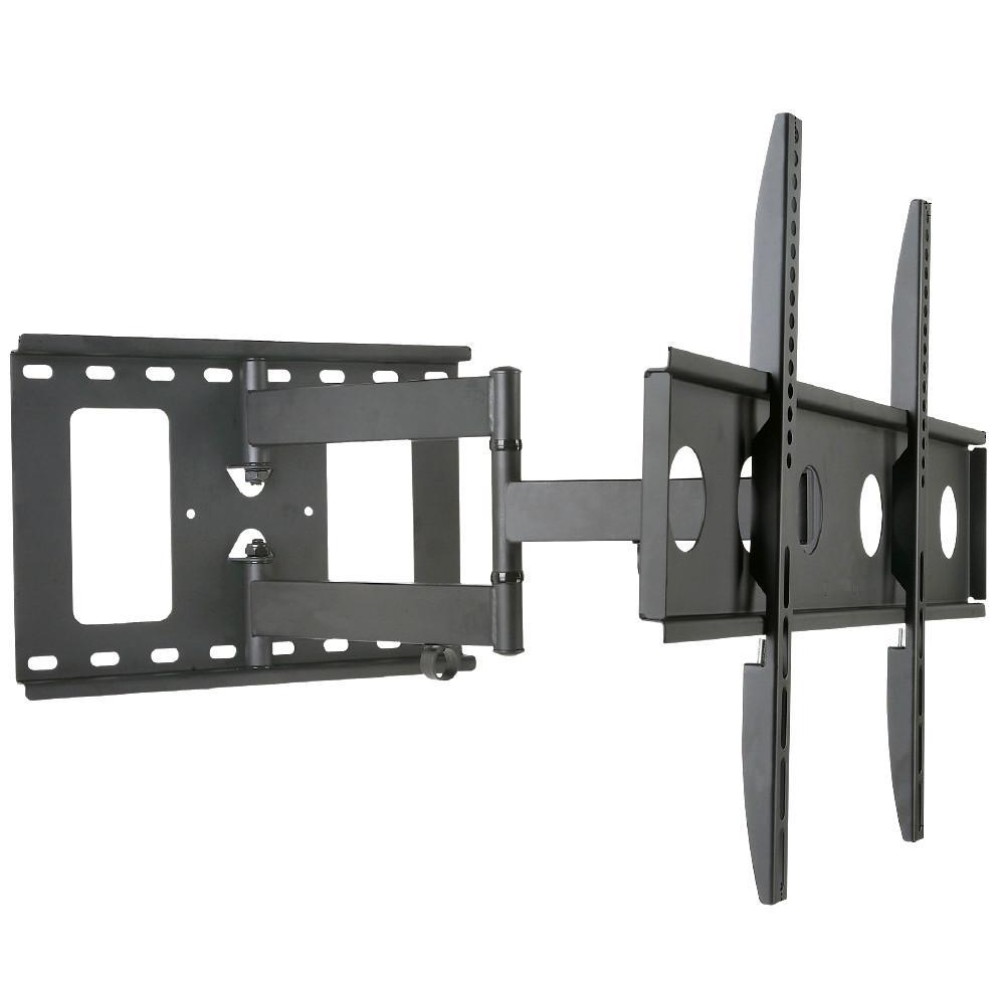

Wall bracket for LCD TV LED 32"-65" Full-Motion Slim

5,0 / 5

Cod: ICA-PLB 148L

Barcode: 8054529027620

Supplier Code: 027620

Weight: 8.411 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
ICA-PLB 148L
Barcode
8054529027620
Supplier Code
027620
Weight
8.411 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Anni di Garanzia: 10
Dimensioni TV: 32 - 65
Portata Kg: 45
Distanza minima muro: 63,5 mm
Inclinazione Verticale: -2 to +12°
Inclinazione orizzontale: +/-90°
  • wall bracket for 32-65 TV and Monitor "
  • Supports VESA max 600 x 400 mm
  • Maximum weight supported: 45 kg
  • Distance from wall 63 mm
  • Maximum extension 50 cm
  • Horizontal rotation: +/- 90 °
  • Tilt: -2 ° to + 12 °
  • Includes bubble level
  • Black Colour
  • Mounting accessories (screws, plugs ...) included in the package
Description
  • Universal bracket to fix a TV or Monitor LED / LCD on the wall; easy and quick to install, it is ideal for home, office and commercial applications
Features
  • suitable bracket for LED TV and LCD monitor 32 to 65 inches
  • Supports VESA standards up to 600 x 400 mm
  • Maximum weight supported: 45 kg
  • Maximum extension 50 cm
Specifications
  • Horizontal rotation: +/- 90 °
  • Tilt: -2 ° to + 12 °
  • Includes level adjustment system orizzonatale
  • Integrate the cable management system
  • Distance from wall 63 mm
  • Includes bubble level
  • Black Colour
The package includes
  • Wall support for LCD LED
  • Mounting accessories (screws, plugs ...) and installation instructions
Data sheet
general
Brand TECHLY Barcode 8054529027620
Weight 8.4110 The package includes • Supporto per TV LED/LCD • Accessori di fissaggio (viti, tasselli...) e istruzioni per l'installazione
Years of Warranty 10 Codice Fornitore 027620
compatibility
Typology Wall mount TV Size 32 - 65"
VESA (mm) 100x100, 100x200 , 120x180 , 200x100 , 200x200 , 200x300 , 300x300 , 400x200 , 400x300, 400x400 , 600x200 , 600x400 Capacity Kg 45
features
Minimum wall distance 63,5 mm Maximum wall distance 500 mm
Tilt -2 to +12° Swivel +/-90°
Junctions number 3 Rotation No
Color Black Levelling bubble Yes
Curved TV support - Security system No
