4K Audio Extractor

Cod: IDATA HDMI-EAC

Barcode: 8051128107043

Supplier Code: 107043

Weight: 0.350 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Available

Incl. Tax: €98.99

Excl. Tax: €81.14 + VAT

Cod
IDATA HDMI-EAC
Barcode
8051128107043
Supplier Code
107043
Weight
0.350 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Add to Compare
Shipping from €6.50 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Compatibile 3D: Yes
  • Extracts the audio signal from the HDMI source to send it to the amplifier or speakers

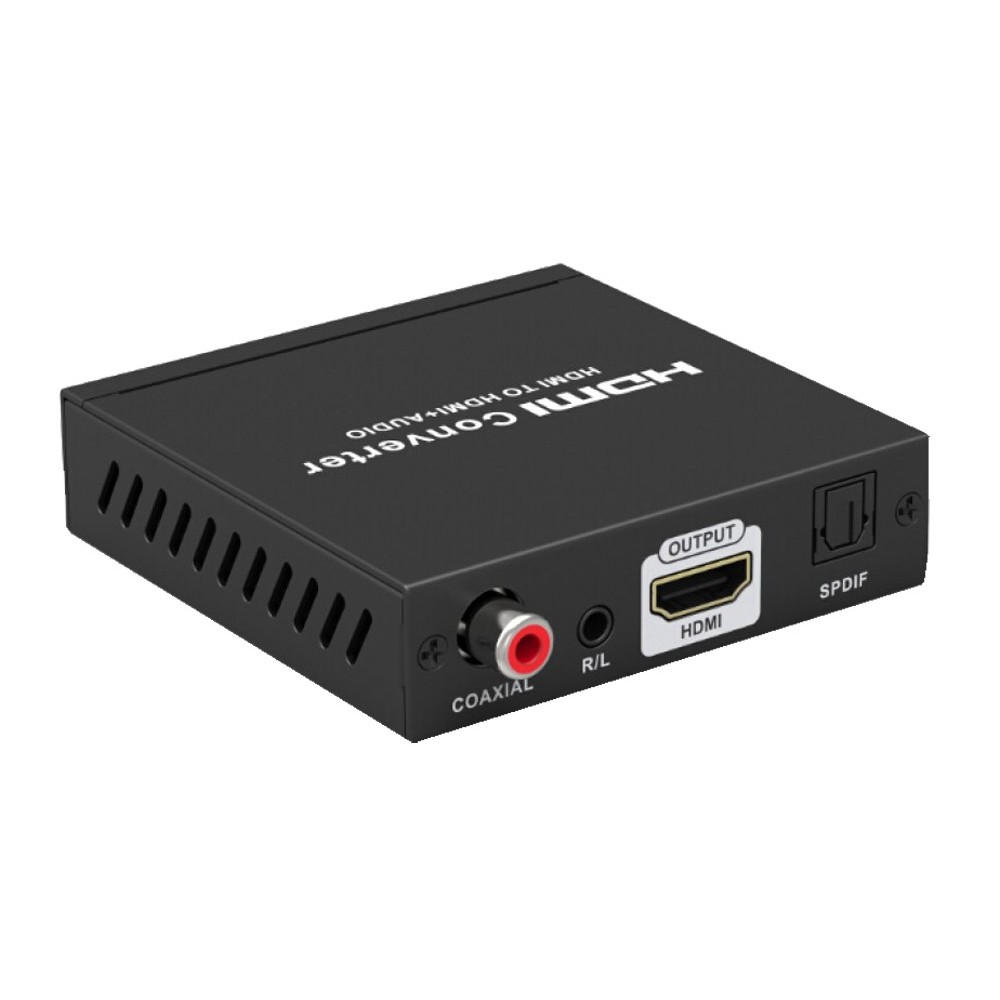

  • The separate audio signal is sent via the SPDIF, Coaxial and 3.5 L/R port
  • Supports resolutions up to 4Kx2K @ 60Hz Ultra HD; Support HDMI2.0, HDCP2.2 and HDCP1.4; Support HDR
  • Supports YUV4: 2: 0/4: 2: 2/4: 4: 4 and RGB 4: 4: 4; Quick installation; Power supply included 5V 1A
  • Extractor dimensions: 80 x 80 x 19.5 mm; Black colour
Description
The IDATA HDMI-EAC allows you to separate the signal of a source in ultra high definition and obtain a high quality video signal and an audio signal. The audio signal thus separated is sent to the amplifier via the SPDIF port, coaxial or 3.5 mm L / R audio port.

Features
  • Separate the audio signal from HDMI and supply it separately
  • Converts an HDMI input to an HDMI Video + Audio output (SPDIF + R / L + COAXIAL)
  • Supports HDMI2.0, HDCP2.2, HDCP1.4
  • Support HDCP1.4 to HDCP2.2, HDCP2.2 to HDCP1.4 conversion
  • Support 3D video format
  • Support ARC function
  • Supports HDR
  • Supports resolution up to 4Kx2K @ 60Hz UltraHD
  • Supports YUV4: 2: 0/4: 2: 2/4: 4: 4 and RGB 4: 4: 4
  • Lossless transmission
  • Plug and Play, simple installation
Technical specifications
  • HDMI2.0 compliant
  • HDCP compliant: HDCP 2.2, HDCP1.4
  • Supported HDMI Resolutions: 480i / 480p / 576i / 576p / 1080i / 1080p @ 60Hz / 4Kx2K @ 24/25/30 / 60Hz
  • Supported audio formats: Dolby, DTS, LPCM
  • Maximum transfer speed: 18Gbps
  • HDMI input cable distance: ≤5m (AWG24)
  • HDMI output cable distance: ≤ 5m (AWG24)
Power supply
  • Voltage / current: DC5V / 1A
  • Consumption: 2W
Environmental characteristics
  • Operating temperature: 0 ° to 50 °C
  • Operating temperature: -10 ° to 70 °C
  • Operating humidity: 5 to 90% non-condensing
Dimensions
  • Width: 80 mm
  • Depth: 80 mm
  • Height: 19.5 mm
  • Weight: 175 g
Certifications
  • EC
  • FCC
  • WEEE
Package Contents
  • IDATA HDMI-EAC audio extractor
  • 5V 1A power supply
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128107043
Certifications CE , FCC , RoHS Color -
Codice Fornitore 107043
input

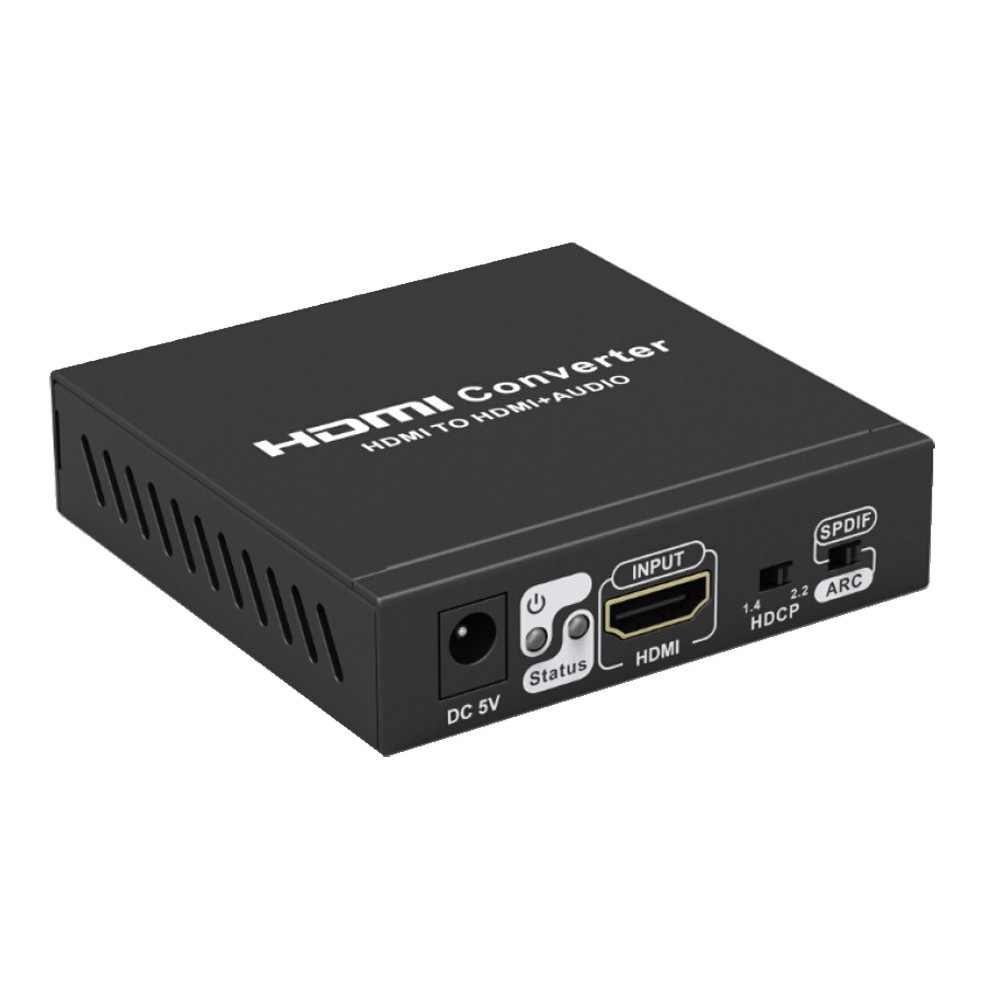

Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input Jack di alimentazione
output
Connector B Type HDMI-A format B connector female
Number B Connector 1 Altri Connettori Output SPDIF + RCA R/L + Coassiale
technical specifications
Typology Converter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 18 Gbps Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance 5 m
power supply
Power supply Requested (included) Consumo energetico 2W
dimensions
Width 80 mm Height 19.5 mm
Depth 80 mm Weight 0.3500
The package includes • Estrattore audio IDATA HDMI-EAC • Alimentatore 5V 1A • Manuale d'istruzione
