Techly

4K HDbaseT Extender Amplifier up to 100m

Cod: IDATA EXT-E90

Barcode: 8054529022731

Supplier Code: 022731

Weight: 0.525 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA EXT-E90
Barcode
8054529022731
Supplier Code
022731
Weight
0.525 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: 720p
HDCP: Yes
Compatibile 3D: Yes
  • HDMI extender, converts the HDMI signal on the HDBaseT network protocol and transmits it via CAT network cable. 5/6/7
  • 4Kx2K HDMI signal amplifier over LAN cable up to 100m

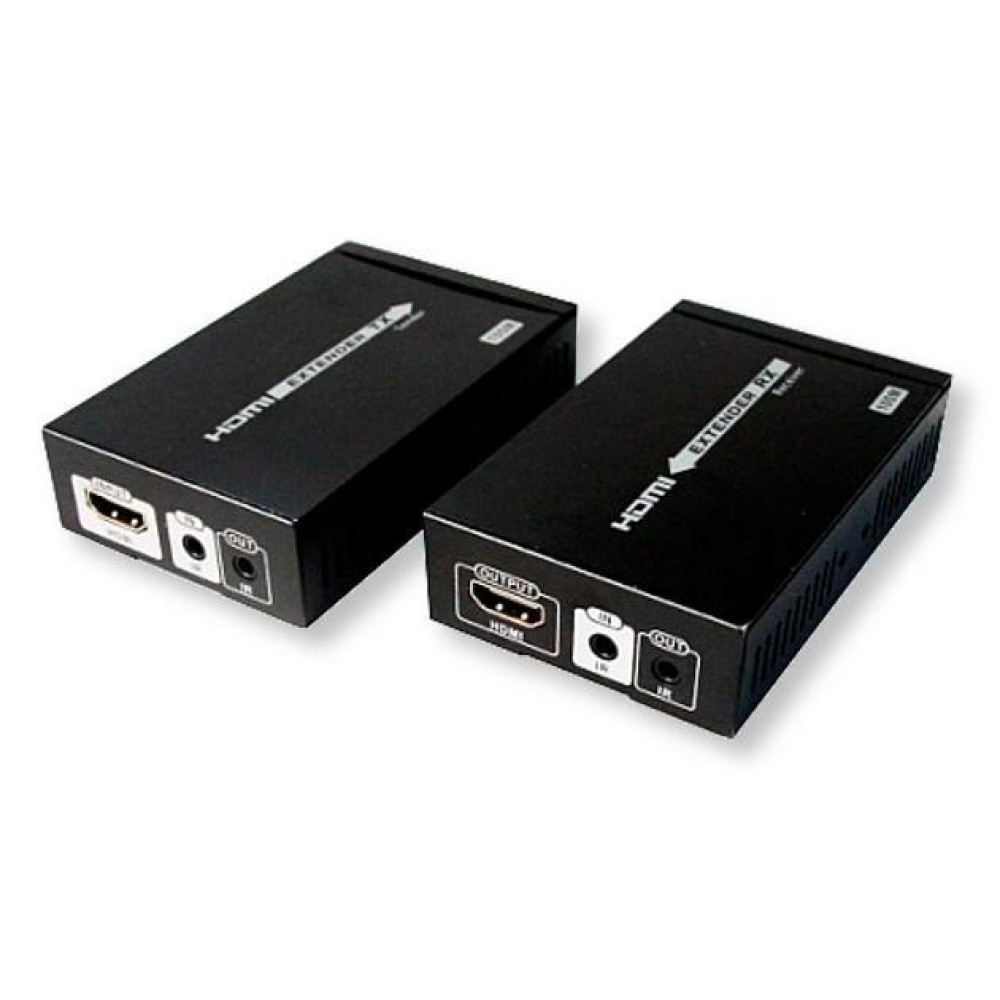

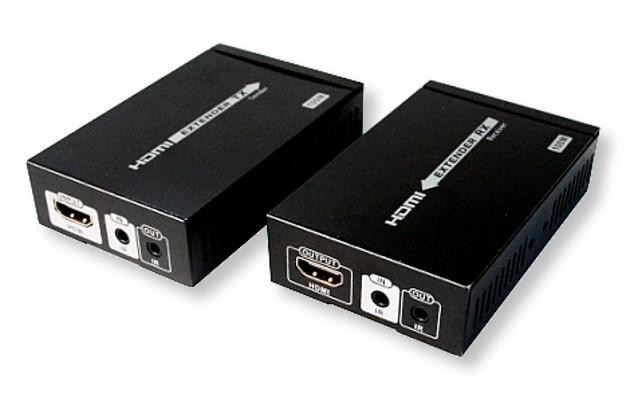

  • It consists of two units: transmitter and receiver
  • Transmitter: Input: 1x HDMI. Output: 1x IR Blaster; 1x LAN
  • Receiver: Input: 1x LAN; 1x IR receiver. Output: 1x HDMI
  • With bidirectional transmission IR transmitter and receiver
  • Support IR remote control, with frequency 20 ~ 60kHz
  • Power supply: 2x DC12V / 1A included in the package
  • Dimensions: 98.5 x 66.5 x 23 mm; Black colour
Description
The IDATA EXT-E90 extender is based on HDBaseT technology and allows you to extend the HDMI signal on 4Kx2K screens up to 100 meters with a single Cat.6A / 7 cable.

Features
  • Supports HDBaseT extension technology
  • Supports Full HD1080P @ 60Hz, 3D, 4Kx2K
  • Extends 1080P signal up to 100 meters over Cat.6A cable
  • Supports uncompressed HDMI signal
  • Supports uncompressed audio signal such as LPCM
  • Supports compressed audio signal such as DTS Digital and Dolby Digital
  • Supports HDCP, CEC, 24 deep color
  • Can be powered via network cable
Technical specifications
  • HDMI signal: 4Kx2K, HDCP compatible, CEC support and 24 bit deep color
  • Resolution: 480i / 480P / 576i / 576P / 720P / 1080i / 1080P / 3D / 4Kx2K
  • Audio: LPCM, DTS, Digital, Dolby Digital
  • Network cables: CAT5E, CAT6, CAT6A, CAT7
  • Transmission distance:
- CAT5E / 6: 100m up to 1080P @ 60Hz 36bpp; 70m 1080p @ 60Hz 48bpp, 1080p @ 60Hz 3D, 4Kx2K 30Hz
- CAT6A / 7: 100m 1080p @ 60Hz 48bpp, 1080p @ 60Hz 3D, 4Kx2K 30Hz
  • Infrared sensor: supports 20 ~ 60kHz frequency of bidirectional IR transmission
  • Power supply: 2x DC12V / 1A
  • Power consumption: 8W
  • Housing: metal
  • Black colour
Connections

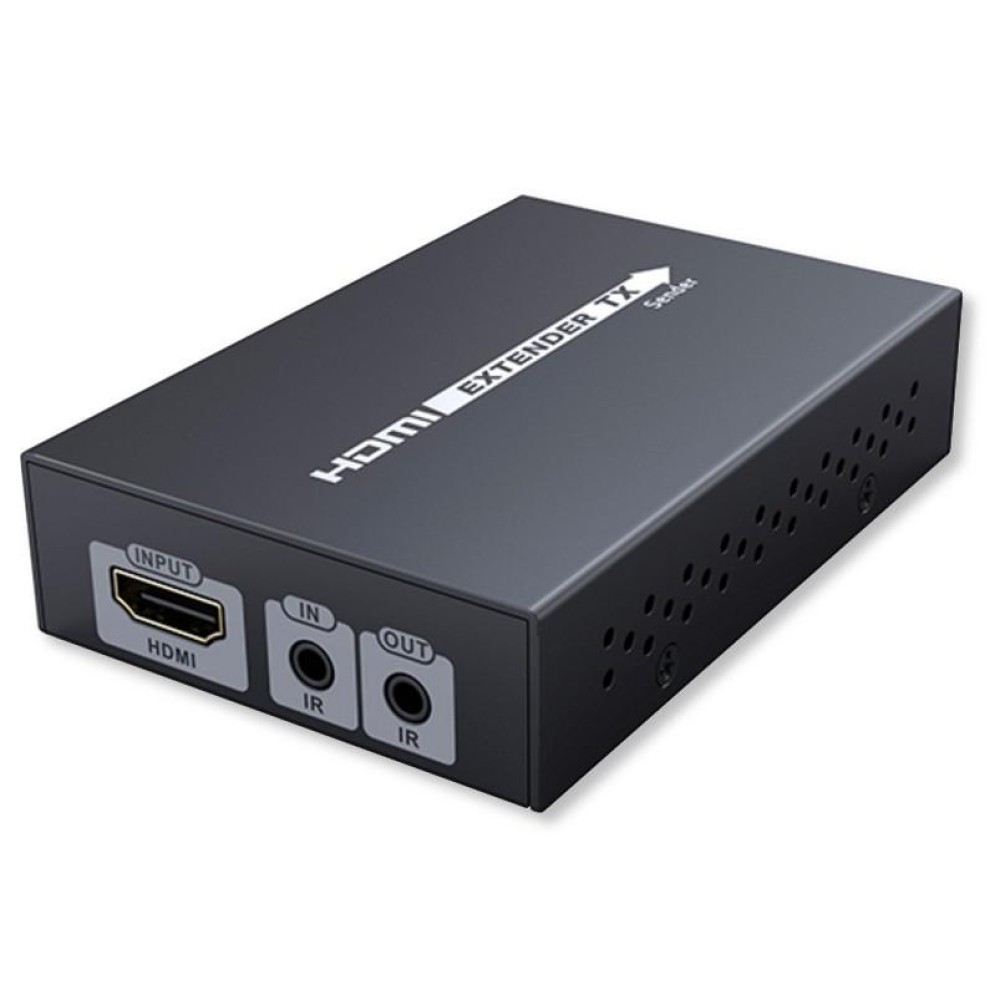

  • Transmitter:
- Input: HDMI Female, to connect the HDMI source
- Output: RJ-45 Female HDBaseT
- IR input, for connecting the IR receiver with an extension cable
- IR output, for connecting the IR extender with extension cable
- DC 12V power connector
  • Receiver:
- Input: RJ-45 Female HDBaseT
- Output: HDMI Female, for connecting the HDMI screen
- IR input, for connecting the IR receiver with an extension cable
- IR output, for connecting the IR extender with extension cable
- DC 12V power connector

Dimensions
  • Width: 98.5 mm
  • Height: 23 mm
  • Depth: 66.5 mm
  • Transmitter weight: 79 g
  • Receiver weight: 107 g
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x HDbaseT transmitter
  • 1x HDbaseT Repeater
  • 2x DC12V / 1A power supply
  • 2x IR in and out cables
  • 1x User Manual
Data sheet
general
Brand TECHLY Barcode 8054529022731
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 022731
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input RJ45 Femmina 1
output
Connector B Type HDMI-A format B connector female
Number B Connector 1 Altri Connettori Output RJ45 Femmina 1
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720i , 720p , Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color 24 bit
HDMI - HDCP Yes
3D compatible Yes Supported audio standards Yes
Transmission Distance 100 m
power supply
Power supply Requested (included) Consumo energetico 36W
dimensions
Width 98,5 mm Height 23 mm
Depth 66,5 mm Weight 0.5250
The package includes • 1x Trasmettitore HDbaseT • 1x Ripetitore HDbaseT • 2x Alimentatore DC12V/1A • 2x Cavi IR in e out • 1x Manuale d'uso
