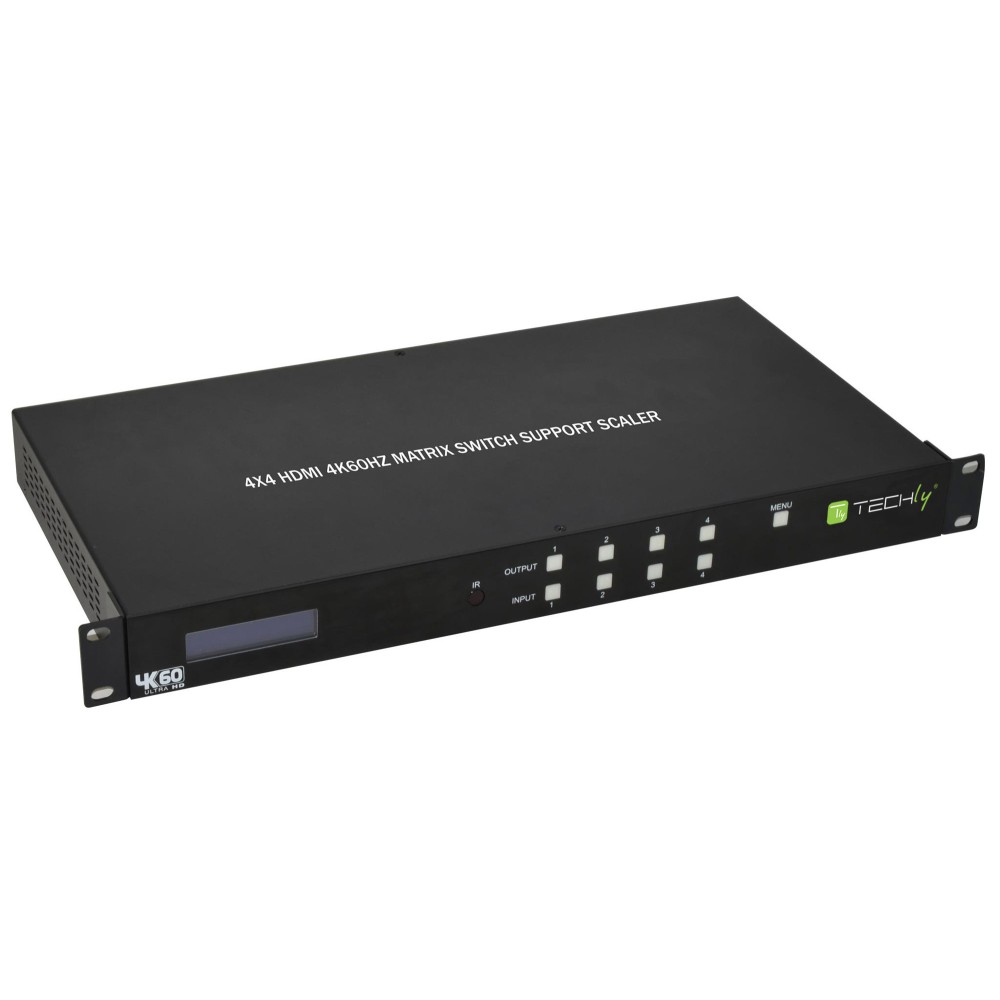

4X4 4K @ 60Hz HDMI Matrix Switch with Scaler Function
Code: IDATA HDMI-MX944G    Barcode: 8051128106206

   Supplier Code: 106206

Available

4X4 4K @ 60Hz HDMI Matrix Switch with Scaler Function

Certificazioni: CE
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Choose a different Option:

• HDMI 4X4 4K @ 60Hz Real Matrix Switch 4: 4: 4
• HDMI2.0, HDCP2.2, HDR, 18 Gbps bandwidth
• 10 & 12-bit Deep Color
• Supports 7.1CH LPCM, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio to DTS: X
• Allows any source to be viewed on multiple screens simultaneously
• Allows any HDMI screen to display any HDMI source at any time
• Each of the 4 input ports supports independent EDID
• Supports digital audio output
• IP control, RS-232, IR remote control and panel buttons
• LCD display on the front panel for status indications
• Dimensions: 441.33 x 50.80 x 256.00 mm; Black colour

Description

Details

Matrix Switch HDMI 4x4 4K @ 60Hz real 4: 4: 4. Supports HDMI2.0, HDCP2.2, HDR and bandwidth up to 18 Gbps.
It allows any source (Blu-ray, UHD Blu-ray, satellite receivers, game consoles, PC, etc.) to be displayed on any connected screen.
Equalize and amplify the output to ensure that HDMI signals can be transmitted over very long HDMI cables without altering the quality of the signal.
It is the ideal solution for digital entertainment, entertainment sites, data centers, schools, conference centers and training areas.

Features
• HDMI 2.0 supports 4K resolution at 60Hz (4: 4: 4) and 3D formats
• 10 & 12-bit Deep Color
• Supports 7.1CH LPCM, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio to DTS: X
• Allows any source to be viewed on multiple screens simultaneously
• Allows any HDMI screen to display any HDMI source at any time
• Each of the 4 input ports supports independent EDID
• Supports digital audio output
• Control via IP, RS-232, IR remote control and buttons on the front panel
• LCD display on the front panel for status indications

Video specifications
• Video resolutions Up to 4K 60Hz 4: 4: 4
• VESA resolutions up to DCI 4K (4096x2160) 5K (up to 5120x3200)
• HDR formats / resolutions 420, 422, 444 (10 and 12Deep Color) HDR10, HDR10 +, Dolby Vision, HLG
• Color space YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
• Chroma subsempeling 4: 4: 4, 4: 2: 2, 4: 2: 0 Supported Deep Color Up to 16-bit (1080), up to 12-bit (4K)

Audio specifications
• Supported HDMI audio formats: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
• Supported Audio Formats Supported (Toslink) PCM 2 Ch, LPCM 6 Ch, LPCM 7 Ch, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio
• Supported extracted audio formats (2CH Port) PCM 2 CH

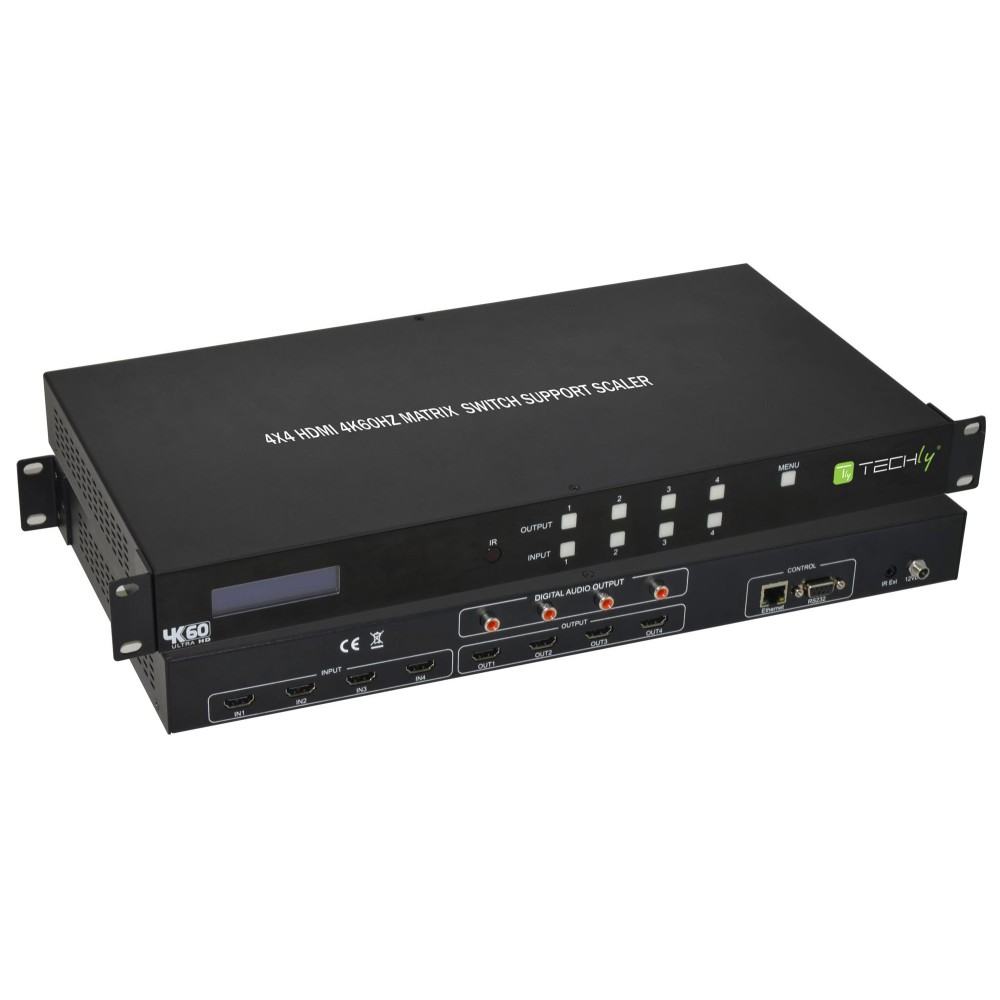

Doors
• HDMI Type A
• LAN RJ45 c / web interface / control
• Audio (Digital Extract) SPDIF
• IR Rx 3.5 mm Stereo (3 conductors)
• RS232 3 pin terminal block

Environmental characteristics
• Operating temperature from -5 to 51 °C
• Storage temperature from -20 to 60 °C
• Humidity 5-90% RH without condensation

Certification
• EC
• WEEE

Size
• Width: 441.33 mm
• Height: 50.80 mm
• Depth: 256.00 mm

Package Contents
• Switch matrix with scaler
• IR remote control
• User Manual
data sheet
generale
Brand
Techly
Barcode
8051128106206
Certifications
CE
Color
Black
Codice Fornitore
106206
input
Connector A Type
HDMI
format A connector
female
Number A Connector
4
Altri Connettori Input
1x IR
output
Connector B Type
HDMI
format B connector
female
Number B Connector
4
Altri Connettori Output
1x RJ45 1x RS232 4x uscite audio
specifiche tecniche
Typology
Matrix
Max Video Resolution
Ultra HD 4K 2160p
max bandwidth (MHz)
No
Deep Color
12 bit
HDMI
2.0
HDCP
2.2
3D compatible
Yes
Supported audio standards
Yes
Transmission Distance
No
alimentazione
Power supply
No
dimensioni
Width
441,33 mm
Height
50,80 mm
Depth
256,00 mm
Weight
3.9360
The package includes
• Switch matrix con scaler • Telecomando IR • Manuale utente
