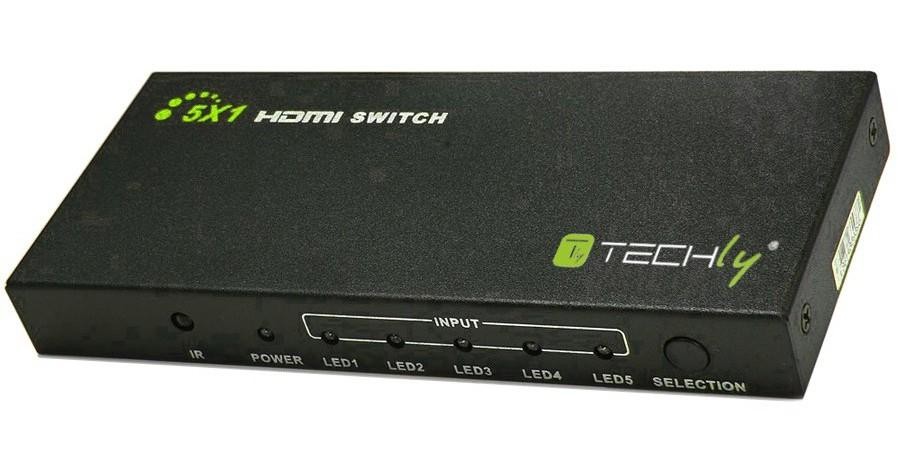

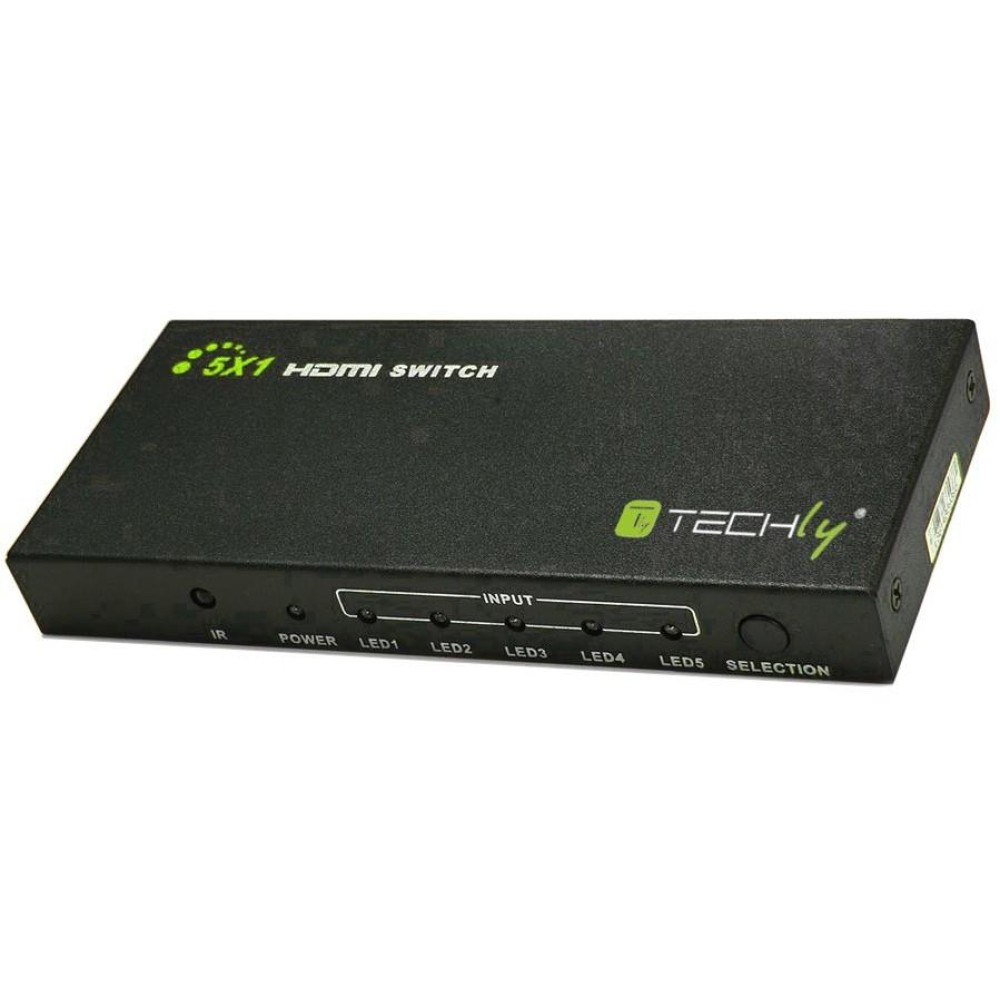

5 IN 1 OUT HDMI Switch with Remote Control, 4Kx2K, 3D
Code: IDATA HDMI-4K51    Barcode: 8054529020713

   Supplier Code: 020713

Available

5 IN 1 OUT HDMI Switch with Remote Control, 4Kx2K, 3D

Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.3
Choose a different Option:

• HDMI switch that lets you share HDMI sources with a single HD monitor.
• Allows you to switch between 5 HDMI sources such as BlueRay player, DVD player and various game console to a TV with HDMI input with ease.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p, and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS), this switch allows you to connect 5 different HDMI devices to a LCD or plasma screen very quickly, without having to redo the HDCP authentication.
• The selection is done by remote control and an LED indicates which input is selected.


Description

Details

• HDMI switch that lets you share HDMI sources with a single HD monitor.
• Allows you to switch between 5 HDMI sources such as BlueRay player, DVD player and various game console to a TV with HDMI input with ease.
• Transmits both digital and audio signals through the HDMI connection.
• Supports Full HD 1080p, and 4Kx2K 3D.
• With built-in HDCP for Instant Port Switching (IPS), this switch allows you to connect 5 different HDMI devices to a LCD or plasma screen very quickly, without having to redo the HDCP authentication.
• The selection is done by remote control and an LED indicates which input is selected.

Features
• Plug and Play: does not require configuration
• Broadcast audio and video via HDMI
• Signal transmission up to 3.4 Gbps
• HDMI resolution up to 4Kx2K and UXVGA until 1920x1200P
• Transmission distance: 2 meters

Connections
• 1 Input DDC signal: 5V
• 5 inputs HDMI female
• 1 output HDMI female

Environmental Characteristics
• Operating temperature: 0 / +40 ° C
• Storage temperature: -10 / + 60 ° C

Dimensions
• Width: 162 mm
• Depth: 69 mm
• Height: 19 mm

Certifications
• EC
• FCC
• RoHS
• WEEE

Package Contents
• 5 in 1 out HDMI Switch
• Remote control (battery not included)
• Manual

data sheet
generale
Brand
Techly
Barcode
8054529020713
Certifications
CE , FCC , RoHS
Color
Black
Codice Fornitore
020713
input
Connector A Type
HDMI
format A connector
female
Number A Connector
5
Altri Connettori Input
1 Ingresso segnale DDC: 5V
output
Connector B Type
HDMI
format B connector
female
Number B Connector
1
specifiche tecniche
Typology
Switch
Max Video Resolution
Full HD 1920 x 1080, Ultra HD 4K 2160p
max bandwidth (MHz)
No
Deep Color
No
HDMI
1.4
HDCP
1.3
3D compatible
Yes
Supported audio standards
Yes
Transmission Distance
2 m
alimentazione
Power supply
Optional
Consumo energetico
5V 1A
dimensioni
Width
162 mm
Height
19 mm
Depth
69 mm
Weight
0.5140
The package includes
• Switch HDMI 5 in 1 out • Telecomando (batteria inclusa) • Manuale d'uso
