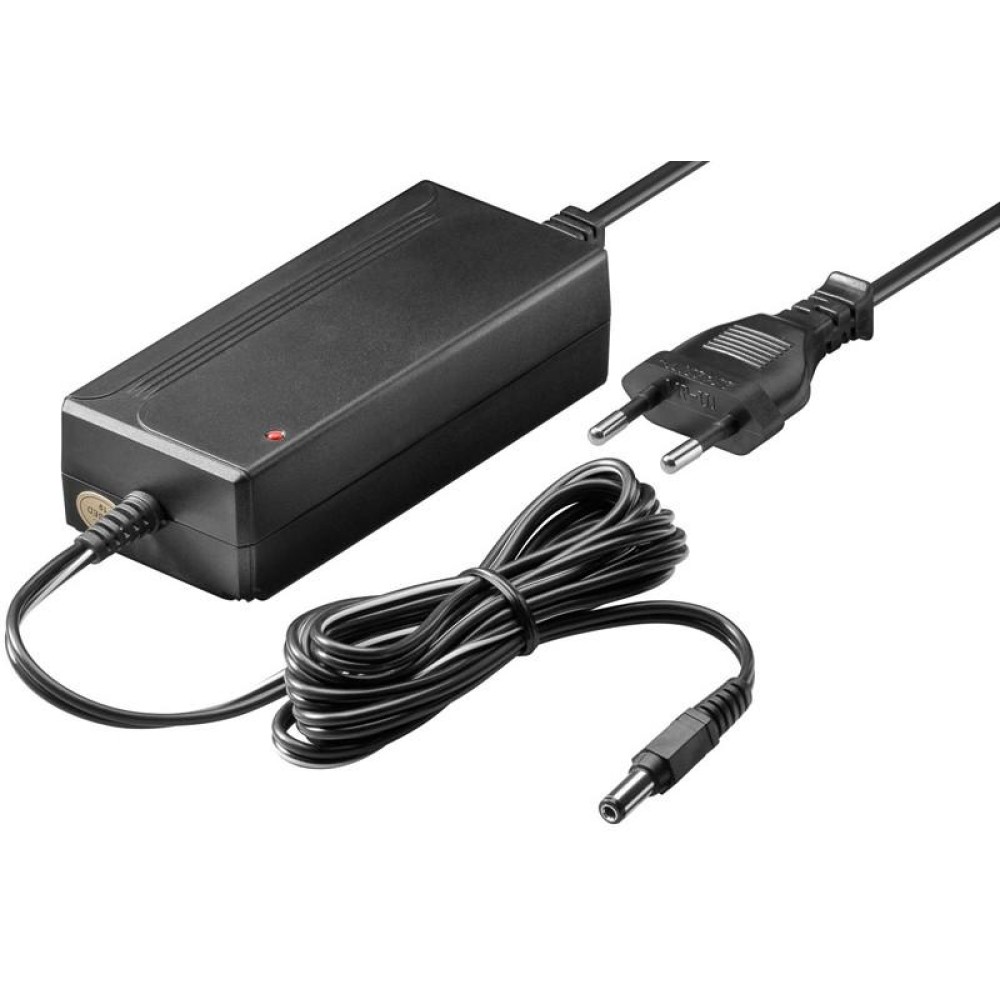

AC/DC Adapter 12 V 3000 mA - TECHLY NP - IPW-NTS3000TY-1
AC/DC Adapter 12 V 3000 mA - TECHLY NP - IPW-NTS3000TY-1
AC/DC Adapter 12 V 3000 mA - TECHLY NP - IPW-NTS3000TY-0
AC/DC Adapter 12 V 3000 mA - TECHLY NP - IPW-NTS3000TY-1
AC/DC Adapter 12 V 3000 mA - TECHLY NP - IPW-NTS3000TY-1

AC/DC Adapter 12 V 3000 mA

Cod: IPW-NTS3000TY

Barcode: 8054529021727

Supplier Code: 021727

Weight: 0.341 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IPW-NTS3000TY
Barcode
8054529021727
Supplier Code
021727
Weight
0.341 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: RoHS
LED: Yes
Protezioni: Overcurrent
Protezioni: Overload
Protezioni: Short circuit
  • stabilized AC / DC adapter 12 V 3000 mA 36 watts
  • 5.5 x 2.1 x 10 mm With plug DC Fixed
  • protections: short-circuit , overload, overcurrent and overheating
  • Cable length: 180 cm
  • Input voltage: 100-240 V AC
  • Output voltage: 12 V DC
  • Current Output: 3000 mA
Description
This new and compact power adapter already meets the new international standards like ECO-design, CEC and MEPS. The goal of these standards is to reduce the loss during the stand-by-loss methods such as reducing emissions of CO². It provides energy savings up to 94% in standby mode compared to traditional power supplies. It enables energy savings of up to 30% under load. Produced according to the EuP Directive 2005/32 / EG (EuP = eco-design of electrical products)

  • Lightweight
  • consumption of 0.3 W in standby mode
  • 5.5 x 2.1 x 10 mm With plug DC Fixed
  • With status LED
  • Up to 36 watts
Specifications
  • Input Voltage: 100-240V AC - 50 / 60Hz
  • Output voltage: 12 V DC
  • Current Output: 3000 mA
  • AC Input Plug: European
  • Version: stabilized
  • Plug DC: 1x 5.5 x 2.1 x 10 mm
  • Switching Adapter: you
  • Short circuit protection: yes
  • Overload protection is
  • Over-current protection: you
  • Overheating protection: you
  • USB port: no
  • Cable length: 180 cm
Size
  • Width: 47 mm
  • Length: 114 mm
  • Height: 30 mm
Certificates
  • CE
  • WEEE
The package includes
  • stabilized AC / DC adapter 12 V 3000 mA
Data sheet
general
Brand TECHLY NP Barcode 8054529021727
Color Black Weight 0.3410
Certifications CE , RoHS The package includes Alimentatore stabilizzato AC/DC 12 V 3000 mA
Codice Fornitore 021727
input
Input voltage 100/240 V AC Frequency 50/60 Hz
output
Output voltage 12 V Ampere output 3.0 A
Power 36 W Standby consumption 0,3 W
Current output 3000 mA
connections
Connessioni ingresso Spina italiana Number of power connectors -
USB connection No
technical specifications
LED Yes Stabilized Yes
Promotion Overcurrent, Overheating, Overload, Short circuit
dimensions
Height 30 mm Width 47 mm
Depth 114 mm Cable length 1.8 m
