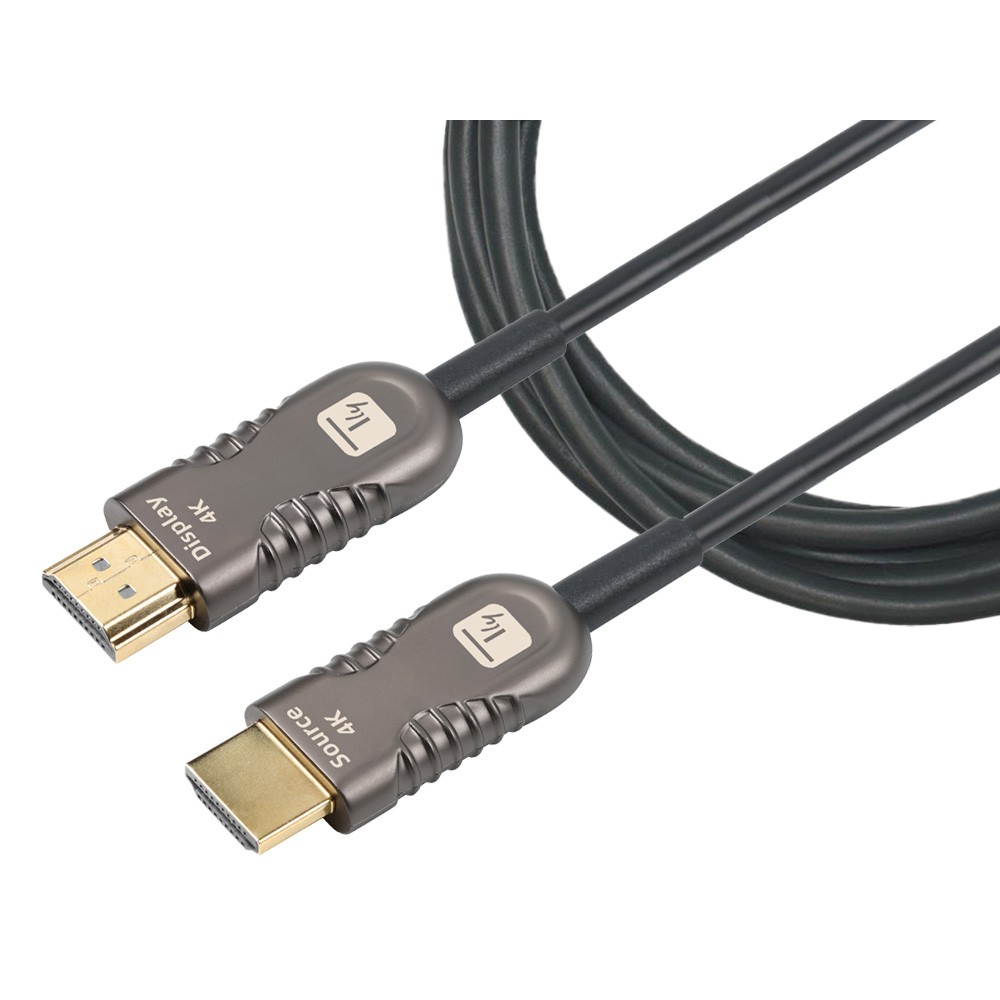

Active Optical Cable HDMI ™ 2.0 AOC 4K 18Gbps HDMI ™ A/A M/M 100m

Cod: ICOC HDMI-HY2-100

Barcode: 8051128104554

Supplier Code: 104554

Weight: 3.586 Kg

Min. sale unit: 1 Pcs

Package pcs: 6 Pcs

Limited time offer!

Incl. Tax: €305.00

Excl. Tax: €250.00 + VAT

Supplier Code
3.586 Kg
Min. sale unit
1 Pcs
Package pcs
6 Pcs
Find HDMI Cables
right for you
Configure now
Free shipping
Order now, immediate shipping
Made easy
Secure payments
Certificazioni: EC
Certificazioni: RoHS
Anni di Garanzia: 3
Tipologia: HDMI 2.0 High Speed with Ethernet
Tipo connettore A: HDMI-A
Tipo connettore B: HDMI-A
Connettori dorati: Yes
Risoluzione massima: 4K (2160p) 60fps
Altri Standard Supportati: 3D
Altri Standard Supportati: Full HD (1080i/p)
Altri Standard Supportati: HD ready (720i/p)
Altri Standard Supportati: HDCP
  • Active Optical Cable (AOC) with HDMI connections; Thinner, lighter and softer than traditional copper cable; Supports 4K @ 60Hz resolution for high video quality; It supports 18Gbps bandwidth
  • Suitable for connecting two HDMI ™ type A devices together, transmitting audio and video up to 4K60Hz over a long distance; It carries 4K High Dynamic Range (HDR) signals for intense contrast and enhanced color accuracy
  • Compliant with HDCP 2.2 standard to view updated 4K video content; Extremely resistant to electromagnetic interference, it transmits the image with great clarity, without delay and signal loss; Highly resistant with EMI and RFI
  • Cable equipped with PVC sheath; Requires no external power supply - it draws power from the connected device to transmit the 4K signal over long distances
  • HDMI ™ 2.0 / 1.4 Optical Cable Color: Black; Length: 100m
The active high-speed HDMI audio video cable is characterized by copper and fiber conductors, offering a lighter and more flexible structure ideal for installation in confined spaces and longer distances: the ideal solution for conference rooms, classrooms, and illuminated signs much more.
The hybrid HDMI cable enables the transmission of high quality video and audio signals for long-distance signal transmission without loss of quality. Signals from sources such as Blu-ray, media players, DVD, SAT etc. they are received by TV UHD and FullHD and projectors with a resolution up to 4Kx2K. The HDMI High Speed ​​fiber optic cable supports 4Kx2K / UHD video resolutions (max 3840x2160 and 4096x2160 @ 60Hz), 1080p / FullHD, 1080i, 720p, 480p.
Supports Deep Color rye, HDCP 2.2, EDID, CEC and transmits Audio Return Channel (ARC).
NB:This cable has a uni-directional architecture that requires the cable to be installed in the correct direction. Check the "source" and "display" labels on the HDMI connectors to verify that the device and the HDMI source are connected properly.

  • Thinner, lighter and softer than the traditional copper cable
  • Supports long transmission distance
  • Highly resistant with EMI and RFI
  • Supports high resolutions: 4K @ 60Hz
  • Compliant with connection to all type A HDMI connector devices
  • Compatible with HDMI 2.0 / 1.4 version
  • Supports devices in HDR 4K format
  • Data rate: 18 Gbps
  • Easy to install; Plug and play
  • Low power consumption and no need for external power supply
  • Supports 60Hz HDR / 3D / 1080p / 1080i / 720p 4K2K format
  • Supports HDCP / EDID / CEC / DDC
  • Audio support
  • Thanks to its flexible and thin design it is ideal for installations where space is limited or limited
  • Length: 100m; Black colour
  • Home theater
  • High definition videoconferencing system
  • Medical Video System
  • High definition video surveillance system
  • Digital signal and TV Wall
Technical specifications
  • Supported resolution: 3840 * 2160 (4K * 2K)
  • FPS: 60 max.
  • YGB: 4: 2: 0 or 4: 4: 4
  • HDCP: Pass (2.2)
  • Meets HDMI 2.0 requirements
Package Contents
  • HDMI cable on optical fiber 100m
Data sheet
Brand TECHLY Barcode 8051128104554
Weight 3.5860 Certifications EC, RoHS
Years of Warranty 3 Codice Fornitore 104554
Typology HDMI 2.0 High Speed with Ethernet Length 100 m
Connector A Type HDMI-A format A connector male
Connector B Type HDMI-A format B connector male
Headphone connectors Yes Cable shielding -
Shielding type - Cable size (AWG) -
Color Black Other characteristics Optical Fiber Cable
technical specifications
Cable rate 600 MHz Maximum resolution 4K (2160p) 60fps
Maximum bandwidth per channel 18 Gbit/s Color space support Deep Color
Audio Standard Supportati Audio-Return Channel (ARC), DVD-Audio Other Standards Supported 3D , CEC , Full HD (1080i/p) , HD ready (720i/p) , HDCP , HEC (HDMI Ethernet Channel), SDTV (480i/p), Ultra HD 4K (2160i/p)
