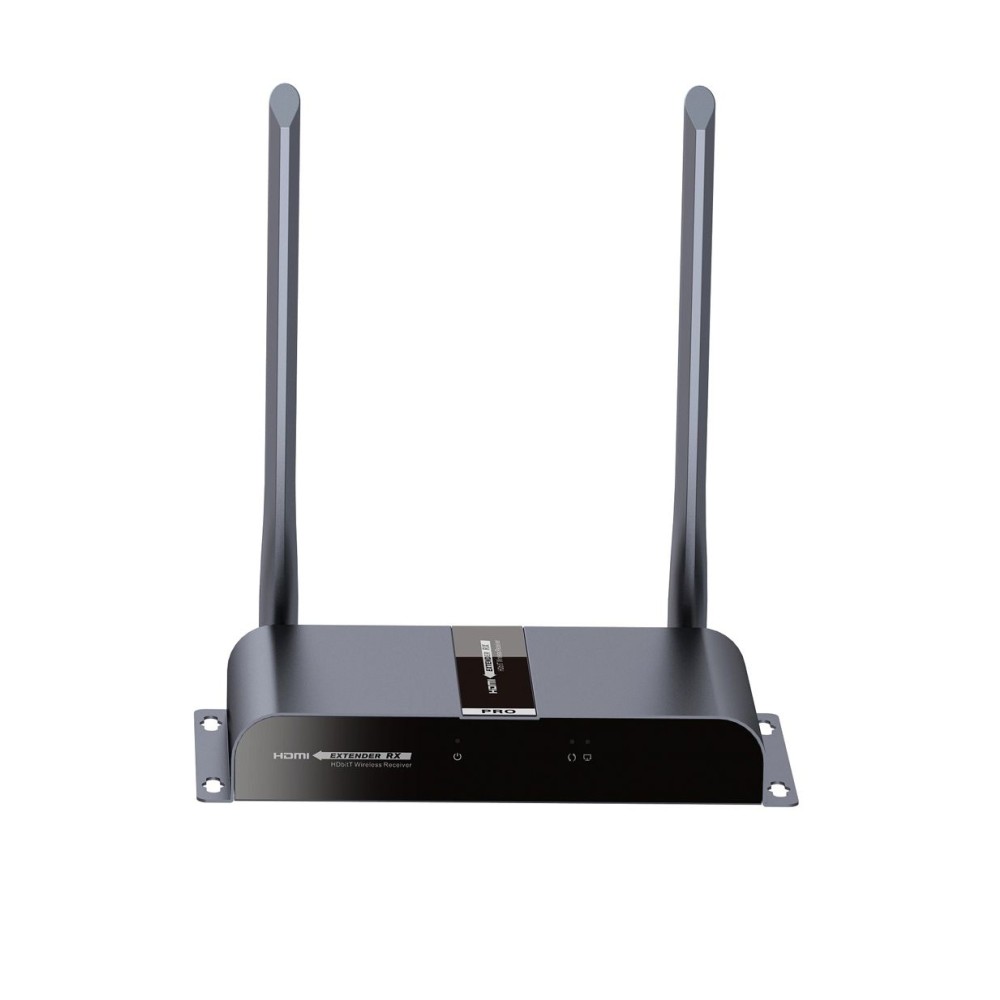

Additional Receiver for HDMI Extender Wireless IDATA HDMI-WL80

Cod: IDATA HDMI-WL80R

Barcode: 8051128100600

Supplier Code: 100600

Weight: 1.061 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Available
Limited time offer!

Regular Price: €358.40

Special Price: Incl. Tax: €209.00

Special Price: Excl. Tax: €171.31 + VAT

Cod
IDATA HDMI-WL80R
Barcode
8051128100600
Supplier Code
100600
Weight
1.061 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Find Audio Video Extender
right for you
Configure now
Free shipping
Order now and we'll ship tomorrow
Made easy
Secure payments
Tipo connettore A: HDMI-A
Tipo connettore B: HDMI-A
Risoluzione Video Max: 1080p
HDCP: 1.2
  • Additional receiver for long range transmission of HDMI wireless signal by HDbitT protocol
  • Supports wireless transmission of long-range wireless signal
  • Supports multi-points connection up to 4 receivers with 1 transmitter (kit with transmitter + receiver IDATA HDMI-WL80)
  • Full HD 1080p transmits up to 200 meters (in the absence of walls and / or obstacles)
  • Remote device 20 ~ 60kHz IR
  • Supports L / R stereo audio
  • Transmission speed: 10.2 Gbps
  • Supports HDCP 1.2
  • Plug and Play
  • Power supply: DC 5V / 3A
  • Dimension: 195.27 x 138.8 x 30.8 mm; Color: black
Description
Features
  • Supports wireless transmission of long-range wireless signal
  • Supports multi-points connection up to 4 receivers with 1 transmitter (kit with transmitter + receiver IDATA HDMI-WL80)
  • Full HD 1080p transmits up to 200 meters (in the absence of walls and / or obstacles)
  • Full compatibility with HDMI and HDCP
  • With infrared remote control for controlling remote source device
  • Plug and Play does not require any installation software
HDbitT
HDbitT is a transmission protocol for high definition audio or video over the network. Compared to traditional technology, it offers more stable performance and greater clarity of the images.
In addition to the transmission distance and other significant benefits, it can easily meet high definition demand in long distance transmission without the need for any converter.

Plug and Play
Just connect the transmitter to the HDMI port of your device and the receiver to the HDTV and you are immediately connected! It does not require any software installation. The possibilities of configuring and using this solution are endless and certainly can not be missed in the modern digital home!
The wireless transmission kit lets you control your remote media device remotely with the receiver's IR support. Change channel, pause movie, adjust volume ... supports any function. Just point your remote control towards the receiver and press the button: it's so easy!

Technical Specifications
  • Supports 1 transmitter configuration with 4 receivers
  • Transmission Protocol: HDbitT
Supported Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Frequency: 5GHZ
  • HDCP Compatible 1.2
  • Transmission distance: 200 meters to 1080P 60Hz
  • Remote device 20 ~ 60kHz IR
  • Supports L / R stereo audio
  • Transmission speed: 10.2 Gbps
  • Operating temperature: 0 - 60 ° C
  • Material: metal
  • Black Colour
Power
  • Power supply: DC 5V / 3A
  • Consumption: 15 W
Dimensions (x2)
  • Width: 195.27 mm
  • Depth: 138.80 mm
  • Height: 30.8 mm
Certification
  • CE
  • FCC
  • RoHS
Package Contents
  • 1x HDMI Transmitter
  • 1x HDMI Receiver
  • 2x IR sensor cable
  • 2x DC 5V / 3A power supply
  • 1x User Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128100600
Color - Codice Fornitore 100600
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1 x Alimentazione 1 x Controllo remoto
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080p
max bandwidth (MHz) - Deep Color -
HDMI 1.3 HDCP 1.2
3D compatible - Supported audio standards Yes
Transmission Distance 200 m
power supply
Power supply Requested (included) Consumo energetico 15 W
dimensions
Width 195.27 mm Height 30.8 mm
Depth 138.80 mm Weight 1.0610
The package includes • 1x Ricevitore HDMI • 1x Cavo per sensore IR • 1x Alimentatore DC 5V/3A • 1x Manuale d'uso
