Adjustable Power Supply 1500 mAh AC / DC Stabilized - TECHLY - IPW-NTS1500G-1
Adjustable Power Supply 1500 mAh AC / DC Stabilized - TECHLY - IPW-NTS1500G-1
Adjustable Power Supply 1500 mAh AC / DC Stabilized - TECHLY - IPW-NTS1500G-0
Adjustable Power Supply 1500 mAh AC / DC Stabilized - TECHLY - IPW-NTS1500G-1
Adjustable Power Supply 1500 mAh AC / DC Stabilized - TECHLY - IPW-NTS1500G-1
Techly

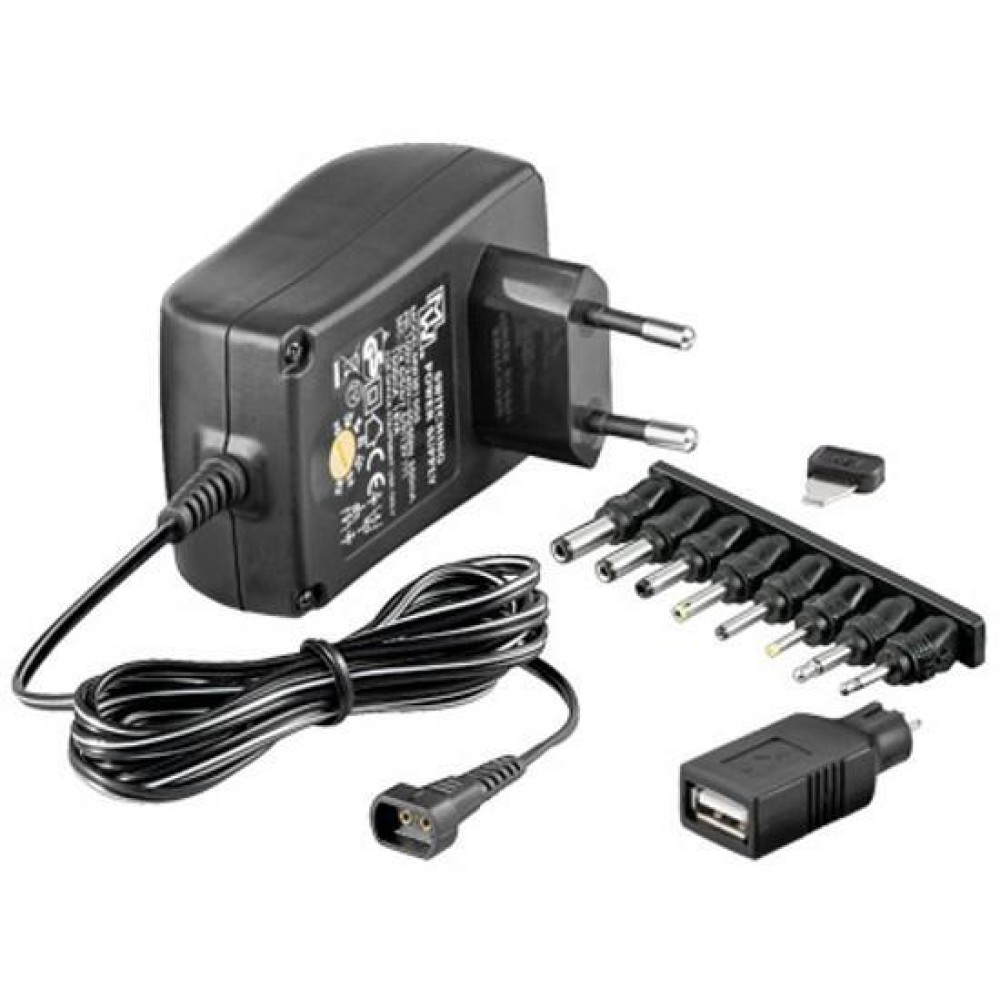

Adjustable Power Supply 1500 mAh AC / DC Stabilized

Cod: IPW-NTS1500G

Barcode: 8057685301948

Supplier Code: 301948

Weight: 0.214 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IPW-NTS1500G
Barcode
8057685301948
Supplier Code
301948
Weight
0.214 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Connessione USB: Si
LED: Yes
Protezioni: Overcurrent
Protezioni: Overload
Protezioni: Short circuit
This new and compact power adapter already meets the requirements of the powerful new international agreement to reduce emissions in addition to the European standards. The purpose of these standards is a reduction of the appliances on stand-by for the reduction of CO² emissions. It allows energy savings of up to 90% in 'stand-by-mode' than standard power supplies conventional and save up to 30% energy under load.

Characteristics
  • Input voltage: 100-240 V DC
  • Output voltage selectable from 3 / 4.5 / 5/6 / 7.5 / 9/12 V DC
  • Maximum output power 18W
  • Output current: 1500 mA
  • AC Plug Type: European
  • Version-stabilized
  • Interchangeable DC Plug: 9
  • Protection against overload, over-current, over temperature
Specification
  • Input voltage 100-240 VAC
  • Output voltage 3-12 V DC
  • Maximum output current 1500mA
  • Plug type Euro
  • Version stabilized
  • Includes 9 interchangeable connector tips:
- 2.5 mm plug
- 3.5 mm plug
- 3.5 x 1.35mm DC plug
- 5.0 x 2.1 mm DC plug
- 5.5 x 1.5 mm DC plug
- 5.5 x 2.5 mm DC plug
- 5.5 x 2.1 mm DC plug
- 4.0 x 1.7 mm DC plug
- USB connector
  • Switching power supply: yes
  • Short-circuit protection: yes
  • Overload protection: yes
  • Protection against over-current: it
  • Overvoltage protection: no
  • Overheating protection: yes
  • Cable length: 180 cm
  • Stand-by consumption: 0.3 W
  • Power LED
  • Dimensions: 82 x 51.50 x 73 mm
  • Weight: 176g
Package Contents
  • Adjustable Power Supply 1500 mAh AC / DC stabilized
  • 9 interchangeable connector tips
  • User manual
Description
This new and compact power adapter already meets the requirements of the powerful new international agreement to reduce emissions in addition to the European standards. The purpose of these standards is a reduction of the appliances on stand-by for the reduction of CO² emissions. It allows energy savings of up to 90% in 'stand-by-mode' than standard power supplies conventional and save up to 30% energy under load.

Characteristics
  • Input voltage: 100-240 V DC
  • Output voltage selectable from 3 / 4.5 / 5/6 / 7.5 / 9/12 V DC
  • Maximum output power 18W
  • Output current: 1500 mA
  • AC Plug Type: European
  • Version-stabilized
  • Interchangeable DC Plug: 9
  • Protection against overload, over-current, over temperature
Specification
  • Input voltage 100-240 VAC
  • Output voltage 3-12 V DC
  • Maximum output current 1500mA
  • Plug type Euro
  • Version stabilized
  • Includes 9 interchangeable connector tips:
- 2.5 mm plug
- 3.5 mm plug
- 3.5 x 1.35mm DC plug
- 5.0 x 2.1 mm DC plug
- 5.5 x 1.5 mm DC plug
- 5.5 x 2.5 mm DC plug
- 5.5 x 2.1 mm DC plug
- 4.0 x 1.7 mm DC plug
- USB connector
  • Switching power supply: yes
  • Short-circuit protection: yes
  • Overload protection: yes
  • Protection against over-current: it
  • Overvoltage protection: no
  • Overheating protection: yes
  • Cable length: 180 cm
  • Stand-by consumption: 0.3 W
  • Power LED
  • Dimensions: 82 x 51.50 x 73 mm
  • Weight: 176g
Package Contents
  • Adjustable Power Supply 1500 mAh AC / DC stabilized
  • 9 interchangeable connector tips
  • User manual
Data sheet
general
Brand TECHLY Barcode 8057685301948
Color Black Weight 0.2140
The package includes Alimentatore Regolabile 1500mAh AC/DC Stabilizzato 9 spinotti intercambiabili Manuale d'istruzione Codice Fornitore 301948
input
Input voltage 100/240 V AC Frequency -
output
Output voltage 3 V , 4, 5 V , 6 V , 7, 9 V , 12 V Ampere output 1.5 A
Power 18 W Standby consumption 0,3 W
Current output 1500 mA
connections
Connessioni ingresso - 2.5 mm plug - 3.5 mm plug - 3.5 x 1.35 mm DC plug - 5.0 x 2.1 mm DC plug - 5.5 x 1.5 mm DC plug - 5.5 x 2.5 mm DC plug - 5.5 x 2.1 mm DC plug - 4.0 x 1.7 mm DC plug - Connettore USB Number of power connectors -
USB connection Si
technical specifications
LED Yes Stabilized Yes
Promotion Overcurrent, Overheating, Overload, Short circuit
dimensions
Height 82,10 mm Width 51,50 mm
Depth 35 mm (tot. 73 mm con spina) Cable length 1.8 m
