AC/DC Transformer 12V 600mA Plug 5.5x2.1mm - TECHLY - IPW-12V06-21TY-1
AC/DC Transformer 12V 600mA Plug 5.5x2.1mm - TECHLY - IPW-12V06-21TY-1
AC/DC Transformer 12V 600mA Plug 5.5x2.1mm - TECHLY - IPW-12V06-21TY-0
AC/DC Transformer 12V 600mA Plug 5.5x2.1mm - TECHLY - IPW-12V06-21TY-1
AC/DC Transformer 12V 600mA Plug 5.5x2.1mm - TECHLY - IPW-12V06-21TY-1
Techly

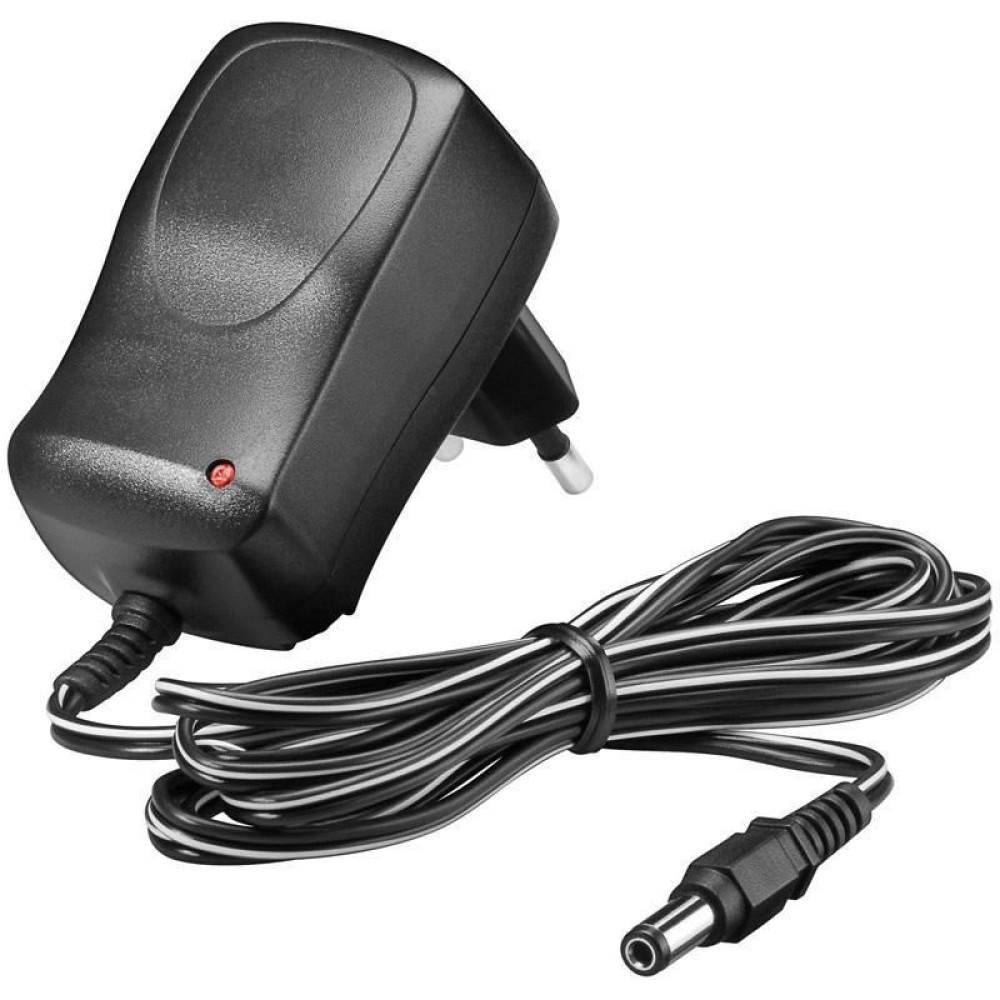

AC/DC Transformer 12V 600mA Plug 5.5x2.1mm

Cod: IPW-12V06-21TY

Barcode: 8054529021758

Supplier Code: 021758

Weight: 0.091 Kg

Min. sale unit: 1 Pcs

Package pcs: 100 Pcs

Cod
IPW-12V06-21TY
Barcode
8054529021758
Supplier Code
021758
Weight
0.091 Kg
Min. sale unit
1 Pcs
Package pcs
100 Pcs
Certificazioni: CE
LED: Yes
Protezioni: Overcurrent
Protezioni: Short circuit
  • Power adapter with a DC plug fixed: 5.5 x 2.1 x 10 mm
  • Input voltage 100-240 V AC; output 12 V DC
  • Output current 600mA
  • Plug input: AC type European
  • stabilized version, with status LED
  • With short-circuit protection, overload, overcurrent
  • Overheating protection: not present
  • Dimensions: 69 x 39 x 31 mm
  • Transformer Colour: black
Description
switching power supply AC / DC 12V 600mA single output Eco-frendly

Features:
  • This new and compact power adapter complies with the requirements of the new international standard ECO-design, CEC and MEPS. The goal of these standards is, in addition to reducing the loss during the stand-by, decrease emission of CO².
  • Compared to other conventional power provides energy savings up to 90% in "stand-by"
  • Energy saving up to 40% under load.
  • Manufactured under the EuP Directive 2005/32 / EG
EuP = eco-design of energy using products

Specifications:
  • in standby mode power by only 0.16 W
  • Equipped with a DC plug Fixed: 5.5 x 2.1 x 10 mm
  • Input voltage 100-240 V AC - 50 / 60Hz
  • Output voltage 12 V DC
  • Output current 600 mA
  • Plug in the AC European type input
  • stabilized version
  • switching adapter: yes
  • With short-circuit protection, overload, overcurrent
  • Overheating protection: not present
  • With status LED
  • Up to 7.2 watts
  • exhibition Package
  • Transformer Colour: black
Size
  • Width 39 mm
  • Depth 69 mm
  • Height 31 mm
Certificates
  • CE
  • WEEE
in the Box
  • Power adapter 12V 600mA
Data sheet
general
Brand TECHLY Barcode 8054529021758
Color Black Weight 0.0910
Certifications CE The package includes Alimentatore IPW-12V06-21TY
Codice Fornitore 021758
input
Input voltage 100/240 V AC Frequency 50/60 Hz
output
Output voltage 12 V Ampere output 0.6 A
Power 7.2 W Standby consumption 0,16 W
Current output 600 mA
connections
Connessioni ingresso AC tipo Europeo Number of power connectors -
USB connection No
technical specifications
LED Yes Stabilized Yes
Promotion Overcurrent, Overload, Short circuit
dimensions
Height 31 mm Width 39 mm
Depth 69 mm Cable length 1.8 m
