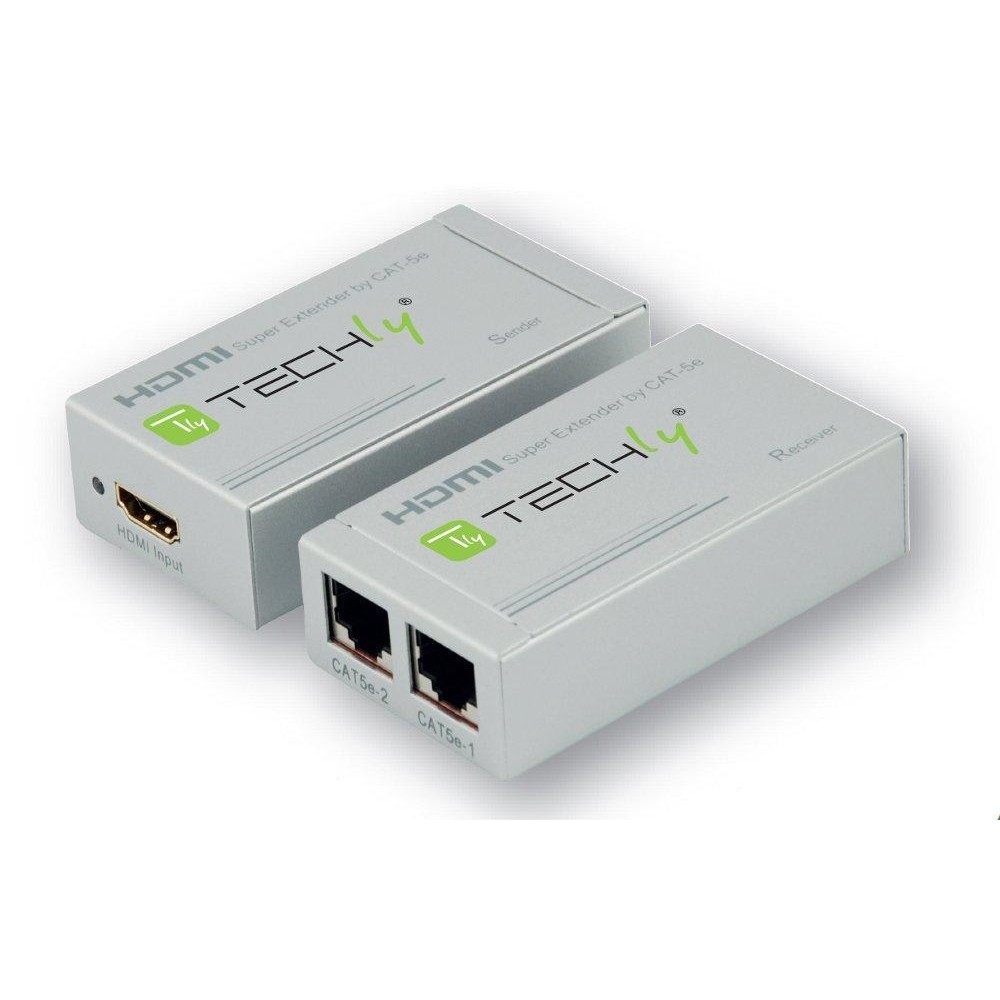

Amplifier HDMI over CAT5 / 6 100 m

Cod: IDATA EXT-E60

Barcode: 8057685302983

Supplier Code: 302983

Weight: 0.467 Kg

Min. sale unit: 1 Pcs

Package pcs: 37 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Extender to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Extender
right for you
Configure now
Tipo connettore A: HDMI
Tipo connettore B: RJ45 8P8C
Risoluzione Video Max: 1080p
HDCP: Yes
Compatibile 3D: Yes
  • It allows to easily extend the HDMI signal using two Cat5e / Cat6 cable to extend the transmission distances
  • A pair constitutes a complete functional module that requires no setting
  • The CAT-5e / 6 cable can substitute HDMI cable to achieve greater long-distance transmission
  • Complies with IEEE-568B
  • It can achieve a transmission distance of 100 meters to 60 meters in 480p or 1080p using two pairs of UTP cable splitter inside
  • Auto-adjustment of feedback, equalization and amplification, the user need not worry about the length of the cable
  • Compact size
  • Supports highest video resolution 1080p
Specification
  • Input Video Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 1920x1080P
  • Video Output: HDMI
  • HDMI Input / Output Connector: Type A 19 pin
  • Vertical Frequency Range: 50 / 60Hz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz) 480i, 576i, 1080i
- Progressive (50 & 60Hz) 480p, 576p, 720p, 1080p
  • Supports bandwidth of 165MHz / 1.65Gbps per channel (4.95Gbps for all channels).
  • Supports color depth to 8bit per channel (24bit all channel)
  • Supports HDCP
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 165MHz
Package Contents
  • HDMI Extender (Transmitter and Receiver Module)
  • Power supply 5V DC @ 2A included
  • User manual
Description
  • It allows to easily extend the HDMI signal using two Cat5e / Cat6 cable to extend the transmission distances
  • A pair constitutes a complete functional module that requires no setting
  • The CAT-5e / 6 cable can substitute HDMI cable to achieve greater long-distance transmission
  • Complies with IEEE-568B
  • It can achieve a transmission distance of 100 meters to 60 meters in 480p or 1080p using two pairs of UTP cable splitter inside
  • Auto-adjustment of feedback, equalization and amplification, the user need not worry about the length of the cable
  • Compact size
  • Supports highest video resolution 1080p
Specification
  • Input Video Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 1920x1080P
  • Video Output: HDMI
  • HDMI Input / Output Connector: Type A 19 pin
  • Vertical Frequency Range: 50 / 60Hz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz) 480i, 576i, 1080i
- Progressive (50 & 60Hz) 480p, 576p, 720p, 1080p
  • Supports bandwidth of 165MHz / 1.65Gbps per channel (4.95Gbps for all channels).
  • Supports color depth to 8bit per channel (24bit all channel)
  • Supports HDCP
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 165MHz
Package Contents
  • HDMI Extender (Transmitter and Receiver Module)
  • Power supply 5V DC @ 2A included
  • User manual
Data sheet
general
Brand OEM Barcode 8057685302983
Color Silver Codice Fornitore 302983
input
Connector A Type HDMI format A connector female
Number A Connector 1
output
Connector B Type RJ45 8P8C format B connector female
Number B Connector 2
technical specifications
Typology Amplifier Max Video Resolution 1080p
max bandwidth (MHz) 165 MHz Deep Color 8 bit
HDCP Yes 3D compatible Yes
Supported audio standards No Transmission Distance 100 m
power supply
Power supply Requested (included)
dimensions
Width 45 mm Height 25 mm
Depth 81 mm Weight 0.4670
The package includes • Extender HDMI (modulo ricevitore e trasmettitore) • Alimentatore e manuale d'istruzione
