Amplifier HDMI1.4 70m on Cat.5/6/7 Cable HDBaseT IR 3D 4K*2K

Cod: IDATA EXT-E80

Barcode: 8057685309890

Supplier Code: 309890

Weight: 0.693 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Extender to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Extender
right for you
Configure now
Certificazioni: CE
Certificazioni: FCC
Certificazioni:
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: 720p
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: Yes
Compatibile 3D: Yes
IDATA EXT-E80 is designed to convert the HDMI signal over standard network protocol and send HDBaseT cable CAT.5 / 6/7.
This device allows you to send signals Audio Video HDMI digital high-resolution, 3D, multi-channel digital audio and IR for remote control via a standard network cable Cat.5E / 6 at a maximum distance of 70 meters.
The extender is composed of two units: a transmitter and a receiver; The transmitter connects to an HDMI source via a standard HDMI cable and the receiver connects to the monitor in the same way. The two units are connected with a network cable CAT.5E / 6/7.
IR transmitter and receiver for optimal positioning of the sensors, are included in the delivery.
It offers solutions for digital entertainment, HDTV or for private showrooms, STB, DVD and video projectors, conference room presentation, school classes and business seminars.

Features
  • Transmitter: Input: 1x HDMI. Output: 1x IR Blaster; 1x LAN
  • Receiver: Input: 1x LAN; 1x IR receiver. Output: 1x HDMI
  • Supported HDMI resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 3D; 4Kx2K
  • Protocol standard HDBaseT
  • HDMI version 1.4, compatible with HDCP; CEC support and 24-bit deep color
  • Network cable compatible: CAT5E, CAT6, CAT6A, CAT7
  • Transmission length:
- CAT5E / 6: 60m until 1080P60Hz 36bpp
                     35m for 1080P60Hz 48bpp, 1080P60Hz 3D, 4Kx2K 30Hz
- CAT6A / 7: 70m to 1080P60Hz 36bpp
                    40m for 1080P60Hz 48bpp, 1080P60Hz 3D, 4Kx2K 30Hz
  • IR remote control, frequency 20 ~ 60kHz; Beaming wide and bidirectional
  • Consumption: Transmitter: <3.5W; RX: <6W
  • Power Supplies 5V 2A included in the package
Connections

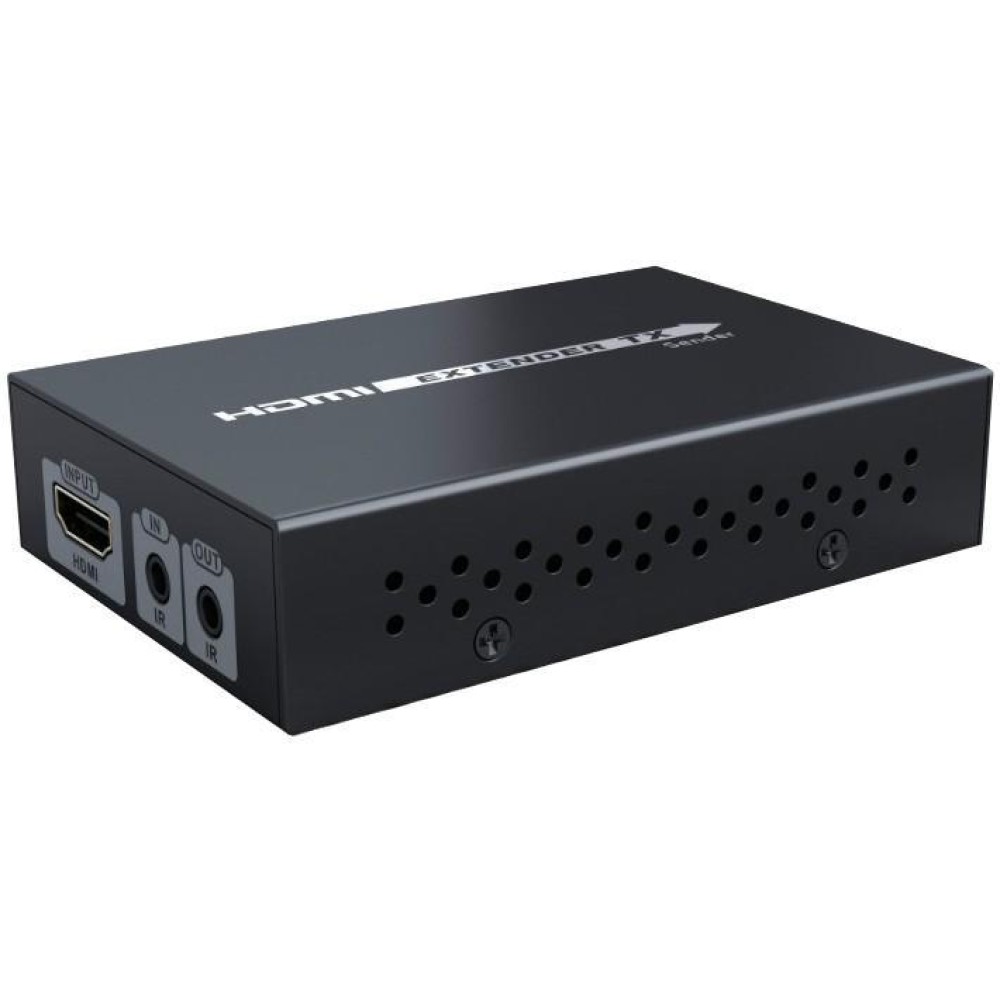

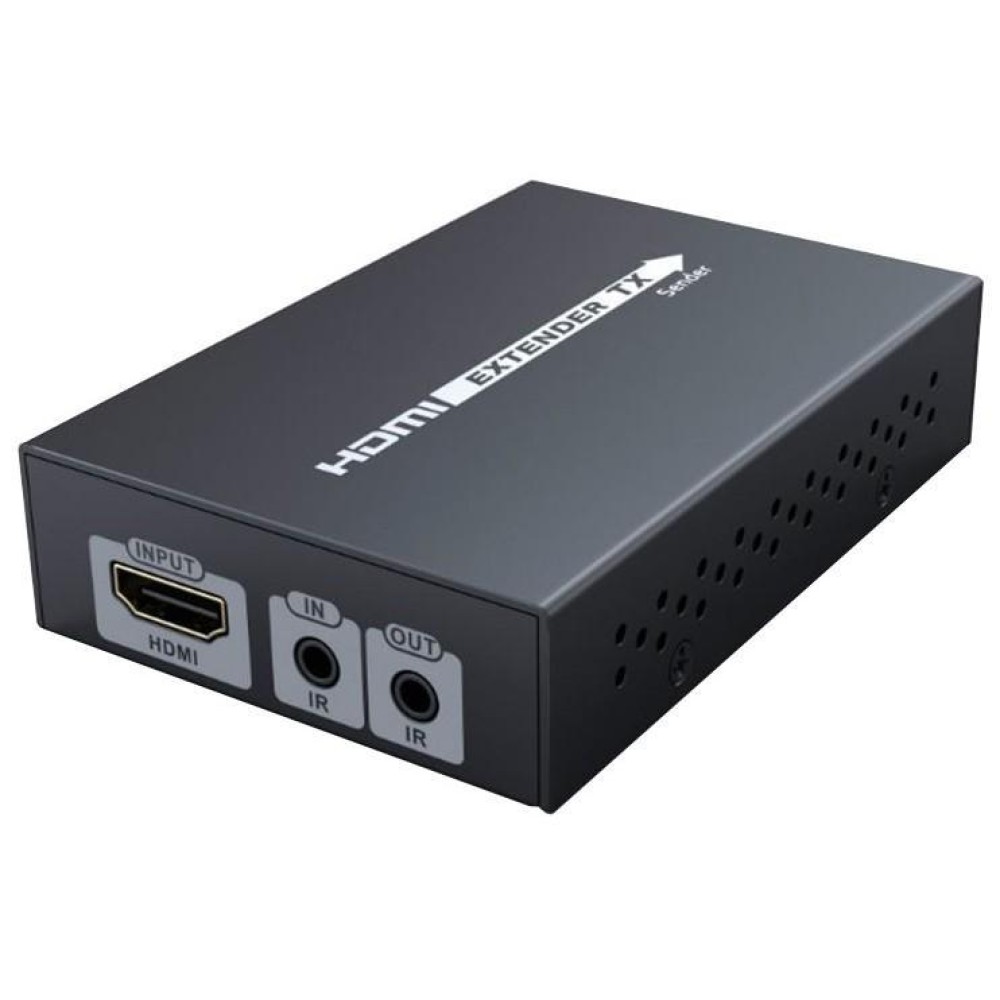

  • Transmitter:
- Input: HDMI Female to connect the HDMI source
- Output: RJ-45 female HDBaseT
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with extensor IR extension cable
- Power Connector DC 5V
  • Receiver:
- Input: RJ-45 female HDBaseT
- Output: HDMI female, for connection of the HDMI display
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with extensor IR extension cable
- Power Connector DC 5V

Dimensions
  • Width 98 mm
  • Depth 66.5 mm
  • Height 23 mm
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x Transmitter
  • 1x Receiver
  • 2x Power Supply 5V 2A
  • Cables IR in and out
  • 1x Instruction Manual
Description
IDATA EXT-E80 is designed to convert the HDMI signal over standard network protocol and send HDBaseT cable CAT.5 / 6/7.
This device allows you to send signals Audio Video HDMI digital high-resolution, 3D, multi-channel digital audio and IR for remote control via a standard network cable Cat.5E / 6 at a maximum distance of 70 meters.
The extender is composed of two units: a transmitter and a receiver; The transmitter connects to an HDMI source via a standard HDMI cable and the receiver connects to the monitor in the same way. The two units are connected with a network cable CAT.5E / 6/7.
IR transmitter and receiver for optimal positioning of the sensors, are included in the delivery.
It offers solutions for digital entertainment, HDTV or for private showrooms, STB, DVD and video projectors, conference room presentation, school classes and business seminars.

Features
  • Transmitter: Input: 1x HDMI. Output: 1x IR Blaster; 1x LAN
  • Receiver: Input: 1x LAN; 1x IR receiver. Output: 1x HDMI
  • Supported HDMI resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 3D; 4Kx2K
  • Protocol standard HDBaseT
  • HDMI version 1.4, compatible with HDCP; CEC support and 24-bit deep color
  • Network cable compatible: CAT5E, CAT6, CAT6A, CAT7
  • Transmission length:
- CAT5E / 6: 60m until 1080P60Hz 36bpp
                     35m for 1080P60Hz 48bpp, 1080P60Hz 3D, 4Kx2K 30Hz
- CAT6A / 7: 70m to 1080P60Hz 36bpp
                    40m for 1080P60Hz 48bpp, 1080P60Hz 3D, 4Kx2K 30Hz
  • IR remote control, frequency 20 ~ 60kHz; Beaming wide and bidirectional
  • Consumption: Transmitter: <3.5W; RX: <6W
  • Power Supplies 5V 2A included in the package
Connections
  • Transmitter:
- Input: HDMI Female to connect the HDMI source
- Output: RJ-45 female HDBaseT
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with extensor IR extension cable
- Power Connector DC 5V
  • Receiver:
- Input: RJ-45 female HDBaseT
- Output: HDMI female, for connection of the HDMI display
- IR input, for connecting the IR receiver with extension cable
- IR output, for connection with extensor IR extension cable
- Power Connector DC 5V

Dimensions
  • Width 98 mm
  • Depth 66.5 mm
  • Height 23 mm
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x Transmitter
  • 1x Receiver
  • 2x Power Supply 5V 2A
  • Cables IR in and out
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8057685309890
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 309890
input
Connector A Type HDMI format A connector female
Number A Connector 1 Altri Connettori Input RJ45 Femmina 1
output
Connector B Type HDMI format B connector female
Number B Connector 1 Altri Connettori Output RJ45 Femmina 1
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720p , Ultra HD 4K 2160p
Deep Color 24 bit HDCP Yes
3D compatible Yes Supported audio standards Yes
Transmission Distance 70 m
power supply
Power supply Requested (included) Consumo energetico 10W
dimensions
Width 98 mm Height 23 mm
Depth 66.5 mm Weight 0.6930
The package includes • 1x Trasmettitore • 1x Ricevitore • 2x Alimentatore 5V 2A • Cavi IR in e out • 1x Manuale d'istruzioni
