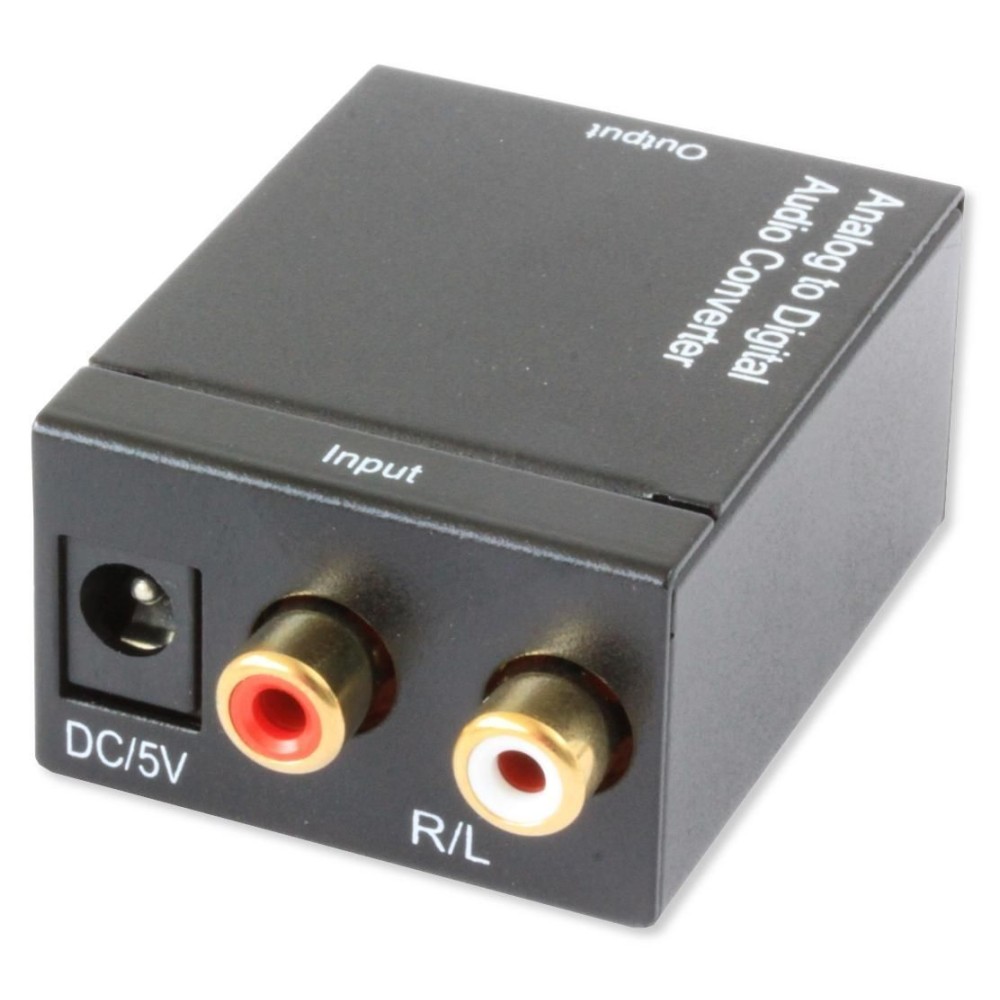

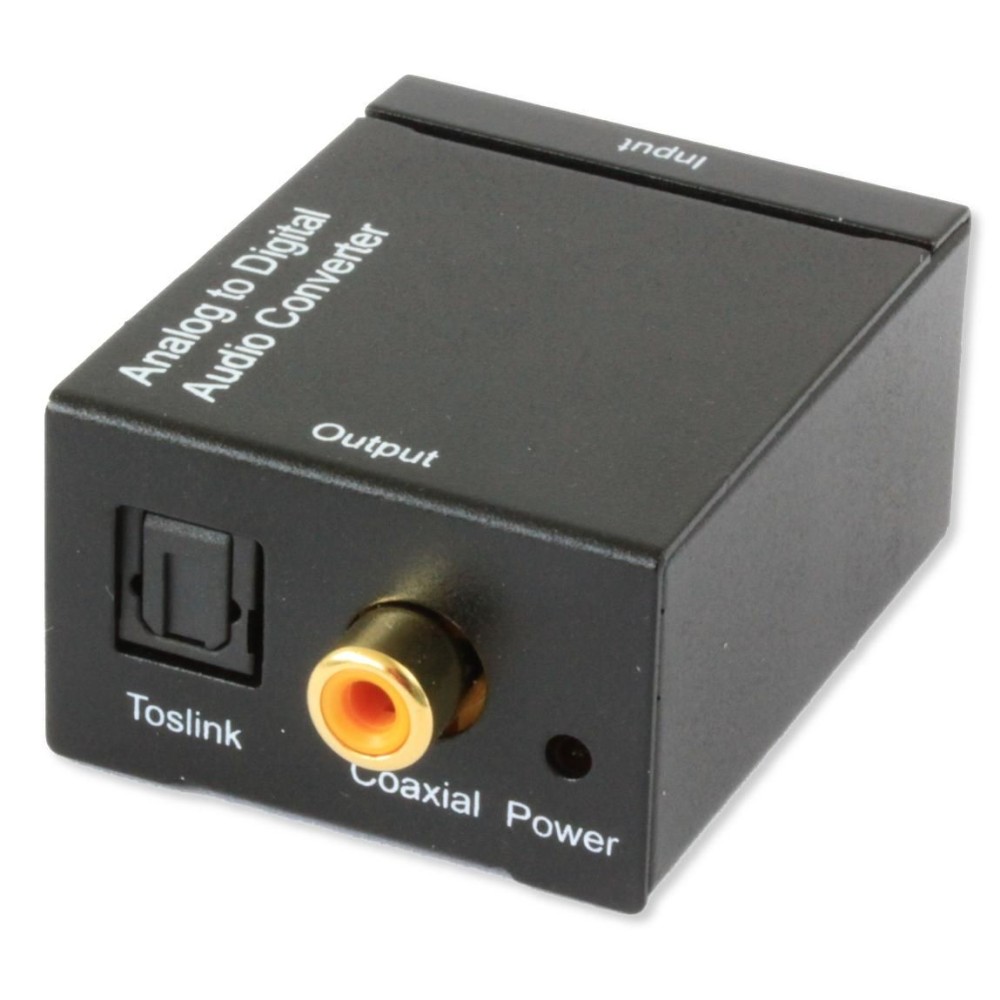

Analog to Digital SPDIF Audio Converter

Cod: IDATA SPDIF-2

Barcode: 766623908382

Supplier Code: 908382

Weight: 0.525 Kg

Min. sale unit: 1 Pcs

Package pcs: 37 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Adapters to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Adapters
right for you
Configure now
Certificazioni: CE
Certificazioni: FCC
Certificazioni: UL
Anni di Garanzia: 2
  • Converts analog audio L / R RCA coaxial digital (RCA) or optical Toslink
  • Audio signal output 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate of 48 KHz
  • It allows to connect the stereo analog classics to modern audio systems with digital audio input
  • Extremely compact and easy to install
Description
analog-to-digital audio converter can be used in both professional and home use. Converts analog audio L / R RCA coaxial digital (RCA) or optical Toslink, with 2-channel audio signal uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate of 48 KHz. allowing you to connect the stereo analog classics to modern audio systems with digital audio input. Extremely compact and easy to install.

Features
  • Converts analog audio L / R Stereo Audio Coaxial or Toslink digital
  • Supports sampling rate at 48 KHz
  • Easy to install and simple to manage
Specifications
  • Audio Input: Stereo L / R
  • Audio output: LPCM
  • Audio connection: 2 x RCA (R / L)
  • Audio output: Coaxial (RCA) or Toslink (S / PDIF) digital audio
  • Sampling frequency 48KHz
Physical Information
  • Dimensions (W-P-A) 50x40x35 mm
  • Weight (Net) 78g
Environment
  • Operating Temperature: 0 to +70
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° to + 80 °
  • 5% to 90% RH Storage humidity (non-condensing)
Power
  • External Power Supply 5V DC @ 2A
  • Power consumption 0.5 watts (max)
Certificates
  • converter: FCC, CE, UL
  • Power Supply: UL, CE, FCC
The package includes
  • audio converter from analog to digital
  • Power supply 5V DC
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 766623908382
Weight 0.5250 Certifications CE , FCC , UL
Years of Warranty 2 Codice Fornitore 908382
technical specifications
Typology Converter Color Black
Connector A Type RCA format A connector female
Connector B Type Multiconnection format B connector -
Headphone connectors No MHL support -
Other Features • Ingresso Audio: Stereo L/R (2 x RCA) • Uscita audio: coassiale (RCA) o Toslink (S/PDIF) audio digitale
dimensions
Lunghezza 50 mm Width 40 mm
Height 35 mm
