Techly

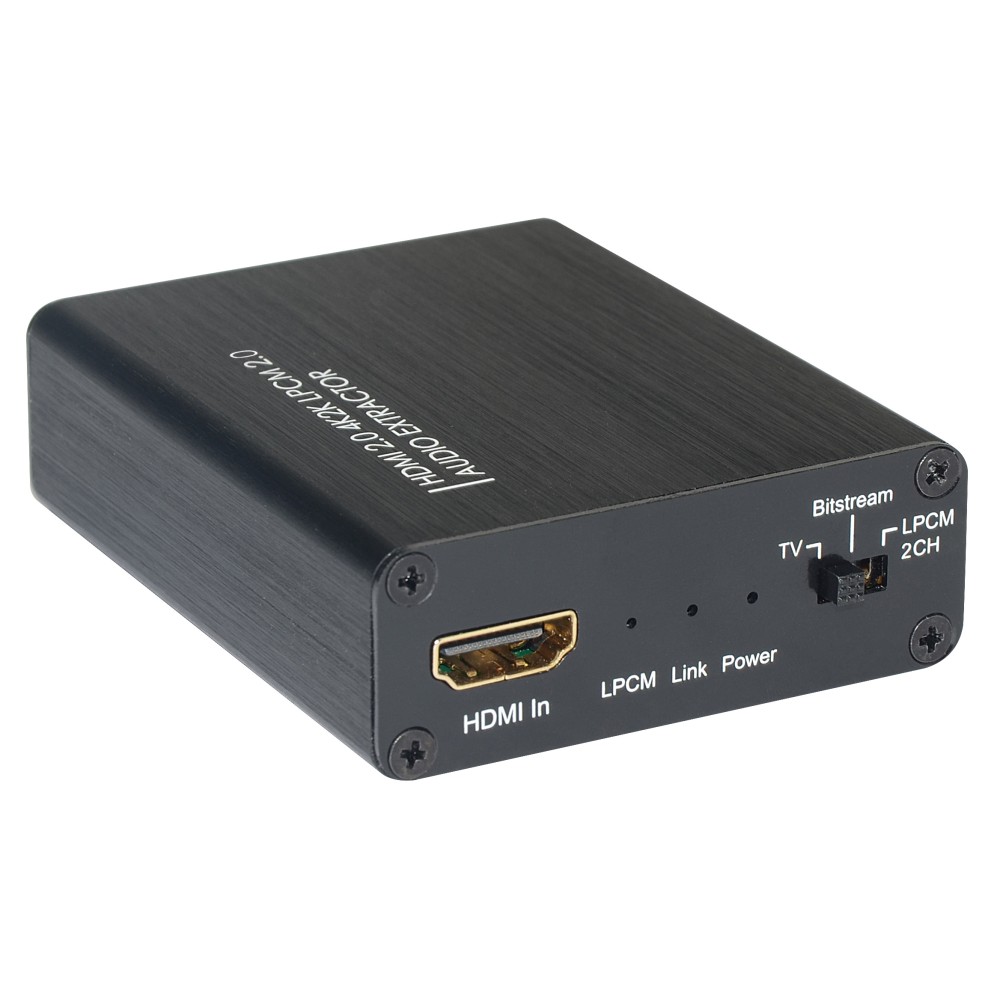

Audio Extractor 2CH LPCM HDMI 4K UHD 3D

Cod: IDATA HDMI-EA4K

Barcode: 8054529025749

Supplier Code: 025749

Weight: 0.448 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Available

Incl. Tax: €82.40

Excl. Tax: €67.54 + VAT

Cod
IDATA HDMI-EA4K
Barcode
8054529025749
Supplier Code
025749
Weight
0.448 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Add to Compare
Shipping from €6.10 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: CE
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Compatibile 3D: Yes
  • It extracts the audio signal from an HDMI source
  • Supports HDMI audio sampling rates up to 192kHz
  • Supports optical audio sampling rate S / PDIF audio up to 192kHz
  • Supports audio sampling frequency L / R up to 48 kHz
  • Supports audio HDMI high-bit-rate (HBR)
  • No HDMI connections for receiving audio on analog and optical outputs
  • Supports analog stereo audio output L / R and S / PDIF optical
  • Incoming and outgoing can use HDMI cables up to 15 meters in length 1080p 8bit resolution, or 10m to 1080p 12bit
  • Supports audio feature EDID between LPCM 2CH, TV EDID (external) and Audio Bitstream
  • Allows 4Kx2K resolutions and 3D reproductions
  • Meets HDMI, HDCP 1.2 and DVI 1.0
  • Power supply included 5V 2A
  • Dimensioni: 95 mm x 82 mm x 23 mm
Description
IDATA HDMI-EA4K extracts the audio signal from the HDMI source and convert it to optical or analog multi-channel digital audio.
It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signals to external speakers.

Features
  • It extracts the audio signal from an HDMI source
  • Supports HDMI audio sampling rates up to 192kHz
  • Supports optical audio sampling rate S / PDIF audio up to 192kHz
  • Supports audio sampling frequency L / R up to 48 kHz
  • Supports audio HDMI high-bit-rate (HBR)
  • No HDMI connections for receiving audio on analog and optical outputs
  • Supports analog stereo audio output L / R and S / PDIF optical
  • Incoming and outgoing can use HDMI cables up to 15 meters in length 1080p 8bit resolution, or 10m to 1080p 12bit
  • Supports audio feature EDID between LPCM 2CH, TV EDID (external) and Audio Bitstream
  • Allows 4Kx2K resolutions and 3D reproductions
  • Meets HDMI, HDCP 1.2 and DVI 1.0
  • Black Colour
Technical Specifications
  • Video bandwidth: 300Mbps / 10.2Gbps
  • Input ports: 1 x HDMI
  • Output Ports: 1 x HDMI, 1 x Optical, 1 x L / R (3.5 "female)
  • HDMI Audio sampling frequency up to 192kHz
  • SPDIF Optical Audio sampling frequency up to 192 kHz
  • HDMI Audio format: 2CH LPCM, Dolby Digital 2 ~ 5.1CH, DTS 5.1 CH 2 ~
  • Audio Format L / R: Stereo Analog 2CH
  • Cable distance HDMI 4K I / O: 10m / 10m
  • Power supply included 5V 2A
Environmental Features
  • Operating Temperature: 0 ° C ~ 40 ° C
  • Storage Temperature: -20˚C ~ 60˚C
Dimensions
  • Width: 95 mm
  • Depth: 82 mm
  • Height: 23 mm
Certifications
  • CE
  • WEEE
Package Contents
  • Audio Extractor IDATA HDMI-EA4K
  • Power supply 5V 2A
  • Information Sheet
Data sheet
general
Brand TECHLY Barcode 8054529025749
Certifications CE , RoHS Color Black
Codice Fornitore 025749
input
Connector A Type HDMI-A format A connector female
Number A Connector 1
output
Connector B Type HDMI-A format B connector female
Number B Connector 1 Altri Connettori Output 1 x Ottico, 1 x L/R (3.5" femmina)
technical specifications
Typology Converter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 18 Gbps Deep Color 12 bit
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance 10 m
power supply
Power supply Requested (included)
dimensions
Width 64 mm Height 23 mm
Depth 77 mm Weight 0.4480
The package includes • Estrattore audio IDATA HDMI-EA4K • Alimentatore 5V 2A • Manuale istruzioni
