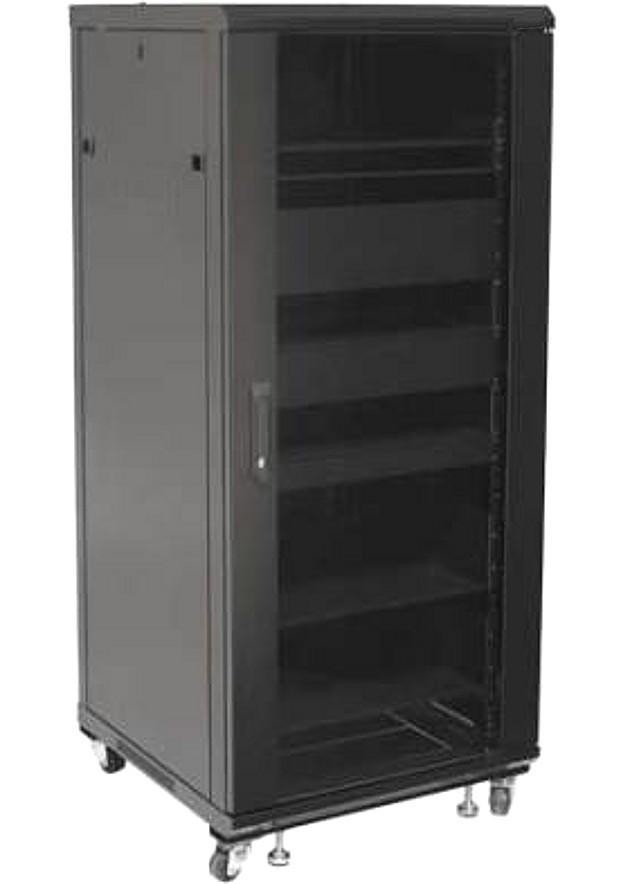

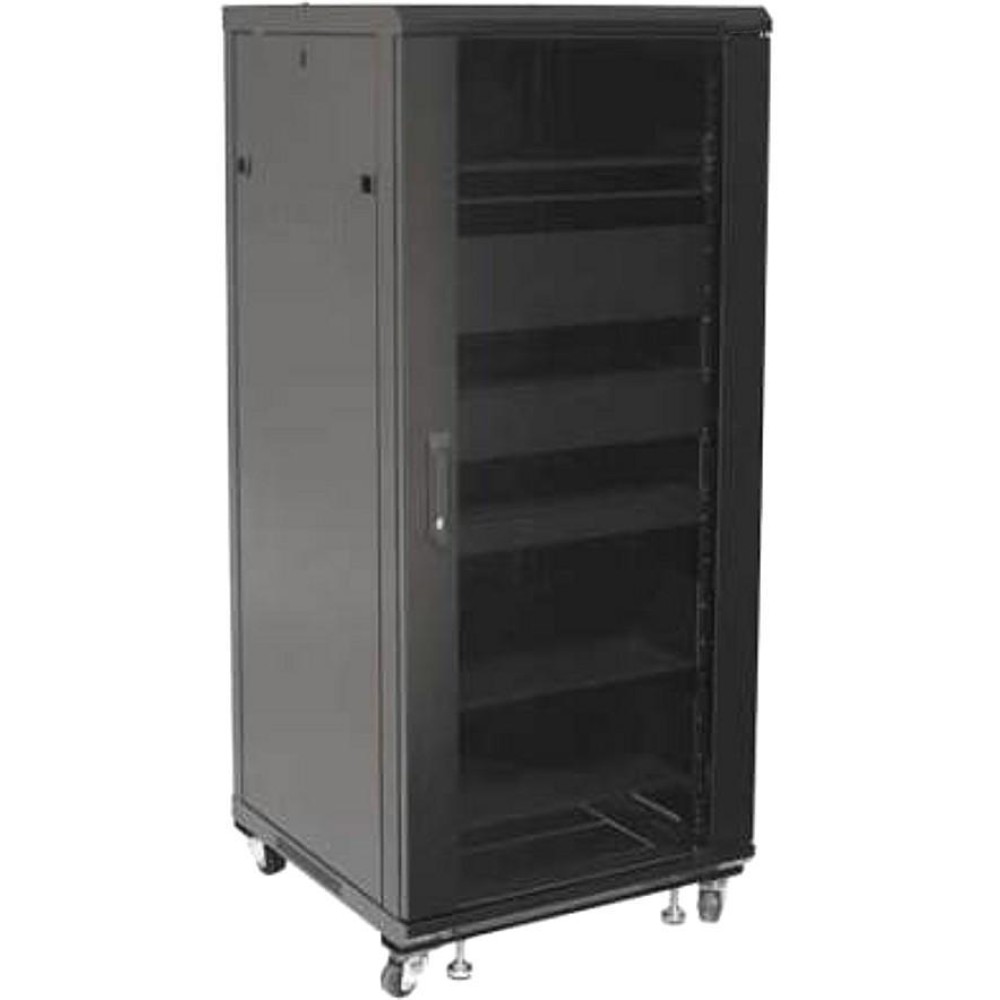

Audio Video Rack Cabinet 19" 27U 600x600 Black
Press release & video?
Code: I-CASE AV-2127BKTY    Barcode: 8054529026548

   Supplier Code: 026548

Available

Audio Video Rack Cabinet 19" 27U 600x600 Black

Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 340,2 kg
Certificazioni: ISO 9001
Anni di Garanzia: 15
Choose a different Option:

• 27U rack cabinet designed to support audio / video equipment
• Stable and robust steel structure to contain safely delicate equipment
• Side panels and rear quick release
• Tempered glass door
• Includes ventilated shelves 1U and 2U with a locking system at the rear
• Includes cooling fans on the top panel and the bottom to ensure proper internal ventilation
• Prepared for cable entry in the base and the roof via knockouts profiles
• Swivel wheels and adjustable feet enable mobility and stable positioning
• Static load: 340.2 kg
• Capacity 1U shelf: 13 kg
• Shelf capacity 2U: 22 kg
• Capacity 3U shelf: 33 kg
• RAL 9004 (black)
• Dimensions: 600x600x1397 mm (WxDxH)

Description

Details

• 27U rack cabinet designed to support audio / video equipment
• Stable and robust steel structure to contain safely delicate equipment
• Side panels and rear quick release
• Tempered glass door
• Includes ventilated shelves 1U and 2U with a locking system at the rear
• Includes cooling fans on the top panel and the bottom to ensure proper internal ventilation
• Prepared for cable entry in the base and the roof via knockouts profiles
• Swivel wheels and adjustable feet enable mobility and stable positioning
• Static load: 340.2 kg
• Capacity 1U shelf: 13 kg
• Shelf capacity 2U: 22 kg
• Capacity 3U shelf: 33 kg
• RAL 9004 (black)
• Dimensions: 600x600x1397 mm (WxDxH)

Package Contents
• 1x Rack audio video
• 3x Blanc panels (1x1U, 1x2U, 1x3U)
• 6x Shelves (2x1U, 2x2U, 2x3U)
• 2x Closing keys
• 6x Fixing clips (shelve’s accessory)
• 12x Mounting straps (shelve’s accessory)
• 2x Mounting screws
• 4x Feet
• 4x Wheels
• 1x Manual
data sheet
generale
Brand
Techly Professional
Barcode
8054529026548
Typology
Floor
Rack inches
19"
Assembly
Assembled
Units
27
Color
Black
Ingress Protection IP
20
Ability to static load
340,2 kg
Goods origin
No
Certifications
ISO 9001
Years of Warranty
15
Codice Fornitore
026548
dimensioni
Rack width
600 mm
Rack depth
600 mm
Height
1315 mm
Profondità utile
540 mm
Weight
84.7900
pannelli laterali
Appearance
Blind
Removable
Yes
Closure type
A quarter turn
pannello posteriore
Appearance
Blind
Removable
Yes
Closure type
A quarter turn
Closing handle points
No
Maximum aperture
No
porta anteriore
Appearance
Tempered glass
Removable
Yes
Door material
Glass
Reversible
Yes
Closure type
Handle
Locking points
1
Maximum aperture
No
tetto
Prepared for ventilation
Yes
Prepared for Cable Input
Yes
montanti
Front
2 adjustable
Rear
2 adjustable
accessori compresi
Leveling feet
Yes
Base
No
Wheel
Yes
Uprights 10''/19''
Front and rear
Brushes hold powder
No
Grounding kit
Yes
The package includes
• 1x Rack audio video • 3x Blanc panels (1x1U, 1x2U, 1x3U) • 6x Shelves (2x1U, 2x2U, 2x3U) • 2x Closing keys • 6x Fixing clips (shelve’s accessory) • 12x Mounting straps (shelve’s accessory) • 2x Mounting screws • 4x Feet • 4x Wheels • 1x Manual
