Techly

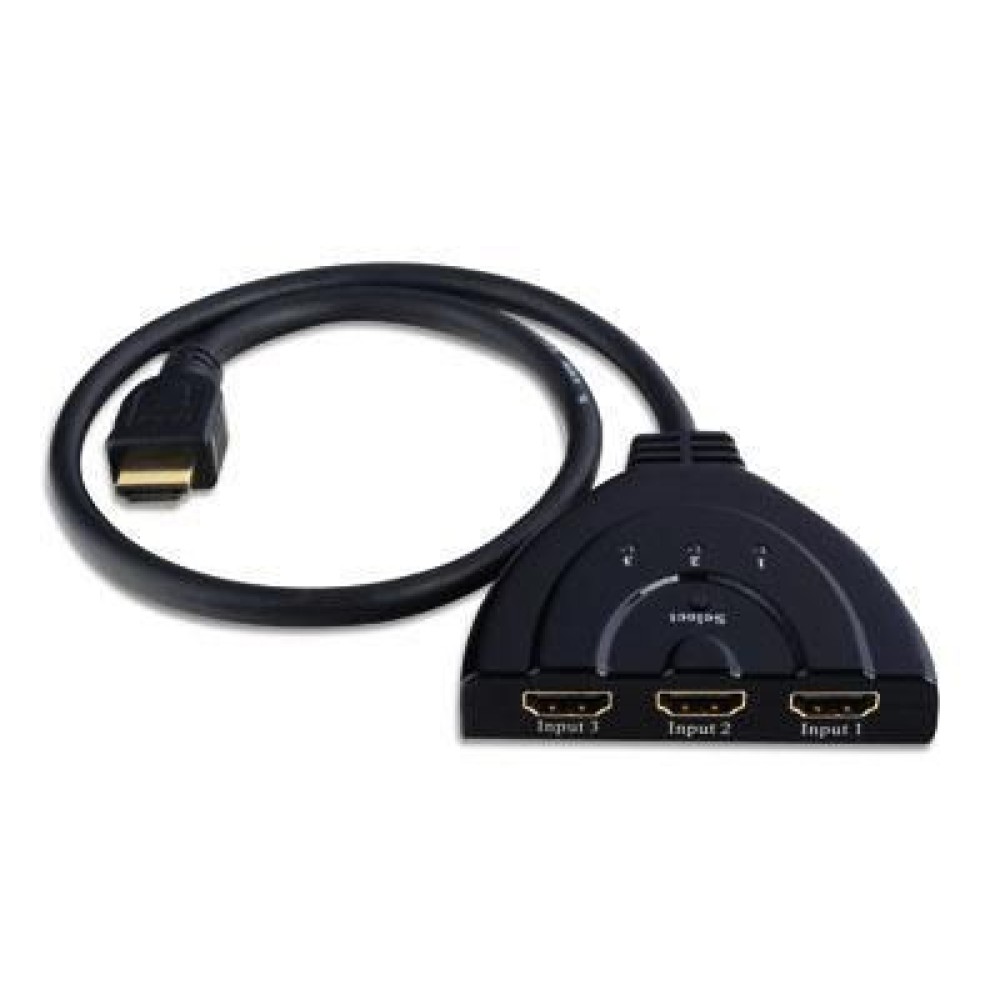

Bidirectional HDMI Switch 3 ports, 1080p, 3D

Cod: IDATA HDMI-3BI

Barcode: 8057685302853

Supplier Code: 302853

Weight: 0.173 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA HDMI-3BI
Barcode
8057685302853
Supplier Code
302853
Weight
0.173 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore A: HDMI
Tipo connettore B: HDMI
HDCP: 1.4
Compatibile 3D: Yes
This is a kind of high performance HDMI Switch. It allows you to switch from three sources is a dipslay or from a source to three displays. Press the switch to select 1 or 3 channels. With a single HDMI cable (pigtail) this converter can not only reduce costs but also saves time to 'user. This kind of HDMI Switch forwards video in high resolution (in multiple resolutions up to 1080p) and digital audio from the sources to display units.

Characteristics
  • Bidirectional Switch HDMI, allows both to switch from three sources to a display is to switch from a source to three displays alternately
  • Supports highest video resolution 1080p
  • Supports bandwidth of 250MHz / 2.5Gbps per channel (7.5Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channel)
  • HDCP pass-through
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p@23.98/24Hz, 720p@59.94/60Hz, bandwidth up to 250MHz.
  • Supports 4Kx2K
Specification
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 1920 x 1080 p
  • Video Output: HDMI
  • Vertical Frequency Range: 50/60 Hz
  • Video Amplifier Bandwidth: 2.5Gbps / 250MHz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz): 480i, 576i, 1080i
- Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p

Physical Information
  • Operating temperature: 0 ° C to + 70 ° C
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage Temperature: -10 ° C to + 80 ° C
  • Storage humidity: 5% to 90% RH (non-condensing)
  • External power supply: not required
  • Power consumption: 5 W max
Package Contents

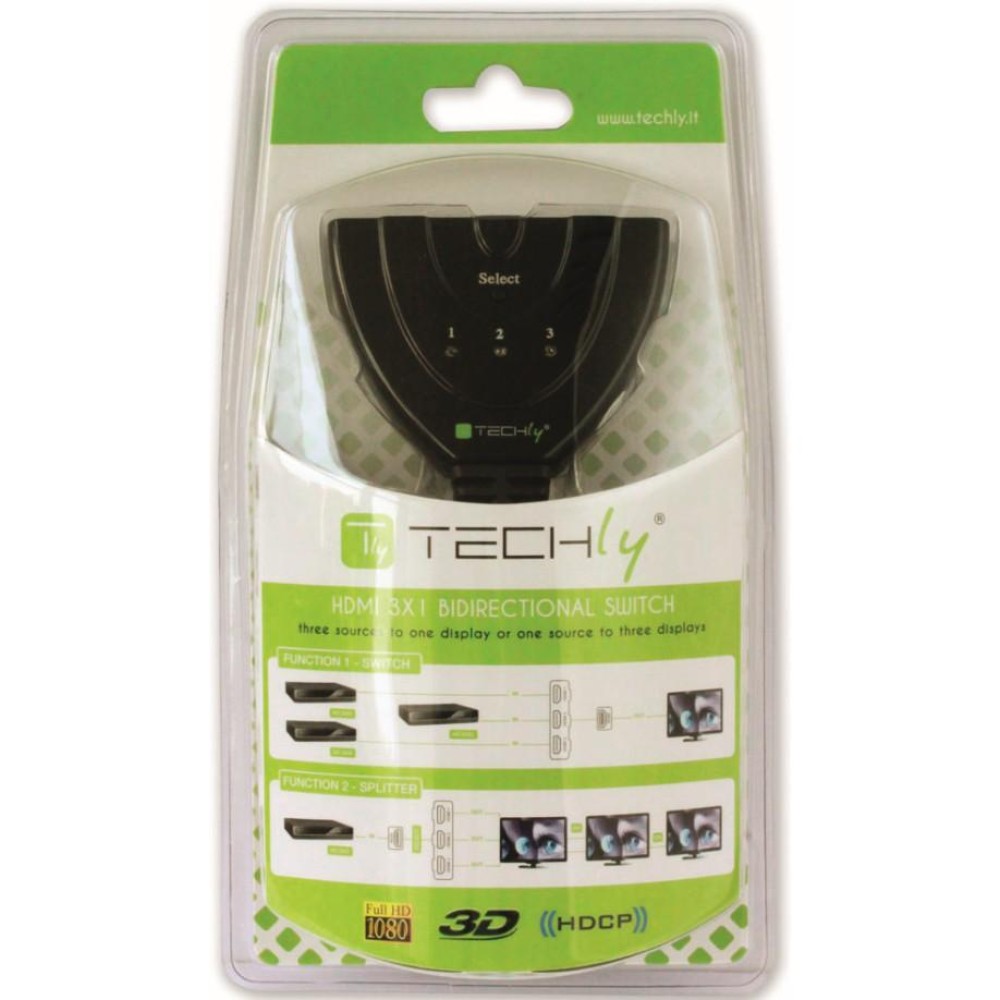

  • Bi-directional 3-Port HDMI Switch
  • User manual
Description
This is a kind of high performance HDMI Switch. It allows you to switch from three sources is a dipslay or from a source to three displays. Press the switch to select 1 or 3 channels. With a single HDMI cable (pigtail) this converter can not only reduce costs but also saves time to 'user. This kind of HDMI Switch forwards video in high resolution (in multiple resolutions up to 1080p) and digital audio from the sources to display units.

Characteristics
  • Bidirectional Switch HDMI, allows both to switch from three sources to a display is to switch from a source to three displays alternately
  • Supports highest video resolution 1080p
  • Supports bandwidth of 250MHz / 2.5Gbps per channel (7.5Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channel)
  • HDCP pass-through
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p@23.98/24Hz, 720p@59.94/60Hz, bandwidth up to 250MHz.
  • Supports 4Kx2K
Specification
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 1920 x 1080 p
  • Video Output: HDMI
  • Vertical Frequency Range: 50/60 Hz
  • Video Amplifier Bandwidth: 2.5Gbps / 250MHz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz): 480i, 576i, 1080i
- Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p

Physical Information
  • Operating temperature: 0 ° C to + 70 ° C
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage Temperature: -10 ° C to + 80 ° C
  • Storage humidity: 5% to 90% RH (non-condensing)
  • External power supply: not required
  • Power consumption: 5 W max
Package Contents
  • Bi-directional 3-Port HDMI Switch
  • User manual
Data sheet
general
Brand Techly Barcode 8057685302853
Color Black Codice Fornitore 302853
input
Connector A Type HDMI format A connector female
Number A Connector 3
output
Connector B Type HDMI format B connector male
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution 1080p
max bandwidth (MHz) 250 MHz Deep Color 12 bit
HDMI 1.4 HDCP 1.4
3D compatible Yes Supported audio standards Compressed, not compressed
Transmission Distance -
power supply
Power supply Not required Consumo energetico 5 W
dimensions
Weight 0.1730 The package includes • Switch HDMI Bidirezionale 3 porte • Manuale d’istruzione
