Techly

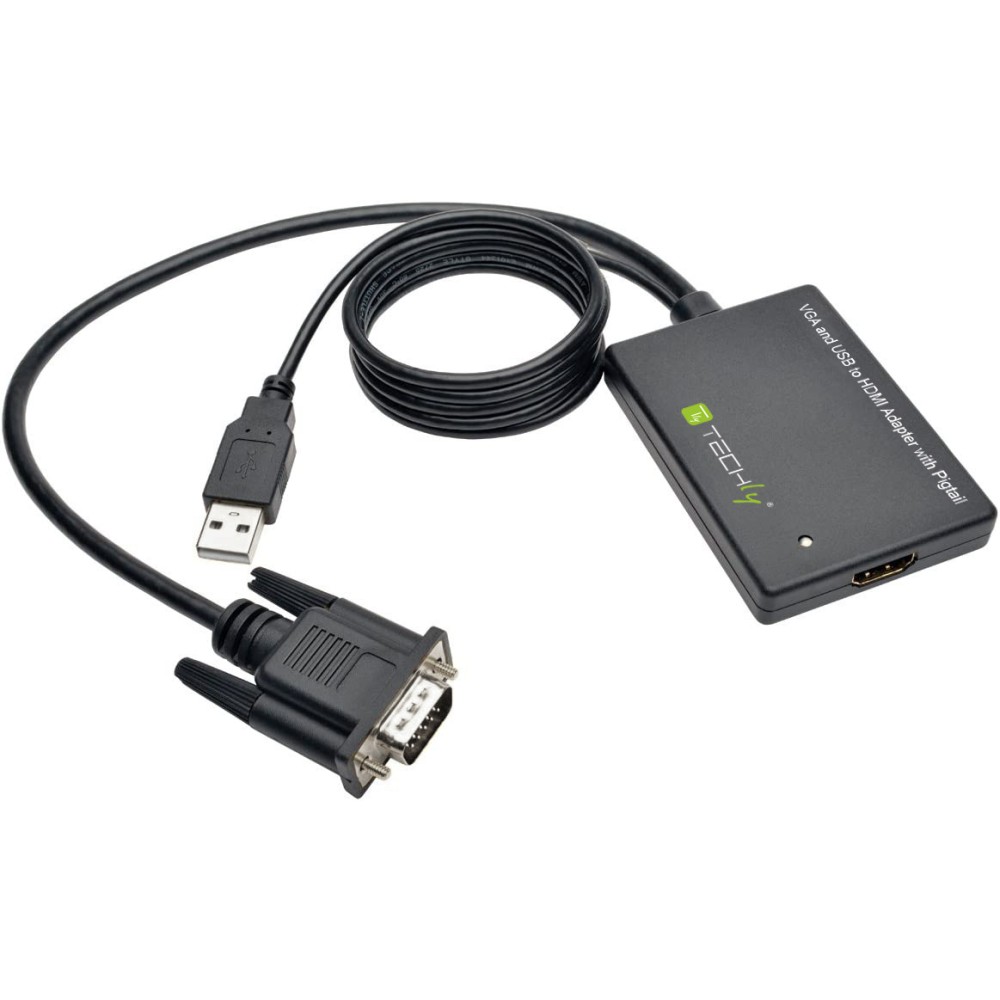

Cable Converter SVGA and Audio to HDMI

Cod: IDATA HDMI-VGA3

Barcode: 8057685301665

Supplier Code: 301665

Weight: 0.133 Kg

Min. sale unit: 1 Pcs

Package pcs: 60 Pcs

Cod
IDATA HDMI-VGA3
Barcode
8057685301665
Supplier Code
301665
Weight
0.133 Kg
Min. sale unit
1 Pcs
Package pcs
60 Pcs
Tipo connettore A: VGA
Tipo connettore B: HDMI-A
Characteristics
  • Convert PC's VGA video and USB 2CH audio to an HDMI signal complete
  • Can be installed in seconds without the need for setting
  • It supports the most popular resolutions VGA video
  • Supports 165 MHz /1.65 Gbps per channel (6.75 Gbps all channel) bandwidth
  • Supports color depth of 8 bits per channel (24 bit all channel)
  • USB powered
Specification
  • Input Video Signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Video Output: HDMI
  • Joint Resolution VGA:
- 640x480 60Hz 75Hz
- 800x600 60Hz 75Hz
- 1024x768 60Hz 75Hz
- 1280x720 60Hz 75Hz
- 1280x768 60Hz 75Hz
- 1280x960 60Hz 75Hz
- 60Hz 1280x1024 75Hz
  • Vertical Frequency Range: 50 / 60Hz
  • Video Amplifier Bandwidth: 1.65 Gbps / 165 MHz
Physical Information
  • Size (L-A-L) 80 mm x 12 mm x 55 mm
  • VGA Cable length: 0.3 m
  • USB cable length: 1 m
  • Weight (approx): 0.113 kg
General Information
  • Operating temperature: 0 ° C to + 70 ° C
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° C to + 80 ° C
  • Storage humidity: 5% to 95% RH (non-condensing)

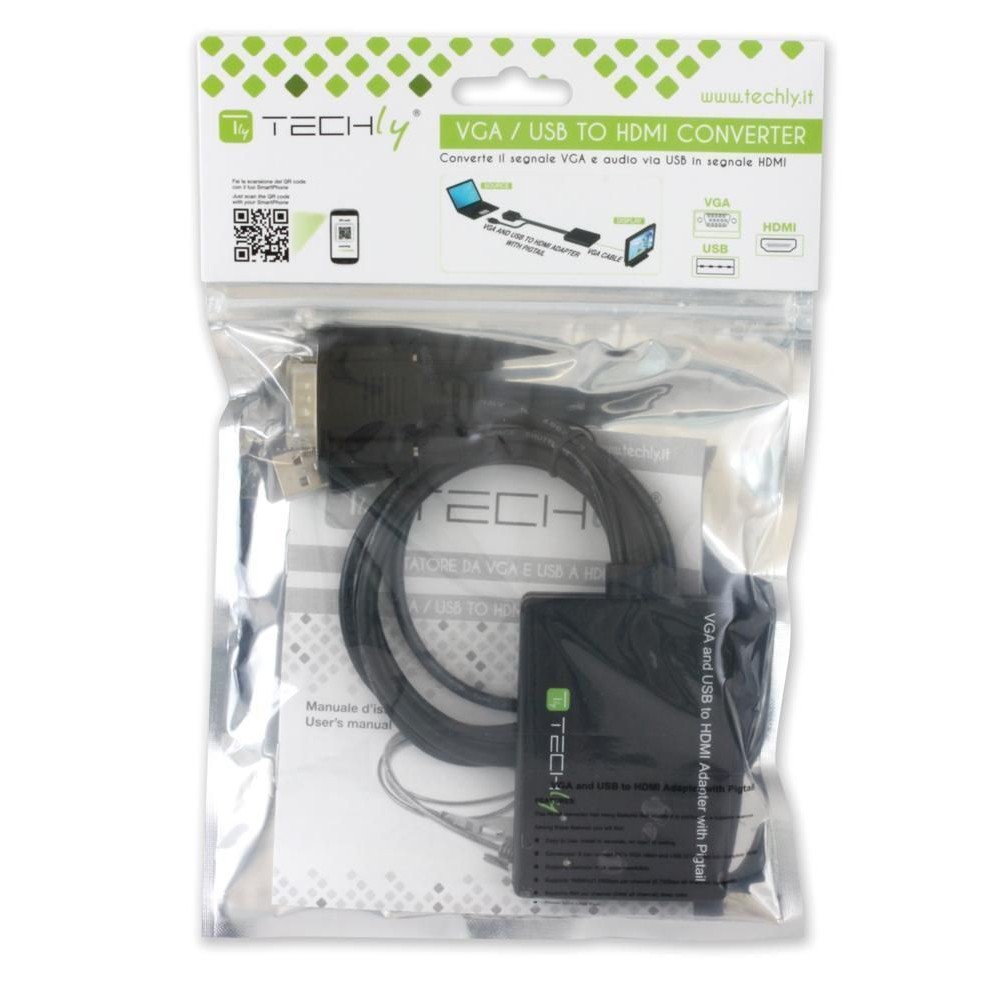

Package Contents
  • SVGA cable converter and Audio to HDMI
  • User manual
Description
Characteristics
  • Convert PC's VGA video and USB 2CH audio to an HDMI signal complete
  • Can be installed in seconds without the need for setting
  • It supports the most popular resolutions VGA video
  • Supports 165 MHz /1.65 Gbps per channel (6.75 Gbps all channel) bandwidth
  • Supports color depth of 8 bits per channel (24 bit all channel)
  • USB powered
Specification
  • Input Video Signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Video Output: HDMI
  • Joint Resolution VGA:
- 640x480 60Hz 75Hz
- 800x600 60Hz 75Hz
- 1024x768 60Hz 75Hz
- 1280x720 60Hz 75Hz
- 1280x768 60Hz 75Hz
- 1280x960 60Hz 75Hz
- 60Hz 1280x1024 75Hz
  • Vertical Frequency Range: 50 / 60Hz
  • Video Amplifier Bandwidth: 1.65 Gbps / 165 MHz
Physical Information
  • Size (L-A-L) 80 mm x 12 mm x 55 mm
  • VGA Cable length: 0.3 m
  • USB cable length: 1 m
  • Weight (approx): 0.113 kg
General Information
  • Operating temperature: 0 ° C to + 70 ° C
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° C to + 80 ° C
  • Storage humidity: 5% to 95% RH (non-condensing)
Package Contents
  • SVGA cable converter and Audio to HDMI
  • User manual
Data sheet
general
Brand TECHLY Barcode 8057685301665
Color Black Codice Fornitore 301665
input
Connector A Type VGA format A connector male
Number A Connector 1 Altri Connettori Input USB A maschio
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Converter Max Video Resolution Full HD 1920 x 1080
max bandwidth (MHz) 165 MHz Deep Color 8 bit
HDMI - HDCP No
3D compatible No Supported audio standards Yes
Transmission Distance -
power supply
Power supply Not required Consumo energetico 2.2 W
dimensions
Width 80 mm Height 12 mm
Depth 55 mm Weight 0.1330
The package includes • Convertitore cavo da SVGA e Audio a HDMI • Manuale d'istruzione
