Techly

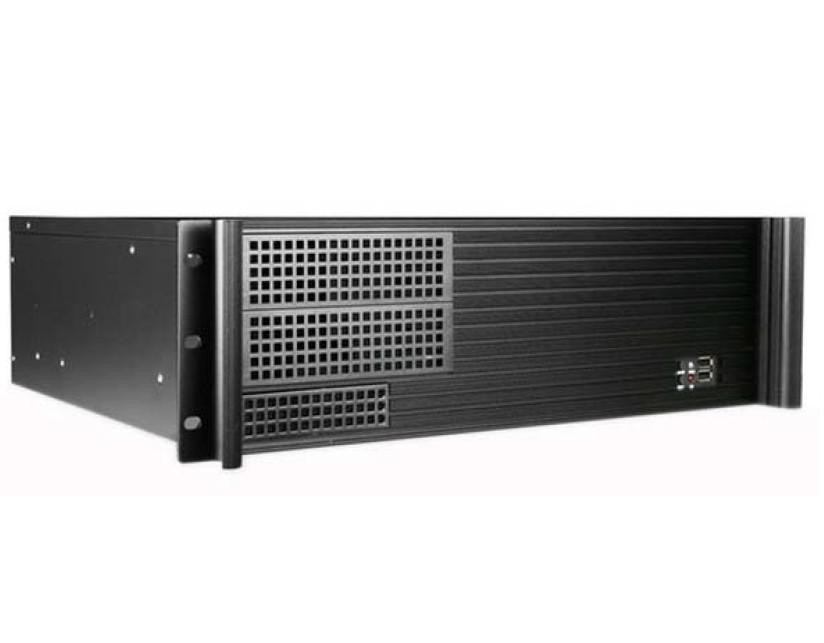

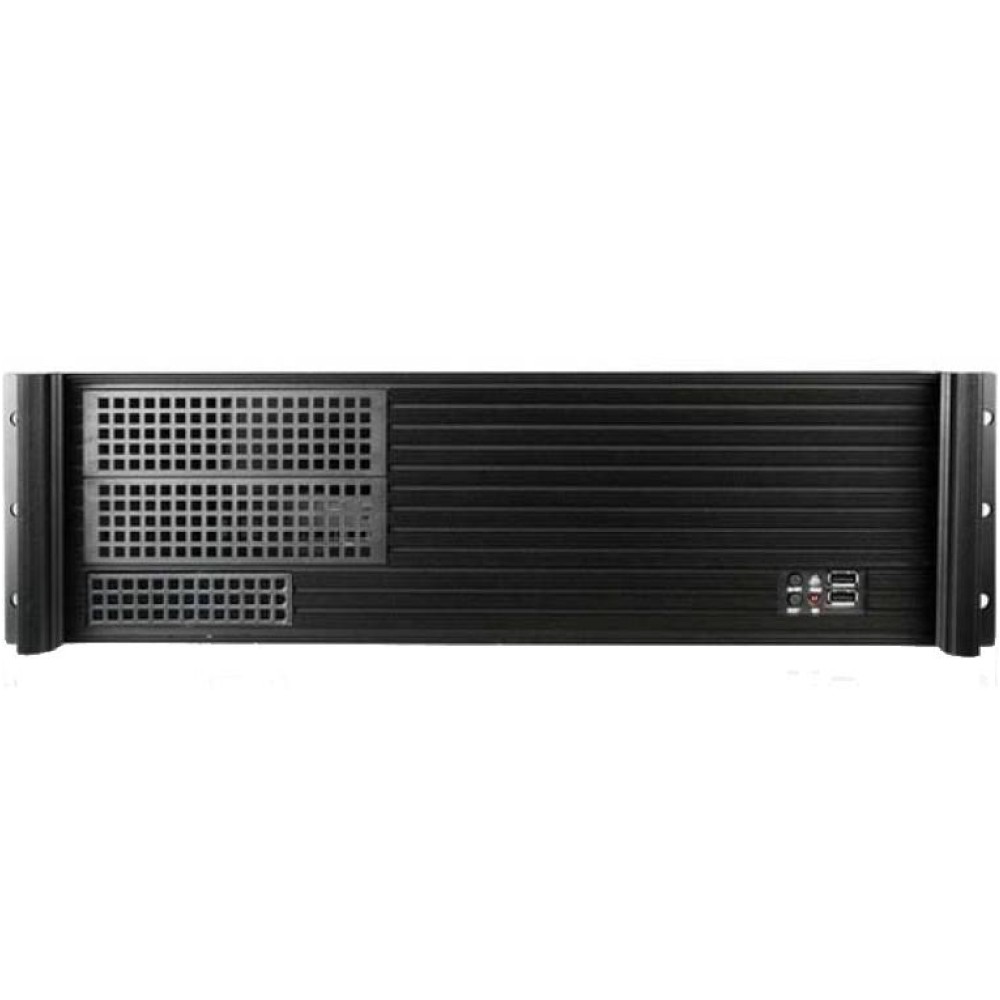

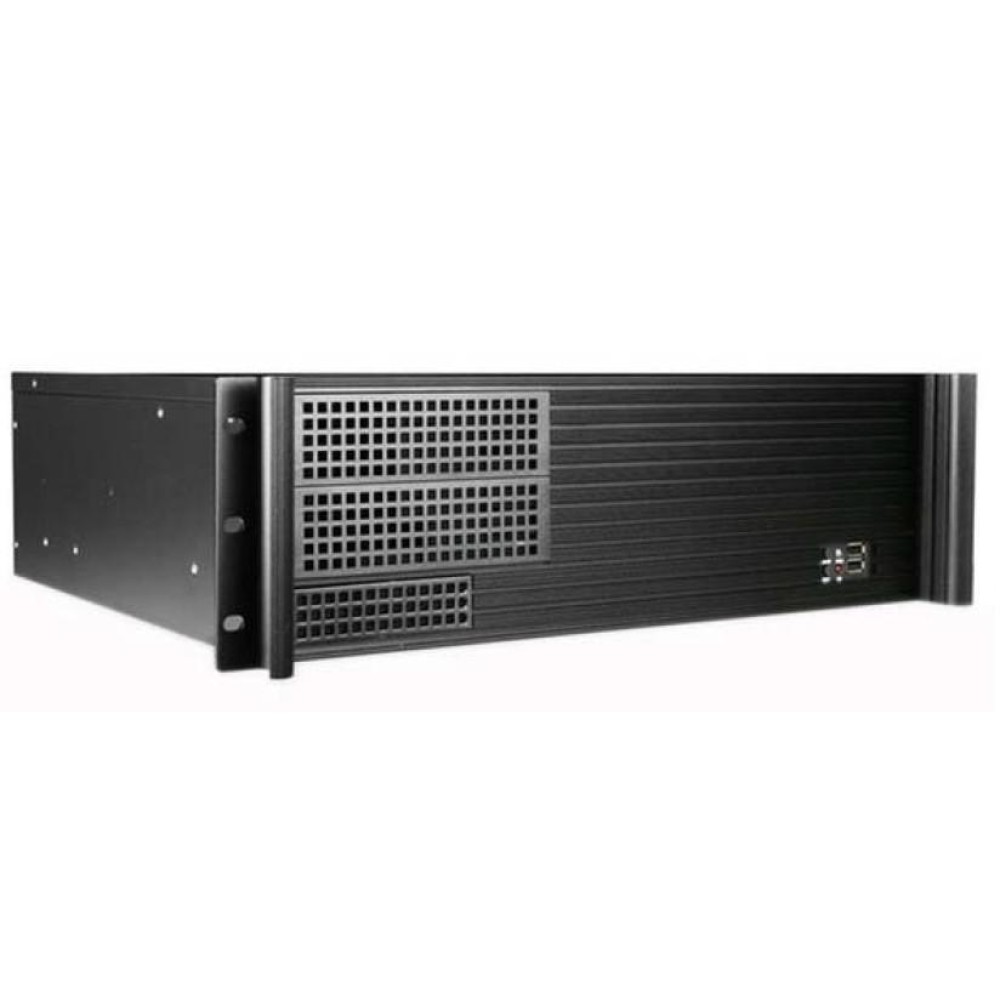

Chassis Industrial Rack 19"/3U Desktop Ultra Compact Black

Cod: I-CASE MP-P4HX-BLK4

Barcode: 8057685307360

Supplier Code: 307360

Weight: 7.875 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE MP-P4HX-BLK4
Barcode
8057685307360
Supplier Code
307360
Weight
7.875 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
I-CASE-MP-P4HX BLK4 is a compact case with 15" deep and enough space for two bays for CD ROM.
Supports ATX PS2 power supplies for servers (power supply not included).

Main Features
  • Chassis Industrial PC for high density with support for motherboard Micro ATX and ATX PS2 power supply
  • With aluminum front door industry (the vents hidden)
  • Rack-mountable 19 "; Height 2U
Specifications
  • Material: steel robust and resistant to 1.0mm; elegant aluminum front panel
  • Motherboard: 12 x 9.6 "(ATX, Micro ATX, mini-ITX)
  • Expansion: 4 slot for standard ATX
  • Switches: 1 x Power: 1 x reset
  • Cooling fans: 1 x 12cm x 8cm + 1 + 2 x 6cm rear (optional)
  • Drive bay: 3.5 "Drivesx1 + 3.5" Drive (internal) + 4 x 5.25 "Drivesx 2
  • Power Supply: ATX PS2 not included
  • Sliding guides: 18 "with ball bearings (optional)
  • Color: Black
LED
  • Power
  • HDD
  • USB 2.0
Environmental Characteristics
  • Operating temperature: up to 50° C
  • Operating humidity: up to 90%
Dimensions
  • Width 482 mm
  • Height 133.3 mm
  • Depth 390 mm
Package Contents
  • Chassis industiale compact 3U black
Description
I-CASE-MP-P4HX BLK4 is a compact case with 15" deep and enough space for two bays for CD ROM.
Supports ATX PS2 power supplies for servers (power supply not included).

Main Features
  • Chassis Industrial PC for high density with support for motherboard Micro ATX and ATX PS2 power supply
  • With aluminum front door industry (the vents hidden)
  • Rack-mountable 19 "; Height 2U
Specifications
  • Material: steel robust and resistant to 1.0mm; elegant aluminum front panel
  • Motherboard: 12 x 9.6 "(ATX, Micro ATX, mini-ITX)
  • Expansion: 4 slot for standard ATX
  • Switches: 1 x Power: 1 x reset
  • Cooling fans: 1 x 12cm x 8cm + 1 + 2 x 6cm rear (optional)
  • Drive bay: 3.5 "Drivesx1 + 3.5" Drive (internal) + 4 x 5.25 "Drivesx 2
  • Power Supply: ATX PS2 not included
  • Sliding guides: 18 "with ball bearings (optional)
  • Color: Black
LED
  • Power
  • HDD
  • USB 2.0
Environmental Characteristics
  • Operating temperature: up to 50° C
  • Operating humidity: up to 90%
Dimensions
  • Width 482 mm
  • Height 133.3 mm
  • Depth 390 mm
Package Contents
  • Chassis industiale compact 3U black
Data sheet
special attributes
No. Fiber optic ports -
general
Brand TECHLY Barcode 8057685307360
Compatibility rack cabinet 19'' Materiale Aluminum, Metal
Material description Robust and resistant steel from 1.0mm; aluminum front panel Indicative led Power , USB
Color Black Codice Fornitore 307360
specifications
Power supply Not includede Motherboard Compatibility ATX, Micro ATX, Mini ITX
Frontal USB 2 Front audio connectors Yes
Slots 3.5" Drivesx1+3.5" Drive (interno) x 4+5.25" Drivesx 2 Ventole 1 x 12cm + 1 x 8cm + 2 x 6cm posteriori (opzionali)
dimensions
Width 482 mm Height 133.3 mm
Depth 390 mm
Customer Reviews

Purtroppo sono solo 3 le viti per il fissaggio dell'alimentatore standard ATX. Per il resto è un ottimo prodotto, ben realizzato e funzionale. Molto professionale.

03/03/2018
5,0 / 5
