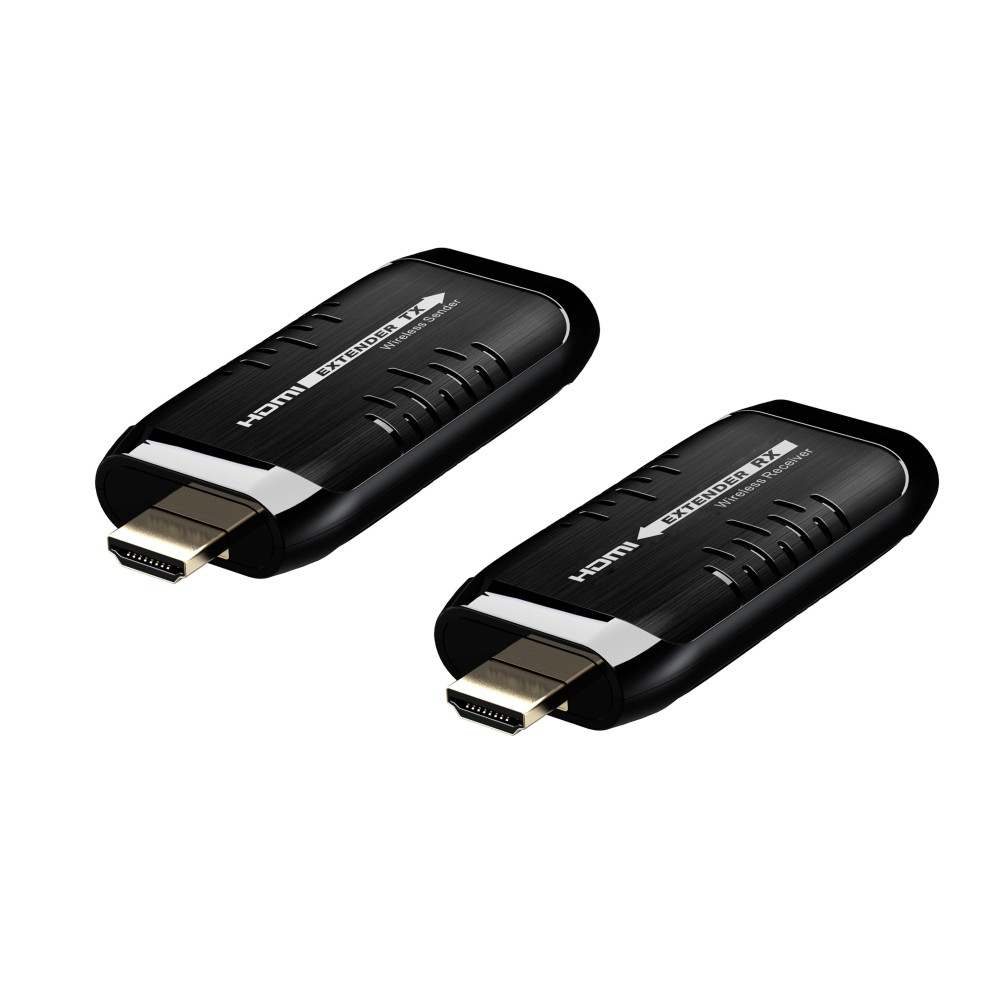

Compact 15m Wireless HDMI Point-to-Point Extender

Cod: IDATA HDMI-WL38MINI

Barcode: 8051128104493

Supplier Code: 104493

Weight: 0.284 Kg

Min. sale unit: 1 Pcs

Package pcs: 30 Pcs

Cod
IDATA HDMI-WL38MINI
Barcode
8051128104493
Supplier Code
104493
Weight
0.284 Kg
Min. sale unit
1 Pcs
Package pcs
30 Pcs
Certificazioni: CE
Certificazioni: RoHS
Tipo connettore B: HDMI-A
HDCP: 1.2
  • Wireless transmitter and receiver kit: extends the HDMI signal from the source to the screen wirelessly up to 15 meters, no connection cables between transmitter and receiver are required
  • Supports wireless point-to-point configuration
  • Supports full 1080p Full HD video resolution
  • HDCP1.2 compatible
  • Transmitter powered via the HDMI port or using the supplied Micro USB cable
  • Mini design with a male HDMI connector, it connects directly to the HDMI source
Description
This wireless HDMI Extender consists of a transmitter and a receiver and allows you to transmit and extend the HDMI signal up to 15 meters away wirelessly. It works using the 5GHz frequency band which is characterized by a strong anti-interference capability and supports point-to-point connection. It is truly a great solution for meetings, conferences, training and for home and multimedia entertainment. These wireless Extenders can lose the signal if the transmission occurs through walls, glass or other obstacles. It is recommended to install it in environments free from barriers and to reduce the presence of obstacles so that the wireless signal can maintain its stability

Features
  • Extends the HDMI signal from the source to the screen wirelessly up to 15 meters: no connection cables between transmitter and receiver are required
  • Supports wireless point-to-point configuration
  • Supports full 1080p Full HD video resolution
  • HDCP1.2 compatible
  • Transmitter powered via the HDMI port or using the supplied Micro USB cable
  • Mini design with a male HDMI connector, it connects directly to the HDMI source
Specifications
  • HDMI compliance: HDMI1.3
  • HDCP compliance: HDCP1.2
  • Supported resolutions: 480p @ 60Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Supported audio formats: Stereo audio L / R
  • Maximum transfer speed: 10.2 Gbps
  • Wireless transmission: 5GHz
  • Transmission distance: up to 15 meters
Environmental information
  • Operating temperature: 0°C - 40°C
  • Storage temperature: -20°C - 70°C
  • Humidity (without condensation): 0 - 90%
Physical information
  • TX size: 88.90 (L) x 38.99 (P) x 15.17 (A) mm
  • RX dimensions: 88.90 (L) x 38.99 (P) x 15.17 (A) mm
  • Black colour
  • Weight: TX: 30g; RX: 30g
Package Contents
  • Wireless HDMI Transmitter x 1
  • Wireless HDMI Receiver x 1
  • HDMI cable x 2
  • Micro USB cable x 2
  • Instruction Manual x 1
Data sheet
general
Brand TECHLY NP Barcode 8051128104493
Certifications CE , RoHS Color Black
Codice Fornitore 104493
input
Connector A Type HDMI-A format A connector male
Number A Connector 1 Altri Connettori Input 1x Micro USB per alimentazione
output
Connector B Type HDMI-A format B connector male
Number B Connector 1 Altri Connettori Output 1x Micro USB per alimentazione
technical specifications
Typology Amplifier Max Video Resolution Full HD 1920 x 1080
max bandwidth (MHz) - Deep Color -
HDMI 1.3 HDCP 1.2
3D compatible - Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Optional Consumo energetico TX: <2.5W; RX:< 2W
dimensions
Width TX/RX: 88.90 mm Height TX/RX: 15.17 mm
Depth TX/RX: 38.99 mm Weight 0.2840
The package includes • Trasmettitore HDMI Wireless x 1 • Ricevitore HDMI Wireless x 1 • Cavo HDMI x 2 • Cavo Micro USB x 2 • Manuale d'istruzione
