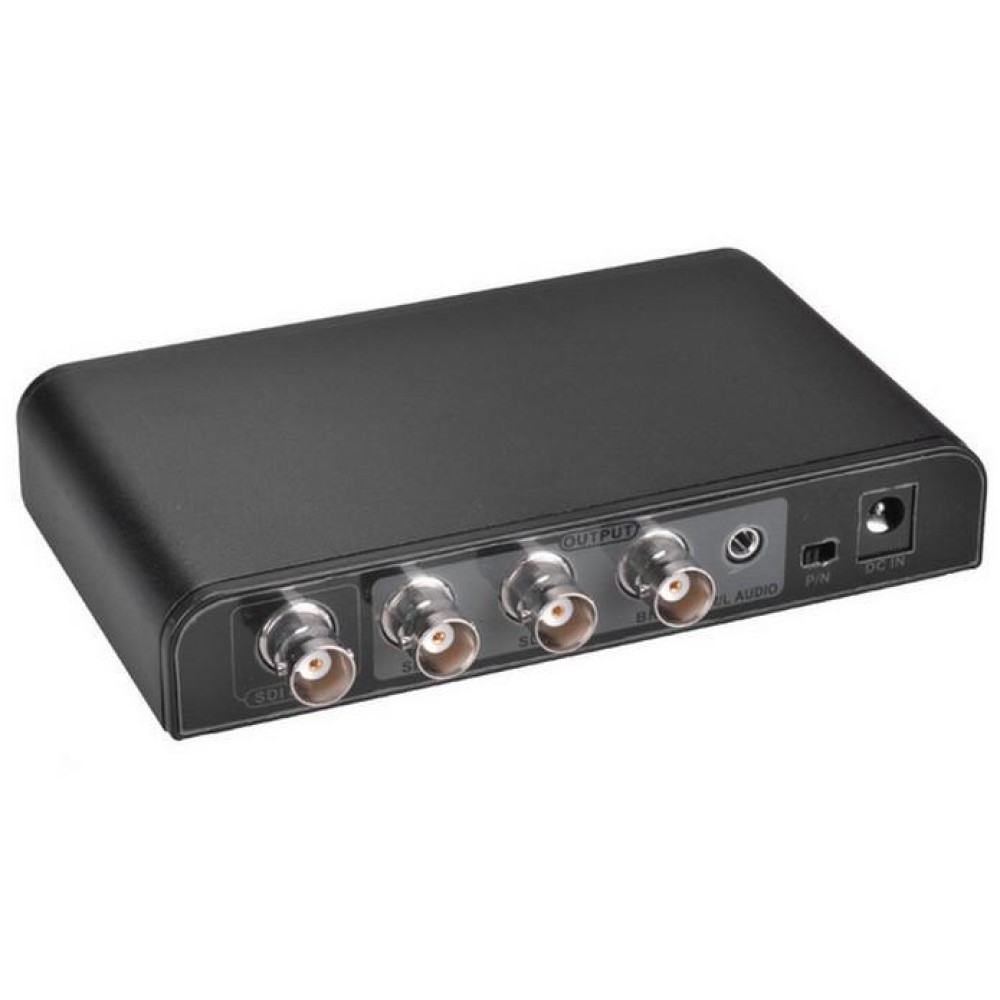

Converter 3G-SDI BNC with SDI Splitter and Booster

Cod: IDATA HDMI-SDIPRO

Barcode: 8057685306851

Supplier Code: 306851

Weight: 0.439 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA HDMI-SDIPRO
Barcode
8057685306851
Supplier Code
306851
Weight
0.439 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni:
  • Digital Converter SDI to analog composite video
  • Supports both PAL and NTSC output; impedance of 75 Ω
  • Converts SDI signal in BNC and audio R / L
  • Splitter 1 input and 2 outputs SDI SDI
  • SDI Repeater: Extends the signal up to 400m SD-SDI, HD-SDI to 3G-SDI 200m and up to 100m

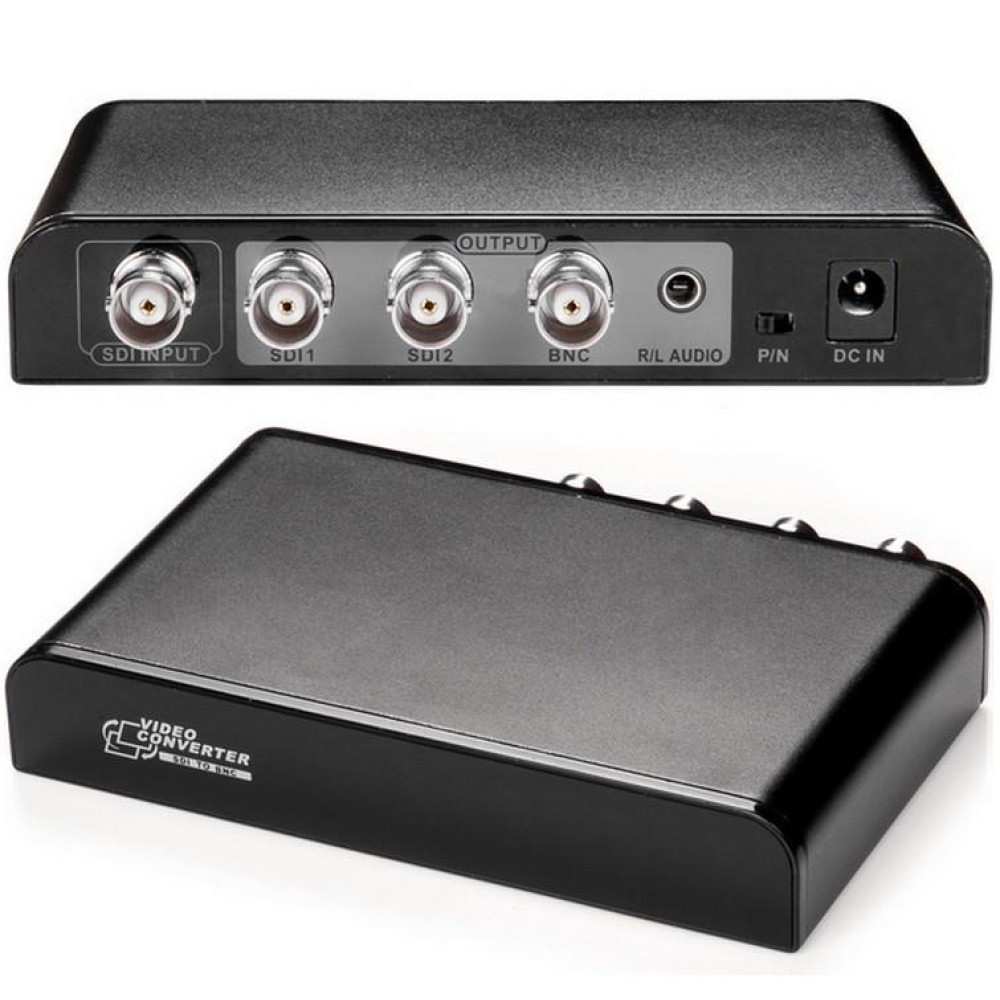

  • Connections: 1xBNC in; 3xBNC out; 1x audio 3.5 "out, 1x DC in
  • Plug and Play; with LED indicator
  • Equipped with power supply 5V / 1A
  • Dimensions: 130 x 77 x 24 mm; black
Description
This product converts the signal SDI (Serial Digital Interface) in analog composite video output and supports both PAL and NTSC. You can separate the audio from SDI to enable connection to headphones or other audio devices and obtain the output image at the same time to the sound. In addition, supports SDI Splitter (1 SDI input and two SDI outputs are identical and synchronized).

<b> Features </ b>
  • SDI splitter: supports SD-SDI (270Mbps) HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps); simultaneously distributes 1 input to 2 outputs SDI SDI
  • Repeater SDI provides the transmission equalized and reprogrammed, it supports the input signal and the output of up to 400 meters distance to the signal SD-SDI, 200 meters to the HD-SDI signal and 100 meters for 3G-SDI signal
  • SDI Converter: converts at the same time in SDI BNC composite video output (CVBS) and audio R / L, by selecting the PAL / NTSC switch P / N
  • It can support the voltage DC5V-30V (minimum 5W)
  • Intelligent design, plug and play, automatically detects the SDI signal. When the SDI signal input is correct, the LED indicator turns blue. If it turns red, it means that the input signal or signals are incorrect
<b> Specifications </ b>
  • SDI input: 1x BNC
  • SDI output: 2x BNC
  • CVBS output: 1x BNC
  • SDI format supported: SD-SDI, HD-SDI, 3G-SDI
  • Signal CVBS output: PAL, NTSC
  • Impedance: 75 Ω
  • Resolution SDI input: @ 60Hz 480i, 576i @ 50Hz 720p @ 50Hz 720p @ 60Hz, 1080i @ 50Hz, 1080i @ 60Hz, 1080p @ 24 @ 25 @ 30 @ 50 @ 60Hz
  • SDI output resolution: 480i @ 60Hz, 576i @ 50Hz 720p @ 50Hz 720p @ 60Hz, 1080i @ 50Hz, 1080i @ 60Hz, 1080p @ 24 @ 25 @ 30 @ 50 @ 60Hz
  • Audio output: R / L audio with jack 3.5 "
  • Power: 5V / 1A
  • Operating Temperature: 0 ° C - 60 ° C
<b> Size </ b>
  • Width: 130 mm
  • Depth: 77 mm
  • Height: 24 mm
<b> Certifications </ b>
  • CE
  • FCC
  • RoHS
  • WEEE
<b> Package Contents </ b>
  • Converter SDI / HDMI-BNC IDATA SDIPRO
  • Power supply 5V / 1A
  • Instruction Manual
Data sheet
general
Brand Techly Np Barcode 8057685306851
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 306851
input
Connector A Type BNC format A connector female
Number A Connector 1 Altri Connettori Input 1x alimentazione DC 5V
output
Connector B Type BNC format B connector female
Number B Connector 3 Altri Connettori Output 1x audio 3.5" out
technical specifications
Typology Amplifier, Converter, Splitter Max Video Resolution 1080p
Supported audio standards Yes
power supply
Power supply Requested (included) Consumo energetico 5V/1A
dimensions
Width 130 mm Height 24 mm
Depth 77 mm Weight 0.4390
The package includes • Convertitore SDI/BNC IDATA HDMI-SDIPRO • Alimentatore 5V/1A • Manuale d'istruzioni
