Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-1
Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-1
Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-0
Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-1
Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-2
Converter Cable Adapter USB 3.0 to VGA - Techly Np - IDATA USB3-SVGA-1

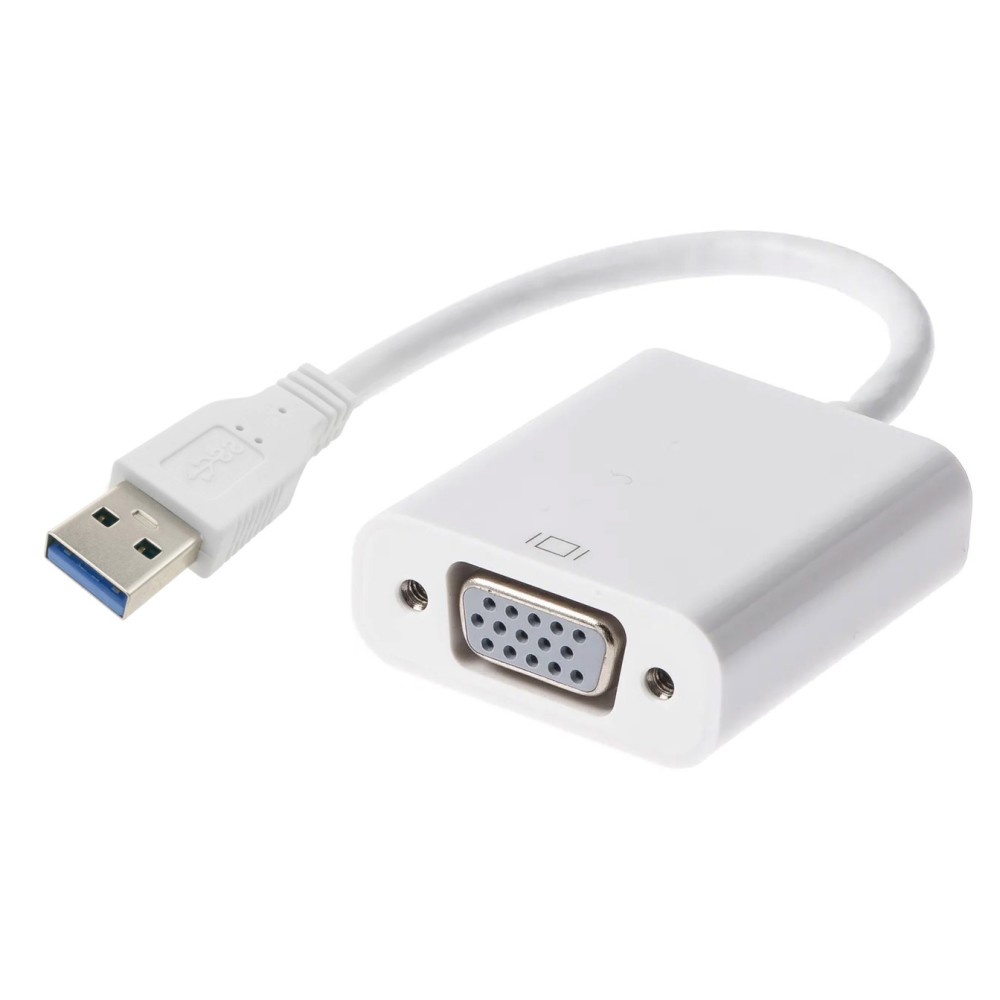

Converter Cable Adapter USB 3.0 to VGA

Cod: IDATA USB3-SVGA

Barcode: 8057685306950

Supplier Code: 306950

Weight: 0.049 Kg

Min. sale unit: 1 Pcs

Package pcs: 100 Pcs

Cod
IDATA USB3-SVGA
Barcode
8057685306950
Supplier Code
306950
Weight
0.049 Kg
Min. sale unit
1 Pcs
Package pcs
100 Pcs
Tipo connettore A: USB Type-A
Tipo connettore B: VGA
USB standard: USB 3.0
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Windows 7: Yes
Windows 8: Yes
Windows 10: Yes
  • Converter USB to VGA
  • Connections: USB Type A Male; HD 15 female
  • Maximum video resolution up to 1920 x 1080
  • Maximum transfer rate: 5Gbps
  • Supports Deep Color 16:32 Bit
  • You can connect up to 6 adapters for computer
  • Adapter with built-in RAM 512 MB ​​(SDRAM)
  • Setting: drafter, mirroring, main display
  • Compatible with Windows XP, Vista, 7, 8, 8.1, 10
  • Dimensions: 55.4 x 38 x 15 mm; Cable 1.5m; white color
Description
This adapter is useful for connecting monitor, LCD or projector additional to a free USB 3.0 port of your PC or notebook. You can connect up to 6 drives to your computer and connect each additional monitor to a converter. Supports video resolution up to 1920 x 1080 for a broadcast TV in high quality.

<b> Connectors </ b>
  • Input: 1x USB 3.0 Type A Male
  • Output: 1 x VGA Female
<b> Features </ b>
  • Allows you to connect additional video devices (CRT / LCD monitor / projector) to your notebook or PC
  • With a proper system, you can connect up to 6 adapters for computer
  • Setting: drafter, mirroring and rotating display, the main display
  • The connected monitor can be configured to clone your primary screen or extend the Windows desktop allowing visibility of more than one device at the same time
  • Provides minimal differences in performance between a directly connected screen and a screen connected through the USB 3.0 Graphic Adapter
  • Color: White
<b> Specifications </ b>
  • Supports USB 3.0 and USB 2.0 Super Speed
  • Maximum video resolution up to 1920 x 1080
  • Maximum transfer rate: 5Gbps
  • Built-in RAM 512 MB ​​(SDRAM) or higher
  • Supports Deep Color 16:32 Bit
  • Maximum operating current: 400 mA
  • Supports multi-function screen
  • CPU: Intel / AMD Single Core 1.5GHz or higher
<b> Environmental Characteristics </ b>
  • Operating Temperature: -15 - 50 ° C
  • Storage temperature: 0 ° - 70 ° C
<b> System Requirements </ b>
  • Windows XP, Vista, 7, 8, 8.1, 10
  • PC with a USB 3.0 (or 2.0) free
  • Minimum 512 MB ​​of RAM
  • SVGA graphics card
  • Minimum Free Space 30 MB HDD
<b> Size </ b>
  • Width 55.4 mm
  • Depth 38 mm
  • Height 15 mm
  • Weight: 40 g
  • Cable length: 1.5 m
<b> Package Contents </ b>
  • 1x USB 3.0 to SVGA Converter
  • 1x Instruction Manual with CD
Data sheet
general
Brand Techly Np Barcode 8057685306950
Weight 0.0490 Codice Fornitore 306950
technical specifications
Typology Converter Length 0,2 m
Connector A Type USB Type-A format A connector male
Connector B Type VGA format B connector female
USB standard USB 3.0 Headphone connectors No
Cable shielding - Cable size (AWG) -
Color White Certifications CE , FCC , RoHS
compatibility
Windows 98 Yes Windows 2000 Yes
Windows XP No Windows Vista Yes
Windows 7 Yes Windows 8 Yes
Windows 10 Yes Mac No
Linux -
