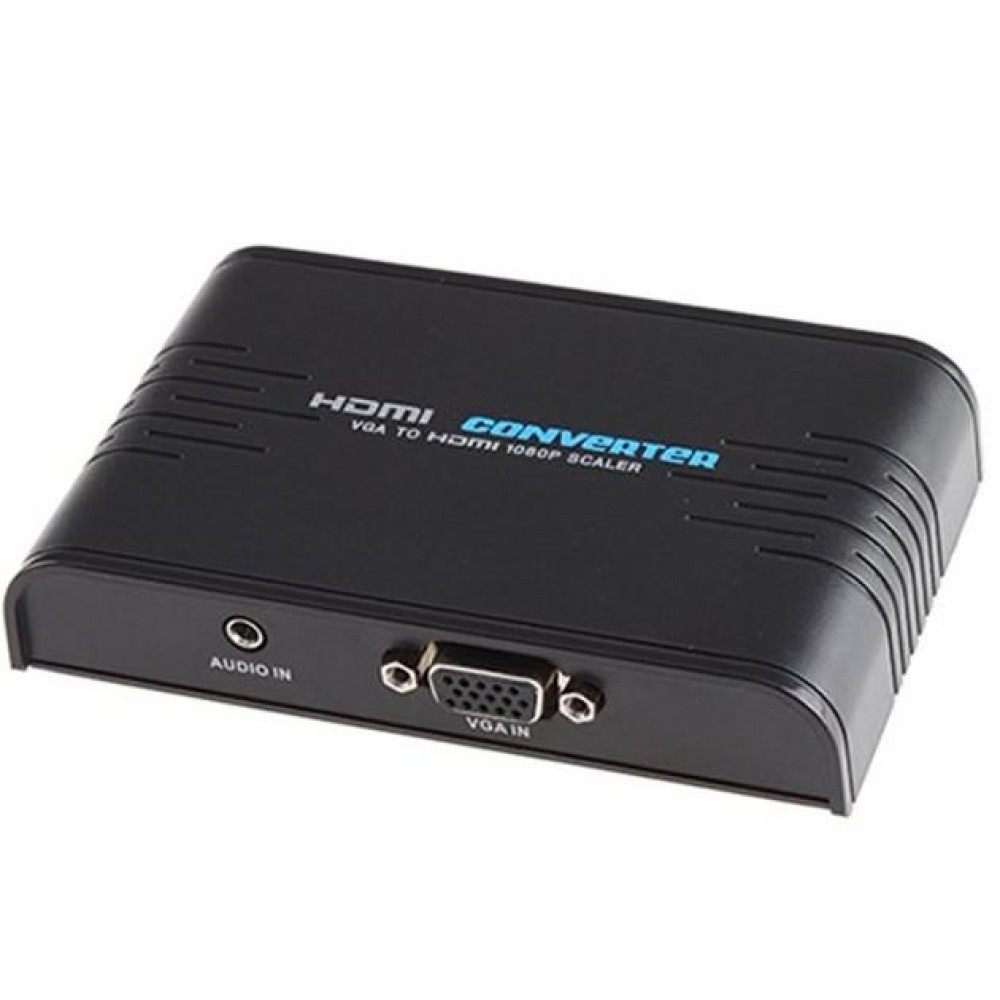

Converter Scaler VGA + Audio to HDMI
Code: IDATA HDMI-VGA6    Barcode: 8057685306660

   Supplier Code: 306660

Available

Converter Scaler VGA + Audio to HDMI

Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
HDCP: 1.2
Choose a different Option:

This converter is designed to convert the video / audio signal from PC or laptop to the HDMI digital signal with resolution up to 1080p.
And 'plug and play and does not require any software.

Characteristics
• Converter VGA and Audio to HDMI 720P or 1080P
• Plug and Play
• Supports VGA Input: 640x480 @ 60 / 75Hz, 800x600 @ 60 / 75Hz, 1024x768 @ 60Hz, 1280x720 @ 60Hz, 1280x800 @ 60Hz, 1280x960 @ 60Hz, 1360x768 @ 60Hz, 1440x900 @ 60Hz, 1400x1050 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 60hz. (Input resolution: 1024x768 @ 60Hz)
• Supports HDMI output: 720P / 60Hz, 1080P / 60Hz;
• Automatic setting of output resolution
• Includes power supply 5V / 1A
• Equipped with two LEDs: 720p or 1080p; power
• Black color

Connections
• Input: 1x VGA Female; 1 x 3.5mm Audio Female
• Output: 1x HDMI female

Dimensions
• Width 119 mm
• Depth 74mm
• Height 23 mm

Certifications
• EC
• FCC
• RoHS
• WEEE

Package Contents
• Converter 1x VGA / Audio to HDMI
• 1x Power supply 5V / 1A
• 1 x User Manual

Description

Details

This converter is designed to convert the video / audio signal from PC or laptop to the HDMI digital signal with resolution up to 1080p.
And 'plug and play and does not require any software.

Characteristics
• Converter VGA and Audio to HDMI 720P or 1080P
• Plug and Play
• Supports VGA Input: 640x480 @ 60 / 75Hz, 800x600 @ 60 / 75Hz, 1024x768 @ 60Hz, 1280x720 @ 60Hz, 1280x800 @ 60Hz, 1280x960 @ 60Hz, 1360x768 @ 60Hz, 1440x900 @ 60Hz, 1400x1050 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 60hz. (Input resolution: 1024x768 @ 60Hz)
• Supports HDMI output: 720P / 60Hz, 1080P / 60Hz;
• Automatic setting of output resolution
• Includes power supply 5V / 1A
• Equipped with two LEDs: 720p or 1080p; power
• Black color

Connections
• Input: 1x VGA Female; 1 x 3.5mm Audio Female
• Output: 1x HDMI female

Dimensions
• Width 119 mm
• Depth 74mm
• Height 23 mm

Certifications
• EC
• FCC
• RoHS
• WEEE

Package Contents
• Converter 1x VGA / Audio to HDMI
• 1x Power supply 5V / 1A
• 1 x User Manual
data sheet
generale
Brand
Techly
Barcode
8057685306660
Certifications
CE , FCC , RoHS
Color
Black
Codice Fornitore
306660
input
Connector A Type
VGA + Audio 3.5mm
format A connector
female
Number A Connector
1
Altri Connettori Input
Alimentazione 5V DC
output
Connector B Type
HDMI
format B connector
female
Number B Connector
1
specifiche tecniche
Typology
Converter
Max Video Resolution
1080p
max bandwidth (MHz)
No
Deep Color
No
HDMI
1.3
HDCP
1.2
3D compatible
No
Supported audio standards
Yes
Transmission Distance
No
alimentazione
Power supply
Requested (included)
Consumo energetico
5V/1A
dimensioni
Width
119 mm
Height
23 mm
Depth
74 mm
Weight
0.3340
The package includes
• 1x Convertitore VGA/Audio a HDMI • 1x Alimentatore 5V/1A • 1x Manuale d'uso
