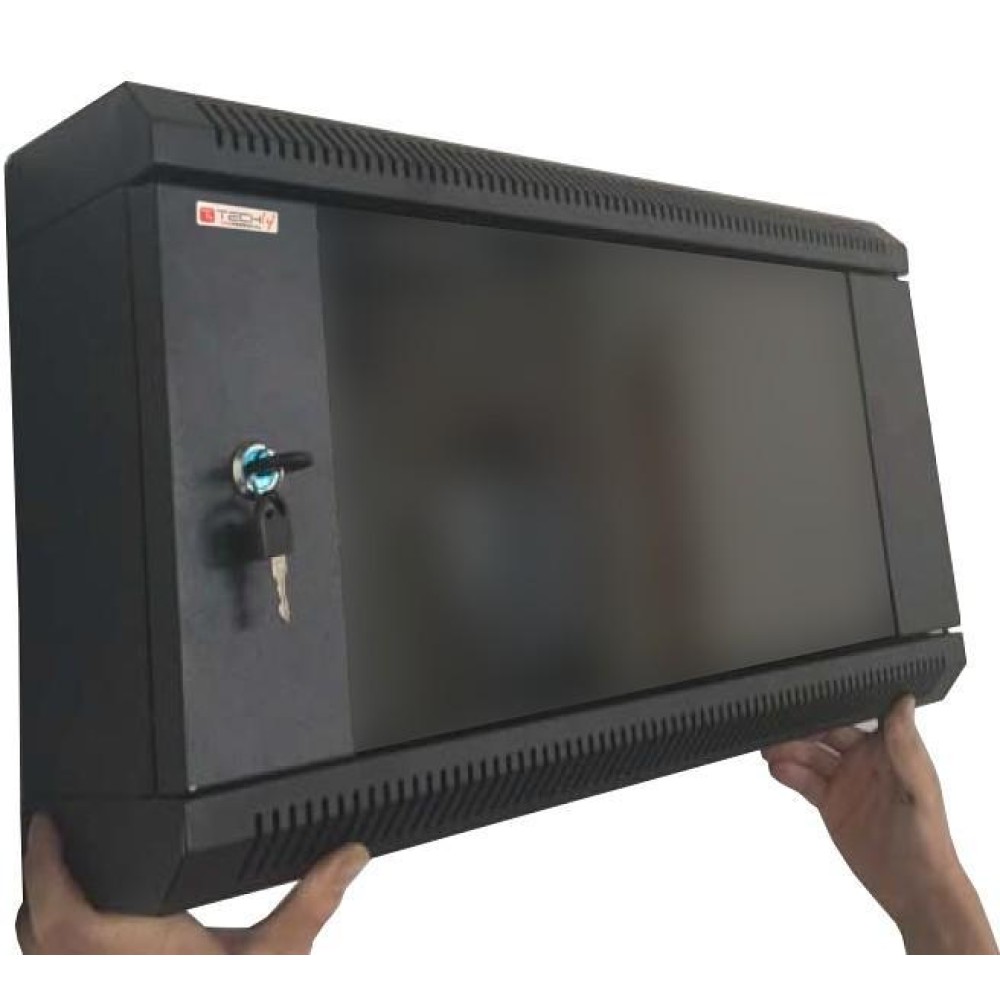

Corner Wall Cabinet Rack 19" 9U D.600 Glass Door Black

Cod: I-CASE EA-2009BK

Barcode: 8054529028665

Supplier Code: 028665

Weight: 17.535 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE EA-2009BK
Barcode
8054529028665
Supplier Code
028665
Weight
17.535 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 60 kg
Anni di Garanzia: 15

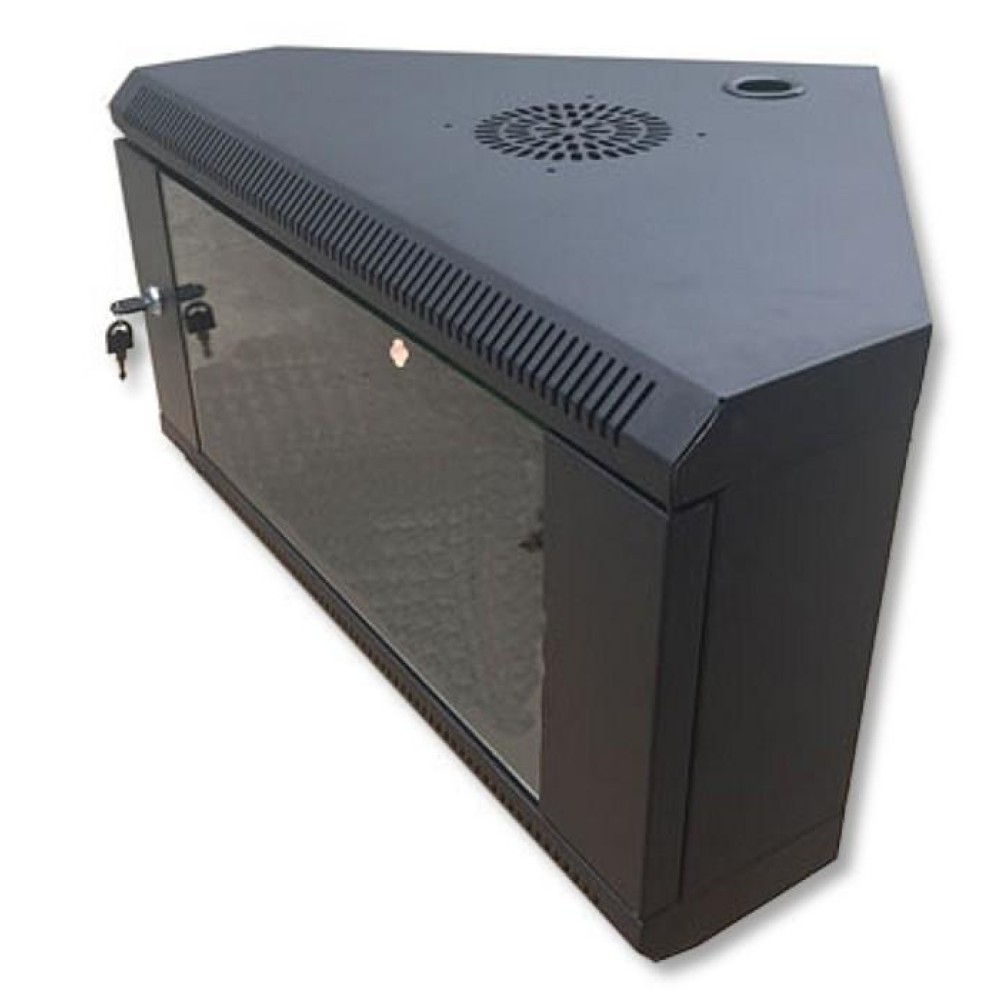

  • Angular corner wall cabinet with unique section 19" 9U for small networks
  • Corner installation that saves space
  • Solid welded cold-rolled steel
  • Blind door easily removable and reversible, 180° opening angle, key lock
  • Angular rear panels support fixed blind
  • Includes a pair of front 19"
  • Top ready for the installation of a fans and for the passage of the cables
  • Color: RAL 9005 (black)
  • Dimensions: 500x600x600 mm (HxWxD)
Description
  • Angular corner wall cabinet with unique section 19" 9U for small networks
  • Corner installation for saving space
  • Solid welded cold-rolled steel
  • Blind door easily removable and reversible, 180° opening angle, key lock
  • Angular rear panels support fixed blind
  • Top ready for the installation of a fans and for the passage of the cables
  • Slots for the passage of air at the top and bottom of the front panel
  • Includes a pair of front 19"
  • Static load: 60 kg
  • Comes standard mounting kit with screws and nuts
  • RAL 9005 (black)
  • Dimensions: 500x600x600 mm (HxWxD)
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529028665
Typology Wall mount Rack inches 19"
Assembly Assembled Units 9
Color Black Ingress Protection IP 20
Ability to static load 60 kg Years of Warranty 15
Codice Fornitore 028665
dimensions
Rack width 600 mm Rack depth 600 mm
Height 500 mm Weight 17.5350
side panels
Appearance Blind Removable No
Closure type -
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Tempered glass Removable Yes
Door material Glass Reversible Yes
Closure type 1/4 lock Locking points 1
Maximum aperture 180°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 fixed Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' Anteriors
Brushes hold powder No Grounding kit No
