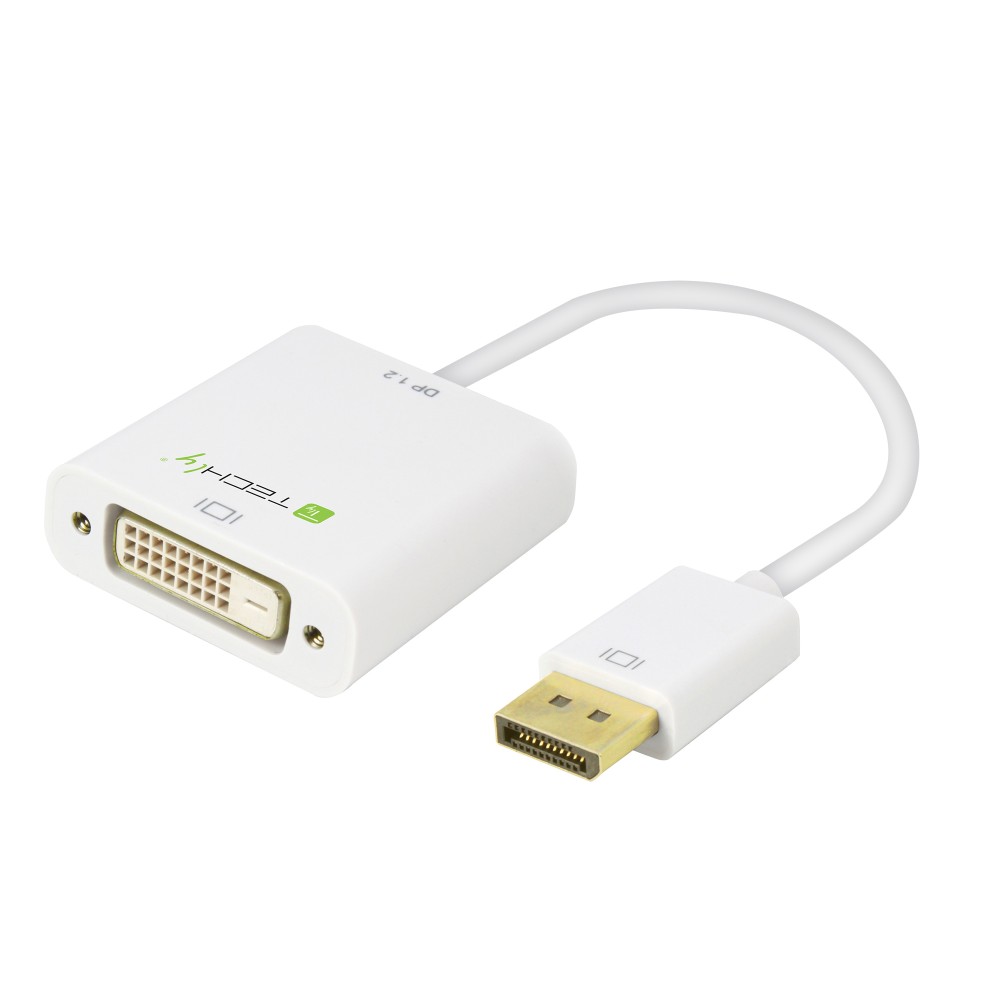

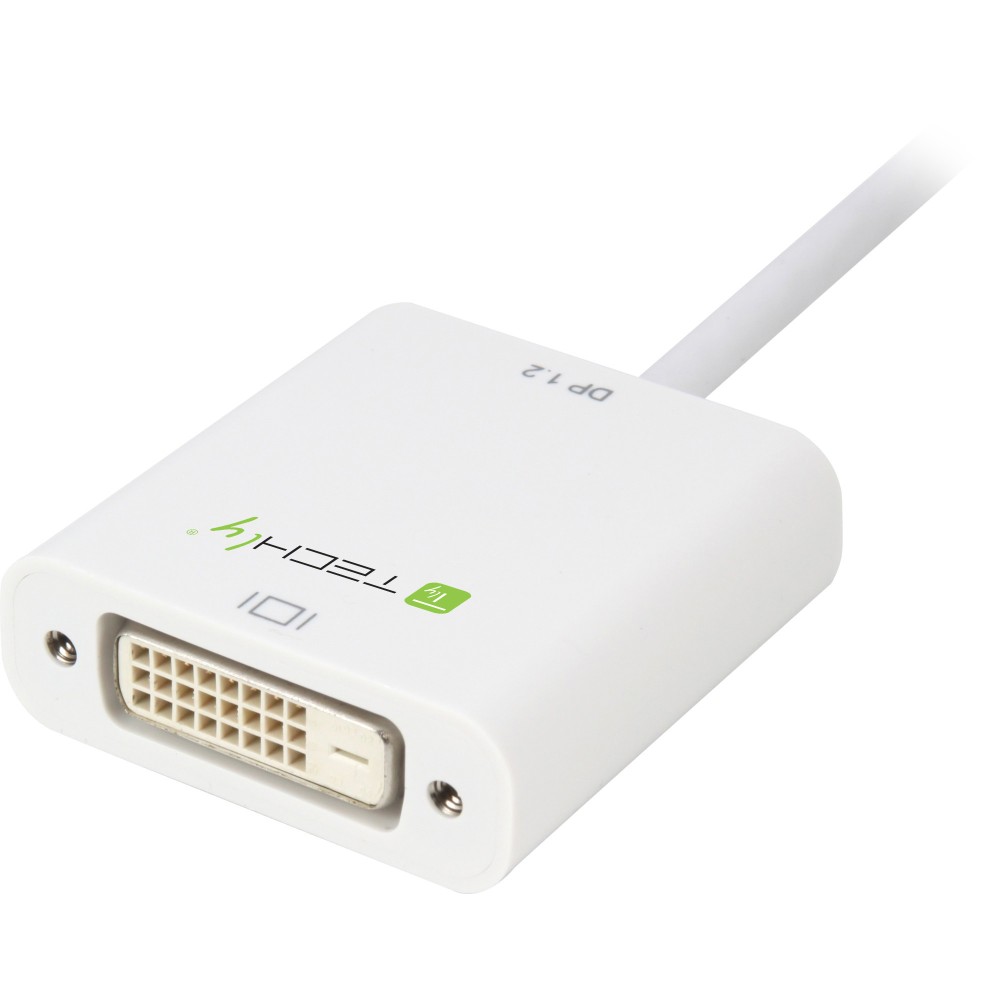

DisplayPort 1.2 Male / Female DVI 15cm White
Code: IADAP DP-DVIF2    Barcode: 8057685309821

   Supplier Code: 309821

Available

DisplayPort 1.2 Male / Female DVI 15cm White

Certificazioni: CE
Certificazioni: RoHS
Anni di Garanzia: 3
Tipo connettore A: DisplayPort 20-pin
Connettori dorati: Yes
Choose a different Option:

• Connect a source to a DisplayPort monitor cable DVI-D Dual Link
• Provides a high quality signal to DVI monitor ideal for Mac
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Supports DisplayPort 1.2 signal
• Molded PVC boot

Contacts
• (1) DisplayPort 20-pin male
• (1) DVI 24 + 1 female
• Molded PVC
• Shielded

Signal IN / OUT
• Input video signal: DisplayPort
• Maximum range Single Link: 4K x 2K
• Video Output: DVI
• Input Connector: DisplayPort Male 20pin
• Output Connector Type: DVI 24 + 1 female

Operating Frequency
• Vertical Frequency Range: 50 / 60Hz
• Video amplifier bandwidth of 1.62Gbps / 2.7Gbps

Resolutions (HDTV)
• 1920x1080 @ 60 Hz
• Does not support 3D mode

Dimensions
• Length 85 mm
• Width 43 mm
• Height 15 mm
• Cable length 15 cm

Environmental Characteristics
• Operating Temperature: 0 ° C to + 70 ° C
• Operating humidity 10% to 85% (non-condensing)
• Storage temperature -10 ° C to + 80 ° C
• Storage Humidity 5% to 90% (non-condensing)

Power Requirements
• No need for external power supply
• Power Consumption (Max) 1W

Standards and Certifications
• DisplayPort 1.2
• EC
• RoHS
• WEEE

Package Contents
• DisplayPort to DVI
• Instruction Manual

    Description

    Details

    • Connect a source to a DisplayPort monitor cable DVI-D Dual Link
    • Provides a high quality signal to DVI monitor ideal for Mac
    • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
    • Supports DisplayPort 1.2 signal
    • Molded PVC boot

    Contacts
    • (1) DisplayPort 20-pin male
    • (1) DVI 24 + 1 female
    • Molded PVC
    • Shielded

    Signal IN / OUT
    • Input video signal: DisplayPort
    • Maximum range Single Link: 4K x 2K
    • Video Output: DVI
    • Input Connector: DisplayPort Male 20pin
    • Output Connector Type: DVI 24 + 1 female

    Operating Frequency
    • Vertical Frequency Range: 50 / 60Hz
    • Video amplifier bandwidth of 1.62Gbps / 2.7Gbps

    Resolutions (HDTV)
    • 1920x1080 @ 60 Hz
    • Does not support 3D mode

    Dimensions
    • Length 85 mm
    • Width 43 mm
    • Height 15 mm
    • Cable length 15 cm

    Environmental Characteristics
    • Operating Temperature: 0 ° C to + 70 ° C
    • Operating humidity 10% to 85% (non-condensing)
    • Storage temperature -10 ° C to + 80 ° C
    • Storage Humidity 5% to 90% (non-condensing)

    Power Requirements
    • No need for external power supply
    • Power Consumption (Max) 1W

    Standards and Certifications
    • DisplayPort 1.2
    • EC
    • RoHS
    • WEEE

    Package Contents
    • DisplayPort to DVI
    • Instruction Manual
    data sheet
    generale
    Brand
    Techly
    Barcode
    8057685309821
    Weight
    0.0400
    Certifications
    CE , RoHS
    Years of Warranty
    3
    Codice Fornitore
    309821
    specifiche tecniche
    Typology
    Converter
    Color
    White
    Connector A Type
    DisplayPort 20-pin
    format A connector
    male
    Connector B Type
    DVI-D Dual Link
    format B connector
    female
    Maximum resolution
    No
    Headphone connectors
    Yes
    MHL support
    No
    HDCP
    No
    dimensioni
    Lunghezza
    15 cm
