DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-1
DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-1
DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-0
DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-1
DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-2
DisplayPort to HDMI Cable Converter 3 m - TECHLY - ICOC DSP-H-030-1
Techly

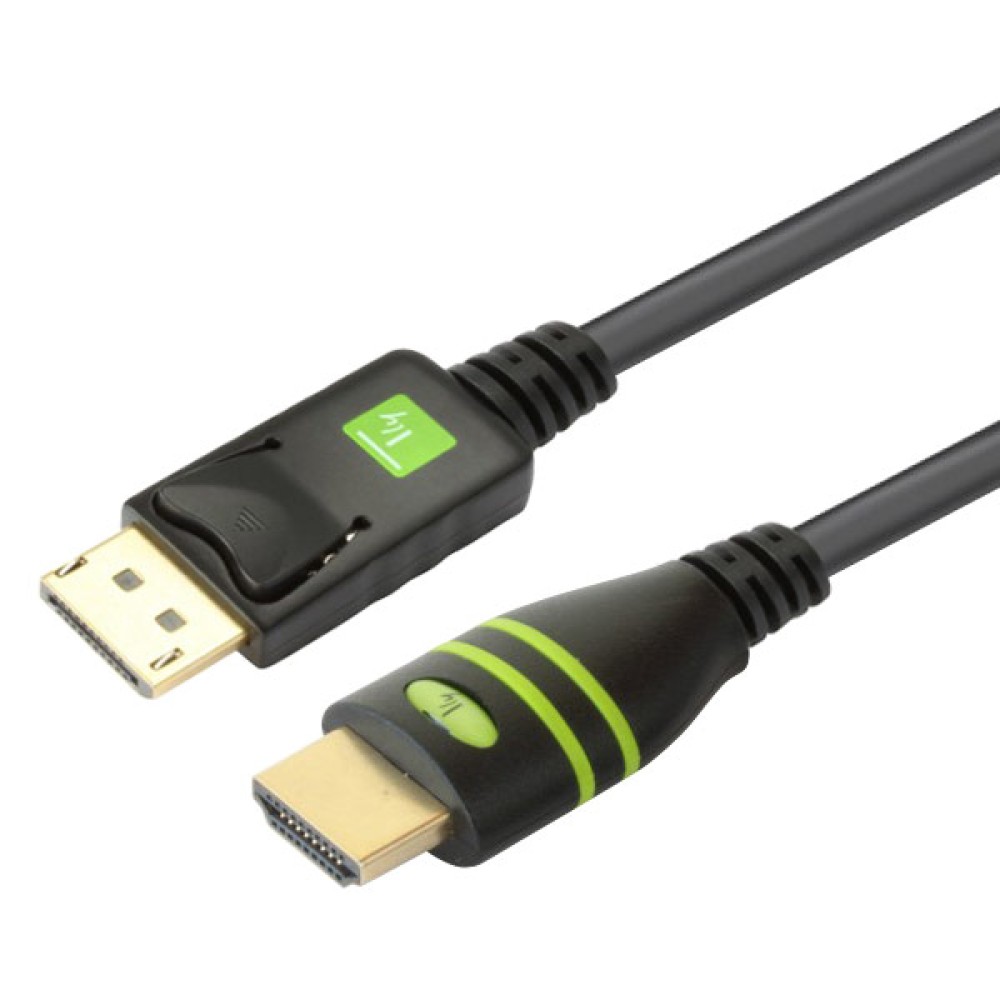

DisplayPort to HDMI Cable Converter 3 m

Cod: ICOC DSP-H-030

Barcode: 8057685304338

Supplier Code: 304338

Weight: 0.231 Kg

Min. sale unit: 1 Pcs

Package pcs: 40 Pcs

Available
Limited time offer!

Incl. Tax: €20.59

Excl. Tax: €16.88 + VAT

Cod
ICOC DSP-H-030
Barcode
8057685304338
Supplier Code
304338
Weight
0.231 Kg
Min. sale unit
1 Pcs
Package pcs
40 Pcs
Shipping from €6.50 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: EC
Certificazioni: RoHS
Tipo connettore A: DisplayPort 20-pin
Tipo connettore B: HDMI-A
  • Converts the DisplayPort signal to an HDMI signal
  • Provides a high quality digital video signal - ideal for the use of new sources with existing DisplayPort HDMI monitor
  • Supports Deep Color, applications with bandwidth 10.8 and resolutions up to 1920 x 1200
  • Integrated design for easy connection and eliminate cable clutter
Standards and Certifications
  • UL 20276
Connectors
  • (1) DisplayPort 20-pin male
  • (1) HDMI 19-pin male
  • Contacts nickel-plated
  • PVC boot
  • With cable gland
Cable
  • Length: 3 m
  • 30 AWG conductors
  • Withstanding voltage: 300 V DC
  • Incolucro plastic thermal
  • Shielded
General information
  • Supports 8-bit and 10-bit Deep Color
  • Bandwidth 10.8 Gbps
  • Supports auxiliary channel, 1 Mbps
  • Supports connection 1-lane, one-direction, four-line
Package Contents
  • Cable DisplayPort Converter
Description
  • Converts the DisplayPort signal to an HDMI signal
  • Provides a high quality digital video signal - ideal for the use of new sources with existing DisplayPort HDMI monitor
  • Supports Deep Color, applications with bandwidth 10.8 and resolutions up to 1920 x 1200
  • Integrated design for easy connection and eliminate cable clutter
Standards and Certifications
  • UL 20276
Connectors
  • (1) DisplayPort 20-pin male
  • (1) HDMI 19-pin male
  • Contacts nickel-plated
  • PVC boot
  • With cable gland
Cable
  • Length: 3 m
  • 30 AWG conductors
  • Withstanding voltage: 300 V DC
  • Incolucro plastic thermal
  • Shielded
General information
  • Supports 8-bit and 10-bit Deep Color
  • Bandwidth 10.8 Gbps
  • Supports auxiliary channel, 1 Mbps
  • Supports connection 1-lane, one-direction, four-line
Package Contents
  • Cable DisplayPort Converter
Data sheet
general
Brand TECHLY Barcode 8057685304338
Weight 0.2310 Certifications EC, RoHS
Years of Warranty - Codice Fornitore 304338
specifications
Typology Video Length 3 m
Connector A Type DisplayPort 20-pin format A connector male
Connector B Type HDMI-A format B connector male
Headphone connectors No Cable shielding Single
Shielding type Braid and aluminum foil Cable size (AWG) 30
Color Black
technical specifications
Cable rate - Maximum resolution WUXGA (1920 x 1200)
Maximum bandwidth per channel -
