HDMI extender HDBitT PoE Full HD IR on cable Cat.5e / 6 up to 120m

Cod: IDATA EXTIP-383POE

Barcode: 8054529025503

Supplier Code: 025503

Weight: 0.715 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA EXTIP-383POE
Barcode
8054529025503
Supplier Code
025503
Weight
0.715 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore B: HDMI-A
Risoluzione Video Max: 1080p
HDCP: 1.4
  • HDMI HDBitT signal amplifier up to 120m over a single cable Cat. 5E / 6
  • Supports Full HD 1080p resolution at 60Hz
  • IEEE 802.3af PoE (10W input): electrical power and data in a single cable, expands the network even without electric line
  • Power supply: 5V 1A (adapter not included)
  • Supports point-to-point connection with router or multiconnection
  • With IR support; It Supports HDMI and HDCP
  • Dimensions: 105 x 94.5 x 23.8 mm; Black Colour
Description
IDATA EXTIP-383POE is a HDMI extender that applies HDbitT technology to transmit the HDMI signal up to 120m from the source to your HD display on a single cable CAT5 / 5e / 6 Supports resolutions up to 1080p at 60 Hz and power PoE.
Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.

Features
  • Extend the HDMI signal over single CAT 5 / 5e / 6
  • Transmission distance up to 120 meters
  • PoE provides power to the sender unit and the recipient over the connection cable
  • Supported resolution up to 1080P @ 60Hz
  • With IR support
  • Compatible with the existing network, does not affect internet
  • Support connected with PoE router to share and extend the HDMI signal without limits
  • HDMI and HDCP
  • Black Colour
Connection
  • Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (powered by 5V DC 1A)
  • Connection with router: using a router / repeater, you can reach unlimited extensions (powered by PoE switch)
  • Point-to-Multipoint Connection: using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function (powered by PoE switch)
Specifications
  • HDMI signal: compatible with HDCP
  • Technology: HDBitT
  • Supported resolutions: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Network cable: UTP / STP Cat5 / 5e / 6
  • Transmission Distance: 120m to 1080p @ 60Hz Full HD on cable Cat.6
  • Supports PoE IEEE 802.3 af (10W input)
  • Power supply: 5V 1A (adapter not included)
Size
  • Width: 105 mm
  • Depth: 94.5 mm
  • Height: 23.8 mm
in the Box

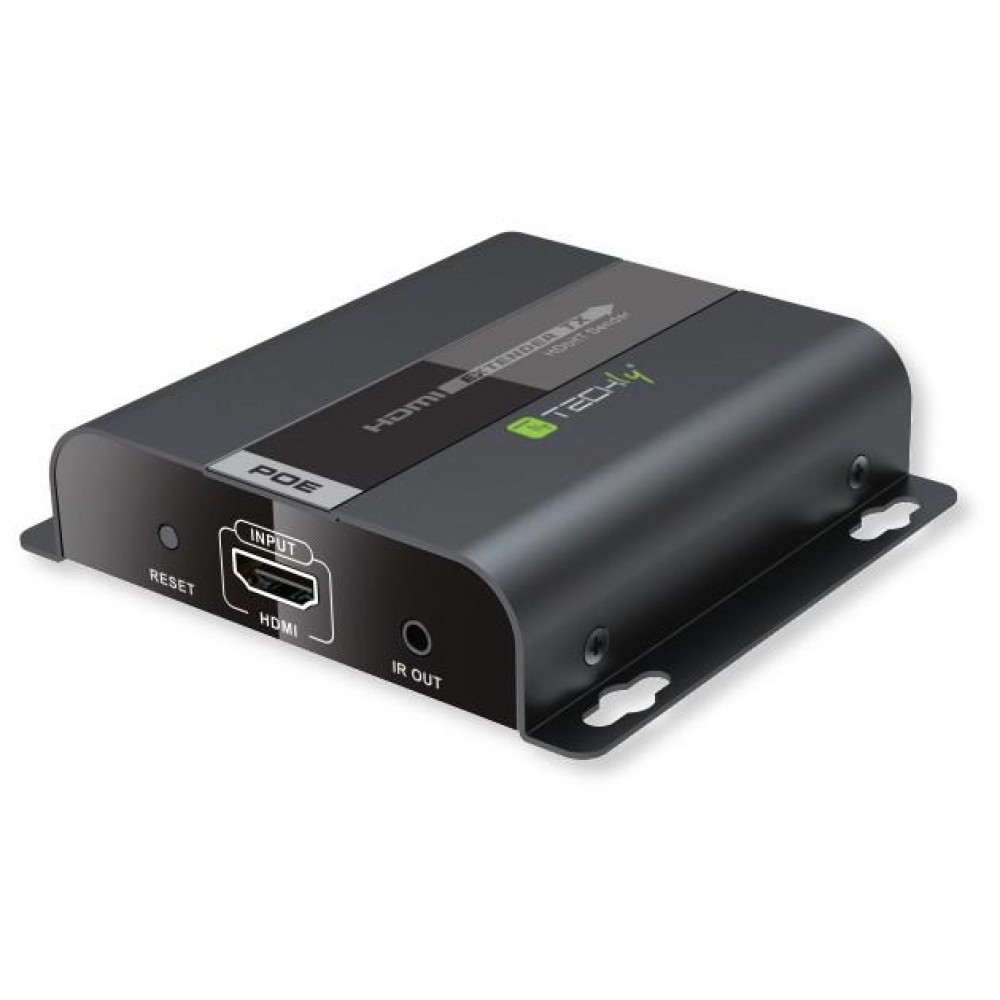

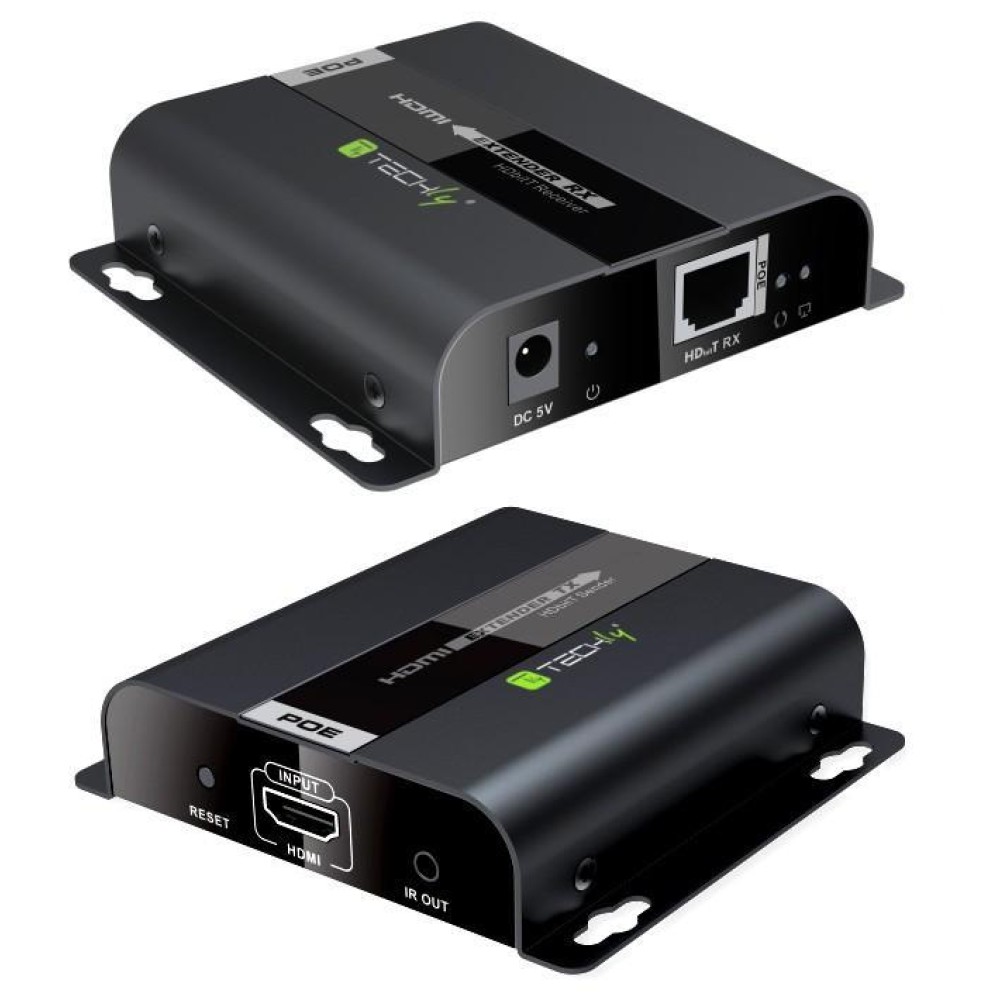

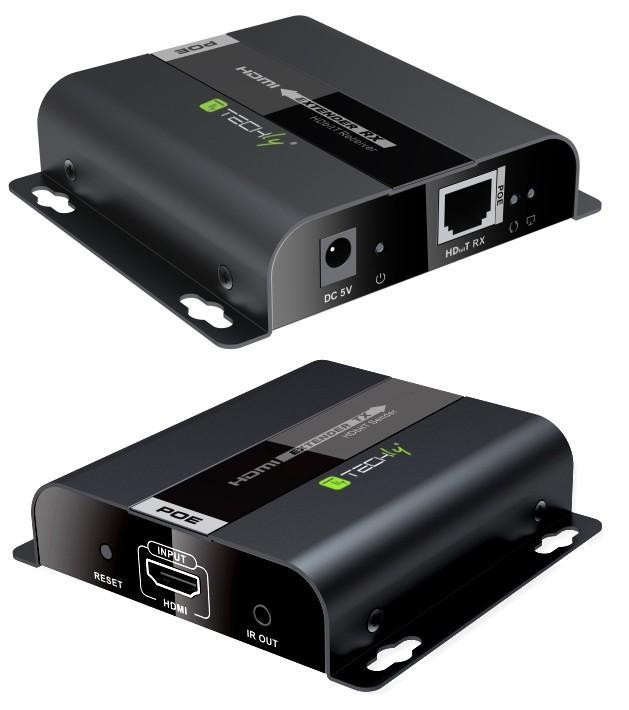

  • 1x HDMI Transmitter POE EXTENDER TX
  • 1x HDMI Receiver RX POE EXTENDER
  • 1x extension cable IR blaster
  • 1x extension cable IR receiver
  • 1x User Manual
Data sheet
general
Brand TECHLY Barcode 8054529025503
Color Black Codice Fornitore 025503
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x 5V di alimentazione
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720p
max bandwidth (MHz) - Deep Color -
HDMI 1.4 HDCP 1.4
3D compatible - Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Not includede Consumo energetico 5W
dimensions
Width 105 mm Height 23.8 mm
Depth 94.5 mm Weight 0.7150
The package includes • 1x Trasmettitore HDMI EXTENDER POE TX • 1x Ricevitore HDMI EXTENDER POE RX • 1x Cavo estensione IR blaster • 1x Cavo estensione IR receiver • 1x Manuale utente
