Extender HDMI HDbitT Powerline Splitter 1x4 Full HD with IR
Press release & video?
Code: IDATA EXTPL-380P    Barcode: 8054529021611

   Supplier Code: 021611

Available

Extender HDMI HDbitT Powerline Splitter 1x4 Full HD with IR

Tipo connettore A: HDMI
Tipo connettore B: C7 - 2 poles
HDCP: Yes
Choose a different Option:

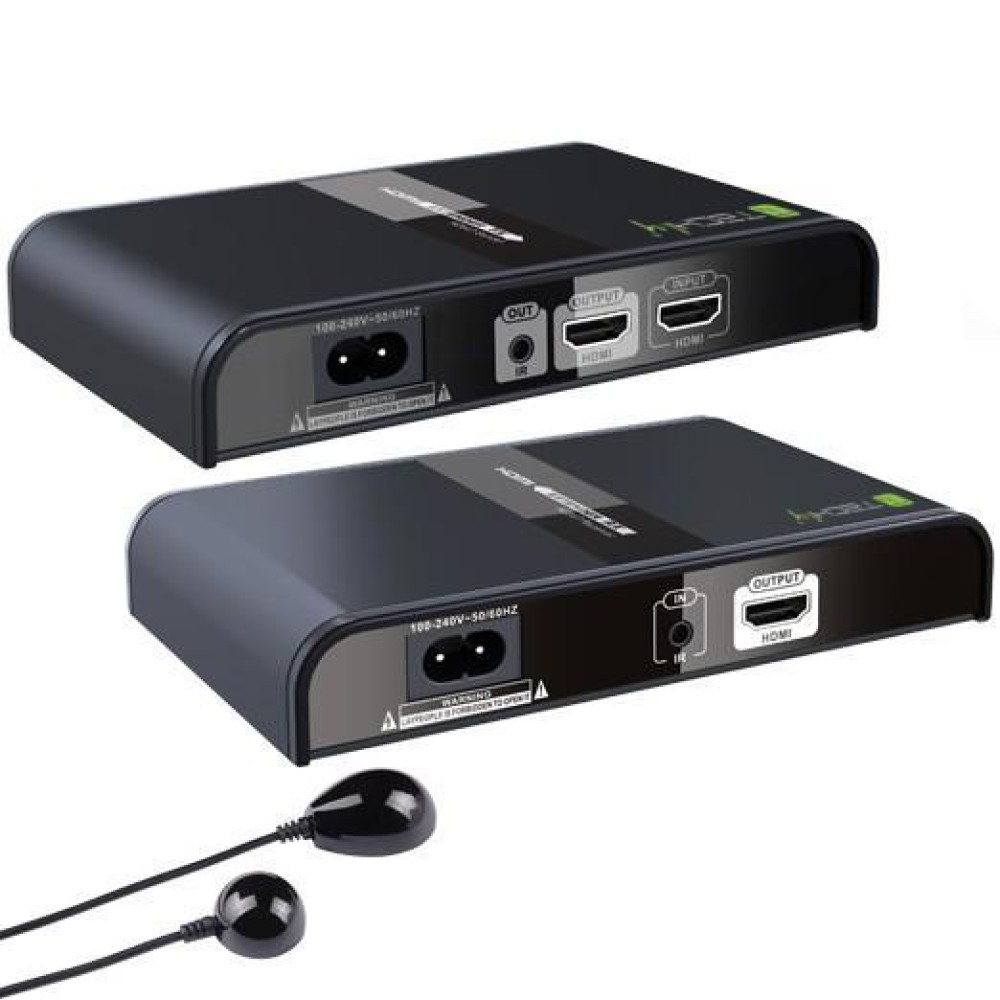

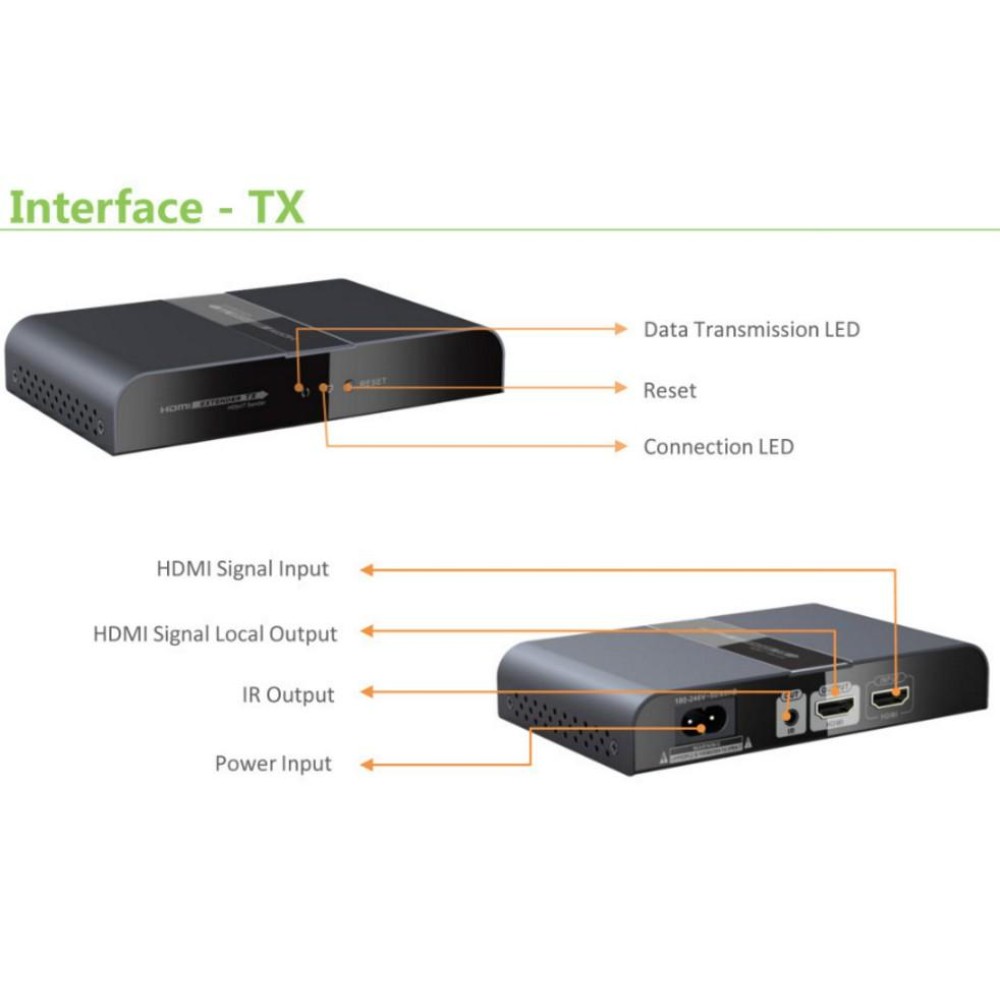

The HDMI extender kit is designed as a transmitter (HDMI Transmitter) and receiver (HDMI Receiver) 1080p Full HD up to 300 meters away.
It allows you to connect two displays with HDMI output (one local and one remote), which ensures perfect signal transmission in different locations over long distances.
The video signal is transmitted by connecting the transmitter to HDMI HDMI video source. Is connected to the monitor displayed a receiving unit (HDMI receiver). The data is transmitted through the connection to the existing power grid, simply by connecting the transmitter and receiver, which will match automatically. In this way there is no need to connect an external power supply, because the extender will take power directly from the mains.

IDATA EXTPL-380P is supported HDBitT to transmit the HDMI signal and distribute it on remote router or network switch for daisy chaining: in this way ensures that the use is as a splitter as extender. HDbitT is a transmission protocol high-definition audio video performance much more stable that allows an image noticeably sharper and cover a greater distance.
It supports Plug and Play, requires no driver installation. In addition, automatically adjusts the specifications for different cable lengths (1-300m) to achieve the best possible video viewing without requiring any configuration.
The HDMI extender is able to support not only the HDMI signal transmission, but also supports IR transmitter with which people can easily control the affected devices from long range. Supports IR devices standard 20 / 60KHz.

Characteristics
• Send the HDMI signal through the existing electrical wiring in your home or office
• Easy to install, thanks to auto pairing simply connect both TX and RX to two electrical outlets and use the matchmaking function
• High Definition Full HD 1080p
• Data transfer powerline up to 300 meters in the same network
• It supports the innovative IR 360 °, allowing users to remotely control the HDMI source side HDTV
• Infrared Extender
• Supports HDbitT
• Supports resolutions up to 1920x1080 @ 60i / 50i / 23.98p / 24p
• Transmission distance up to 300 meters for normal applications
• One transmitter can work with multiple receivers simultaneously
• Supports remote control from the source
• Incorporates technology Home Plug AV controller with 200 Mbps PHY
• Supports optimal QoS for streaming video
• 40 levels of security protection from electricity

Technical specifications
• HDMI signal fully compatible with HDCP
• Transmission Protocol HDbitT
• Resolution: 480i 60Hz, 60Hz 480p, 576i 50Hz, 50Hz 576p, 720P 50HZ, 720P 60HZ, 1080i 50Hz, 1080i 60HZ, 1080P 50HZ, 1080P 60HZ
• Transmission distance: up to 300 meters at 1080p @ 60Hz with a proper electric power plant
• Infrared remote control: supports 20 ~ 60KHZ
• Input voltage: 100 / 240V AC
• Power consumption TX: 7.5W, RX: 7W
• Housing material: plastic non-combustible
• Safety against electrical damage: coupling circuit with fuse and ESD protection, tested for 24 days, 7 hours of work a day

Dimensions
• Width 150 mm
• Height 25 mm
• Depth 92.7 mm

Package Contents
• 1x Transmitter extender
• 1x Receiver extender
• 2x power cable 100 / 240V AC
• 1x IR transmitter
• 1x IR Receiver
• 1x User Manual

Accessories
    Description

    Details

    The HDMI extender kit is designed as a transmitter (HDMI Transmitter) and receiver (HDMI Receiver) 1080p Full HD up to 300 meters away.
    It allows you to connect two displays with HDMI output (one local and one remote), which ensures perfect signal transmission in different locations over long distances.
    The video signal is transmitted by connecting the transmitter to HDMI HDMI video source. Is connected to the monitor displayed a receiving unit (HDMI receiver). The data is transmitted through the connection to the existing power grid, simply by connecting the transmitter and receiver, which will match automatically. In this way there is no need to connect an external power supply, because the extender will take power directly from the mains.

    IDATA EXTPL-380P is supported HDBitT to transmit the HDMI signal and distribute it on remote router or network switch for daisy chaining: in this way ensures that the use is as a splitter as extender. HDbitT is a transmission protocol high-definition audio video performance much more stable that allows an image noticeably sharper and cover a greater distance.
    It supports Plug and Play, requires no driver installation. In addition, automatically adjusts the specifications for different cable lengths (1-300m) to achieve the best possible video viewing without requiring any configuration.
    The HDMI extender is able to support not only the HDMI signal transmission, but also supports IR transmitter with which people can easily control the affected devices from long range. Supports IR devices standard 20 / 60KHz.

    Characteristics
    • Send the HDMI signal through the existing electrical wiring in your home or office
    • Easy to install, thanks to auto pairing simply connect both TX and RX to two electrical outlets and use the matchmaking function
    • High Definition Full HD 1080p
    • Data transfer powerline up to 300 meters in the same network
    • It supports the innovative IR 360 °, allowing users to remotely control the HDMI source side HDTV
    • Infrared Extender
    • Supports HDbitT
    • Supports resolutions up to 1920x1080 @ 60i / 50i / 23.98p / 24p
    • Transmission distance up to 300 meters for normal applications
    • One transmitter can work with multiple receivers simultaneously
    • Supports remote control from the source
    • Incorporates technology Home Plug AV controller with 200 Mbps PHY
    • Supports optimal QoS for streaming video
    • 40 levels of security protection from electricity

    Technical specifications
    • HDMI signal fully compatible with HDCP
    • Transmission Protocol HDbitT
    • Resolution: 480i 60Hz, 60Hz 480p, 576i 50Hz, 50Hz 576p, 720P 50HZ, 720P 60HZ, 1080i 50Hz, 1080i 60HZ, 1080P 50HZ, 1080P 60HZ
    • Transmission distance: up to 300 meters at 1080p @ 60Hz with a proper electric power plant
    • Infrared remote control: supports 20 ~ 60KHZ
    • Input voltage: 100 / 240V AC
    • Power consumption TX: 7.5W, RX: 7W
    • Housing material: plastic non-combustible
    • Safety against electrical damage: coupling circuit with fuse and ESD protection, tested for 24 days, 7 hours of work a day

    Dimensions
    • Width 150 mm
    • Height 25 mm
    • Depth 92.7 mm

    Package Contents
    • 1x Transmitter extender
    • 1x Receiver extender
    • 2x power cable 100 / 240V AC
    • 1x IR transmitter
    • 1x IR Receiver
    • 1x User Manual
    data sheet
    generale
    Brand
    Techly Np
    Barcode
    8054529021611
    Color
    No
    Codice Fornitore
    021611
    input
    Connector A Type
    HDMI
    format A connector
    female
    Number A Connector
    1
    output
    Connector B Type
    C7 - 2 poles
    format B connector
    male
    Number B Connector
    1
    specifiche tecniche
    Typology
    Amplifier
    Max Video Resolution
    1080p
    max bandwidth (MHz)
    No
    Deep Color
    No
    HDMI
    No
    HDCP
    Yes
    3D compatible
    No
    Supported audio standards
    Yes
    Transmission Distance
    300 m
    alimentazione
    Power supply
    Not required
    dimensioni
    Width
    150 mm
    Height
    25 mm
    Depth
    92,7 mm
    Weight
    0.8660
    The package includes
    • 1x Trasmettitore extender • 1x Ricevitore extender • 2x Cavo di alimentazione 100/240V AC • 1x Trasmettitore IR • 1x Ricevitore IR • 1x Manuale d'uso
