HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-1
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-1
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-0
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-1
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-2
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-3
+1
HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m - TECHLY - IDATA EXTIP-318-1
Techly

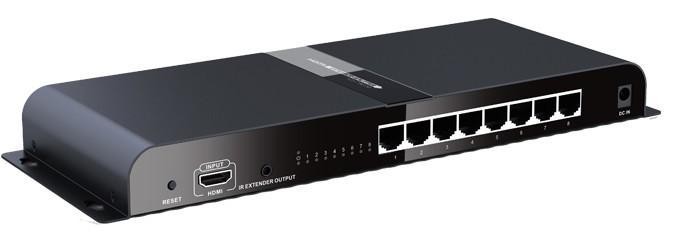

HDMI Splitter 8 way Extender with IR on cable CAT6 / 6a / 7 up to 120m

Cod: IDATA EXTIP-318

Barcode: 8054529025572

Supplier Code: 025572

Weight: 5.775 Kg

Min. sale unit: 1 Pcs

Package pcs: 2 Pcs

Cod
IDATA EXTIP-318
Barcode
8054529025572
Supplier Code
025572
Weight
5.775 Kg
Min. sale unit
1 Pcs
Package pcs
2 Pcs
Tipo connettore B: RJ45 8P8C
HDCP: Yes
  • 8-way splitter HDMI Extender with IR
  • It distributes an HDMI source to 8 monitors
  • Extends the signal up to 120m of network cable CAT6 / 6a / 7
  • Includes 1 signal receiver with HDMI output
  • Compatible with HDMI and HDCP
  • Incorporates HDbitT technology
  • Supports video resolutions up to 1080p @ 50Hz / 60Hz
  • Dimensions: 299 x 110.7 x 29.6 mm; Black Colour
Description
IDATA EXTIP-318 is an HDMI splitter that applies HDbitT technology to deploy an HDMI source to 8 HDMI displays of CAT6 / 6a / 7 cable to compatible receivers at the same time. It supports transmission distance up to 120 meters and the maximum resolution of 1080P.

Features
  • Incorporates HDbitT technology
  • Compatible with HDMI and HDCP
  • It distributes an HDMI source to 8 monitors on CAT6 / 6a / 7
  • Supports video resolution from 480i to 1080p @ 60Hz @ 50Hz / 60Hz
  • Supports transmission distances up to 120 meters through the network cable
  • Supports signal transmission infrared
Specifications
  • HDMI signal: compatible with HDCP
  • HDbitT Protocol
  • Supported resolutions: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Transmission range: up to 120 meters with 1080p full HD resolution @ 60Hz on cable Cat.6
  • Supports 50/60 kHz IR signal
  • Input: 1x HDMI
  • Outputs: 8x RJ45
  • 8 Connection LED
  • Power supply: 12V 3A
  • Power consumption: < 24W
  • Black Colour
  • Attention it includes 1 additional receiver (if multiple additional receivers are needed, purchase them separately with the code IDATA EXTIP-383R)
Size
  • Width: 299 mm
  • Depth: 110.7 mm
  • Height: 29.6 mm
  • Weight: 430 g
Package contents
  • IDATA EXTIP-318 HDMI extender TX *1
  • IDATA EXTIP-383R HDMI receiver RX *1
  • IR blaster cable *1
  • Receiver IR Extension cable *1
  • Extender power supply *1
  • Receiver power supply *1
  • User manual *1
Data sheet
general
Brand TECHLY Barcode 8054529025572
Color Black Codice Fornitore 025572
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input Alimentazione
output
Connector B Type RJ45 8P8C format B connector female
Number B Connector 8 Altri Connettori Output IR OUTPUT
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720p
max bandwidth (MHz) - Deep Color -
HDMI Yes HDCP Yes
3D compatible No Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico < 24W
dimensions
Width 299 mm Height 29.6 mm
Depth 110.7 mm Weight 5.7750
The package includes • 1x Base/Extender splitter IDATA EXTIP-318 • 1x Ricevitore aggiuntivo IDATA EXTIP-383R • 1x Cavo IR blaster • 1x Cavo prolunga ricevitore IR • 1x Alimentatore extender • 1x Alimentatore ricevitore • 1x Manuale utente
