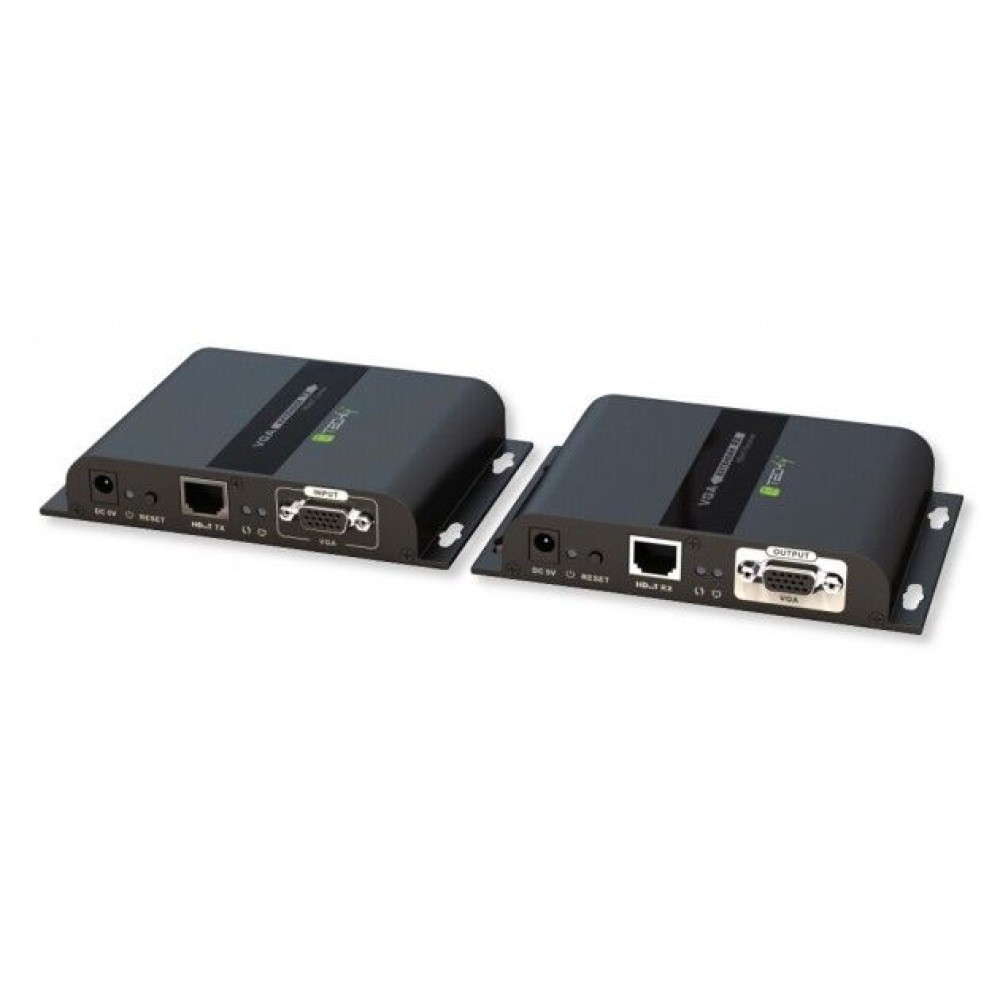

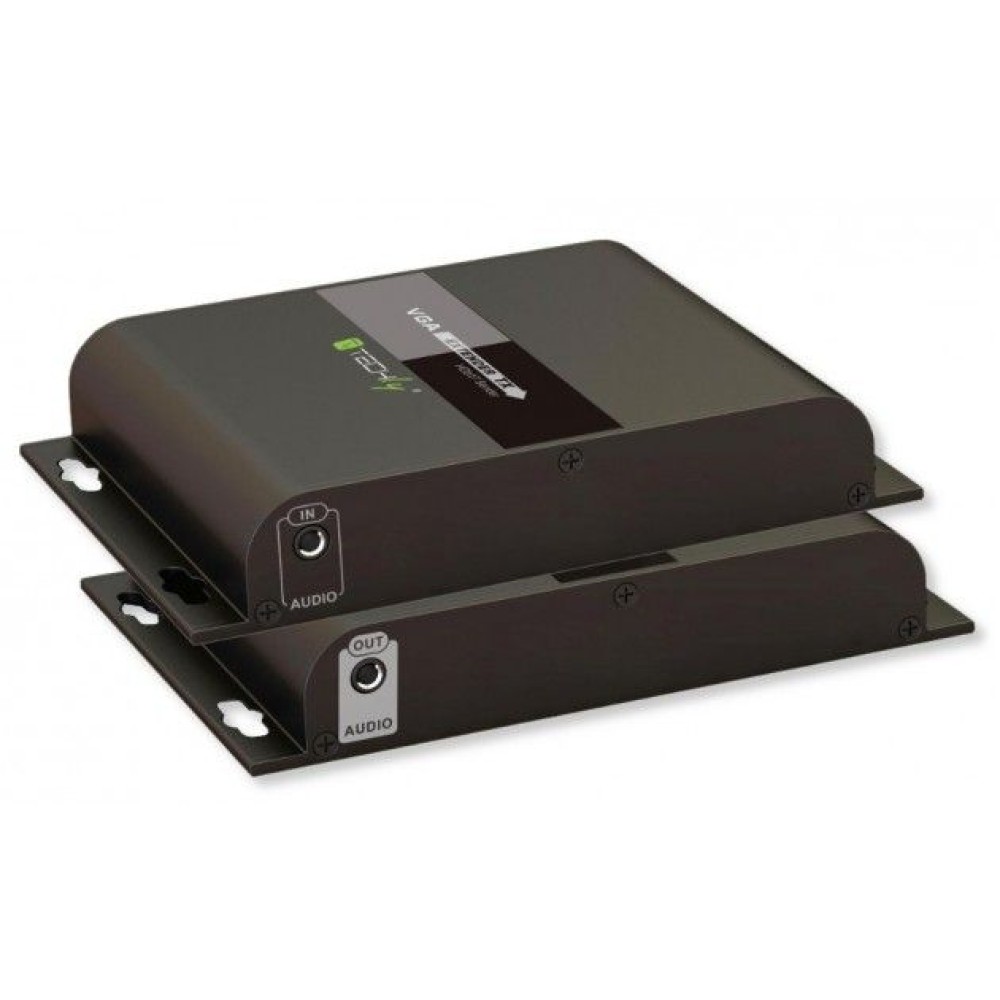

Extender VGA HDbitT with Audio by Cat.6 cable POE up to 120m

Cod: IDATA EXTIP-383VP

Barcode: 8051128100518

Supplier Code: 100518

Weight: 1.041 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA EXTIP-383VP
Barcode
8051128100518
Supplier Code
100518
Weight
1.041 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
  • Supports HDbitT technology
  • Extends VGA signal and analog audio on single CAT5 / 5e / 6 cable
  • Supports resolutions up to 1920x1080 @ 60Hz
  • VGA signal transmission up to 120m
  • Supports RGBHV
  • Supports 3.5mm audio jack
  • Dimension: 138 x 90 x 23.8 mm (x2); Color: black
Description
VGA Extender with 3.5 mm audio output: extend the VGA and analog audio signals up to 120m on a single CAT6 cable. Supports RGBHV signal input. With POE technology, you can power the receiver through the network cable

Features
  • Supports HDbitT technology
  • Extends VGA signal and analog audio on single CAT5 / 5e / 6 cable
  • Supports resolutions up to 1920x1080 @ 60Hz
  • VGA signal transmission up to 120m
  • Supports RGBHV
  • Supports 3.5mm audio jack
  • Cascading connection to extend the VGA signal without limitation
  • Housing in aluminum alloy
Technical Specifications
  • Transmission protocol: HDBitT
  • VGA signal format: RGBHV
  • VGA resistance: 75 ohms
  • Supported resolutions: 1920x1080 @ 60Hz; 1680x1050 @ 60Hz; 1360x768 @ 60Hz; 1280x1024 @ 60Hz; 1280x960 @ 60Hz; 1024x768 @ 60Hz; 800x600 @ 60Hz
  • Transmission distance: transmits 1080p signal on Cat.6 cable up to 120m; Cat.5E at 100m; Cat.5 to 80m
  • Audio connection: 3.5mm jack
  • Operating temperature: 0 - 60 ° C
  • Power supply: via 5V / 2A (not included)
  • Consumption: TX < 7.5W; RX < 7W
Size
  • Width: 138 mm
  • Depth: 90 mm
  • Height: 23.8 mm
Package Contents
  • 1x EXTENDER TX transmitter
  • 1x EXTENDER RX Receiver
  • 1x 3.5mm audio cable
  • 1x User Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128100518
Color - Codice Fornitore 100518
input
Connector A Type VGA + Audio 3.5mm format A connector female
Number A Connector 1
output
Connector B Type VGA + Audio 3.5mm format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution Full HD 1920 x 1080
max bandwidth (MHz) - Deep Color -
HDMI - HDCP -
3D compatible - Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Not includede
dimensions
Width 138 mm Height 23.8 mm
Depth 90 mm Weight 1.0410
The package includes • 1x Trasmettitore EXTENDER TX • 1x Ricevitore EXTENDER RX • 1x Cavo audio 3.5mm • 1x Manuale utente
