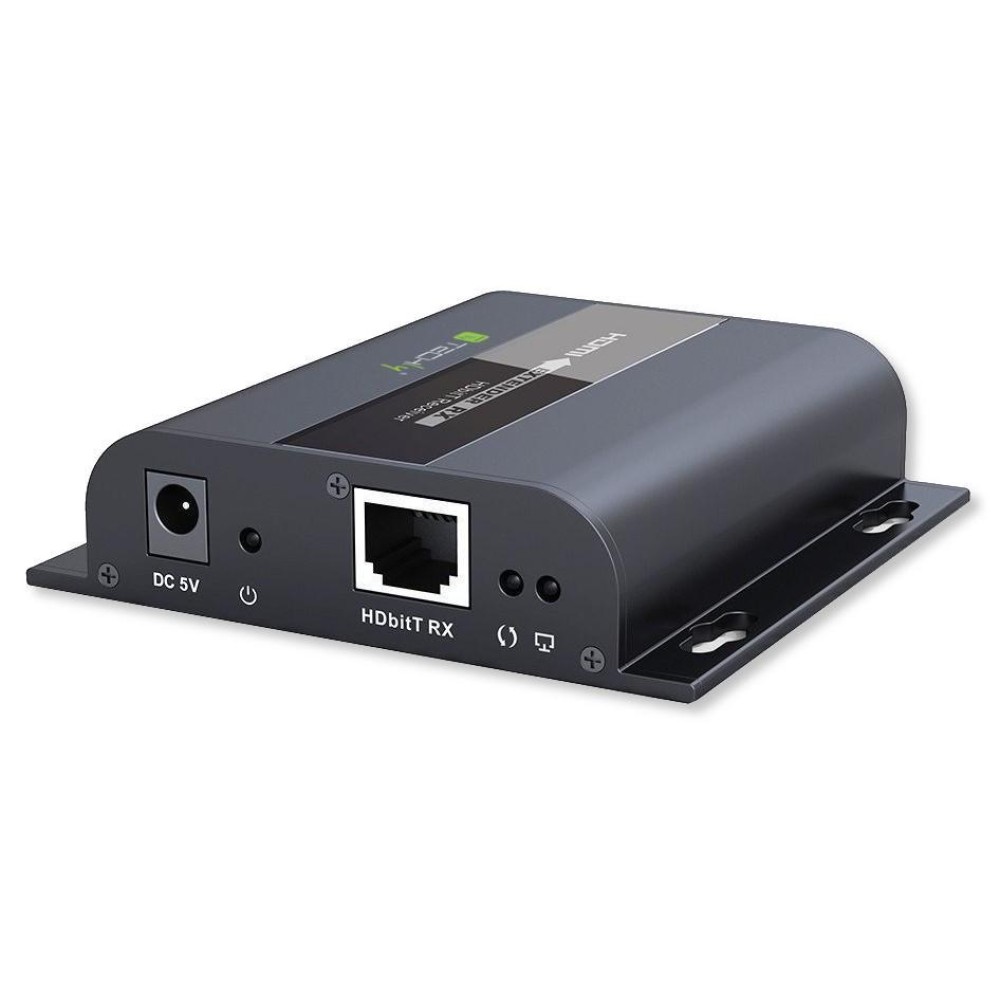

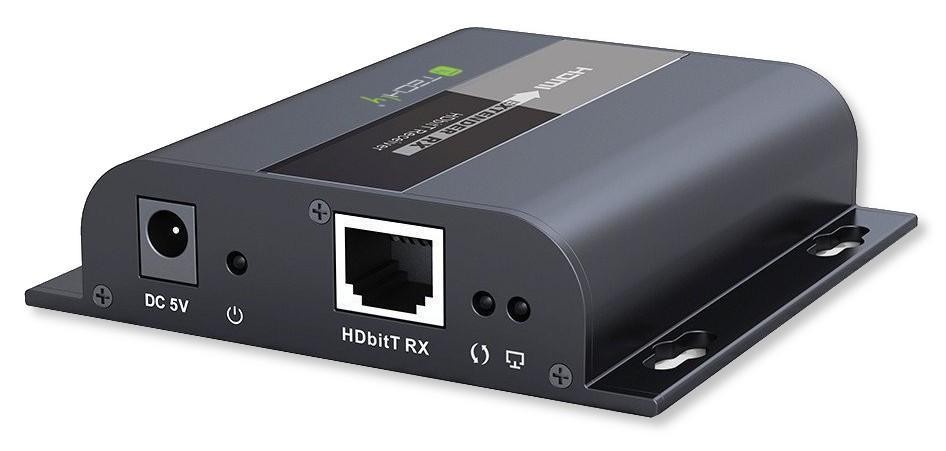

Extra Receiver HDMI Extender HDbitT 3D IR on cable Cat.6 120m

Cod: IDATA EXTIP-383R

Barcode: 8054529025473

Supplier Code: 025473

Weight: 0.359 Kg

Min. sale unit: 1 Pcs

Package pcs: 30 Pcs

Cod
IDATA EXTIP-383R
Barcode
8054529025473
Supplier Code
025473
Weight
0.359 Kg
Min. sale unit
1 Pcs
Package pcs
30 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
HDCP: Yes
The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the location where the display is located.

Technical Specifications
  • HDMI HDbitT Receiver with IR
  • Transmission protocol: HDbitT
  • Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Network cable: UTP / STP Cat5E / 6
  • Transmission distance up to 120m transmission distance for 1080p 60Hz Full HD on a single CAT6 cable
  • IR Signal: Supports IR devices 20-60KHz
  • Operating Temperature: 0°C - 60°C
  • Power supply DC5V / 1A
  • RX consumption: 3W
Installation Requirements
  • HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
  • HDMI screens as SDTV, projector with HDMI port.
  • Network cables: Network cables UTP / STP Cat5e / 6, that meet the standards EIA568B
  • Transmission length: 80m CAT5 / CAT5E100m / CAT6 120m
Connection
  • Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (with a high quality cable can reach up to 150 meters)
  • Connection with Router: Using a router / repeater, you can reach unlimited extensions.
  • Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.

Dimensions
  • Width: 96.8 mm
  • Depth: 94 mm
  • Height: 23.7 mm
Certifications
  • EC
  • WEEE
Package Contents
  • 1x HDMI EXTENDER RX Receiver
  • 1x Power supply DC5V / 1A
  • 1x IR receiver extension cable
  • 1x Instruction Manual
Description
The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the location where the display is located.

Technical Specifications
  • HDMI HDbitT Receiver with IR
  • Transmission protocol: HDbitT
  • Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Network cable: UTP / STP Cat5E / 6
  • Transmission distance up to 120m transmission distance for 1080p 60Hz Full HD on a single CAT6 cable
  • IR Signal: Supports IR devices 20-60KHz
  • Operating Temperature: 0°C - 60°C
  • Power supply DC5V / 1A
  • RX consumption: 3W
Installation Requirements
  • HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
  • HDMI screens as SDTV, projector with HDMI port.
  • Network cables: Network cables UTP / STP Cat5e / 6, that meet the standards EIA568B
  • Transmission length: 80m CAT5 / CAT5E100m / CAT6 120m
Connection
  • Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (with a high quality cable can reach up to 150 meters)
  • Connection with Router: Using a router / repeater, you can reach unlimited extensions.
  • Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.

Dimensions
  • Width: 96.8 mm
  • Depth: 94 mm
  • Height: 23.7 mm
Certifications
  • EC
  • WEEE
Package Contents
  • 1x HDMI EXTENDER RX Receiver
  • 1x Power supply DC5V / 1A
  • 1x IR receiver extension cable
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY Barcode 8054529025473
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 025473
input
Connector A Type RJ45 8P8C format A connector female
Number A Connector 1 Altri Connettori Input 1x 5V di alimentazione
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080p, 480p , 720p
max bandwidth (MHz) - Deep Color Yes
HDMI - HDCP Yes
3D compatible No Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico 3W
dimensions
Width 96.8 mm Height 23.7 mm
Depth 94 mm Weight 0.3590
The package includes • 1x Ricevitore HDMI EXTENDER RX • 1x Alimentatore DC5V/1A • 1x Cavo prolunga ricevitore IR • 1x Manuale d’istruzione
