Techly Professional

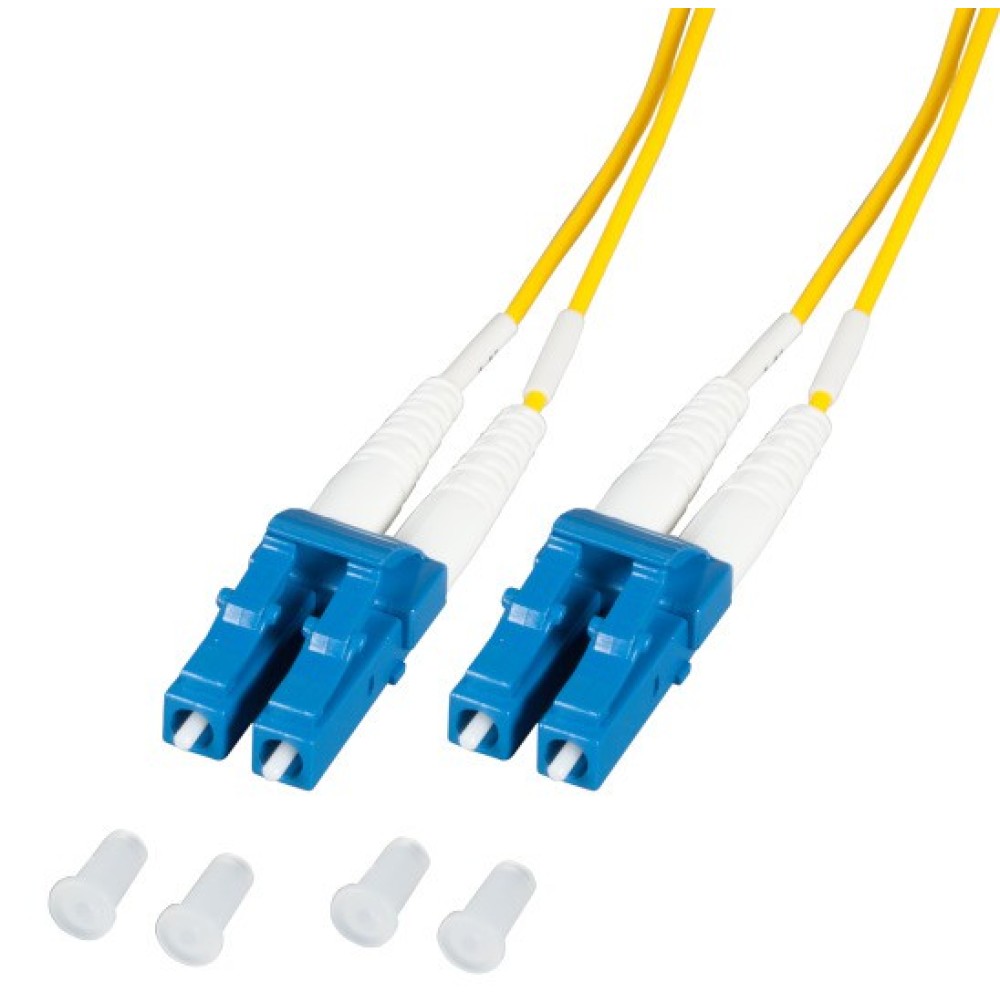

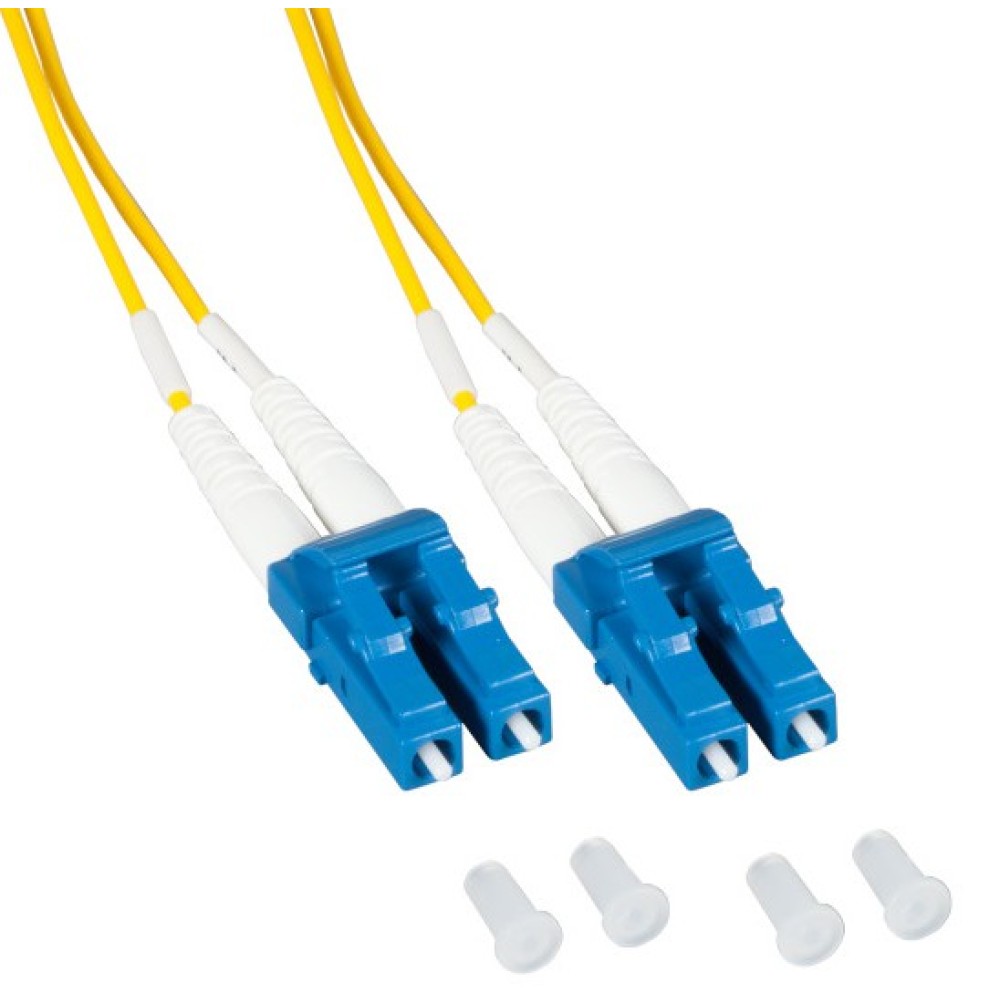

Fiber Optic Cable LC/LC 9/125 Singlemode 3m Diameter 1.2mm OS2

Cod: ILWL OS212-LCLC-030T

Barcode: 8051128102468

Supplier Code: 102468

Weight: 0.032 Kg

Min. sale unit: 1 Pcs

Package pcs: 200 Pcs

Available
Limited time offer!

Incl. Tax: €14.80

Excl. Tax: €12.13 + VAT

Cod
ILWL OS212-LCLC-030T
Barcode
8051128102468
Supplier Code
102468
Weight
0.032 Kg
Min. sale unit
1 Pcs
Package pcs
200 Pcs
Shipping from €6.50 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: RoHS
Anni di Garanzia: 3
Core Cavo Fibra: 9/125 MonoMod OS2
Rivestimento cavo: LSZH
Diametro cavo: 1.2 mm
  • OS2: 9/125 single-mode fiber cable used in networking over large areas or backbone applications between buildings with a maximum distance of 40 km
  • Connectors: LC to LC
  • Duplex
  • Fiber diameters - Core: 9 microns; Coatings: 125 microns
  • Type of fiber: single-mode
  • Length: 3m
Description
  • Compatible with multimode fiber applications
  • High bandwidth to support longer distances
  • Economic solution
  • Ideal for use in Gigabit Ethernet applications
  • Halogen-free and flame-retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Features
  • Fiber diameters - Core: 9 microns; Coatings: 125 microns
  • type of fiber - Singlemode
  • OS2: 9/125 single-mode fiber cable used in networking over large areas or backbone applications between buildings with a maximum distance of 40 km
  • Connectors: LC to LC
  • LC connector in compact design
  • The connectors meet the quality class of single-mode A / 1 grade according to IEC-61753-122-2
  • Duplex
  • Coating: PVC
  • Jacket OD: 1.2 mm
  • Color coating: Yellow
  • Length: 3m
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128102468
Weight 0.0320 Certifications RoHS
Years of Warranty 3 Codice Fornitore 102468
technical specifications
Fiber connector LC/LC Core Cable Fiber 9/125 MonoMod OS2
Fiber number 2 Cable sheath LSZH
Length 3 m Cable diameter 1.2 mm
Color Yellow CPR -
connections
Connector A Type LC Duplex Connector B Type LC Duplex
format A connector male format B connector male
