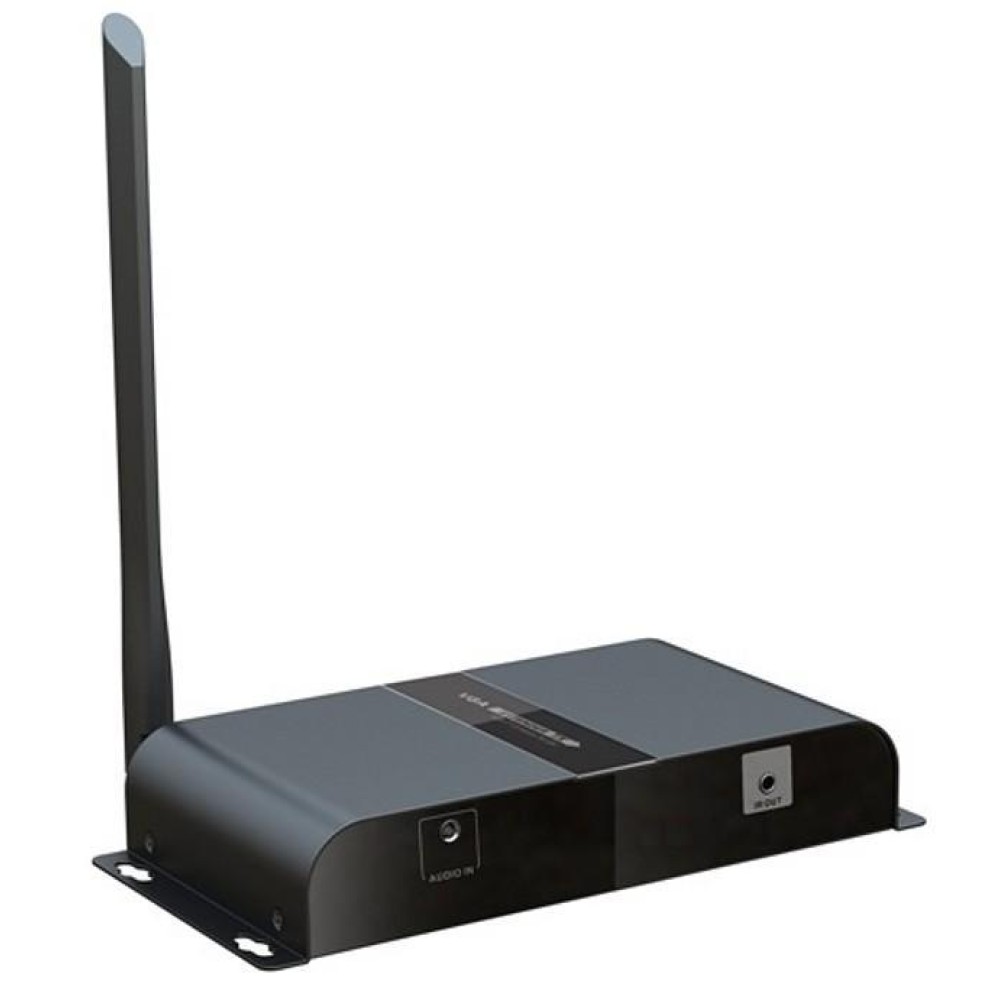

HDbitT VGA Extender over IP with wireless audio up to 200 m

Cod: IDATA VGA-WL200

Barcode: 8054529025589

Supplier Code: 025589

Weight: 1.821 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA VGA-WL200
Barcode
8054529025589
Supplier Code
025589
Weight
1.821 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
  • VGA Audio Extender over IP Wireless HDBitT

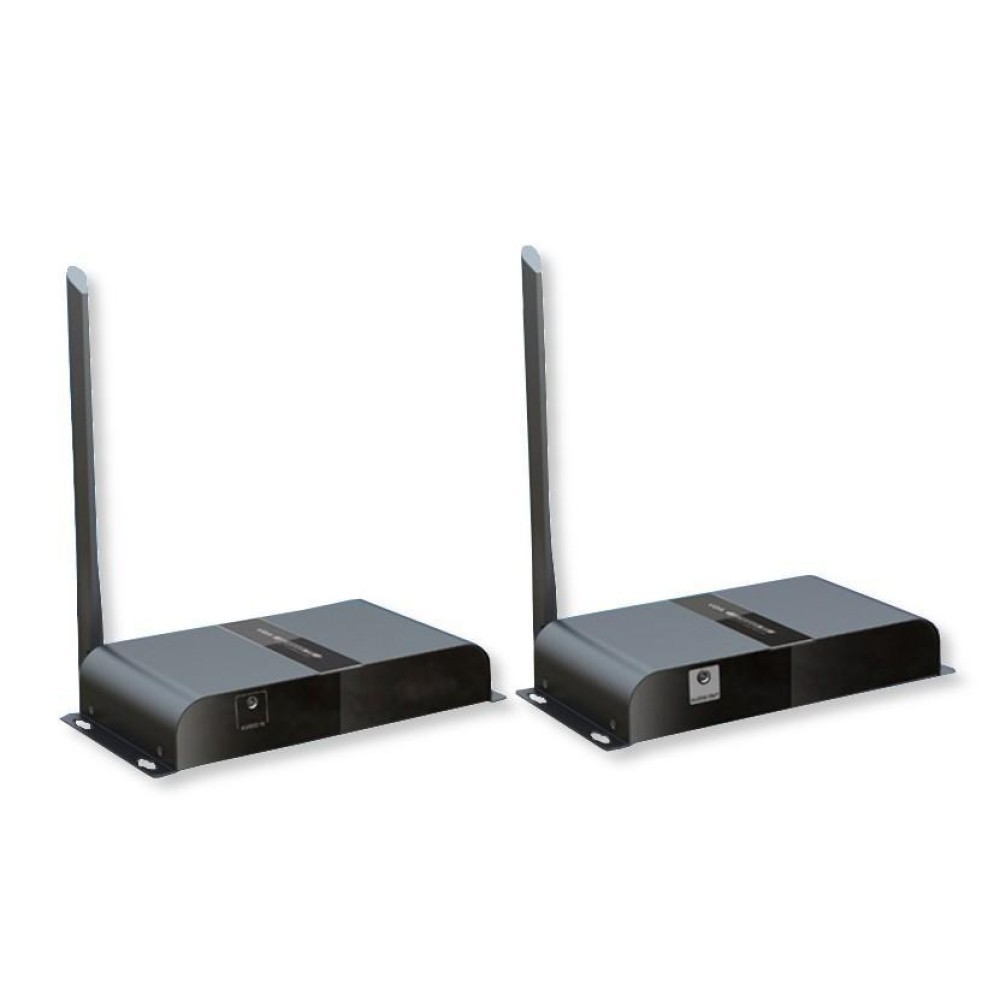

  • Includes transmitter and receiver
  • Transmits VGA and audio signal wirelessly up to 200m
  • Audio: 3.5mm connector
  • Maximum video resolution Full HD 1920x1080 @ 60Hz
  • Dimensions: 195.5 x 135.5 x 32 mm (x2); Black Colour
Description
The extender IDATA VGA-WL200 applies HDbitT technology to transmit VGA and audio signal wirelessly to the VGA video and audio devices. It does not require the need for cable connections between transmitter and receiver.
Benefiting from HDbitT technology and excellent hardware and software design, this extender provides data transmission up to 200m, 360 degrees in every corner of the house.

Specifications
  • VGA Signal: RGBHV
  • Technology: HDbitT
  • Supported resolutions: 1920x1080 @ 60Hz; 1680x1050 @ 50Hz; 1440x900 @ 600Hz; 1360x768 @ 60Hz; 1280x1024 @ 60Hz; 1280x960 @ 60Hz; 1280x720 @ 60Hz; 1024x768 @ 60Hz; 800x600 @ 60Hz
  • Audio: 3.5mm connector
  • Transmission Distance: 200m
  • Operating Temperature: 0-60 ° C
  • Power supply: 5V DC / 3A
  • Consumption: TX 9W; RX 6.5W
  • Material: Metal
  • Black Colour
Size
  • Width: 195.5 mm
  • Depth: 135.5 mm
  • Height: 32 mm
in the Box
  • 1x VGA transmitter EXTENDER TX
  • 1x VGA Receiver EXTENDER RX
  • 2x Power Supply DC5V / 3A
  • 1x Audio cable 3.5mm
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8054529025589
Color Black Codice Fornitore 025589
input
Connector A Type VGA + Audio 3.5mm format A connector female
Number A Connector 1
output
Connector B Type VGA + Audio 3.5mm format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1024 x 768 , 1280 x 1024, Full HD 1920 x 1080
max bandwidth (MHz) - Deep Color -
HDMI - HDCP -
3D compatible - Supported audio standards Yes
Transmission Distance 200 m
power supply
Power supply Requested (included) Consumo energetico TX 9W; RX 6.5W
dimensions
Width 195.5 mm Height 32 mm
Depth 135.5 mm Weight 1.8210
The package includes • 1x Trasmettitore VGA EXTENDER TX • 1x Ricevitore VGA EXTENDER RX • 2x Alimentatore DC5V/3A • 1x Cavo audio 3.5mm • 1x Manuale d’istruzioni
Drivers and manuals
