HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-1
HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-1
HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-0
HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-1
HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-2
HDMI 1.4 Splitter 2-way, 4K2K, 3D - TECHLY NP - IDATA HDMI-214E-1

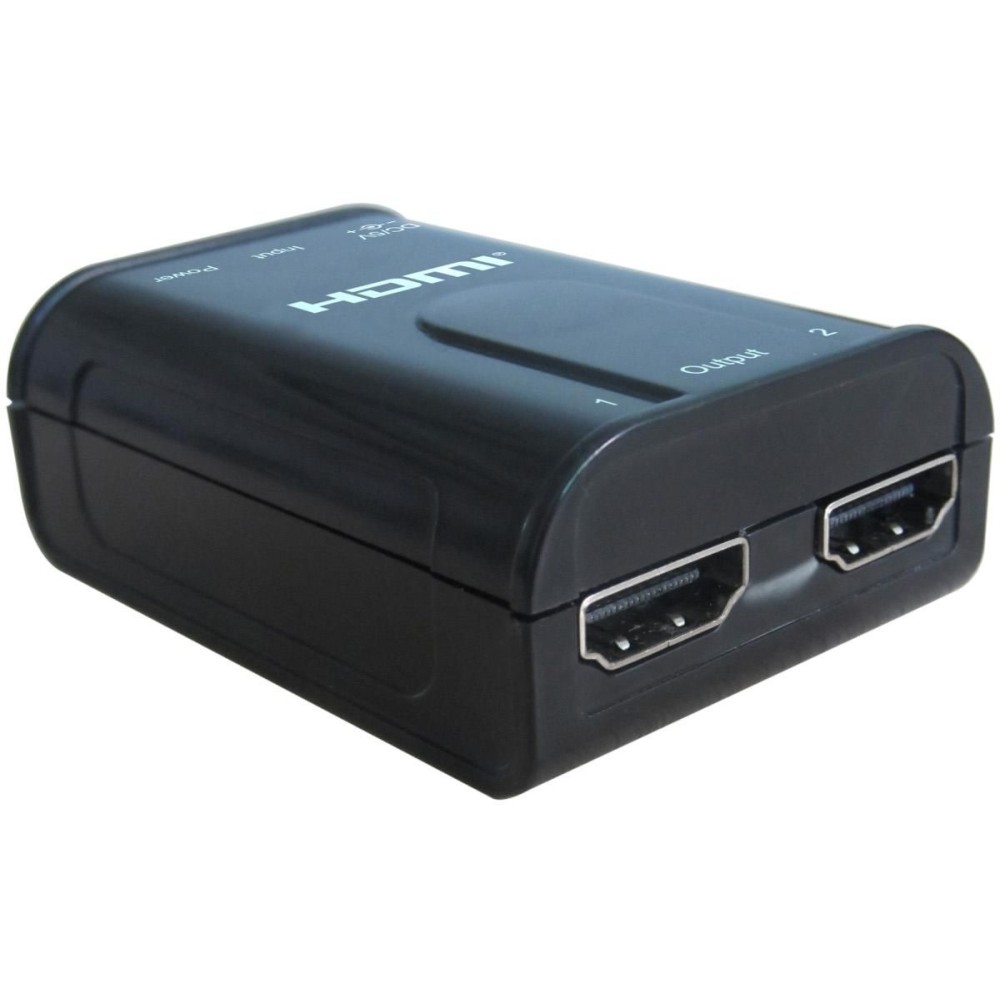

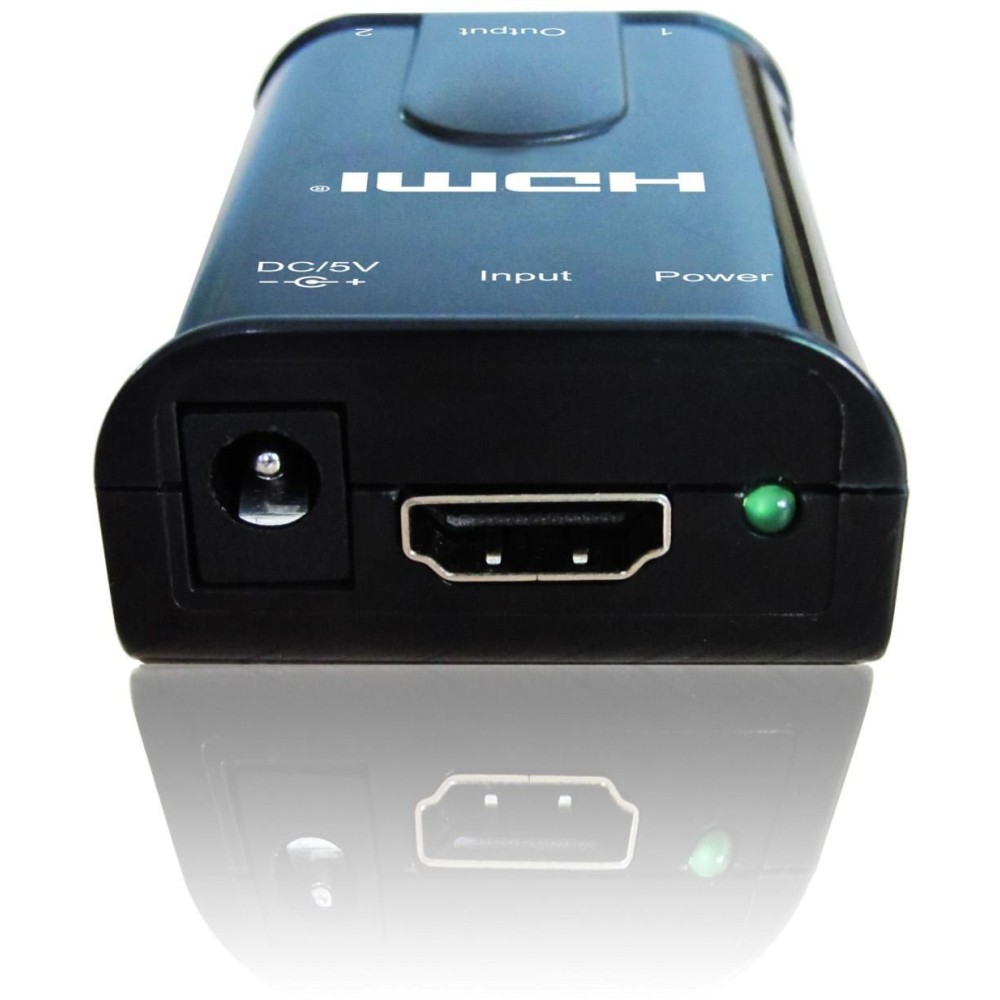

HDMI 1.4 Splitter 2-way, 4K2K, 3D

Cod: IDATA HDMI-214E

Barcode: 8057685309630

Supplier Code: 309630

Weight: 0.114 Kg

Min. sale unit: 1 Pcs

Package pcs: 35 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Switch and Splitter to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Switch and Splitter
right for you
Configure now
Certificazioni: EC
Certificazioni:
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.3
Compatibile 3D: Yes
  • This splitter duplicates a source signal and sends it to two monitors / televisions separated.
  • Allows you to watch satellite set top box, cable box, DVD players, digital video recorders (DVRs) and game consoles using HDMI connections on two separate displays.
  • This is the easiest way to duplicate the HDMI signal to 2 HDTVs separated.
  • Supports 480i, 480p, 720i, 720p, 1080i and 1080p. It maintains the video signal of high quality HDMI.
  • Plug-and-Play offers quick installation without any software.
  • Audio included.
Technical specifications
  • 1 HDMI input
  • 2 HDMI outputs
  • Two outputs with HDMI signal simultaneously
  • With AWG24 cable transmits the signal up to 20 m
  • High Speed ​​HDMI with Ethernet and HDCP v1.2
  • Full HD 1080p, 3D support
  • Control system Super IR, forward or backward
  • Compact size, easy installation
  • Metal housing, high quality finish
  • Temperature range: -15 ° C / 55 ° C
  • Operating humidity range: 5 to 90% RH (non-condensing)
  • Power Input: AC (50Hz.60Hz) 100 - 240V
  • Requires power supply with minimum output of 2A
  • Output Power: DC 5V
Video formats supported
  • 1080p
  • 1080i
  • 720p
  • 576p
  • 576i
  • 480p
  • 480i
Supported digital audio formats
  • DTS-HD
  • Dolby TrueHD
  • LPCM 7.1
  • AC3
  • DTS
  • Direct Stream Digital (DSD)
Dimensions
  • Width: 45 mm
  • Depth: 65 mm
  • Height: 20 mm
Certifications
  • EC
  • FCC
Package Contents
  • HDMI 1.4 Splitter 2-way
  • Power cable / USB
  • Instruction Manual
Description
  • This splitter duplicates a source signal and sends it to two monitors / televisions separated.
  • Allows you to watch satellite set top box, cable box, DVD players, digital video recorders (DVRs) and game consoles using HDMI connections on two separate displays.
  • This is the easiest way to duplicate the HDMI signal to 2 HDTVs separated.
  • Supports 480i, 480p, 720i, 720p, 1080i and 1080p. It maintains the video signal of high quality HDMI.
  • Plug-and-Play offers quick installation without any software.
  • Audio included.
Technical specifications
  • 1 HDMI input
  • 2 HDMI outputs
  • Two outputs with HDMI signal simultaneously
  • With AWG24 cable transmits the signal up to 20 m
  • High Speed ​​HDMI with Ethernet and HDCP v1.2
  • Full HD 1080p, 3D support
  • Control system Super IR, forward or backward
  • Compact size, easy installation
  • Metal housing, high quality finish
  • Temperature range: -15 ° C / 55 ° C
  • Operating humidity range: 5 to 90% RH (non-condensing)
  • Power Input: AC (50Hz.60Hz) 100 - 240V
  • Requires power supply with minimum output of 2A
  • Output Power: DC 5V
Video formats supported
  • 1080p
  • 1080i
  • 720p
  • 576p
  • 576i
  • 480p
  • 480i
Supported digital audio formats
  • DTS-HD
  • Dolby TrueHD
  • LPCM 7.1
  • AC3
  • DTS
  • Direct Stream Digital (DSD)
Dimensions
  • Width: 45 mm
  • Depth: 65 mm
  • Height: 20 mm
Certifications
  • EC
  • FCC
Package Contents
  • HDMI 1.4 Splitter 2-way
  • Power cable / USB
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8057685309630
Certifications EC, FCC Color Black
Codice Fornitore 309630
input
Connector A Type HDMI format A connector female
Number A Connector 1 Altri Connettori Input 1 connettore 5V DC
output
Connector B Type HDMI format B connector female
Number B Connector 2
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 1.4 HDCP 1.3
3D compatible Yes Supported audio standards Yes
Transmission Distance 20 m
power supply
Power supply Not includede
dimensions
Width 45 mm Height 20 mm
Depth 65 mm Weight 0.1140
The package includes • Splitter HDMI 1.4 2 vie • Cavo USB • Manuale d'istruzioni
