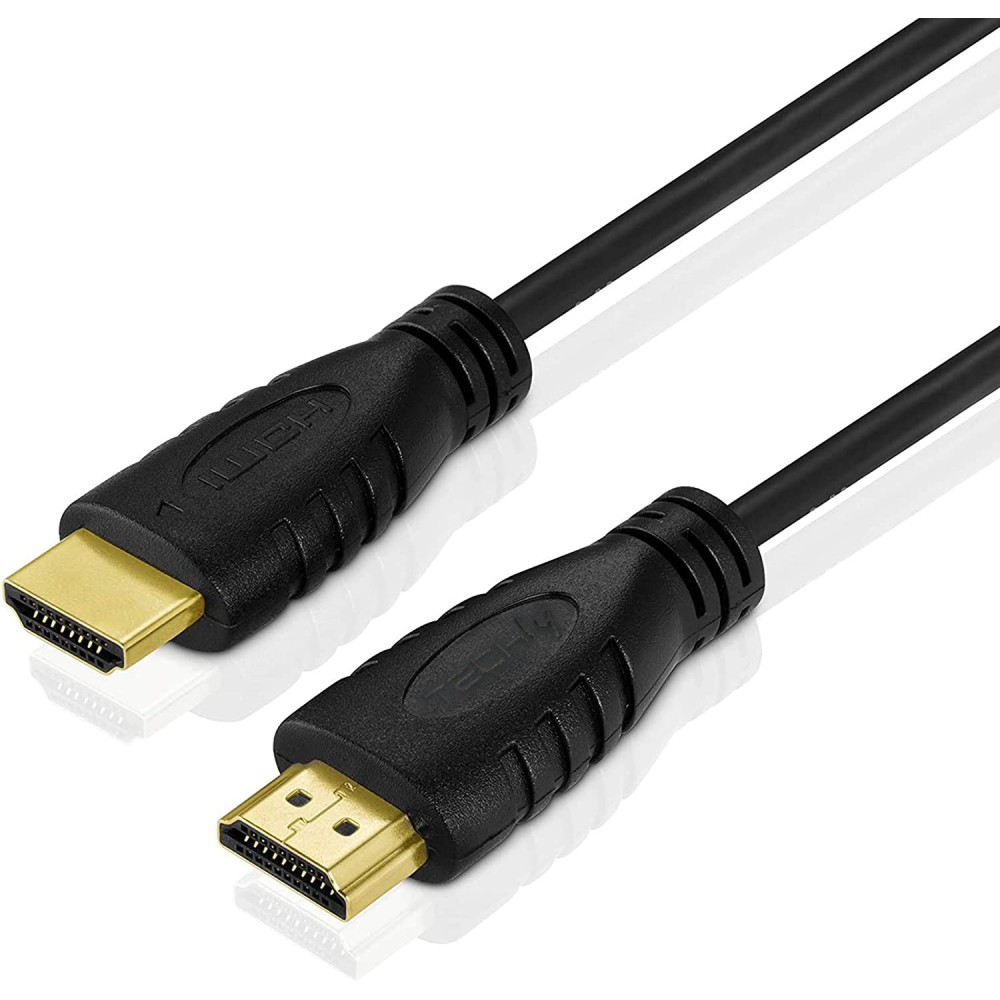

HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-1
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-1
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-0
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-1
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-2
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-3
+4
HDMI 2.0 Cable A/A M/M 0.5m Black - TECHLY - ICOC HDMI2-4-005-1
Techly

HDMI 2.0 Cable A/A M/M 0.5m Black

Cod: ICOC HDMI2-4-005

Barcode: 8054529025893

Supplier Code: 025893

Weight: 0.049 Kg

Min. sale unit: 1 Pcs

Package pcs: 200 Pcs

Cod
ICOC HDMI2-4-005
Barcode
8054529025893
Supplier Code
025893
Weight
0.049 Kg
Min. sale unit
1 Pcs
Package pcs
200 Pcs
Certificazioni: CE
Certificazioni: RoHS
Anni di Garanzia: 3
Tipologia: HDMI 2.0 High Speed con Ethernet
Tipo connettore B: HDMI-A
Connettori dorati: Yes
Risoluzione massima: 4K (2160p) 60fps
Altri Standard Supportati: 3D
Altri Standard Supportati: Full HD (1080i/p)
Altri Standard Supportati: HD ready (720i/p)
Altri Standard Supportati: HDCP
  • HDMI Cable 2.0 Male / Male 0,5 meters
  • Gold-plated connectors HDMI2.0 A 19-pin / 19-pin HDMI A
  • Supports Internet via HDMI (HEC)
  • Maximum resolution: 4K Ultra HD 4096x2160 60Hz
  • 3D support with a resolution even beyond 1080p and Deep Color
  • Support Audio Return Channel (ARC)
  • High-speed, two-way communication up to 100 Mbps
  • Bandwidth: 18 Gbps - Frequency: 600 MHz
Description
  • Cable based on a new technology that provides the best data transmission between your HDMI source and HDMI display. The five twisted pairs offer better transmission of data between devices
  • Triple shielded with resistant connectors for a better performance that can optimize the signal with data integrity, even in installation environments subjected to the worst interference EMS
  • ATC certificate, this cable is fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
  • Connections from HDMI2.0 19-pin male to HDMI 19-pin male
  • High-speed, two-way communication up to 100 Mbps
  • Supports HD resolutions beyond 1080p and Deep Color
  • Compliant with HDMI High Speed
  • Molded PVC
  • HDMI Ethernet Channel: supports Internet via HDMI (HEC)
  • Audio Return Channel: Allows an HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable
  • Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
  • Supports Ultra HD 4K resolution 4000x2000: Enables video resolutions far beyond 1080p, supporting next-generation displays
General informations
  • Bandwidth: 18 Gbps
  • Maximum resolution: 4096 × 2160 60 Hz
  • 600 MHz
  • Supports HEC
  • Length: 0.5 meters
Cable and connectors
  • 2 x HDMI 2.0 19-pin male
  • Contacts gold-plated
  • Molded PVC
  • Shielded, braid and aluminum foil
  • internal conductors: AWG 30
  • Cable diameter: 6.0 mm
Features
  • Supports YCbCr 4: 2: 0
  • It supports 32 audio channels
  • Supports 1536 kHz audio
  • Supports 4 audio streams
  • Supports 2 audio streams
  • Supports display 21: 9
Electrical information
  • Current rating: 0.5 A DC
  • Supports voltage 300 V DC
  • Insulation resistance: 50 MOhms
  • Conductive resistance: 2 Ohms
Standards and Certifications
  • UL 20276
  • ISO 9002
  • RU
  • EC

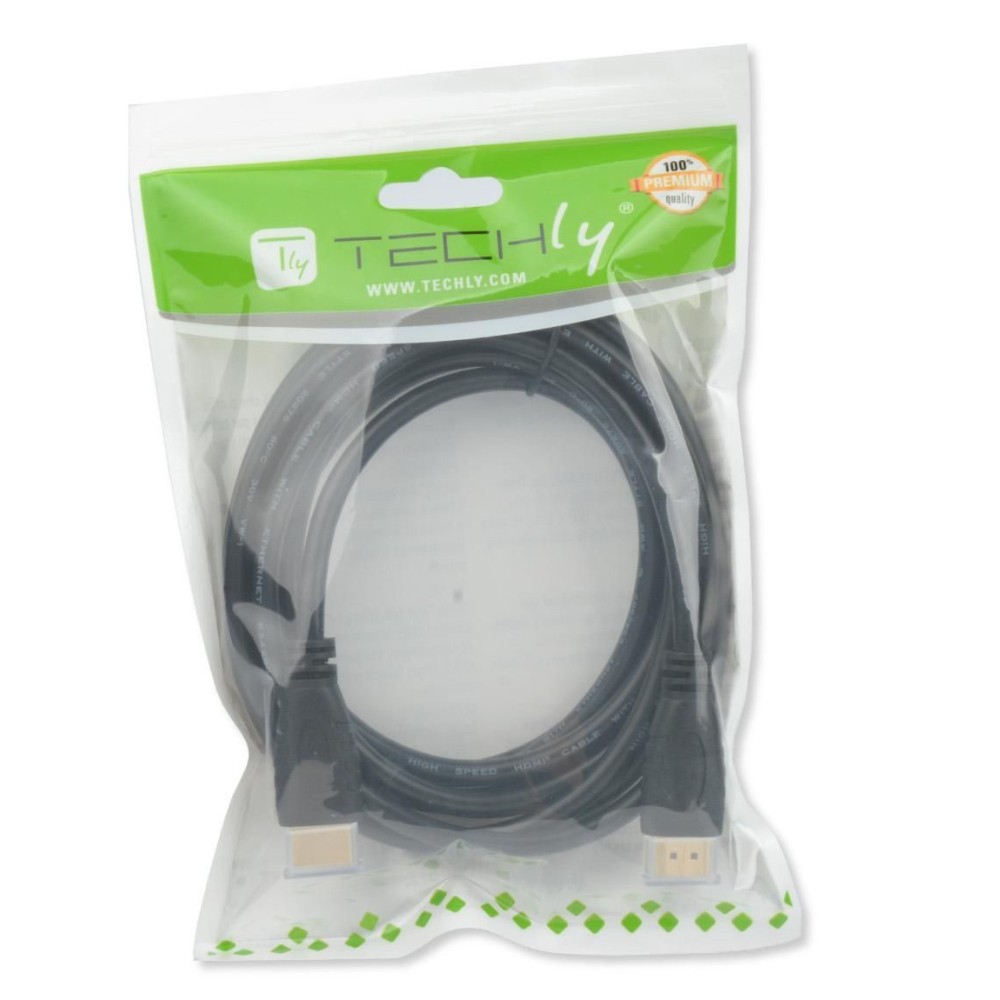

Package Contents
  • HDMI2.0 Cable 0.5 m
Data sheet
general
Brand TECHLY Barcode 8054529025893
Weight 0.0490 Certifications CE , RoHS
Years of Warranty 3 Codice Fornitore 025893
specifications
Typology HDMI 2.0 High Speed con Ethernet Length 0,5 m
Connector A Type HDMI-A format A connector male
Connector B Type HDMI-A format B connector male
Headphone connectors Yes Cable shielding Doble
Shielding type Braid and aluminum foil Cable size (AWG) 30
Color Black
technical specifications
Cable rate 600 MHz Maximum resolution 4K (2160p) 60fps
Maximum bandwidth per channel 18 Gbit/s Color space support x.v. Color
Audio Standard Supportati Dolby Digital/Plus , Dolby TrueHD , DTS-HD Master Audio , DVD-Audio , SA-CD Other Standards Supported 3D , CEC , Full HD (1080i/p) , HD ready (720i/p) , HDCP , HEC (HDMI Ethernet Channel), SDTV (480i/p), Ultra HD 4K (2160i/p)
