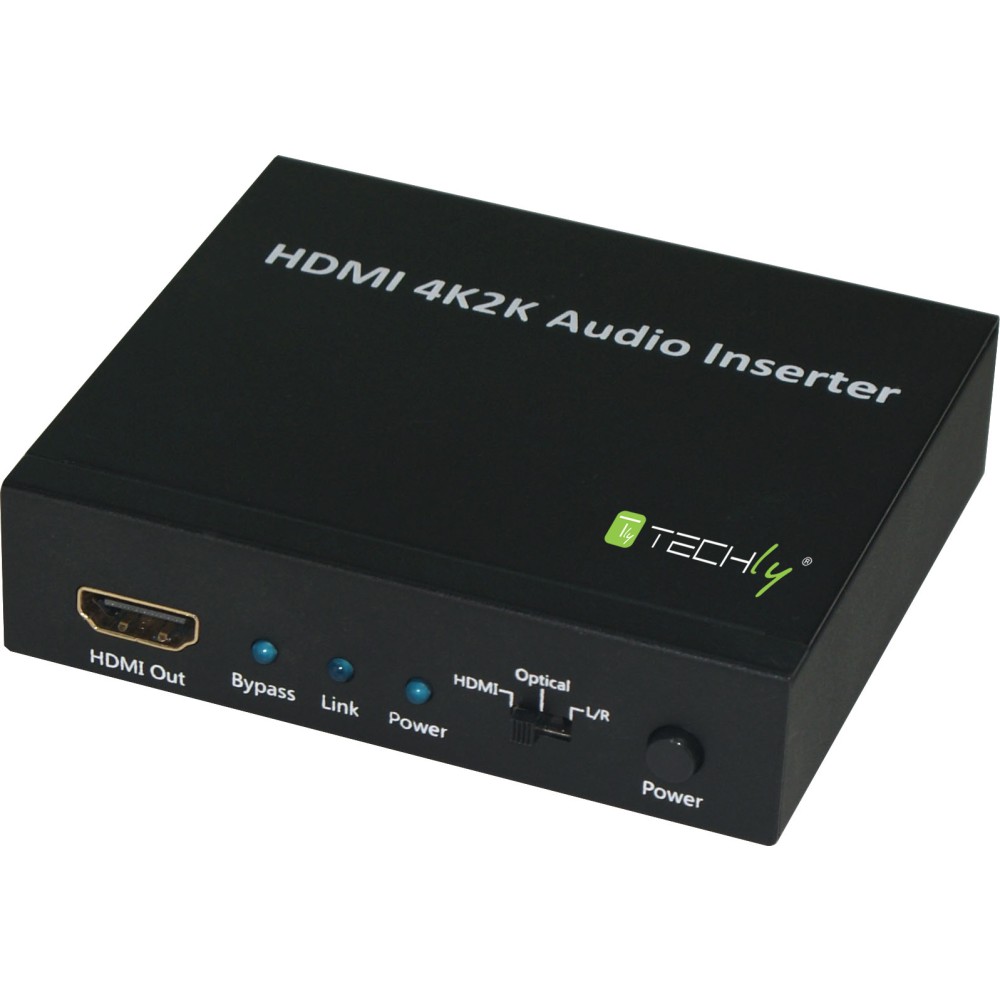

HDMI 4K2K Audio Inserter

The HDMI 4K2K Audio Inserter lets you insert an external audio signal into your HDMI or DVI (with DVI to HDMI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. Further, both input and output HDMI support HD resolution up to 3D and 4K2K allowing a full enjoyment over synchronize video and audio.

Features

• Compliant with HDMI, HDCP 1.2 and DVI 1.0

• Supports HDMI audio sampling rate up to 192 kHz

• Supports Optical S/PDIF audio sampling rate up to 192 kHz

• Supports external HDMI, Digital or Analog audio signal embeds into HDMI

• HDMI supports high-bit-rate (HBR) audio

• Supports DVI conversion with DVI to HDMI adaptor

• Supports CEC bypass

• Supports 4K2K resolution and 3D signal


Specification

• Video Bandwidth: 300Mbps / 10.2Gbps

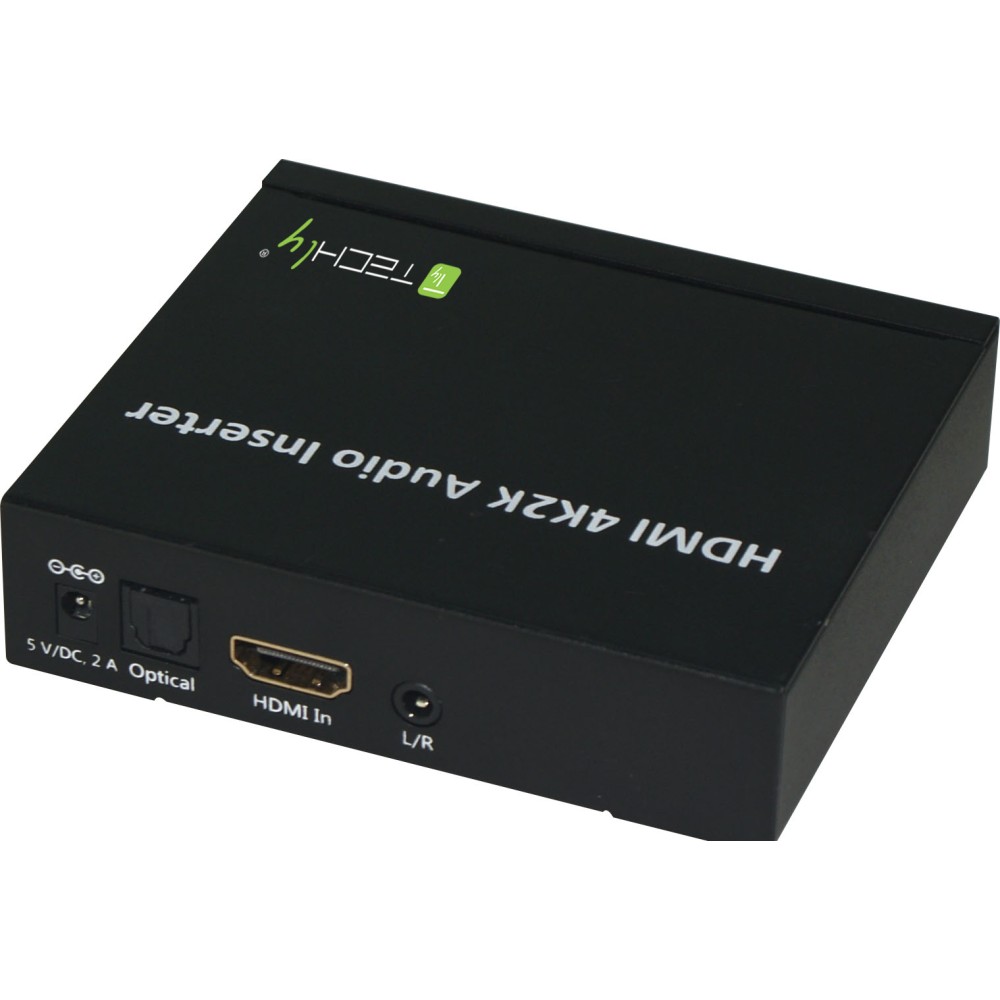

• Input ports


- 1 x HDMI,
- 1 x Optical (Digital Audio),
- 1 x jack 3.5 mm (L/R)

• Output port: 1 x HDMI

• HDMI Audio Sampling Rate: up to 192 kHz

• Optical S/PDIF Audio Sampling Rate: up to 192 kHz

• HDMI Audio format: LPCM 2/5.1/7.1CH, DTS 2-5.1CH, TrueHD and DTS-HD Master Audio

• Optical Audio Format: LPCM 2CH e DTS 2~5.1CH

• L/R Audio Format: Analog Stereo 2 CH

• Power supply: 5V / DC

• Dimension (mm): 95 x 83 x 24 mm

• Operating temperature: 0°C~40°C

• Storage temperature: -20°C~60°C


Package contents

• HDMI 4K2K Audio Inserter

• Power supply

• User's manual
