HDMI Extender / Splitter on Cat.6 Cable 1080p @ 60Hz up to 120m

Cod: IDATA EXTIP-373A2

Barcode: 8059018361780

Supplier Code: 361780

Weight: 0.546 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA EXTIP-373A2
Barcode
8059018361780
Supplier Code
361780
Weight
0.546 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore B: HDMI-A
Risoluzione Video Max: 1080p
HDCP: 1.2

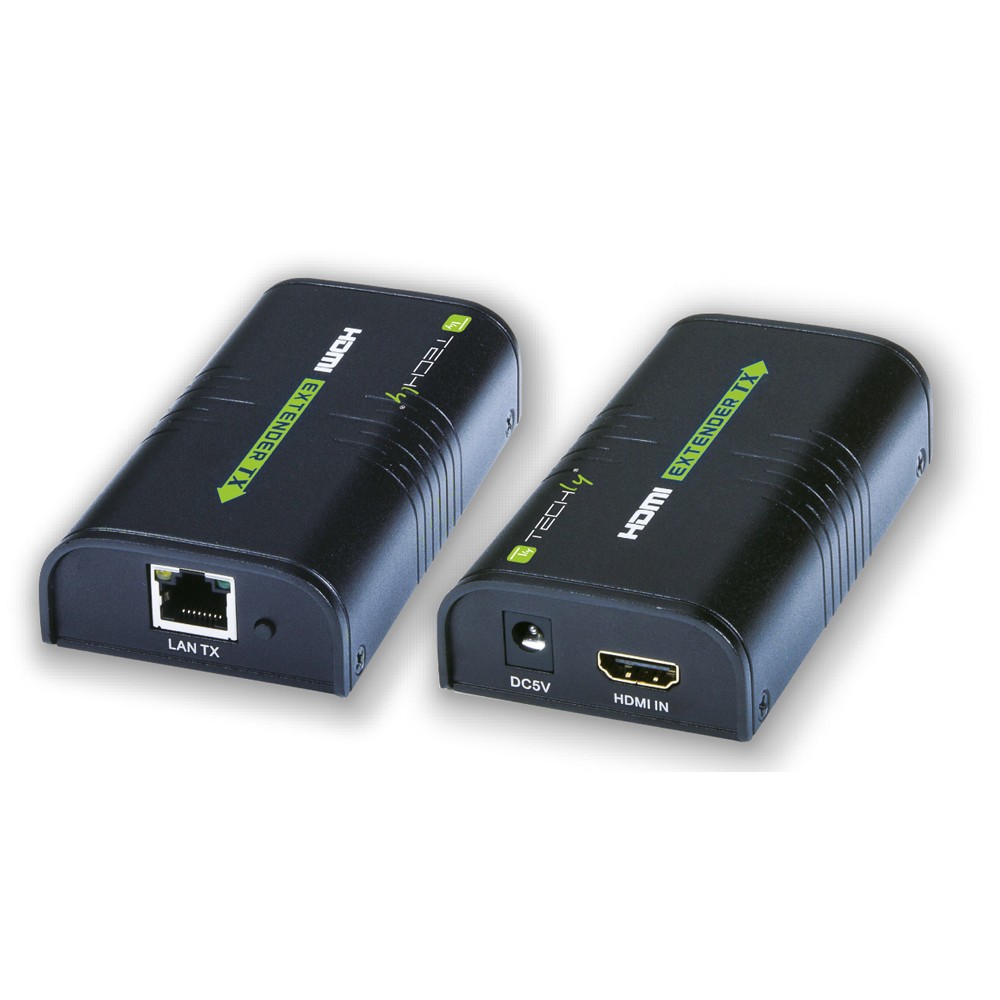

  • HDMI transmitter + receiver extender kit
  • Transmits the HDMI signal using a network cable
  • Extends the HDMI signal over a single CAT6 cable up to 120m
  • Supports resolution up to 1920x1080

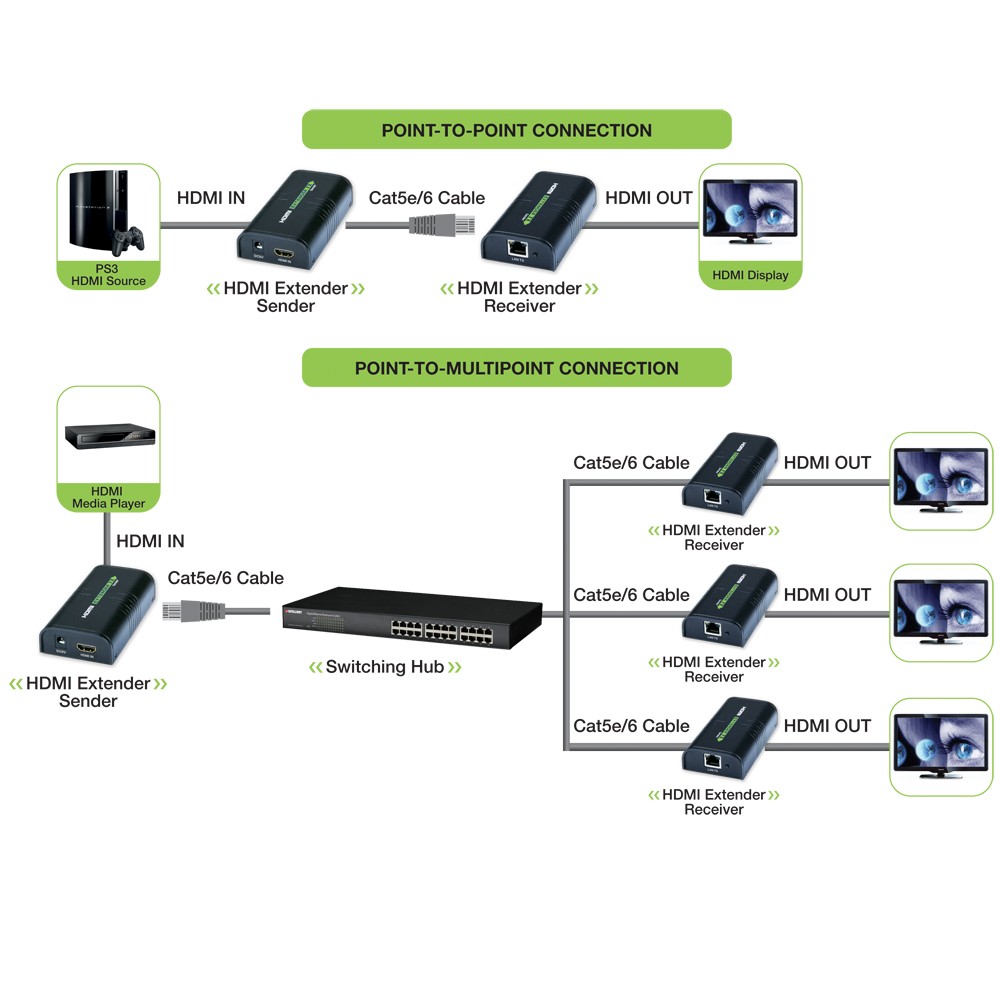

  • With a switch or a router it can also act as an HDMI splitter where a transmitter can be connected to several receivers
  • New version that guarantees greater compatibility with all connected devices
  • Ensures better compatibility with HDMI devices, display devices and connecting cables
  • It allows to support a continuous and uninterrupted operational activity 7x24
  • Not compatible with additional receiver model IDATA EXTIP-373R and with previous version IDATA EXTIP-373
Not compatible with previous versions of the product (ref. IDATA EXTIP-373A and IDATA EXTIP-373AR).
Description
Professional signal transmission system that allows the HDMI signal to be transported over long distances via a Cat.5 / 6 network cable, taking advantage of the conversion of the HDMI signal into a standard TCP / IP signal. Via a router or a repeater thanks to a cascade connection, the HDMI signal can be extended indefinitely. The IDATA EXTIP-373A2 also allows you to perform the splitter function since a transmitter can be connected to N receivers to carry the HDMI signal to different screens according to the user's needs.
Not compatible with previous versions of the product (ref. IDATA EXTIP-373A and IDATA EXTIP-373AR).

Features
  • HDMI transmitter + receiver extender kit
  • Transmits the HDMI signal using a network cable
  • Extends the HDMI signal over a single CAT6 cable up to 120m
  • Supports resolution up to 1920x1080
  • Ensures better compatibility with HDMI devices, display devices and connecting cables
  • It allows to support a continuous and uninterrupted operational activity 7x24
Specifications
  • Converts the HDMI signal into a standard network signal that can be transmitted over Cat.5E / 6 cable over long distances
  • Extend the HDMI signal up to 120m using a Cat.6 cable
  • Connected to a router or switch, it allows you to reach unlimited extensions
  • With a switch or a router it can also act as an HDMI splitter where a transmitter can be connected to several receivers
  • New version that guarantees greater compatibility with all connected devices
  • Supported Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • HDCP 1.2 compatible
  • Transmission speed: 18Mbps
  • Transmission distance: Cat6 up to 120m (Cat5e up to 100m)
  • Ensures stable transmission of high resolution audio video signals without affecting the existing internet environment
  • Not compatible with additional receiver model IDATA EXTIP-373R and with previous version IDATA EXTIP-373
Power
  • Voltage range: DC 5V / 1A
  • Power consumption: TX: 3.6W; RX: 3W
Environmental characteristics
  • Operating temperature: 0 ~ 60 ° C
Dimensions
  • TX / RX: 110 * 58 * 26mm
Package Contents
  • 1x Transmitter Extrender
  • 1x Receiver Extrender
  • 2x 5V DC power supply
  • 1x Installation Guide
Data sheet
general
Brand TECHLY NP Barcode 8059018361780
Color Black Codice Fornitore 361780
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x 5V di alimentazione
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080p, 480p , 720p
max bandwidth (MHz) 85 MHz Deep Color Yes
HDMI 1.3 HDCP 1.2
3D compatible No Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico <3.6W
dimensions
Width 5.8 cm Height 2.6 cm
Depth 11 cm Weight 0.5460
The package includes • 1x Trasmettitore Extrender • 1x Ricevitore Extrender • 2x Alimentatore 5V DC • 1x Guida di installazione
