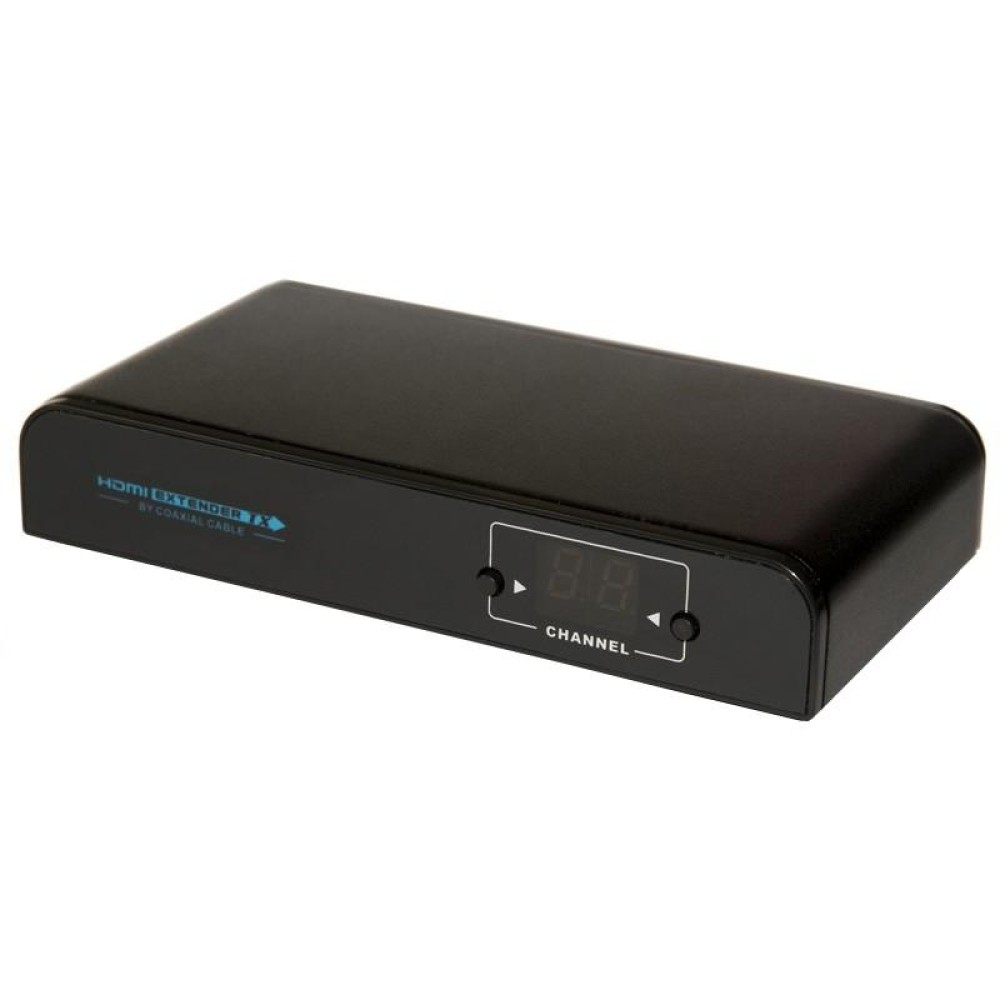

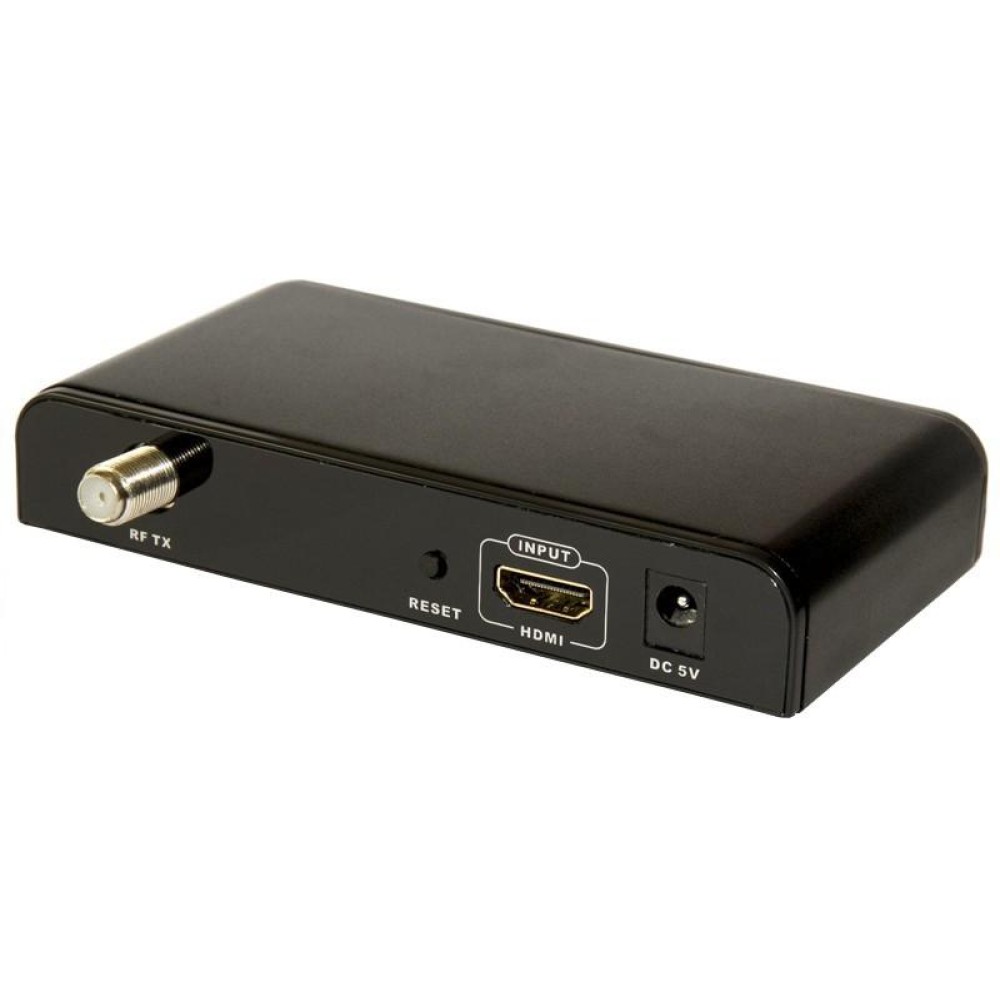

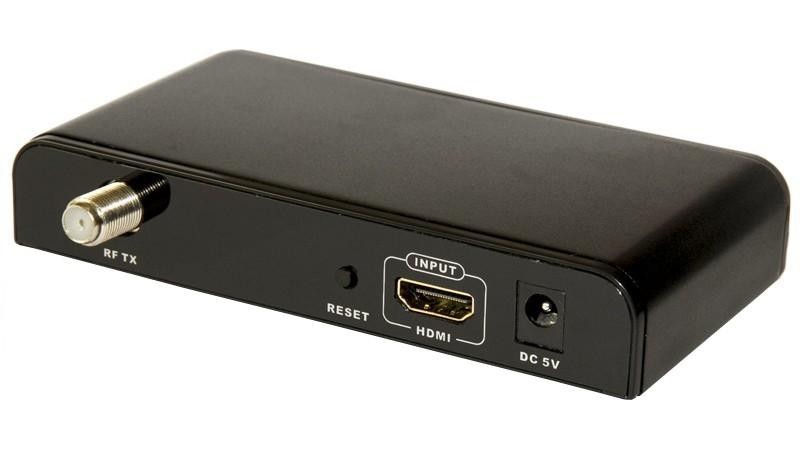

HDMI Extender up to 700m on Coaxial Cable
Code: IDATA HDMI-COAX    Barcode: 8057685309869

   Supplier Code: 309869

NO LONGER AVAILABLE

HDMI Extender up to 700m on Coaxial Cable

Certificazioni: CE
Certificazioni: FCC
Certificazioni:
Tipo connettore A: HDMI
HDCP: 1.2
Choose a different Option:

IDATA COAX HDMI-HDMI Extender is a transmitter designed to convert the signal in HDMI high-definition digital TV signal through the coaxial transmission. Updated than the traditional analog cable TV, applying 64QAM mode to get the signal from the HD signal and HD digital TV broadcasts via coaxial cable to long distance, up to 700 meters.
With the advantage of a good image quality, strong resistance to interference and the availability of 99 channels, can be widely applied in CCTV, large external displays, advertising in shopping centers, teaching, digital KVM, etc.

Possible applications
• Connection to pear pear: a source connected directly to the HDMI display via HDMI single coaxial cable
• Individual connection / multiple: a transmitter connected to multiple receivers
• Multilink / Multiple: multiple transmitters connected to multiple receivers

Technical specifications
• Power supply: DC 5V 1A (included)
• Resolution entrance supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
• Output resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
• Graphics resolution HDMI supports up to 1920x1080 @ 60Hz
• Video coding: H.264
• Audio encoding: MPEG2
• Coaxial cable: RG6, RG7, RG11, etc.
• Point Frequency: 100-1000M
• Transmission effective: max 31.6M bits
• Insertion loss: <2dBm
• Consumption output: + 0dBm
• Sensitivity: different for each frequency
• RF Connector: 75Ω Type F
• Transmission delay: 500ms
• Consumption: <3.5W

Environmental Characteristics
• Operating Temperature: 0 to 50 ° C
• Storage Temperature: -10 - 70 ° C
• Operating Humidity: 10-80% non-condensing
• Storage Humidity: 10-90% non-condensing

Dimensions
• Width 130 mm
• Depth 68 mm
• Height 24 mm

Package Contents
• 1x Transmitter
• 1x Power DC 5V 1A
• 1x Instruction Manual

    Description

    Details

    IDATA COAX HDMI-HDMI Extender is a transmitter designed to convert the signal in HDMI high-definition digital TV signal through the coaxial transmission. Updated than the traditional analog cable TV, applying 64QAM mode to get the signal from the HD signal and HD digital TV broadcasts via coaxial cable to long distance, up to 700 meters.
    With the advantage of a good image quality, strong resistance to interference and the availability of 99 channels, can be widely applied in CCTV, large external displays, advertising in shopping centers, teaching, digital KVM, etc.

    Possible applications
    • Connection to pear pear: a source connected directly to the HDMI display via HDMI single coaxial cable
    • Individual connection / multiple: a transmitter connected to multiple receivers
    • Multilink / Multiple: multiple transmitters connected to multiple receivers

    Technical specifications
    • Power supply: DC 5V 1A (included)
    • Resolution entrance supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
    • Output resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
    • Graphics resolution HDMI supports up to 1920x1080 @ 60Hz
    • Video coding: H.264
    • Audio encoding: MPEG2
    • Coaxial cable: RG6, RG7, RG11, etc.
    • Point Frequency: 100-1000M
    • Transmission effective: max 31.6M bits
    • Insertion loss: <2dBm
    • Consumption output: + 0dBm
    • Sensitivity: different for each frequency
    • RF Connector: 75Ω Type F
    • Transmission delay: 500ms
    • Consumption: <3.5W

    Environmental Characteristics
    • Operating Temperature: 0 to 50 ° C
    • Storage Temperature: -10 - 70 ° C
    • Operating Humidity: 10-80% non-condensing
    • Storage Humidity: 10-90% non-condensing

    Dimensions
    • Width 130 mm
    • Depth 68 mm
    • Height 24 mm

    Package Contents
    • 1x Transmitter
    • 1x Power DC 5V 1A
    • 1x Instruction Manual
    data sheet
    generale
    Brand
    Techly Np
    Barcode
    8057685309869
    Certifications
    CE , FCC , RoHS
    Color
    Black
    Codice Fornitore
    309869
    input
    Connector A Type
    HDMI
    format A connector
    female
    Number A Connector
    1
    Altri Connettori Input
    Alimentazione 5V DC
    output
    Connector B Type
    BNC
    format B connector
    female
    Number B Connector
    1
    specifiche tecniche
    Typology
    Amplifier
    Max Video Resolution
    Full HD 1920 x 1080
    HDMI
    1.3
    HDCP
    1.2
    Supported audio standards
    Yes
    Transmission Distance
    700 m
    alimentazione
    Power supply
    Requested (included)
    Consumo energetico
    DC 5V 1A
    dimensioni
    Width
    130 mm
    Height
    24 mm
    Depth
    68 mm
    Weight
    0.3860
    The package includes
    • 1x Trasmettitore • 1x Alimentatore DC 5V 1A • 1x Manuale d'istruzioni
