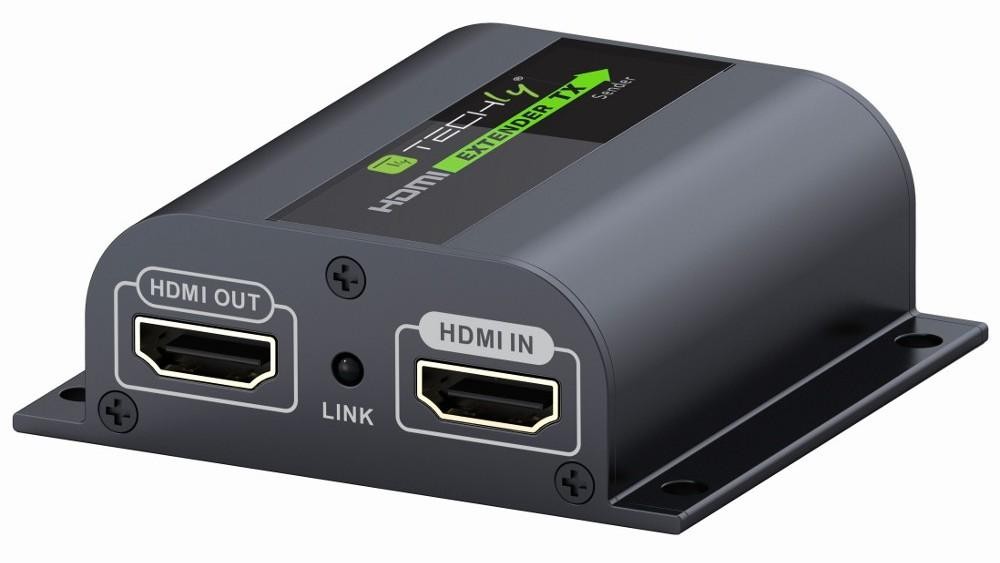

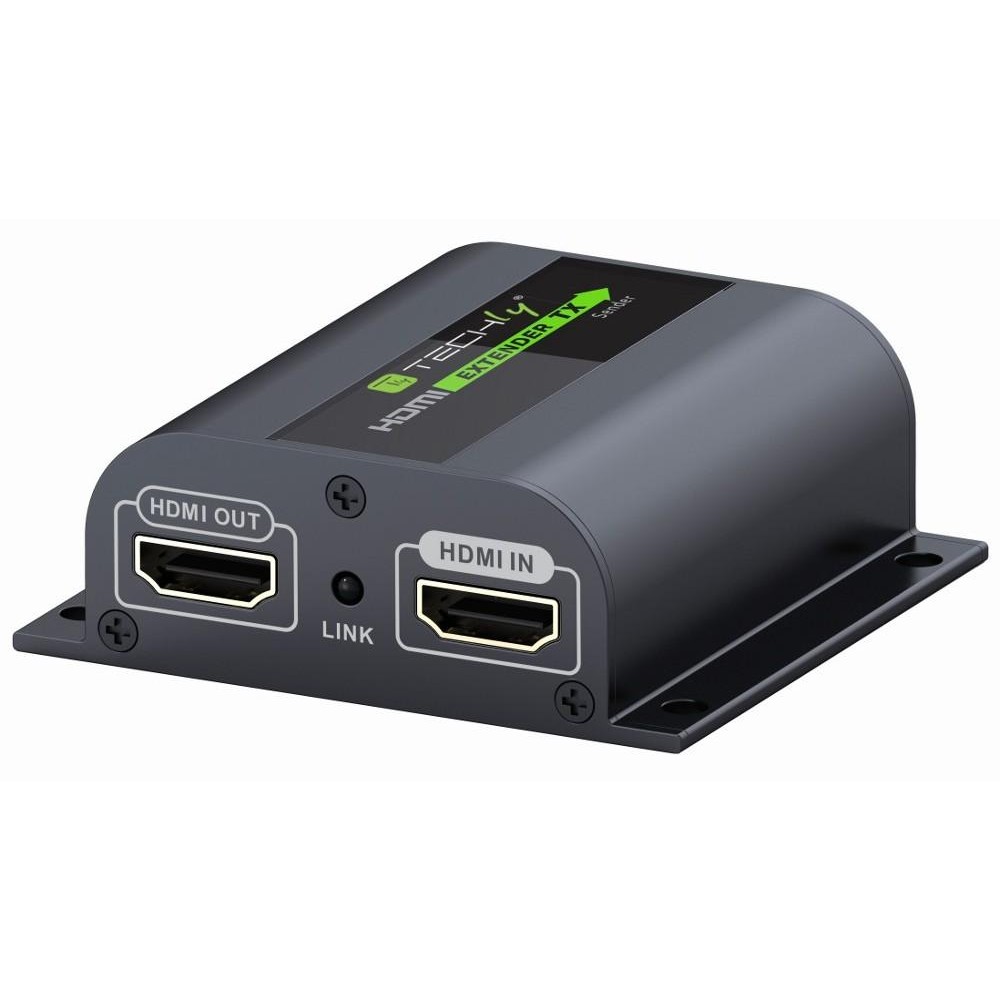

HDMI Extender with IR on Cat. 6 Cable up to 60m
Press release & video?
Code: IDATA EX-HL21D    Barcode: 8054529020706

   Supplier Code: 020706

Available

HDMI Extender with IR on Cat. 6 Cable up to 60m

Certificazioni: CE
Certificazioni: FCC
Tipo connettore B: HDMI-A
HDCP: Yes
Choose a different Option:

The HDMI extender kit converts the HDMI signal into the network signal and transmits the data over cable Cat. 6 with a resolution FullHD 1080p up to 60m.
The HDMI extender is able to support not only the HDMI signal transmission, but also supports the function of transmission IR with which people can easily control the affected devices from long range. Supports IR devices standard 20 / 60KHz.

Technical specifications
• HDMI signal: compatible with HDCP
• Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
• Network Cables Supported: Cat. 6, 1080p up to 60 metr
• Supports Cat.6 / 6A and 7
• Signal IR: IR devices supports 20 ~ 60KHz
• Operating Temperature: 0 ℃ ~ 60 ℃

Supply
• External power supply 5V DC 1A
• Consumption (Max) Transmitter: 3W - Receiver: 2W

Dimensions
(X2 pcs):
• Width: 71.6 mm
• Depth: 66.6 mm
• Height: 24.8 mm

Package Contents
• 1x Transmitter Extrender
• 1x Receiver Extrender
• Cable 1x IR transmitter
• Cable 1x IR receiver
• 2x Power Supply 5V 1A

    Description

    Details

    The HDMI extender kit converts the HDMI signal into the network signal and transmits the data over cable Cat. 6 with a resolution FullHD 1080p up to 60m.
    The HDMI extender is able to support not only the HDMI signal transmission, but also supports the function of transmission IR with which people can easily control the affected devices from long range. Supports IR devices standard 20 / 60KHz.

    Technical specifications
    • HDMI signal: compatible with HDCP
    • Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
    • Network Cables Supported: Cat. 6, 1080p up to 60 metr
    • Supports Cat.6 / 6A and 7
    • Signal IR: IR devices supports 20 ~ 60KHz
    • Operating Temperature: 0 ℃ ~ 60 ℃

    Supply
    • External power supply 5V DC 1A
    • Consumption (Max) Transmitter: 3W - Receiver: 2W

    Dimensions
    (X2 pcs):
    • Width: 71.6 mm
    • Depth: 66.6 mm
    • Height: 24.8 mm

    Package Contents
    • 1x Transmitter Extrender
    • 1x Receiver Extrender
    • Cable 1x IR transmitter
    • Cable 1x IR receiver
    • 2x Power Supply 5V 1A
    data sheet
    generale
    Brand
    Techly
    Barcode
    8054529020706
    Certifications
    CE , FCC
    Color
    Black
    Codice Fornitore
    020706
    input
    Connector A Type
    HDMI-A
    format A connector
    female
    Number A Connector
    1
    Altri Connettori Input
    1x 5V di alimentazione
    output
    Connector B Type
    HDMI-A
    format B connector
    female
    Number B Connector
    1
    Altri Connettori Output
    1x IR (jack da 3,5 mm)
    specifiche tecniche
    Typology
    Amplifier
    Max Video Resolution
    1080p
    max bandwidth (MHz)
    No
    Deep Color
    No
    HDMI
    No
    HDCP
    Yes
    3D compatible
    No
    Supported audio standards
    Yes
    Transmission Distance
    60 m
    alimentazione
    Power supply
    Requested (included)
    Consumo energetico
    Trasmettitore: 3W - Ricevitore: 2W
    dimensioni
    Width
    71.6 mm
    Height
    24.8 mm
    Depth
    66.6 mm
    Weight
    0.5120
    The package includes
    • 1x Trasmettitore Extrender • 1x Ricevitore Extrender • 1x Cavo trasmettitore IR • 1x Cavo ricevitore IR • 2x Alimentatore 5V 1A • 1x Guida di installazione
