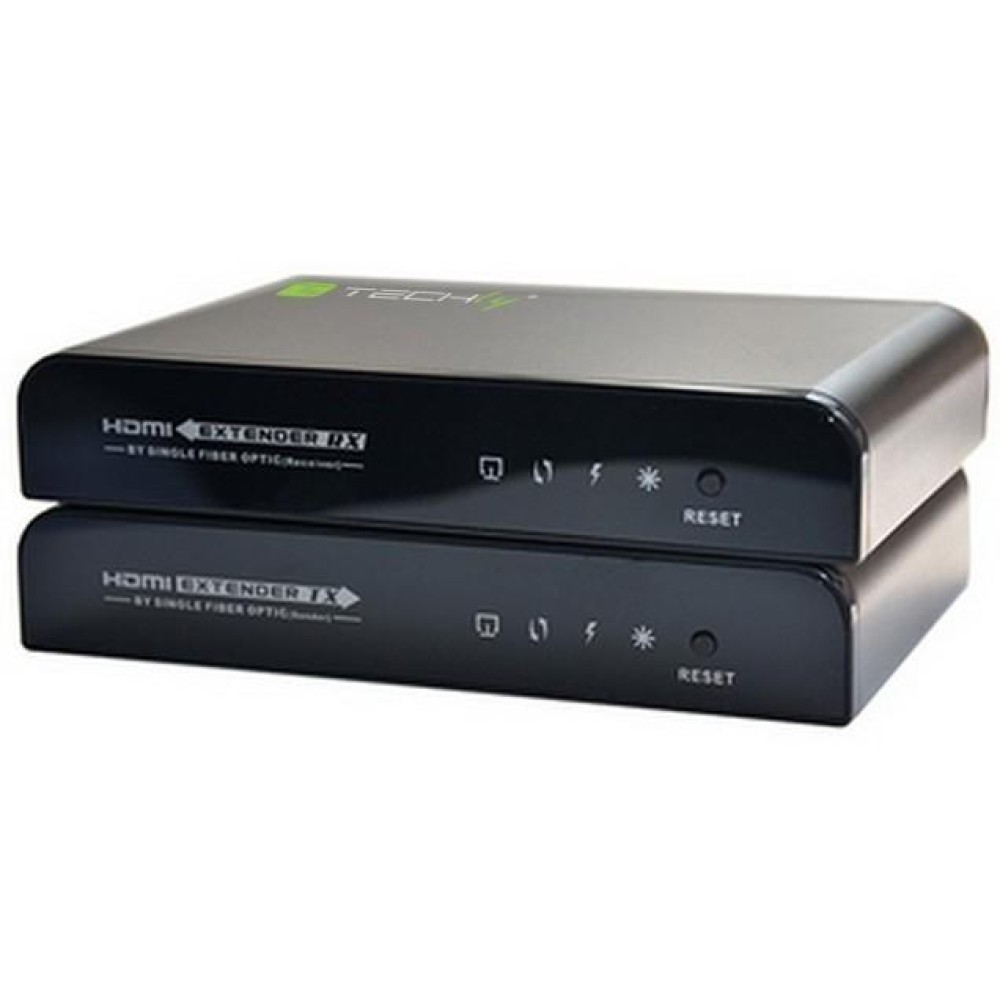

HDMI Extender with IR on Fiber Optic Cable Single-mode SC up to 20km

Cod: IDATA EXT-EF2000

Barcode: 8054529020720

Supplier Code: 020720

Weight: 0.842 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

NO LONGER AVAILABLE
This product has been replaced by IDATA EXT-EF2000A, or search in the category Audio Video Extender for a product that meets your needs.

Go to category
Find Audio Video Extender
right for you
Configure now
Certificazioni: EC
Certificazioni: FCC
Certificazioni:
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: 1080p
HDCP: Yes
The kit HDMI fiber optic extender is a complete solution for extending HDMI signal, audio and IR of a single mode fiber optic cable. Optical fiber has incomparable advantages in the field of video transmission and the transmission loss turns out to be almost nonexistent.
IDATA EXT-EF2000 converts the signal HDMI standard TCP / IP and, thanks to the fiber optic cable, can transmit information up to 20 km away. Connected in cascade to a router or repeater, extend the HDMI signal indefinitely.
The HDMI extender is able to support not only the HDMI signal transmission, but also supports the function of transmission IR with which people can easily control the affected devices from long range.
It is a complete solution to overcome challenging distances. The kit is complete and consists of transmitter and receiver.

Features
  • Supports resolutions up to 1080p @ 50 / 60MHz
  • Maximum speed transmission: 10.2Gbps
  • Distance amplification up to 20 km
  • Use single-mode fiber optic cable SC
  • Immune to electromagnetic interference
  • Applications: meetings and meetings with audio and video support; multimedia installations for advertising projects; projections on the wall; security systems
  • Easy installation
Specifications
  • Operating Frequency: 50 / 60Hz
  • Maximum speed transmission: 10.2Gbps
  • Resolutions (HDTV)
- Entry HDMI: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz;
- HDMI Output: 480p @ 60Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • multichannel compatible formats: Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio
  • Deep Color 24-bit, 30 bit, 36 bit
  • Supports HDCP 1.2

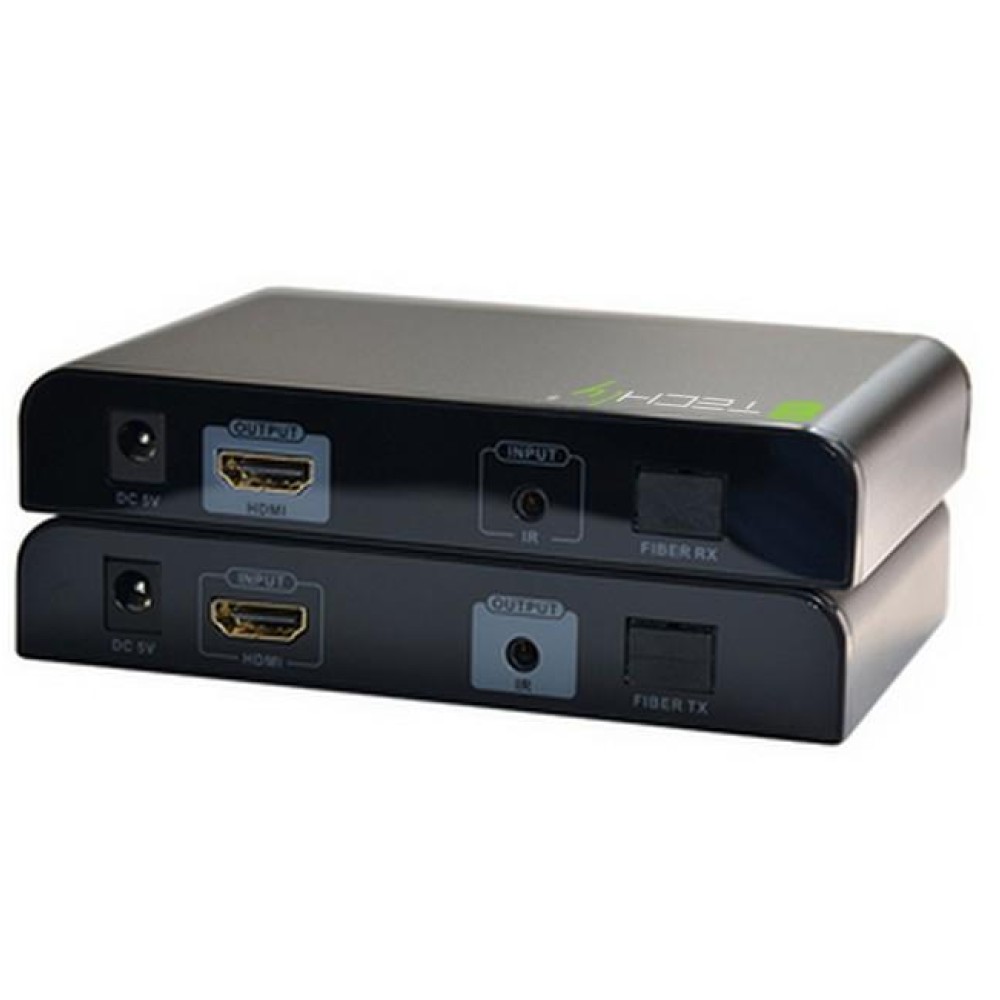

Connections
  • Inputs transmitter:
- 1x HDMI
- 1x 5V power
  • Outputs on the channel:
- 1x SC fiber port
- IR transmitter 1x
  • Inputs receiver:
- 1x SC fiber port
- 1x IR receiver (3.5 mm jack)
- 1x 5V power
  • Outputs on the channel:
- 1x HDMI
- 1x IR (3.5mm)

Environmental Characteristics
  • Operating temperature from 0 ° to + 50 °
  • Humidity 10% to 85% RH (non-condensing)
  • Storage temperature -10 ° to + 80 °
  • Storage Humidity 5% to 90% RH (non-condensing)
Power supply
  • External Power Supply 5V DC 2A
  • Consumption (Max) Transmitter: 5W - Receiver: 5W
Dimensions
  • Width: 13 cm
  • Depth: 8.5 cm
  • Height: 2.4 cm
Package Contents
  • 1x Transmitter Extrender fiber optic
  • 1x Receiver Extrender fiber optic
  • Cable 1x IR transmitter
  • Cable 1x IR receiver
  • 2x Power Supply 5V 2A
  • 1x Installation Guide
Description
The kit HDMI fiber optic extender is a complete solution for extending HDMI signal, audio and IR of a single mode fiber optic cable. Optical fiber has incomparable advantages in the field of video transmission and the transmission loss turns out to be almost nonexistent.
IDATA EXT-EF2000 converts the signal HDMI standard TCP / IP and, thanks to the fiber optic cable, can transmit information up to 20 km away. Connected in cascade to a router or repeater, extend the HDMI signal indefinitely.
The HDMI extender is able to support not only the HDMI signal transmission, but also supports the function of transmission IR with which people can easily control the affected devices from long range.
It is a complete solution to overcome challenging distances. The kit is complete and consists of transmitter and receiver.

Features
  • Supports resolutions up to 1080p @ 50 / 60MHz
  • Maximum speed transmission: 10.2Gbps
  • Distance amplification up to 20 km
  • Use single-mode fiber optic cable SC
  • Immune to electromagnetic interference
  • Applications: meetings and meetings with audio and video support; multimedia installations for advertising projects; projections on the wall; security systems
  • Easy installation
Specifications
  • Operating Frequency: 50 / 60Hz
  • Maximum speed transmission: 10.2Gbps
  • Resolutions (HDTV)
- Entry HDMI: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz;
- HDMI Output: 480p @ 60Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • multichannel compatible formats: Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio
  • Deep Color 24-bit, 30 bit, 36 bit
  • Supports HDCP 1.2
Connections
  • Inputs transmitter:
- 1x HDMI
- 1x 5V power
  • Outputs on the channel:
- 1x SC fiber port
- IR transmitter 1x
  • Inputs receiver:
- 1x SC fiber port
- 1x IR receiver (3.5 mm jack)
- 1x 5V power
  • Outputs on the channel:
- 1x HDMI
- 1x IR (3.5mm)

Environmental Characteristics
  • Operating temperature from 0 ° to + 50 °
  • Humidity 10% to 85% RH (non-condensing)
  • Storage temperature -10 ° to + 80 °
  • Storage Humidity 5% to 90% RH (non-condensing)
Power supply
  • External Power Supply 5V DC 2A
  • Consumption (Max) Transmitter: 5W - Receiver: 5W
Dimensions
  • Width: 13 cm
  • Depth: 8.5 cm
  • Height: 2.4 cm
Package Contents
  • 1x Transmitter Extrender fiber optic
  • 1x Receiver Extrender fiber optic
  • Cable 1x IR transmitter
  • Cable 1x IR receiver
  • 2x Power Supply 5V 2A
  • 1x Installation Guide
Data sheet
general
Brand TECHLY NP Barcode 8054529020720
Certifications EC, FCC , RoHS Color Black
Codice Fornitore 020720
input
Connector A Type HDMI format A connector female
Number A Connector 1 Altri Connettori Input 1x 5V di alimentazione
output
Connector B Type HDMI format B connector female
Number B Connector 1 Altri Connettori Output 1x IR (jack da 3,5 mm)
technical specifications
Typology Amplifier Max Video Resolution 1080p
Deep Color 36 bit HDCP Yes
Supported audio standards Yes Transmission Distance 20 km
power supply
Power supply Requested (included) Consumo energetico Trasmettitore: 5W - Ricevitore: 5W
dimensions
Width 13 cm Height 2,4 cm
Depth 8,5 cm Weight 0.8420
The package includes • 1x Trasmettitore Extrender in fibra ottica • 1x Ricevitore Extrender in fibra ottica • 1x Cavo trasmettitore IR • 1x Cavo ricevitore IR • 2x Alimentatore 5V 2A • 1x Guida di installazione
