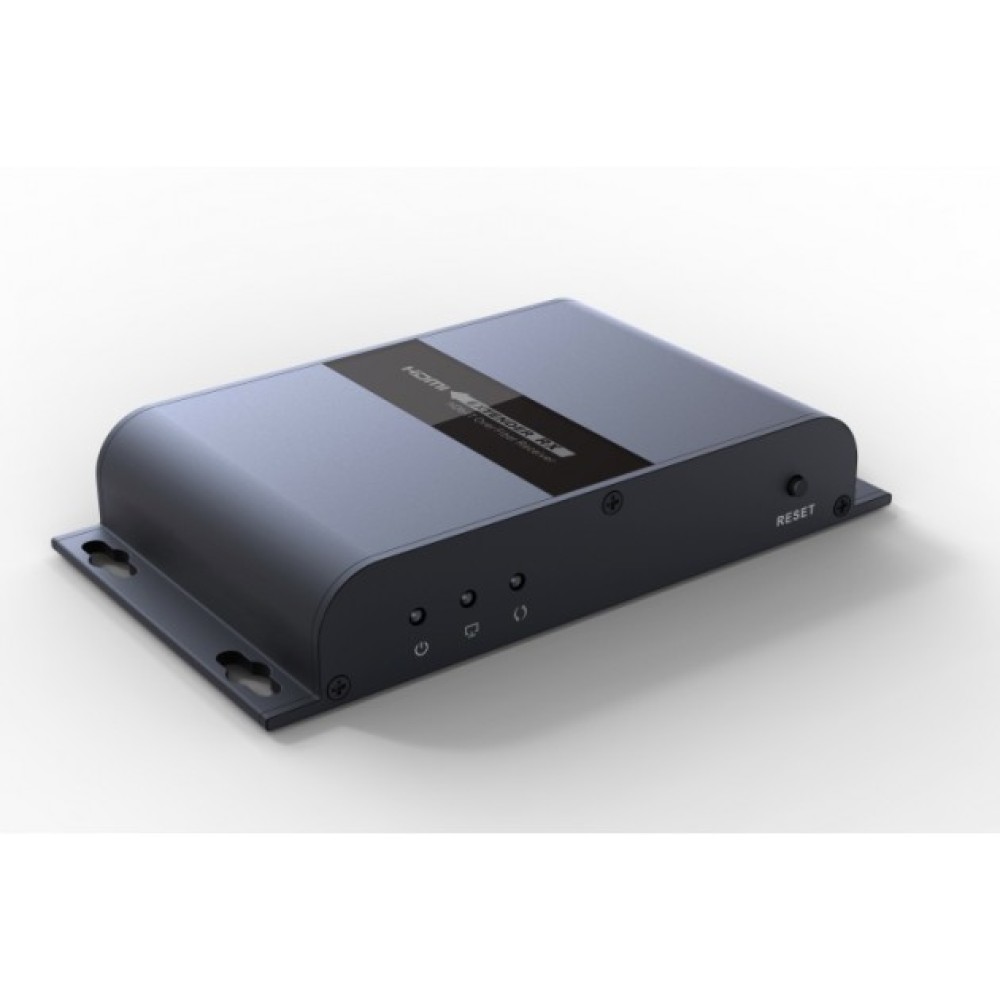

HDMI Extender with IR on Singlemode SC Fiber Optic Cable up to 20km Hdbit

Cod: IDATA EXT-EF2000A

Barcode: 8054529028634

Supplier Code: 028634

Weight: 0.788 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA EXT-EF2000A
Barcode
8054529028634
Supplier Code
028634
Weight
0.788 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
  • HDMI extender transmitter + receiver kit
  • Extends HDMI, audio and IR signal over fiber optic cable
  • Use SC single-mode fiber optic cable
  • Supports resolution up to 1080p FullHD
  • Maximum transmission speed: 10.2Gbps
  • Amplification distance up to 20 km
  • Supports IR transmission for easy control over long distance devices
  • IR transmission cables and 5V 2A power supplies included
  • Dimensions: 13 x 8.5 x 2.4 cm; Black colour
Description
The HDMI Fiber Optic Extender Kit is a complete solution for extending HDMI, audio and IR signals over a single single-mode fiber optic cable. The optical fiber offers incomparable advantages in the field of video transmission and the loss of transmission is almost non-existent.
IDATA EXT-EF2000 converts the standard HDMI TCP / IP signal and, thanks to the fiber optic cable, transfers data up to 20 km away. Connected in cascade to a router or repeater, it can extend the HDMI signal indefinitely.
The HDMI extender can support not only the HDMI transmission signal, but also supports the IR transmission function with which people can easily control the devices affected by long distance.
It is a complete solution to overcome demanding distances. The kit is complete and consists of a transmitter and a receiver.

Features
  • Supports HDbitT technology
  • Supports resolution up to 1080p @ 50 / 60MHz
  • Maximum transmission speed: 10.2Gbps
  • Amplification distance up to 20 km
  • Use SC single-mode fiber optic cable
  • Immune to electromagnetic interference
  • Applications: meetings and meetings with audio and video support; multimedia installations for advertising projects; wall projections; security systems
  • Easy to install
Specifications
  • Transmission protocol: HDBitT
  • Operating frequency: 50 / 60Hz
  • Maximum transmission speed: 10.2Gbps
  • Resolutions (HDTV)
- HDMI input: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz;
- HDMI output: 480p @ 60Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Compatible multi-channel formats: Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio
  • Deep Color 24 bit, 30 bit, 36 bit
  • Supports HDCP 1.2
  • IR remote control: supports 38 kHz
  • Consumption: TX: 5W; RX: 5W
Connection

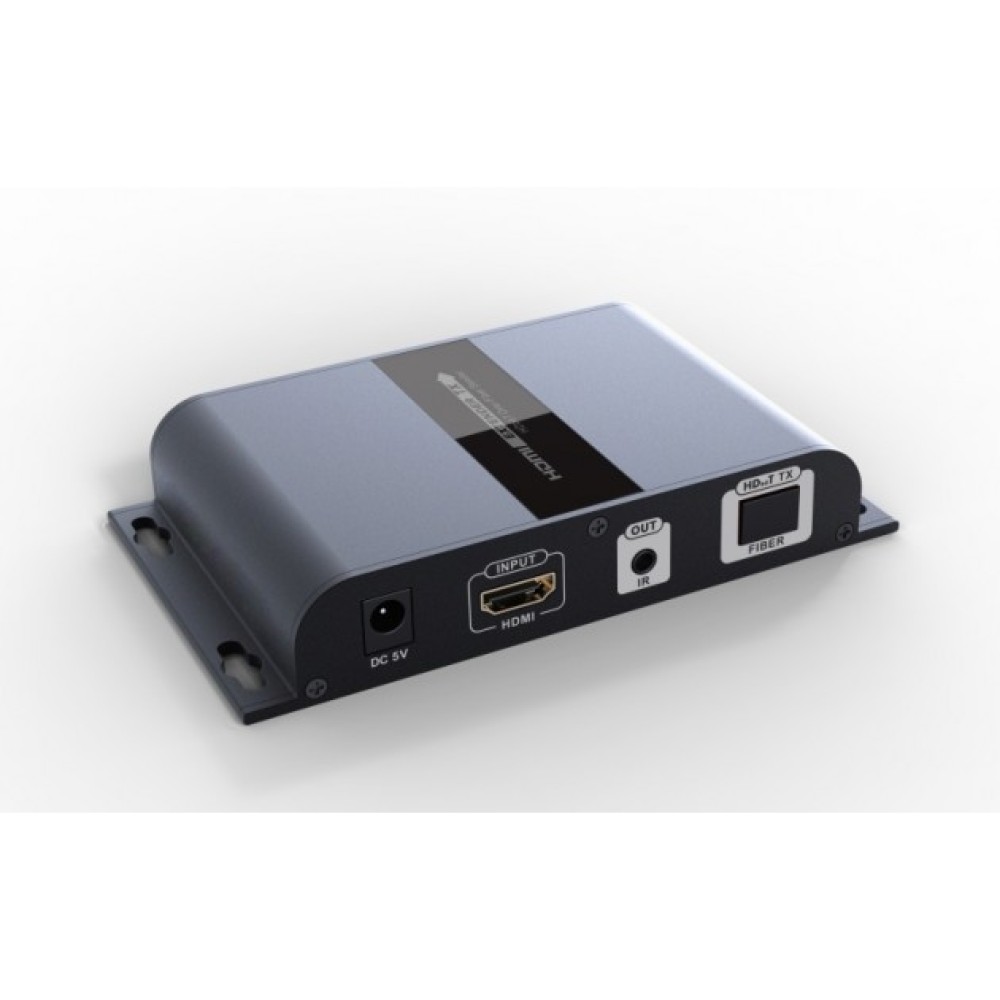

  • Transmitter inputs:
- 1x HDMI
- 1x 5V power supply
  • Outputs on the channel:
- 1x SC fiber door
- 1x IR transmitter
  • Receiver inputs:
- 1x SC fiber door
- 1x IR receiver (3.5 mm jack)
- 1x 5V power supply
  • Outputs on the channel:
- 1x HDMI
- 1x IR (3.5 mm jack)

Environmental characteristics
  • Operating temperature from 0° to + 50°
  • Humidity 10% to 85% RH (without condensation)
  • Storage temperature -10° to + 80°
  • Storage humidity 5% to 90% RH (without condensation)
Power
  • External 5V DC 2A power supply
  • Consumption (Max) Transmitter: 5W - Receiver: 5W
Size
  • Width: 13 cm
  • Depth: 8.5 cm
  • Height: 2.4 cm
Certification
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x Fiber Optic Extrender Transmitter
  • 1x Fiber Optic Extrender Receiver
  • 1x IR transmitter cable
  • 1x IR receiver cable
  • 2x 5V 2A power supply
  • 1x Installation Guide
Data sheet
general
Brand TECHLY NP Barcode 8054529028634
Color - Length -
Measure - Weight 0.7880
Codice Fornitore 028634
