HDMI HDbitT Extender Amplifier Kit on Double Cable 300mt

Cod: IDATA EXTIP-329

Barcode: 8051128100631

Supplier Code: 100631

Weight: 1.031 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA EXTIP-329
Barcode
8051128100631
Supplier Code
100631
Weight
1.031 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Tipo connettore B: HDMI-A
HDCP: 1.3

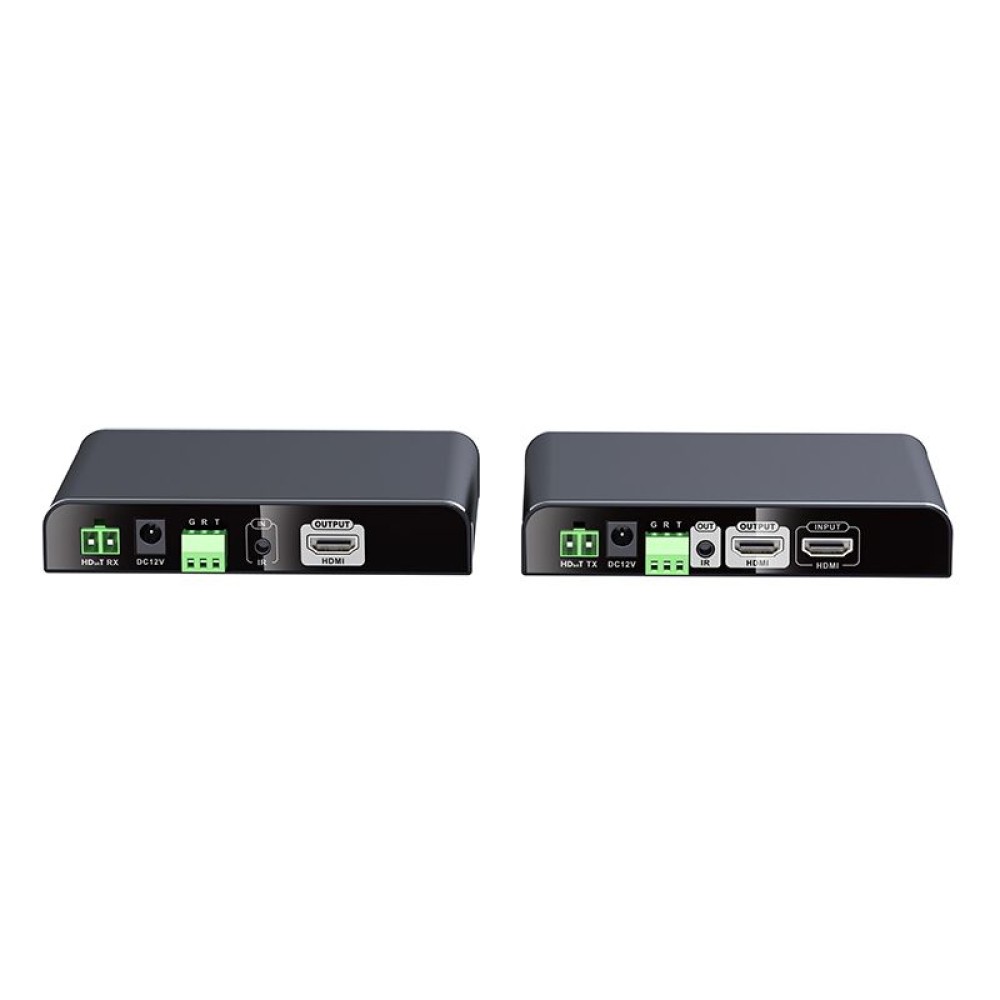

  • HDMI HDbitT transmitter + receiver extender kit
  • HDMI Extender with HDbitT protocol to extend transmission distances using two conductor cables, such as power cord, power cables, coaxial cable, telephone cord, and so on. Up to 300 meters
  • Supports bidirectional infrared control for remote device control
  • Supports Multicast connection from a transmitter to up to 4 receivers (even in cascade)
  • Supports HDMI 1.3 and HDCP 1.3
  • Maximum supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Supports PCM audio
  • DC 12V 2A power supply
  • Consumption (Max): TX: 7.5W; RX: 7W
  • Weight: 210g x 2, color: black
  • Measurements: Width: 228 mm Depth: 126 mm Height: 25 mm
Description

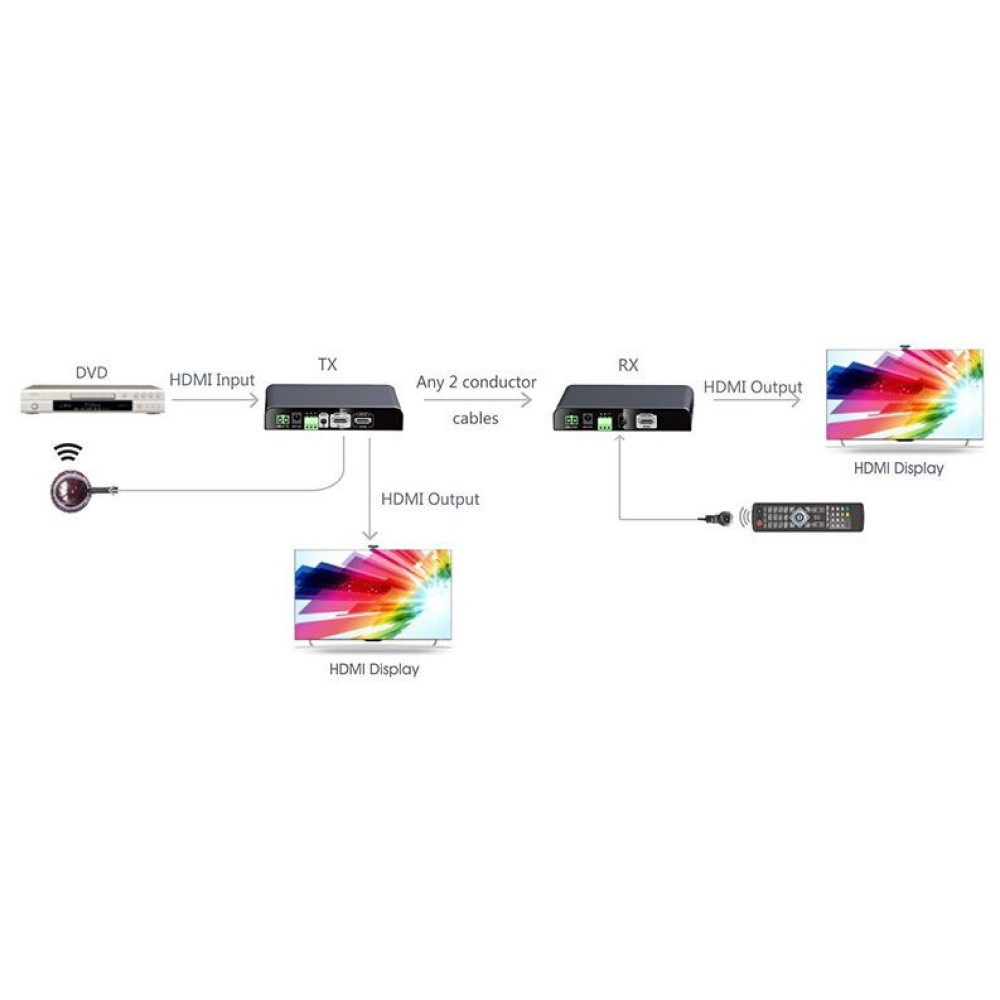

This Extender transmits and receives the HDMI HDbitT signal through two conductive cables, such as a network cable, electrical wires, coaxial cable, telephone cord, and so on. The product includes a transmitter unit and a receiver, the maximum transmission distance is 300 meters. Supports multicast: a transmitter unit can drive up to 4 receive units using 4 single wire pairs of over 300m each, or with a cascade connection between the receivers. It supports IR signal for remote control, PCM audio and is HDCP compatible 1.3. Thanks to its versatility it can be used both in the professional and domestic sectors.

Technical Specifications
  • HDMI HDbitT transmitter + receiver extender kit
  • HDMI Extender with HDbitT protocol to extend transmission distances using two conductor cables, such as power cord, power cables, coaxial cable, telephone cord, and so on. Up to 300 meters
  • Supports bidirectional infrared control for remote device control
  • Supports Multicast connection from a transmitter to up to 4 receivers (even in cascade)
  • Supports HDMI 1.3
  • Supports HDCP 1.3
  • Maximum supported video resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Supports PCM audio
  • DC 12V 2A power supply
  • Consumption (Max): TX: 7.5W; RX: 7W
Environmental Features
  • Operating temperatures: 0 °C ~ 60 °C
  • Storage temperature: -20 ~ 70 ℃
Dimensions, Weight, and Structure
  • Width: 228 mm
  • Depth: 126 mm
  • Height: 25 mm
  • Weight: 210g x 2
  • Black Colour
Certification
  • EC
  • ROHS
  • WEEE
Package Contents
  • 1x HDMI Extender Transmitter
  • 1x HDMI Extender Receiver
  • 1x IR transmitter cable
  • 1x IR receiver cable
  • 2x Power Supply 12V 2A
  • 1x instruction manual
Data sheet
general
Brand TECHLY NP Barcode 8051128100631
Color - Codice Fornitore 100631
input
Connector A Type HDMI-A format A connector female
Number A Connector 1
output
Connector B Type HDMI-A format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720p , Full HD 1920 x 1080
max bandwidth (MHz) - Deep Color -
HDMI 1.3 HDCP 1.3
3D compatible No Supported audio standards Yes
Transmission Distance 300 m
power supply
Power supply Requested (included)
dimensions
Width 228 mm Height 125.4 mm
Depth 25 mm Weight 1.0310
The package includes • 1x HDMI Extender Trasmettitore • 1x HDMI Extender Ricevitore • 1x cavo Trasmettitore IR • 1x cavo Ricevitore IR • 2x Alimentatore 12V 2A • 1x Manuale d’istruzione
